DEF - a programming language agnostic framework and execution environment for the parallel execution of library routines
Journal of Cloud Computing volume 5, Article number: 20 (2016)
There is high demand for library routines that can be included into arbitrary programs and executed in parallel in the Cloud. So our approach is to provide a framework that supports the parallelized execution of library routines, written in different programming languages, from any platform. Our Distributed Execution Framework (DEF) allows to (1) deploy arbitrary routines into a central library and (2) integrate these library routines at runtime into user programs in a way that allows the routines to be executed in parallel in the Cloud. The programming and runtime environment of the library routine is completely transparent to the user and the chosen programming and runtime environment. DEF provides client and library APIs with primitives like search_lib(), create_task(), submit_job() which are integrated into the user’s program to access the DEF runtime. DEF allows the user to configure clusters in a public/private Cloud and automatically distributes the tasks for executing the library routines on the workers of the cluster.
Parallel execution and pushing large and time consuming compute-tasks into the Cloud becomes more and more important. Several research projects and providers of execution environments work on tools and frameworks to extend a specific programming language or Problem Solving Environment (PSE) with features to enable their product for parallel execution, e.g. parallel fortran , Unified-Parallel C (UPC) , MATLAB . Cloud providers offer program language specific APIs for their Cloud environment to enable developers to integrate applications into the Cloud, e.g. Amazon Web Services (AWS)1.
In our EnFiLo2 project we were confronted with the situation that several analysts were working on different problems in the domains of energy, finance, and logistics, applying algorithms developed by themselves to complex optimization and simulation problems, each of them using their preferred programming and runtime environment. The analysts found out that a large number of algorithms developed by their colleagues could well be used for the problems they were working on, probably in just a slightly adapted, more abstract form, so that they could be applied to a different domain. And the analysts now wanted to find a way to reuse at least parts of the algorithms of their colleagues to make their lives easier and not always have to re-implement already existing code. So it is a central objective of the EnFiLo project to define and extract reusable parts of computationally complex algorithms in the form of library routines which can be executed in parallel and which can be used across domains. Though the resulting library routines were reusable and domain independent, the next problem was that the analysts were using different programming and runtime environments, which means that the reusable library routines could not directly be invoked from the runtime environments of the colleagues. Therefore a solution must be found to enable the parallel execution of library routines which can be written in an arbitrary programming language and which can be invoked from applications also written in an another programming language, without the application programmer needing to know the implementation details or programming language of the library routine used in his application. This was the idea to develop the Distributed Execution Framework (DEF).
Therefore the central goal of the DEF is to develop a system that allows for parallelized execution of library routines, independent of programming languages or platforms. We found that, before the DEF, there were no environments that support the parallelized invocation of tasks across arbitrary execution environments. In this paper we describe the design of a flexible, easy-to-use framework and execution environment that allows the parallel execution of library routines across different runtime environments invoked from some arbitrary client.
The DEF allows to (1) deploy arbitrary routines into a central algorithm library and (2) integrate these library routines at runtime into user programs in a way that enables the routines to be executed in parallel in the Cloud. Figure 1 illustrates that users can integrate implementations of their algorithms into an algorithm library. These library routines typically represent reusable modules which are invoked several times to operate independently on different data sets within larger programs. The developer can choose an arbitrary programming language or PSE to implement the routine. In this sense, the library routines follow the Single Program Multiple Data (SPMD) model [4, 5]. Every library routine needs to have a signature description document in which the interface of the library routine is defined.
Based on the signature description document, any user can call the routine from any client program by applying it to the correct parameters and data. Typically, these library routines are called multiple times within a loop which is referred to as “loop parallelization” (, p. 122). Therefore these routines represent the computationally intensive and time consuming parts of the program, which predestines them to be executed in parallel on the worker nodes of a compute cluster.
An a priori analysis of the problem sets in the EnFiLo project revealed that the applications to be developed for our project can be reduced to calls of embarrassingly parallel computations, which means that the same routine is invoked in parallel on different independent input parameter sets, i.e. there is no communication required between the parallel computations (, p. 60) (, p. 121). The parameters (esp. large collections) for the library routines can be uploaded as shared resources before the library routines are invoked (call by reference) or they (esp. small base type parameters) can be directly attached to the routine call (call by value). The DEF then distributes the library calls among the worker nodes of a compute cluster. The results of the calls can synchronously or asynchronously be retrieved from the DEF and can be used for further computations.
To be able to provide flexible cluster structures we have set up the DEF on Cloud technologies. In this sense, the DEF could be viewed as a PaaS (Platform as a Service)3 that enables the deployment and concurrent execution of library routines. To be installable on multiple platforms, the DEF runtime environment is implemented in Java. With the DEF we want to achieve the following benefits:
High performance through parallelization
High efficiency by utilizing potentially all available (local) resources
High scalability by using elastic Cloud technology
High user acceptance by providing a simple API for integrating the parallel invocations of library routines into user applications
High flexibility by offering a programming language independent library of efficient algorithm implementations that can be integrated into user applications
Openness to different data formats regarding input and output parameters by using JSON as data exchange format
The DEF components are deployable on all common desktop-server hardware/OS platforms
Support users on searching for appropriate algorithms in the library
Security by supporting private and public Cloud infrastructures on demand
The novelty in this approach lies in enabling parallelized invocations of library routines, completely independent of programming languages or platforms. This is achieved by decoupling the client program from the implementation of the library routine and by dynamically distributing the library routine invocations to available worker instances in the cloud. This provides for programming language and platform independence as well as elasticity for large scale computations. To give an example: With the presented approach, analysts will able to execute MATLAB code in parallel without using MATLAB Parallel Computing Toolbox, invoked from a client implemented in Python. In this example the DEF shows an approximately linear speedup by adding more worker nodes.
State of the art
A central issue of this project is to bring together techniques for (A) Parallel Execution of Procedures, (B) Platform and Programming Language Independent Invocation of Remote Procedures, and (C) Distributed Execution Environments. A superordinate topic for all remote/distributed execution techniques is security which is crucial for running real world applications in distributed environments, especially in the Cloud.
Parallel execution of procedures
The message passing model focuses on exchanging messages between interacting parallel processes, while each participating process has its own address space (, pp. 10). Its most important representatives are the Message Passing Interface (MPI)  and Parallel Virtual Machine (PVM) (, pp. 29) of which MPI turned out to be more successful. MPI is based on a bidirectional interprocess communication (IPC). There are implementations of MPI for a large number of programming languages. MPI is still widely used for parallelizing programs which makes it something like a de facto standard for message passing applications. On the other side, all parts of the parallel application must be implemented in a specific programming language for which MPI is available and the MPI constructs with their dependencies tend to complicate the code which makes MPI a complex framework, especially for users with a non-programming background, like many data analysts.
The shared memory model is based on a Parallel RAM (PRAM) . The processes in a shared memory system share a single address space. They communicate by reading and writing shared variables (, pp. 10). The most widely used implementation for shared memory systems are threads (POSIX, NT) and directives like OpenMP  (, pp. 29).
For a shared-address-space, the memory must be accessible to all processors. In a distributed system we have autonomous hosts each having its own local memory. But a shared memory system can be emulated on a distributed system using distributed shared memory (DSM) .
According to Mattson (, pp. 13) neither MPI nor OpenMP provides an optimal solution for hybrid architectures that aggregate multiprocessor worker instances, each with multiple processors/cores and shared memory, to larger systems with separate address spaces for each worker. He also states that programs that make use of MPI instructions can be difficult to implement, because the programmer must take care for distributing the data and is responsible for configuring the messages required for IPC (, p. 13).
An important issue for our project is that the application developers implementing the programs that make use of the DEF and the offered library routines do not want to get involved with complicating IPC and the corresponding message configuration. For our problem sets of embarrassingly parallel computations with different independent input parameter sets, we have routines that do not communicate with concurrently running processes and they write the results to separate result entries that do not conflict with the result entries of the other concurrent processes. Therefore, for this scenario, we can expect a minimum of conflicts between the concurrent processes, which means that we do not need to consider any process communication during the execution of a library routine. For the same reason, we did not build our DEF on models like Partitioned Global Address Space (PGAS) .
Platform and programming language independent invocation of remote procedures
If we want our compute cluster to be independent of a specific underlying platform, it is the simplest way to make use of virtualization for being able to run a specific platform on top of all available worker hosts, independent of their underlying hardware configurations and installed operating systems. A common technology that combines virtualization with distributed systems is Cloud computing.
Cloud computing allows flexible access to a seemingly unlimited number of compute resources which can be flexibly configured with little effort and which can be measured so that the usage could be charged “pay-per-use” . Because of these features, the Cloud is a good source for compute resources to be used for HPC [15, 16].
There are different approaches of how to apply High Performance Computing (HPC) on the Cloud, depending on the parallel computation model [17, 18]. This means that there are examples for Cloud based MPI implementations, e.g. [19, 20]. And there are also few publications that deal with distributed shared memory solutions in a Cloud environment. One is restricted to an implementation for UPC  and as an alternative there is an implementation for Cloud task parallelization in.NET . We have discarded the process communication approaches, hence these examples will not be taken into further consideration for our solution. Still Cloud computing in general is a strong technology that enables an elastic acquisition of compute resources which can be flexibly configured, e.g. with different platforms and runtime environments.
Programming language independent remote invocation
There had been a few approaches for programming language independent execution environments of which Common Object Request Broker Architecture (CORBA) and Web services are the most popular ones which are still in use.
CORBA  enables the invocation of remote methods in an object oriented fashion across platforms and programming languages [24, 25]. CORBA proofed to be very stable , but there are also a number of drawbacks that limit the applicability for our purpose . One issue is security; CORBA messages are sent unencrypted between the participating hosts and to grant remote access to CORBA objects, the firewall must open up TCP-ports for each service. This cannot be tolerated for public Cloud environments. Another issue is that CORBA does not support MATLAB and Octave, which is essential for our project. Because of these shortcomings, CORBA cannot be an adequate environment for our purposes, even though there are extensions of CORBA that would allow the parallel execution of tasks [28, 29].
Web services is an underlying technology of Cloud computing that enables the programming language independent call of procedures on compute nodes in the Cloud. They provide synchronous and asynchronous calls of remote procedures. There are two types of Web services: RESTful  and SOAP Web services . In Pautasso et al.  give a deep insight into the differences of both technologies. While SOAP Web services with their mandatory WSDL4 interface definition support both static calls and dynamic invocation, RESTful Web services only allow dynamic invocation without the possibility for generating client side stubs. Web services are not object oriented, but if the service is implemented stateless and side effect free, then it would have no negative effect on calling independent routines from a library.
Both CORBA and Web services allow static calls using client stubs and dynamic invocations. In our case, dynamic invocations provide more flexibility when calling routines that can be added to the library on the fly. Additionally, no stubs have to be generated and compiled before the client can invoke a library routine. Therefore Web services provide a good foundation for invoking routines in a distributed Cloud environment, but both Web services and CORBA offer no support for the parallel execution of routines. With the strong integration of Web services into Cloud technologies, we decided to setup the communication our DEF environment on RESTful Web service techniques.
Distributed execution environments
Distributed execution environments ease the development of distributed applications that can be executed on typically heterogeneous computing resources connected via network. A central characteristic of a distributed execution environment is distribution transparency .
There are distributed execution environments that allow to implement distributed applications for specific programming languages, e.g. DJO . Others concentrate on the distribution of workflows, for which specific workflow modeling languages are defined, e.g. [35, 36]. These solutions are programming language specific and provide no solution for the parallel execution of tasks.
Apache Hadoop5 is a framework for the parallel distributed processing of data. With its MapReduce implementation it is focusing on “Big Data” applications and supports different programming languages only through its streaming API. Apache Spark6 is only available for Java, Scala, Python, and R. The Big Data frameworks typically execute the analysis routines where the data is, because of the huge amount of data that is too expensive to move. This is not an issue for the type of problems that we are dealing with in our project. Established cluster frameworks, like Globus7 and SGE8, require knowledge about the runtime environment and specially prepared programs along with the data for execution. Our framework should be able to utilize any available cluster resources by simply using the framework’s client APIs from an arbitrary programming language.
Another interesting approach is Berkeley Open Infrastructure for Network Computing (BOINC)9. BOINC is an open source framework for distributed applications. Originally implemented for the SETI@home project, it is designed for volunteer computing (scientists), creating a Virtual Campus Supercomputing Center (universities), and desktop Grid computing (companies). It supports a large number of operating systems and is running on several hundred-thousand hosts. BOINC provides a C++ API, but there are also wrappers for Fortran, Java, and Python, while PSEs like MATLAB and Octave are not supported. Parallel invocations of procedures are possible using MPI, but only on a single host. So a synchronization of concurrent tasks is not possible across multiple hosts.
Ludescher et al.  provide a code execution framework that allows to upload code for a set of programming languages and PSEs into the Cloud and invoke this code from within some client program written in some other programming language. Their framework uses Web services for invoking remote procedures in the Cloud and the underlying concept is independent of programming languages or PSEs. This approach does not support library routines in our sense and it lacks the potential to execute code in parallel, but the idea behind it could be a base on which we can build up our DEF system.
Some of the research performed in the EnFiLo project is highly sensitive: banks, insurance companies and utilities who handle highly confidential customer data are partners in this project. Clearly none of the partners will accept an insecure environment, which is especially relevant for computations in the Public Cloud. Hence, security is an eminent factor. We therefore need to provide solutions for securely transferring confidential data across public networks and trustworthy executing calculations based on these data in off-premise environments.
First of all, data privacy has to be ensured, i.e., only authorized personnel is granted access to the data. The communication channels can be encrypted by proven techniques like Transport Layer Security (TLS) using HTTPS. But the data also has to be secured while being stored in the DEF and in the cluster. We therefore need an authentication mechanism for accessing this data. Authentication is also required to invoke library routines on the cluster. It is a central functionality of the DEF to distribute the tasks of a user’s program across the available worker nodes. All these tasks must be executed on behalf of the authenticated user that started the client-side program. Therefore a single sign-on (SSO) system with ticket delegation can be used to manage authentication and authorization in the DEF. Kerberos10 provides a promising solution for these issues. Kerberos can be adapted to work within a Cloud infrastructure11 and it is able to work in mixed environments, support dynamically generated DNS names, and work with tasks running for several days12. To secure the infrastructure it is necessary to implement a two-way authentication mechanism, which means that both client and server must be able to verify the counterpart’s identity. We can handle this issue by injecting the security credentials into the dynamically created virtual machine instances during its boot sequence. The whole security concept is described in detail in Ludescher et al. .
There is a range of security risks that apply especially to Cloud solutions [39–43]13. A central issue with regard to processing sensitive data in the Cloud is trust with respect to the Cloud provider: The data and the software owned by the customer must be transferred to a Cloud resource in a Cloud environment, which is completely under the control of the Cloud provider and its administrators, as described in Wan et al. . Therefore inspection or modification of data or software by the Cloud provider cannot be ruled out. In Descher et al.  a Secure Virtual Machine (SVM) for the Cloud is described that defines a complete chain of trust for a virtual machine image that can be installed on a Cloud resource. The SVM consists of an encrypted partition and a special boot system and is based on the Trusted Platform Module (TPM), ensuring a trusted boot sequence and system startup, and includes a Xen aware implementation of SELinux14 by Barham et al. . This guarantees that only authorized virtual machines with verified images can be used as workers. Using this SVM, the Cloud provider could still inhibit the execution of the Cloud image, but it can no longer view, inspect, or manipulate data and software without being detected by the customer who owns the data and software. Another solution for a trusted IaaS Cloud environment is introduced by J. Seol et al. in .

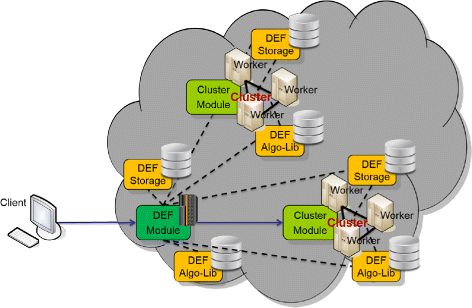

The DEF features a modular architecture. All functionalities are encapsulated and provided via a facade. This guarantees a high level of abstraction and allows the exchange of tools, frameworks and techniques used in the prototype. Figure 2 gives a schematic overview on the top-level architectural components of the DEF.
DEF Module: Central module that manages all clusters, the library routines, handles the client requests, and redirects the job-related client requests to the corresponding cluster modules; it provides its own DEF Storage for holding persistent job results; it offers a (RESTful) Web service interface for all DEF functionalities; the DEF module is typically installed within the private Cloud. Client: Runs on basically any platform that allows HTTP-calls; communicates via Client-API with the DEF Module through RESTful Web services. DEF Algo-Lib: Network storage that provides executables, dependencies, and signature documents of the library routines; all worker instances of a cluster have read-only access. DEF Storage: Network data store, provides storage space for library routine calls, including shared resources for parameters, results, and logs. Worker: Worker instances are used to execute the single tasks, representing a library routine call, invoked by the client; every worker is assigned to exactly one cluster; a worker is based on a virtual machine image providing the different runtime environments for executing the library routines; the worker functionality is implemented in a Worker Module which allows the invocation of the library routines and, via a Worker-API, allows the library routine to interact with the DEF. Cluster: A Cluster comprises a Cluster Module and a set of worker instances that operate on a coherent problem (program) and therefore share the same DEF Storage. All workers of a cluster are located in the same region of a (public) Cloud; a cluster is managed by a Cluster Module and has its own instance of a DEF Algo-Lib. Cluster Module: Central DEF component of the cluster; it manages the worker instances and the jobs that are to be executed within the cluster; the Cluster Module provides a scheduler and load balancing facilities to distribute the tasks among the cluster’s worker instances; it is started as a separate process within the cluster. For the first prototype we decided to use NFS as a distributed storage technique for DEF Algo-Lib and DEF Storage, because it is integrated into the Linux operating systems (used by the worker instances) and well supported by all programming languages and PSEs used for the algorithm library.
To allow an easy and elastic configuration of the cluster, our workers run within a Cloud environment . The following Cloud infrastructure environments are used for the first prototype:
Eucalyptus for private Cloud 15
Amazon Web Services (AWS) for public Cloud 16
StarCluster17 helps to configure and maintain the cluster in our Cloud environment.

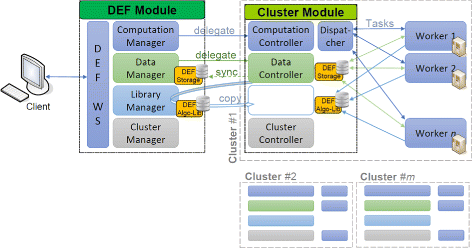

Overview of the DEF components
DEF Module and Cluster Module encapsulate smaller components, which have their corresponding counterparts on the DEF Module and Cluster Module side, respectively, see Fig. 3. The DEF Module components have a superordinate function and usually delegate to the corresponding Cluster Module components: DEF WS: Web service interface, single point of access for all clients using the DEF; distributes the incoming requests to the corresponding components. Computation Manager/Computation Controller: Initialize the DEF Storage and its internal structure; manage the compute jobs, their shared resources, results, and status changes. Dispatcher: Manages a scheduling queue for distributing the tasks among the available worker instances; in the current prototype implemented by JPPF18. Data Manager / Data Controller: Manage access to (shared) resources and results from DEF Storage and control access to it; synchronize data between the DEF Storage of the DEF Module and the DEF Storage of the Cluster Module. Library Manager: Manages the DEF Algo-Lib; provides a unique reference ID for each library routine; enables the deployment of new routines; allows a search for library routines; provides a version of the DEF Algo-Lib to each cluster. Cluster Manager: Manages clusters; creates clusters according to the preferences of the user; configures the cluster with a DEF Algo-Lib and DEF Storage; aggregates resource consumption of the managed clusters; enables the deletion of clusters. Cluster Controller: Creates and manages worker instances; monitors running worker instances; aggregates resource consumption of the managed workers; enables the deletion of workers.
The workers run as separate (virtual) machines in the Cloud. To provide a maximum of flexibility and to allow all available library routines to be executable within the cluster, all workers are homogeneous with regard to the installed software. This means that the runtime environments for all library routines need to be installed at all workers. The workers also provide a Worker Module with an API that allows the DEF to invoke the library routines, which is currently performed by a sys-call. One requirement in the project was to keep the usage of the workers simple and cheap, even for a large number of workers. This means that the workers must be free of license costs. We therefore chose Linux as operating system and all installed runtime environments are also free of charge. Even the MATLAB runtime19 can be installed free of license costs on each worker, which allows to also execute (compiled) library routines written in MATLAB to be executed in parallel on the DEF workers.
API description and invocation of library functions
After a first analysis of the problem sets to be solved by the different project partners, we found out that they typically follow a common pattern. The problem is formalized by some programmer in an arbitrary programming language/ PSE within a program. The program usually consists of segments with dependencies amongst each other, which means that these segments have to be executed in a certain sequence. These segments are denominated as jobs and it must be ensured that a predecessor job has to be completed before the successor job can be started. Within the jobs, we often find sections, embraced by loops, that repeat a sequence of operations independently of the other loop iterations, following the “loop parallelism pattern” (, p. 122). These loop iterations can be executed in parallel and are called tasks. The client application developer has to identify the tasks following the “task parallelism pattern” (, p. 64) (, p. 86). A job in our client applications may consist of a set of independent tasks that can potentially be executed in parallel on the worker instances of the DEF. The tasks are represented by library routine calls from DEF Algo-Lib. After all tasks have finished, the results of the tasks can either be completely downloaded to the client or a reduce step can be appended at the cluster, in which a simple cross-task operation can be applied to the tasks’ results for consolidation. Figure 4 depicts the relationships between the central operational entities of the DEF described above.
This outline of program, job, task determines the structure of the client application and strongly influences the internal structures provided by the DEF Storage. Each program, job, and task has a unique ID which is implemented as a UUID. The DEF Storage builds a hierarchy on these UUIDs in which the program-UUID contains all resources of the program, including its jobs, the job-UUID contains all resources of the corresponding job, including its tasks, and the task-UUID contains all resources of the corresponding task, including its results and log data. The DEF Storage is currently implemented as a file system and therefore results in a directory structure like the following:
The DEF enables a client to execute a program consisting of a sequence of jobs that are executed sequentially within a compute cluster, while the jobs may consist of tasks being executed in parallel at the workers of the cluster. The functionality offered by the DEF is provided through Web services and can be invoked through a Client-API with the following (pseudo code) calls:
The structure of the client application could exemplarily look like the following Java-like pseudo code in which choose_best_result() represents an arbitrary client side procedure that reduces the set of results returned by the tasks to a single result (the real client can be implemented in any programming language/PSE that allows RESTful Web service calls):
While the DEF Module is typically running within the private network of an institute or a company, the Cluster Module and the workers are arranged in a compute cluster that is set up in either a private or a public Cloud. The first prototype of the DEF does not provide a fully implemented Cluster Module and Cluster Manager. It assumes that the cluster is already configured - we are using StarCluster for that which supports the setup of clusters in AWS and Eucalyptus environments. JPPF then automatically distributes the tasks among the workers of the cluster. Currently every DEF Module only supports a single cluster which means that only a single program can be executed at any point in time.
The next version of the DEF will allow to flexibly define and manage clusters meeting the demands of the program that is executed on the cluster. This means that the init_cluster() function has to instruct the Cluster Manager to configure a cluster of a specific size in one of the available Cloud environments on demand. The client side programmer can specify in which Cloud environment its program will be executed. The different Cloud environments may have specific, proprietary APIs and VM image formats. Hence, for setting up the cluster, the DEF will need to support the Cloud APIs and VM image formats for the Cloud environments used by the project partners. This means that the VM images for the Cloud Controller and for the worker must be adapted for the different Cloud infrastructure environments (e.g. AWS, Azure20, OpenStack21, Eucalyptus). The initialization of the cluster, implemented in init_cluster(), will be based on the following scenario:
The Cluster Manager starts a virtual machine (based on a specific VM image) for the Cluster Module (with DEF Storage and DEF Algo-Lib), using the specific Cloud API.
The Cluster Manager takes control over the Cluster Module and registers the new cluster (establish a contract).
The Cluster Controller starts virtual machines (based on specific VM images) for the workers and determines their IP addresses, using the specific Cloud API.
The Cluster Module takes control of the workers, using the DEF Worker-API which allows the Dispatcher to invoke library routines and control their execution. This enables a trusted communication between the DEF and the workers, while the parameter exchange at the workers is handled by the Library Routine-API.
The construction of the cluster is completed, the contracts between the participants are established.
This extension allows the DEF to manage several programs executed in different clusters at any point in time and in different Cloud environments. The Cloud APIs of the Cloud infrastructure environments allow to dynamically adapt the number of machine instances. Therefore the DEF could be extended by additional Client-API functions to dynamically increase or decrease the number of worker nodes in the cluster at runtime. The user can then accelerate or slow down the execution of a job within a program if that makes sense for him.
Figure 5 shows the processing of a job (initiated by a client) which consists of the following steps:
Client submits a job
Tasks of the job get scheduled: Job status set to “scheduled”
Tasks of the job are executed on the workers: job status set to “run”
Execution of the tasks is completed: Job status set to “success”, results & logs are available
Client requests the results
The job result (collection of task results) is downloaded to the client
The job results can afterwards be evaluated by the client and used for further processing in succeeding jobs.
The worker module maps a dynamic DEF library routine invocation to a call of a specific library routine deployed in one of the supported runtime environments. The library routine needs to interact with the DEF to access the resources managed by the DEF which the library routine needs to execute. These resources could be shared resources, results, logs, or nested calls of other library routines. The access to these DEF functionalities is handled by a Library Routine-API which is available in different programming languages/PSEs and offers the following procedures:
The procedures get_library() and exec_library_routine() support additional functionalities for library routines to invoke library routines.

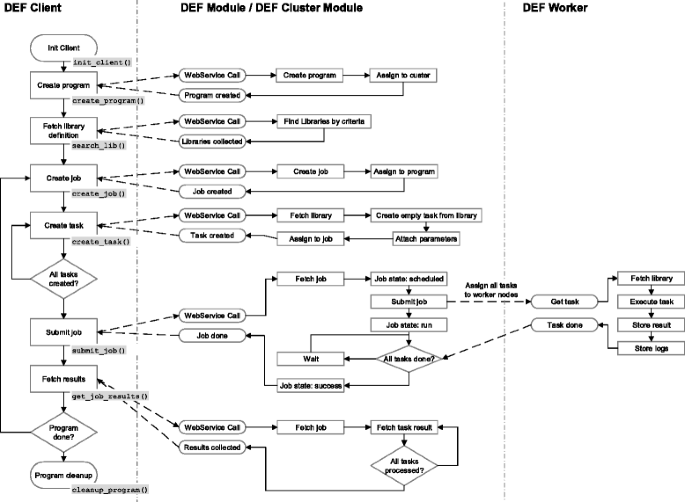

Figure 6 gives a complete overview of the central functionalities for executing a client program on the DEF and it documents which actions are initiated at the DEF Module/DEF Cluster Module and the DEF Workers by which Client-API call.
To deploy a library routine to the DEF, the library routine must be converted to a package which includes the specific routine (in an executable or parseable format, according to the programming language or PSE), its dependencies and a signature document. The signature document provides information about the execution environment, the input and output parameters, a unique name of the library routine, a version number, and a natural language description of the routine.
The current prototype supports the complete workflows for both library routine developers and library routine users: New library routines can be deployed into the DEF Algo-Lib using a tool that generates the signature document and uploads the routine; the DEF Algo-Lib can be searched for library routines (see Client-API: search_lib()), the library routine’s signature description can be downloaded via Web service API and the library routines can be invoked.
In the currently implemented first prototype, the DEF system only spans a single cluster. This means, a Cluster Manager is not required and the tasks of the Computation Manager and the Data Manager are taken by the Computation Controller and the Data Controller, respectively. This does not restrict the significance of the prototype in terms of proof of concept, as the current DEF prototype can serve several clients and multiple jobs at the same time. In a next step, we will implement the missing components and provide a fully functional DEF, which supports the management of multiple clusters.
The Client-API and the Library Routine-API currently support the following programming languages/PSEs:
The client can invoke library routines in a synchronous and asynchronous version if this is supported by the programming language / PSE in which it is implemented. DEF Library routines can call other DEF library routines or can invoke themselves recursively; due to limitations of the JPPF scheduling, this repetitive call of library routines is restricted to only one level. The library routines currently included in the DEF Algo-Lib are mainly optimization and simulation algorithms for problems from the energy, finance, and logistics domains, as they are required for the project.
First tests for stability and load distribution were performed with multiple worker instances on a local blade center and on Amazon AWS. The DEF and its worker instances are running stably and the communication between the components is reliable.
We found out that the load balancing based on JPPF is static and therefore does not always work as desired . The available cluster resources represented by the workers are not always completely used by the scheduler and it turns out that sometimes free workers are not served with tasks that still need to be executed. This is an important performance issue and another reason for us to replace JPPF and its scheduler in future versions of the DEF.

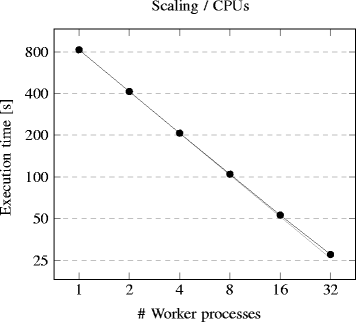

To measure the performance and scalability of the DEF System, a simple library routine to calculate π according to the following function (, p. 129)
was implemented. This integral can be solved in a numerical way. The advantage of using the above function within a test routine for the DEF is that the computation can easily be expanded for a higher accuracy of π and it can also be split up into independent portions of nearly any desired size. The portions can then be easily distributed among any number of nodes for which the DEF should be tested. Another advantage is that the execution time doesn’t get too long, even for a large number of tasks.
The serial calculation with 1011 iterations and a step size of 1/1011 serves as reference value. To calculate π in parallel, the geometric decomposition pattern is used to split the iterations up to 100 identical parts (, p. 78) (, p. 100). Figure 7 shows how DEF scales with 1, 2, 4, 6, and 8 workers. Every worker uses a single CPU and one working thread. As a reference, the computation is also carried out sequentially on a local host (without DEF) resulting in a mean execution time of 813 s.
The gap between sequential execution on a local host and parallel execution with one worker instance on the DEF is about 40 seconds. This gap is caused by
the communication between client and DEF,
internal communication and distribution within the DEF,
initiating a new process for each task, and
the reduce step (calculating the arithmetic mean) on the client side

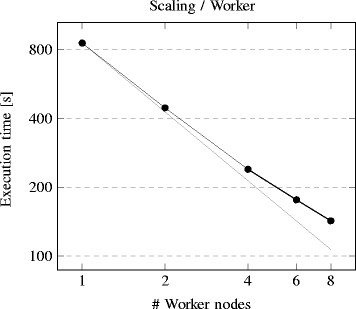

and it is not really relevant for long running tasks. Figure 7 also illustrates that the DEF system scales well with an increasing number of workers: 2 workers solves the problem 1.9 faster than 1 worker, 4 workers act 1.8 times faster than 2 workers and 8 worker act 1.7 times faster than 4 workers.
The parameters for the test routine are small scalar values and therefore provided on a “call by value” base. Large parameters that are provided on a “call by reference” base are loaded from / stored to the DEF Storage, which takes significantly longer to access than “call by value”. On the other hand, each parameter is accessed only once during task execution and therefore this overhead can be neglected for tasks with a long execution time. This means, the results gained from the execution of the test routine can be transferred to long running tasks executing routines from our algorithm library.
We finally want to optimize the overall execution time of the problem on a given number of workers. Every task causes some fixed overhead for initialization and invocation. So if the execution time for a task is reduced, the ratio between the overall execution time and the number of tasks deteriorates. This means that we would have an optimal ratio of execution time and number of tasks if we could provide every worker with a single (equivalent or uniform) task. On the other hand, the client application developer cannot always split up the problem into a fixed number of tasks so that the number of tasks is identical to the number of workers or a small multiple of it. In many other cases a DEF user may not know how many worker instances are available when his job will be executed. Another issue is that the worker instances are not necessarily homogeneous and therefore require different execution times for identical tasks. In these cases, the number of tasks cannot be evenly distributed among the workers and this means that some workers still need to work on a task while other workers have already completed their task and run idle. We analyzed the π-calculation problem on an 8-worker cluster to be split up into 10, 50, 100, 500, and 1000 uniform tasks respectively. For our example scenario it turned out that the setup with 100 tasks performed best, as shown in Fig. 8. This relationship of course varies with the number of worker instances and we found that the scheduling algorithms at JPPF are optimized for large numbers of tasks. But this result confirms Ian Foster’s statement that there should be at least an order of magnitude more tasks than worker instances  and it also shows that the overhead for using the DEF is not very high compared to the performance gain that can be achieved through the parallelization enabled by it.
For the sake of completeness we have compared the DEF prototype with an implementation of MPI on the π-calculation problem above. In both cases the calculation is running 1011 iterations on 4 physical nodes with each 8 CPU cores. While we can see from Fig. 7 that the DEF’s performance shows a significant deviation from the ideal inversely proportional behavior for an increasing number of worker nodes, even with 8 worker nodes. In comparison, Fig. 9 shows that MPI accomplishes a nearly perfect linear behavior with an increasing number of processes, even for 32 processes. It is obvious that MPI scales better than the DEF, because it is optimized on communication and reduced overhead for starting processes. This gets explicit by comparing the overhead for executing a computation on a single host without parallelization compared to starting it within the MPI runtime environment on a remote host. Based on our π-calculation scenario we found that while MPI takes 200ms to start an execution directly on the cluster nodes, DEF needs about 40s to start a remote execution of some task from a remote client over the network. The reason for the delay at the DEF lies first of all in communicating the Client-API commands between client and DEF via the network, but also in initializing the dynamic directory structures in the DEF Storage and in an inefficient communication between the scheduler (JPPF) and the worker. In the upcoming version of the DEF we will reduce the overhead caused by creating the DEF Storage structures and by the scheduler which will also improve the scaling behavior of the DEF. On the other hand, there will always be some delay between the execution of a DEF program and an MPI program which has to be paid for the conveniences provided by the DEF: The MPI offers no programming language independence for the different parts of the implementation and the number of worker processes must be defined before the execution is started and should match the number of available CPU cores for optimal performance.
The DEF follows a completely new approach which decouples the client side implementation of some program from the implementation of the server side which consists of a set of library routines. At runtime, the DEF distributes the library routine calls within a Cloud cluster. An arbitrary client program can use the DEF to coordinate the parallel execution of the library routines to be invoked. It is especially the programming language independence of the client side code from the invoked routines that distinguishes the DEF from other parallelization frameworks for clusters.
The first prototype of the DEF has proofed that our concept is feasible. All intended features mentioned in Section Introduction could be achieved. We can now easily initiate parallel invocations of library routines in a Cloud cluster, set up by a client program written in a programming language different from the programming language in which the library routine was developed in. This means, for example, that a library routine implemented in MATLAB can be invoked as often as necessary on the worker nodes of a cluster, started by a program implemented in C#. The execution of the MATLAB routine does not even require the installation of the MATLAB Parallel Toolbox - the installation of the freely available MATLAB runtime on every worker is enough to execute the MATLAB routine in parallel on the cluster. The user can therefore save the costs of the licenses for the MATLAB Parallel Toolbox which otherwise would be required for every single worker node.
The overhead for starting a larger number of long running tasks in parallel is acceptable and the system has been tested with several different library routines in different Cloud environments. The current version of the DEF was implemented as a proof of concept, based on simple technologies, which means that there is also some potential for improvements in the details of its implementation. However, these upcoming enhancements are restricted to security and optimizing the runtime behavior of the complete system by adding additional features like a worker-side reduce step to the DEF or coming up with a solution for fast data provisioning for which there are established techniques around. So the innovative part of the DEF development has been done in providing the architectural prototype, while the next steps in making it a production ready system are more or less restricted to applying well-known technical solutions.
For reasons of simplicity, the tasks on the workers are currently invoked by sys-calls. The corresponding initialization of the new process and the following process communication with the different runtime environments is relatively inefficient. It is planned to provide a runtime-pool of initialized PSE and programming language runtime environments that are instantiated on the workers at startup and wait for incoming task requests. The tasks can then be executed as threads. This will bring a high gain of efficiency, especially for short running tasks, as the overhead for starting the tasks will be significantly reduced.
In the first version of the DEF prototype the resources (parameters, results, logs) used by the library algorithms are stored on a file system mounted to the workers via NFS. For the next version of the DEF we are looking for solutions that allow faster access to the resources. Promising candidates are distributed (in-memory) key-value stores which are currently evolving in multiple implementations.
We also plan to optimize the up-/down-load of large parameters from the clients to the DEF which is currently handled by Web service. For the productive operation of the DEF we need more reliable and faster solutions similar to GridFTP .
Another objective for optimization is the scheduling of the tasks. The first prototype of the DEF is using the JPPF which provides its own scheduler that can be configured to some certain extend. Nevertheless we soon found out that the JPPF scheduler does not satisfy all our needs; it especially does not support dynamic load balancing. We plan to evaluate flexible scheduling methods that allow a dynamic allocation of tasks to workers driven by their current load. This could be done by learning from previous executions of the algorithm or by simulation. The new scheduler must be extendable for load balancing capabilities.
In discussions with our project partners we found that the relevant result of a job often is not the complete set of the results of its tasks, but probably only the “best” task result or a simple transformation over a set of task results. Often the result the user is interested in can be determined by a simple operation on the set of task outputs resulting from a job. Such an operation can be viewed as a reduction step (, p. 90). Currently this reduce step needs to be executed as a separate job to be executed on some worker or at the client after the last task of the current job has finished. Therefore we plan to extend the execution of a job by a sequence of flexible reduce-steps after its tasks have finished. In these reduce-steps the results of the tasks can be consolidated by a cross-task operation right at the worker locations without having to start a separate “reduce” job after the preceding job.
Another performance improvement for specific programs would be the support of a master/worker paradigm (, p. 122) in which an arbitrary program can be deployed and executed within a DEF cluster as a “master” which can directly invoke tasks on the workers of its cluster and therefore circumvents the DEF Module for executing tasks.
To be able to easily monitor performance measurements, we plan to implement an automatic monitoring of execution time, CPU, and memory usage for tasks and jobs with the upcoming release of the DEF. The next version of the DEF should also fully implement the planned architecture by splitting up the components to a DEF Module and a Cluster Module and developing the Cluster Controller. This will allow the dynamic creation of clusters and the dedicated addressing of specific clusters (in a private or public Cloud) by programs executed by the users. Finally we plan to introduce checkpointing to the DEF to make it fault tolerant for long running tasks.
According to the requirements of our partners in the EnFiLo project, existing Cloud security solutions will be evaluated and those most suited for our problem setting will be applied to the DEF. As pointed out in section1 Security, the following security techniques will be applied:
TLS for an encrypted communication between client ⇔ DEF Module & DEF Module ⇔ Cluster Module, ensuring privacy.
Ticketing for authentication and authorization with single sign-on.
a Secure Virtual Machine based on the TPM for Trust.
only workers instantiated and controlled by the Cluster Controller will be used for computations so that the tasks will not be compromised.
the data will be removed from the cluster immediately after the program has terminated.
The details will be worked out in the course of the project.
