Abstract

The management strategy of a data center needs access to sufficient resources in order to handle different requests of applications, while minimizing the consumed energy. With regard to high and varying resource demands, Virtual Machines (VM) management necessitates dynamic strategies. Dynamic management of VMs includes VM placement and VM migration. The management approach presented in this paper aimed to reduce the energy consumption and the violation of service level agreements (SLA) simultaneously in data centers. The simulation results indicate that proposed approach improved the VM management 40% compared to the previous single-goal approaches based on the energy consumption and SLA violation rates.

Keywords

Cloud computing Dynamic management Energy consumption SLA violation Virtual machine placement

Introduction

Nowadays, computing tends to handle large-scale data centers and provides the resources for client applications as pay-per-use. The data center managers attempt to reduce the consumed energy while providing the required resources to user applications.

The resource allocation can be handled statically by assigning the peak number of required resources to the application. However, such allocation may lead to over-provisioning [1], which results in wasting of data centers’ resources. Virtualization technology enables a physical machine to host multiple virtual machines. Each virtual machine can handle different client applications. Even if the peak amount of demanded resources is allocated to the application, still some resources of physical machine may be underutilized. Resource utilization can be improved by allocating only necessary resources to handle the typical demands. However, this may result in resource access competition between VMs in high demand conditions.

The applications with high and variable requirements necessitate frequent changes in their VMs [2] and dynamic management. By such manner of management, a running VM is migrated to another physical host (live migration). In a typical VM management solution, there are following operations as coordinated: (1) VM Placement (Allocation): the placement of a VM to a host machine in response to a VM creation request; (2) VM Relocation: the migration of VMs from a host when their overall resource requirements exceed the available resources of host; and (3) VM Consolidation: the migration of VMs from an under-utilized host so that the machine powers off in order to reduce the costs.

This paper focuses on two important issues in dynamic management of virtual machines: SLA violations reduction, and energy consumption reduction. These issues are often in contrast because reducing the energy consumption is usually reached through in-use (powered on) host reduction. But this leads potentially to more SLA violations. This is because that lower energy consumption can be achieved by placing as many VMs as possible on each host. However, sudden increasing of workload on a host may result lack of resources and subsequently SLA violations. Conversely, reducing the SLA violations typically necessitates VMs to be spread across more number of hosts, often each having a significant amount of unused resources. This manner potentially leads to more energy consumption. Designing a management strategy able to achieve both of the above goals is difficult, as getting better performance considering one of the goals typically leads to degradation of performance towards the other goal. The management approaches often focus on a single goal, or prioritize the goals as a primary goal and some secondary goals [1, 3, 4, 5].

This paper proposes two single-goal approaches, Energy-Reduction to reduce the energy consumption and SLAV-Reduction to reduce the SLA violation rates. It then presents a double-goal approach, ESDR, achieving the above two goals simultaneously. The remainder of this paper is organized as follows: Related work section reviews the related work of VM Placement, VM Relocation, and VM Consolidation. The details of proposed approaches are described in The proposed management approaches section. Implementation and evaluation section presents and discusses the simulation results of the proposed approaches, and Conclusion and future work section concludes the paper.

Related work

The efficient allocation of VM to host machines while ensuring sufficient access to computing resources for applications (a requirement of quality of service), has been the subject of much attention in recent years. The reviewed approaches in literature are categorized as static and dynamic allocation. In static allocation, VMs’ service requests are issued as fixed, or they are variable but a one-time mapping of some VMs into empty hosts is performed.

Cardosa et al. [6] developed a VM placement algorithm that leveraged the CPU allocation features min, max, and shares which are presented in modern hypervisors. The algorithm aimed to make balance between VMs’ performance and overall energy consumption. Four techniques were provided for VM placement exploiting the inherent features of virtualization technology (Max, Min, and Share). Setting a min metric for a VM ensures that it receives at least the specified minimum amount of resources when it powered on. Also, setting a max metric for low-priority applications ensures no overflowed resource usage and keeping the resources available for high-priority applications. The metric Share enables distributing the resources between contending VMs. Lack of continuous optimization of data center during the live migration of virtual machines can be mentioned as the weakness of this algorithm.

Speitkamp and Bichler [7] proposed a static server consolidation approach that analyses the data mathematically to characterize variations of real-world workload traces. Linear programming was used for optimal mapping of VMs and host machines; however, the approach was not easily adaptable to changes of data centers’ workloads.

Stillwell et al. [8] worked on mapping a set of static workloads into hosts to optimize the VMs’ resource allocation in terms of fairness. They analyzed different algorithms, and indicated that a vector (or multi-dimensional) bin packing algorithm [9, 10, 11] is able to reach almost optimal result for the problem.

Bobroff et al. [1] presented the First Fit Decreasing heuristic algorithm that periodically re-calculates mapping of VMs to a set of empty hosts, based on forecasts of VMs’ demands. The aim was to keep average number of active hosts as minimum while having probabilistic SLA guaranty for VMs. But the relationship between several resources such as CPU and I/O are not considered in the algorithm. It acts as static while considering variable demands to re-calculate VMs mapping periodically.

Khanna et al. [3] showed that the number of servers can be reduced in VM relocation using virtualization technology. VMs and hosts can be selected for migration by developing a mathematical optimization model. They presented a heuristic method that sorts the VMs as ascending on CPU and memory utilization to minimize the migration costs. Then hosts list is sorted as ascending on remaining capacity (i.e. available resources) to maximize resource utilization. After that, the least loaded VMs (in terms of CPU and memory usage) are migrated to the highest loaded hosts. The First Fit heuristic is used as selection algorithm with the primary goal of energy consumption reduction. The authors considered neither additional sorting strategies, nor the impact of their heuristic on the number of migrations issued.

Verma et al. [5] relied on a First Fit Decreasing heuristic that to place VMs in the most power efficient servers. The main goal was reducing the migration costs and energy consumption in data centers while meeting the QoS requirements; despite no reduction in SLA violations. The presented system is able to work in a heterogeneous environment that supports virtualization, and VMs are allocated to a physical machine in terms of consumed energy.

Wood et al. [7] presented a management system named Sandpiper using the First Fit Decreasing heuristic [12, 13, 14]. The hosts are sorted in an increasing order based on resource utilization, the workload is balanced among the hosts, and SLA violations are reduced subsequently. Also, monitoring and detection of hotspot servers are performed automatically. Moreover, a new mapping to physical and virtual resources is applied and essential migration in virtualized data centers is set up.

Gmach et al. [15] developed a fuzzy logic based controller as part of their proposed management system. The controller does not distribute migrations when a host became stressed or underutilized. The appropriate host for migration is the least loaded one with enough resources to fit the VM. However, VM selection for migration is not clearly explained.

Keller et al. [16] studied variants of the First Fit heuristic to address the VM relocation problem. They showed that the order of VMs/hosts migration affects the performance metrics of data centers, such as energy consumption and SLA violations.

Beloglazov and Buyya [17] proposed Best Fit Decreasing heuristic algorithm to deal with both stressed and underutilized hosts. In the case of stressed hosts, the algorithm selects VMs with the least memory allocation to migrate, and selects as much VMs as needed in order to reduce hosts’ CPU utilization to a specified value. When hosts are underutilized, all hosts’ VMs are selected for migration. The selection of target host is based on a Best Fit Decreasing heuristic. The migrating VMs are sorted as descending on CPU utilization. They are then placed on the appropriate host having minimum energy consumptions.

In [18], Foster et al. attempt to switch between two single goal (minimizing SLA violations or energy consumption) strategies dynamically. They aimed to get better adaption of changing data center conditions. They proposed three strategies to handle dynamic switching between different strategies; however their situation identification process to handle the replacements is time consuming.

Zhen Xiao et al. [19] presented a system that uses virtualization technology to allocate datacenter resources dynamically based on application demands. The system is adapted to green computing by optimizing the number of servers in use. They introduced skewness as a metric to measure unevenness for multi-dimensional resource utilization of a server. By minimizing the skewness, different types of workloads are combined. Also, overall utilization of server resources is improved. In overall, the system is able to prevent overloads effectively while saving the energy.

Ferdaus et al. [20] addressed the resource and energy related issues in datacenters by tackling through datacenter level resource management. They focused on high resource wastage and energy consumption. To this aim, they proposed a method using the Ant Colony Optimization (ACO) metaheuristic and a vector algebra-based multi-dimensional resource utilization model. Optimizing network resource utilization is handled by an online network-aware VM cluster placement strategy to localize data traffic among VMs communication. By this manner, traffic load in data center interconnects and subsequently communication overhead in upper layer network switches are reduced.

With regard to the above review of literature, allocation of VMs to physical machines while keeping the access to computing resources as efficient is handled by many of recent researches. The provided allocation approaches are categorized as static and dynamic. Most of the algorithms aimed to make balance between VMs’ performance and overall energy consumption. They try to allocate the minimum amount of resources to low-priority applications and keep the resources available for high-priority ones. With regard to the dynamic nature of cloud environments, some approaches recalculate mapping of VMs to a set of empty hosts periodically based on VMs’ demand forecasts. Such approaches are able to minimize the number of active hosts while keeping SLA for VMs in a reasonable level. Choosing VMs and hosts for migration can be performed by a mathematical optimization model. Also, heuristic methods are used to sort VMs based on CPU/memory utilization in order to minimize the migrations and reduce the consumed energy.

The dynamic behavior of cloud environment necessitates having a dynamic and adapted strategy to switch between SLA violation and energy consumption dynamically in VM migrations. Most of the existing algorithms have focused on one aspect of efficiency. This paper provides three dynamic approaches (first one to reduce the energy consumption, the second one to reduce SLA violations, and third one to handle both of energy and SLA violations simultaneously) to manage the virtual machines in data centers. With regard to changes of data center’s state, the provided double-goal approach switches between different policies at run-time if it is necessary. SLA violation and power efficiency are measured in order to decide for activate the appropriate approach.

The proposed management approaches

With regard to the dynamic nature of virtualized data centers, designing a management system with different goals is a challenging task. In this section, three dynamic approaches are proposed to manage the virtual machines in data centers. In the following, first the terms and metrics of management approaches are introduced. Then, two single-goal approaches (one to reduce the energy consumption, and another to reduce SLA violations) are proposed. After that, a double-goal approach is proposed achieving the above two goals simultaneously.

i) The status SLA violation occurs when resources required by a VM are not available. This status subsequently leads to performance degradation. It is typically defined by the percentage of a VM’s required CPU time which is not available currently. ii) The overall utilization of a data center is the percentage of CPU capacity that is currently in use by data center. Iii) A limited capacity of CPU’s processing capabilities is specified as CPU_Shares. In our work, the CPU_Shares assigned to each core, is related to its frequency. For example, the CPU_Shares for a 1GHZ CPU is assigned to 1000. iv) For a host h, the power efficiency, per h , refers to in-use processing per consumed energy, and it is measured by CPU-shares-per-watt (CPU/W). The power efficiency of a single host is calculated by Eq. 1:
$$ {per}_h=\frac{\Phi_h}{\Psi_h} $$
(1)
Where Φh is the number of CPU_Shares currently is in-use across all cores in the host, and Ψh refers to current power consumption of the host in watts. Moreover, an active host consumes a significant amount of power even if it has little or no CPU load (i.e., very low power efficiency). Equation 2 calculates the power efficiency for the entire data center, per dc :
$$ {per}_{dc}=\frac{\Sigma_{\mathrm{h}\in \mathrm{hosts}}{\Phi}_{\mathrm{h}}}{\Sigma_{\mathrm{h}\in \mathrm{hosts}}{\Psi}_{\mathrm{h}}} $$
(2)

Such that hosts indicates a collection of all hosts in data center. v) Maximum Power Efficiency represents the best amount of power efficiency a host can achieve. It is calculated as power efficiency of the host at maximum CPU utilization. vi) HostUtilization refers to the average amount of CPU utilization for all hosts in the state “On”. The higher value of host utilization leads to more efficient usage of resources and energy consumption reduction.

This paper supposes that each time a management operation takes place, hosts are classified to three different power states: power on, power suspended, and power off. The powered on hosts are further classified to stressed, partially-utilized, under-utilized, and empty based on their CPU utilization. The state of hosts may be changed according to workload changes of hosted VMs, or migrations performed by management operations. To do this, two threshold values are used as stress cpu and min cpu . The classification is carried out based on average CPU utilization of hosts. Hosts with average CPU utilization ranged in (stress cpu , 1], (min cpu , stress cpu ], and [0, min cpu ) are supposed as stressed, partially-utilized, and under-utilized hosts respectively. Moreover, hosts with no assigned VMs are empty ones; hosts in suspended or power off state are also included in this category.

Energy-reduction and SLAV-reduction approaches

Energy-Reduction and SLAV-Reduction are two single-goal candidates. In the next subsections, the process of VM Placement, VM Relocation and VM Consolidation policies that form the above approaches are explained. The placement management operation runs each time a new VM creation request is received, and selects a host in which to instantiate the VM. Algorithm 1 shows the process of virtual machine placement policy for the proposed Energy-Reduction approach.

The VM Placement policy for Energy-Reduction approach (see Algorithm 1), first classifies hosts in appropriate categories (line 1) as stressed (H !), partially-utilized (H +), under-utilized (H ) or empty (H ϕ ). Each host category is then sorted (lines 2). H + , and H are sorted as descending on maximum power efficiency and CPU utilization respectively. The category H ϕ is also sorted as descending on maximum power efficiency and power state respectively. Such sorting ensures focus of placement on power efficiency. Then a list of targets hosts is prepared by concatenating (sort (H + ), sort (H ), sort (H ϕ )). Finally, following a First Fit approach, the policy assigns VM to the first host in targets with enough capacity (lines 3-6). The method has_capacity (h t , VM) checks the ability of host to meet resource requirements indicated in the VM creation request (line 4) without becoming stressed.

The VM Placement policy for SLAV-Reduction approach differs from the Energy-Reduction policy in the way that H + and H are sorted. H + and H are sorted as ascending and descending respectively on CPU utilization and then maximum power efficiency. Such sorting causes the placement to be focused on distributing the load across the hosts, and leaving spare resources to handle spikes in resource demand over other considerations.

The VM relocation operation runs frequently over short intervals of time in order to detect stress situations as soon as possible. For both approaches, the interval is set to 10 min. The VM relocation determines which hosts are prone to be in a stress situation. Then it removes such hosts by migrating one VM from a stressed host into a non-stressed one. Algorithm 2 shows the process of virtual machine relocation policy for the proposed approach Energy-Reduction.

As shown in Algorithm 2, the VM Relocation policy for Energy-Reduction approach first classifies hosts to appropriate categories (line 1) performing a stress check on all hosts. A host is stressed if its CPU utilization has remained above the stress cpu threshold throughout the last CPU load monitoring window. The hosts are categorized as stressed (H !), partially-utilized (H +), under-utilized (H ), or empty (H ϕ ). Then each host category is sorted (line 3). H ! is sorted as descending on CPU utilization, H + and H are sorted as descending on maximum power efficiency and CPU utilization respectively. H ϕ is sorted as descending on maximum power efficiency and power state respectively. After that, a list of targets hosts is formed by concatenating (sort (H + ), sort (H ), sort (H ϕ )). Following the First Fit heuristic, one VM is chosen from each host h in sources and a corresponding host in targets to which one to migrate VM (lines 4-13). For each host h in sources (which is stressed), VMs with less CPU load are filtered. The remaining VMs then are sorted as ascending on CPU load (line 6). After that, all VMs are sorted as descending on CPU load, and finally the migration process is launched (line 10).

VM Relocation policy for SLAV-Reduction approach differs from Energy-Reduction in the way of sorting H ! and H (H ! is sorted as ascending on CPU utilization and maximum Energy-Reduction efficiency respectively. H + is sorted as descending on CPU utilization and maximum power efficiency respectively). In addition, SLAV-Reduction policy performs a different stress check such that a host is considered as stressed if its last two monitored CPU load values are more than stress cpu threshold, or its average CPU utilization throughout the last CPU load monitoring window exceeds stress cpu .

The purpose of VM consolidation policy is to control the load that VM Placement and VM Relocation have distributed across the data center. This is performed by migrating VMs from under-utilized hosts (through suspending or powering them off) to partially-utilized ones. This management operation runs less frequently than VM Relocation. The interval is set to 1 and 4 h for Energy-Reduction and SLAV-Reduction strategies respectively. Algorithm 3 shows the steps of virtual machine consolidation process for the proposed approach Energy-Reduction.

As shown in Algorithm 3, the VM consolidation policy for Energy-Reduction approach first classifies hosts (line 1) as stressed (H !), partially-utilized (H +), underutilized (H ), and power off (H ϕ ). Host machines in Power-off state are grouped as Empty. The policy then sorts H + and H as descending on power efficiency and CPU utilization respectively, and creates new lists. Then it forms a list of targets hosts by concatenating sort (H + ), sort (H ) (line 3). Afterwards, H is sorted again this time as ascending on power efficiency and CPU utilization respectively. Using a First Fit heuristic, the policy attempts to release all hosts h in sources by migration of their VMs to hosts in targets (lines 6-14). For each host h in sources, the policy sorts its VMs as descending on overall resource capacity (memory, number of CPU cores, and core capacity) and CPU load respectively. It is necessary to avoid using a host both as source and target for migrations.

The VM Consolidation policy for SLAV-Reduction approach differs from Energy-Reduction in the way that H + and H are sorted such that first, H + is sorted as ascending on CPU utilization and maximum power efficiency respectively. Also, H is sorted as descending on CPU utilization and maximum power efficiency respectively. Then, H is sorted as ascending on CPU utilization to form the source host machines.

The approaches use different values for stress cpu threshold: Energy-Reduction uses 95% and SLAV-Reduction uses 85%. The lower threshold for the SLAV-Reduction approach allows additional resources to be available for workload variations. Both strategies use the min cpu threshold of 60%. Selected values for the above thresholds have been obtained experimentally and based on the average CPU utilization of host machines. The characteristics of workload patterns are shown in Table 1.
Table 1

The characteristics of used workload patterns

The workload pattern

Description

Monitoring time period (sec)

Measurement time period (sec)

ClarkNet

Based on the Log file prepared from the access to ClarkNet during two weeks

1,209,400

100

EPA

The file prepared from web Log based on EPA during one day

86,200

100

SDSC

The file prepared from Log center of Santiago supercomputers during one day

86,200

100

Google cluster data

Tracking 7 h the workload of Google cluster with different jobs

22,200

300

Energy-reduction and SLAV-reduction dynamic run-time replacement (ESDR)

ESDR attempts to meet two objectives simultaneously. With regard to changes of data center’s state, ESDR switches between different policies at run-time if it is necessary. It checks data center metrics monitored during different executions in order to determine if current in-use approach (ActiveApproach) needs changes. It uses SLA violation and power efficiency ratio metrics to evaluate whether the active approach should be switched. The power efficiency ratio is calculated as the ratio of optimal power efficiency to current power efficiency [21]. The switching approach is triggered when the metric’s value related to the goal of the active approach (i.e. sla v for the SLA violation, per for the Power efficiency ratio) is less than the threshold value (sla v normal or per normal ), while the metric related to inactive approach exceeds the threshold value. Algorithm 4 shows the steps used to change active approach in ESDR.
The switching used in ESDR allows the data center to respond to a situation in which performance in one metric has deteriorated. Table 2 shows the default value of ESDR’s parameters.
Table 2

Default values of ESDR’s parameters

Parameter

Normal Value

Description

Calculation method

per normal

71.817

Normal value for power efficiency threshold

The average value of energy efficiency in both Energy-Reduction and SLAV-Reduction approaches

sla v normal

1.644

Normal value for SLA violations threshold

The average value of SLA violation in both Energy-Reduction and SLAV-Reduction approaches

Interval Running Approach

1 h

Time interval for running ESDR approach

---

As shown in Table 2, choosing the best running interval as well threshold values (sla v normal |per normal ) is performed based on the results of Energy-Reduction and SLAV-Reduction experiments. The default values are obtained after 12 iterations of Energy-Reduction and SLAV-Reduction process with 5 randomly generated workload patterns. The average of 30% least values of consumed energy and SLA violations are considered as the default values.

Implementation and evaluation

In order to evaluate the performance of proposed algorithms, they are implemented in DCSim [22] simulation environment which is found as a common and efficient simulation tool in the literature. Two metrics, power efficiency (per) and SLA violation (sla v ), are considered to evaluate the performance. Making decision only based on the above metrics is difficult because if one approach performs well with respect to SLA violations at the expense of high power (and vice versa), it is hardly possible to conclude about the preferable approach [18, 23]. The decision depends on relative changes in each area as well as the importance assigned to each metric by data center operators according to their business objectives, and costs of energy and SLA violations.

To measure the performance of proposed double-goal approach, an experiment is planned such that the Energy-Reduction and SLAV-Reduction approaches are used as benchmarks. SLAV-Reduction approach provides the bounds for the best SLA violation (sla v best  = sla v SLAV-Reduction ) and the worst power efficiency (per worst  = per SLAV-Reduction ). The Energy-Reduction approach provides the bounds for worst SLA violation (sla v worst  = sla v Energy-Reduction ) and best power efficiency (per best  = per Energy-Reduction ). The values for selected approach i (Energy-Reduction, SLAV-Reduction or ESDR), are then used to create the normalized vector v i , represented as [per norm , sla norm ]. The values of sla v norm and per norm are calculated through the following equations [18]:

$$ {sla^v}_{norm}=\frac{{sla^v}_i-{sla^v}_{best}}{{sla^v}_{worst}-{sla^v}_{best}} $$
(3)
$$ {per}_{norm}=\frac{per_{best}-{per}_i}{per_{best}-{per}_{worst}} $$
(4)
$$ {v}_i=\left({per}_{norm},{sla^v}_{norm}\right) $$
(5)
per norm and sla v norm indicate normalized power efficiency and normalized SLA violation respectively. It is noteworthy that per best  > per worst , but sla v best  < sla v worst . By having the normalized vector v i , it is possible to calculate L 2 -norm and use it as an overall score (Score i ).
$$ {Score}_i\kern0.5em =\mid vi\mid \kern0.5em =\kern0.5em \sqrt{{{sla^v}_{norm}}^2=+}\kern0.5em {per_{norm}}^2 $$
(6)

Equation 6 calculates the score of selected approach i. Lower value for the score is considered as the better one, as it is construed as a smaller distance to the best bounds of each metric (defined by sla v best and per best ). The Energy-Reduction and SLAV-Reduction approaches always achieve the score 1, as each one achieves the best score for one metric and the worst score for the other one. Scores less than 1 indicate that overall performance of the candidate approach has improved relative to the baseline approaches. Different workload patterns of data center are considered, and the average amount of all tests’ score is calculated to be used in comparisons.

Experimental setup for evaluation

In order to evaluate the proposed approaches, they are simulated along with similar latest ones using DCSim [22] that is an extensible simulator able to model the multi-tenant virtualized data centers efficiently. Also, DCSim includes virtualization features such as CPU scheduling used in modern Hypervisors, resource allocation and virtual machine migrations. Moreover, it is able to model a continuous and interactive workload that is necessary in experiments.

The simulated data center consists of 200 host machines of two types (small and large). The small hosts are considered as HPProLiant DL380G5, with 2 dual-core 3 GHz CPUs and 8 GB of memory. The large hosts are considered as HP ProLiantDL160G5, with 2 quad-core 2.5 GHz CPUs and 16 GB of memory. Table 3 shows detailed features of the above mentioned hosts used in performed experiments.
Table 3

The features of hosts used in data centers

Hosts

Number of CPUs

Number of cores

Min CPU share

Max CPU share

Power consumption at 100% efficiency

Maximum power efficiency

Memory capacity

Large

2

4

2500

20,000

W233

85.84

GB16

Small

2

2

3000

12,000

W258

46.51

GB8

The power consumption of both hosts is calculated by SPECPower benchmark [24] and results indicate that maximum power efficiency of large hosts (85.84 CPU/W) doubles the small host ones’ (46.51 CPU/W). Three different sizes are considered for virtual machines in simulated data center as shown in Table 4.
Table 4

Properties of virtual machines in the data center

Type of VMs

Number of virtual cores

Min CPUShare

Memory capacity

Small

1

1500

512 MB

Medium

1

2500

512 MB

Large

2

2500

1 GB

The hosts are able to use a work-conserving CPU scheduler which is available in virtualization technology. This means that each shared CPU that is not used by a VM can be used by other ones. For CPU contention, the shares are assigned to VMs as round-robin until all the shares be allocated. The metrics used by management policies (e.g. host CPU utilization and SLA violation) are measured every 2 min from each host, and evaluated by the policy over a sliding window of 5 measurements.

Workload pattern

Data centers experience a highly dynamic workload, driven by frequent VMs’ arrivals/departures, as well as resource requirements of VMs. In this paper, to evaluate the proposed approach, random workload patterns are generated each one having a set of VMs. The VMs are assigned a specific start/stop time and a dynamic trace-driven resource requirement. Each VM is driven by one of the individual traces (ClarkNet, EPA, and SDSC [25]), and two different job types from the Google Cluster Data trace [26]. For each workload pattern, incing requests are calculated with 100 s interval. The requests rate is used to define current workload of each VM. The CPU requirement of each VM is calculated through a linear function of current input rate. Each VM starts its trace with a random selected offset time.

The number of VMs in data centers varies during simulation process frequently to form dynamicity of the environment. Within first 40 h of activity, 600 VMs are created and remain as running throughout simulation period in order to keep at least a low level of loads existing. After 2 days of simulation, the rate of new arrival VMs begins to change, and it stops changing after about 1 day. The arrivals are generated as one per day. The total number of VMs in data center is set by a random generated number with normal distribution between the values of 600 and 1600. The reason to choose value 1600 for maximum number of VMs is that beyond this value, the SLAV-Reduction denies admission of some incoming VMs due to insufficient available resources. The simulation continues for 10 days and then the experiment finishes.

Evaluation of per normal and sla v normal in ESDR

Switching between two approaches Energy-Reduction and SLAV-Reduction in ESDR occurs when the metrics related to the goal of active approach (sla v for SLA violations or per for power efficiency) is within the normal/acceptable range considering the threshold values (sla v normal or per normal ). But the metrics of non-active approach exceeds its normal/acceptable threshold value. ESDR uses {sla v normal |per normal }threshold values. These values are derived from the experiments performed on different workload patterns for Energy-Reduction and SLAV-Reduction approaches. Table 5 shows the best values of above mentioned parameters.
Table 5

The best values of ESDR parameters

Parameter

Value

Description

per normal

71.817

Normal value of power efficiency threshold

sla v normal

1.644

Normal value of SLA Violation threshold

Discussion and evaluation of the experimental results

The experiments with the same workload patterns are repeated five times for each proposed approach and the average values of results are obtained. Table 6 shows the results of five different workload patterns for each approach.
Table 6

The results of 5 workload patterns for each approach

Approach

Host Unit

Power (KWH)

PwrEff (CPU/W)

SLA

Migration

sla v normal

per normal

Score

SLAV-Reduction

83.505

4531.190

68.811

1.403

57,459

0

1

1

Energy-Reduction

84.686

4094.201

74.695

2.087

37,863

1

0

1

ESDR

84.583

4404.442

70.712

1.476

50,417

0.307

0.514

0.599

The columns of Tables 6 are evaluation metrics introduced in Section III-I. The results show measured values of different metrics as well the reported normal values of Energy-Reduction and SLAV-Reduction.

As shown in Fig. 1, the highest and lowest host utilization values result from Energy-Reduction and SLAV-Reduction approaches respectively.
Fig. 1

Comparison of Host Utilization metric in different approaches

Given that the Energy-Reduction and SLAV-Reduction approaches use different values for stress cpu threshold (95% in Energy-Reduction approach, and 85% in SLAV-Reduction approach), lower threshold allows SLAV-Reduction approach access to more resources while workload changes. This subsequently leads to low utilization of the active host. Figure 2 and Fig. 3 compare the metrics power consumption and power efficiency for different approaches.
Fig. 2

Comparison of power consumption metric in different approaches

Fig. 3

Comparison of power efficiency in different approaches

With regard to primary goal of SLAV-Reduction and Energy-Reduction approaches which are reducing SLA violations and increasing energy efficiency respectively, SLAV-Reduction approach consumes the highest amount of power (its power efficiency is low) and Energy-Reduction approach acts as contrary. Figure 4 compares the SLA violations of three proposed approaches.
Fig. 4

Comparison of SLA violations for different approaches

Corresponding to power consumption results, Fig. 4 shows that SLAV-Reduction approach has the lowest amount of SLA violations while Energy-Reduction approach suffers from highest amounts of violations. The number of migrations for different approaches is compared in Fig. 5.

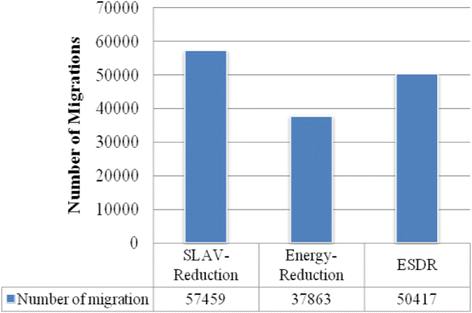

Fig. 5

Comparison of the number of migrations in different approaches

The results indicate that SLAV-Reduction approach caused by the highest number of virtual machine migrations while Energy-Reduction approach gained the least ones. SLAV-Reduction approach attempts to reduce the SLA violations through migration strategies, and thus the resource requests of VMs rarely fail. On the other hand, Energy-Reduction approach avoids migrations as much as possible in order to increase the hosts’ utilization.

The migration overhead and its effects on SLA violation and host utilization are also investigated. Switching between Energy-Reduction and SLAV-Reduction approaches with different stress thresholds increases the migrations from ESDR to Energy-Reduction as a side-effect. The value of stressed threshold varies in different approaches. The Energy-Reduction approach uses a large number of hosts efficiently while considering the stress threshold. It switches to SLAV-Reduction approach close the stress threshold, causing a large number of hosts become stressed and migrations increasing.

In order to evaluate the success rate of ESDR approach considering both goals (SLA violation reduction and power efficiency), a new metric is introduced named as score (see Eq. 6). The values obtained for score of different approaches are compared in Fig. 6.
Fig. 6

Comparison of score in different approaches

As shown in Fig. 6, double-goal ESDR approach has achieved fewer score compared to single-goal SLAV-Reduction and Energy-Reduction approaches. This means difference reduction for best values of SLA violation and power efficiency. The graphical representation vectors of score can be also useful to show and analyze the results. L2-Norm (Euclidean) vector representation in two-dimensional space is as the unit circle which is shown in Fig. 7.
Fig. 7

Euclidean vector representation of scores for different approaches

Both Energy-Reduction and SLAV-Reduction approaches that have been selected as benchmark, gained the score 1. The smaller radius of the circle gets better results because it means that the shorter distance is created for the best values of SLA violation and power efficiency. As shown in Fig. 7, ESDR has gained better score than other single-goal approaches, Energy-Reduction and SLAV-Reduction. The ESDR improved the score about 40% compared to Energy-Reduction and SLAV-Reduction. This is due to regular calculations of SLA violations and power efficiencies at specified intervals and then, comparing them with per normal and sla v normal parameters.

Conclusion and future work

This paper aimed to manage virtual machines dynamically which is useful in cloud environment data centers. The provided approaches handle both major goals of dynamic management in data centers, maximizing power efficiency and minimizing SLA violations, considering the inherent trade-off between these goals. It is difficult to manage data centers with conflicting goals simultaneously. It becomes worse by lack of an efficient method to do a straightforward comparison based on various metrics. This paper provided two single-goal approaches Energy-Reduction and SLAV-Reduction, and also ESDR as a double-goal approach. The double-goal approach reduces the consumed energy and SLA violations simultaneously.

All approaches are experimented in the same simulation conditions. The experimental results indicated that ESDR handles the mentioned goals more effectively compared to other approaches. ESDR improved the score about 40% compared to Energy-Reduction and SLAV-Reduction.

Some directions can be chosen as future work. One possible plan is to focus on a management approach able to switch between two single-goal approaches considering entire efficiency of data center and according to its current workload. Moreover, this paper relied only on CPU loads to measure host or VM loads. In future works, the memory and bandwidth loads can be taken into account additionally.
