A maturity model for AI-empowered cloud-native databases: from the perspective of resource management

Abstract

Cloud-native database systems have started to gain broad support and popularity due to more and more applications and systems moving to the cloud. Various cloud-native databases have been emerging in recent years, but their developments are still in the primary stage. At this stage, database developers are generally confused about improving the performance of the database by applying AI technologies. The maturity model can help database developers formulate the measures and clarify the improvement path during development. However, the current maturity models are unsuitable for cloud-native databases since their architecture and resource management differ from traditional databases. Hence, we propose a maturity model for AI-empowered cloud-native databases from the perspective of resource management. We employ a systematic literature review and expert interviews to conduct the maturity model. Also, we develop an assessment tool based on the maturity model to help developers assess cloud-native databases. And we provide an assessment case to prove our maturity model. The assessment case results show that the database’s development direction conforms to the maturity model. It proves the effectiveness of the maturity model.

Introduction

Cloud-native databases (CNDBs) have become increasingly important in cloud computing due to various applications’ need for elasticity, scalability, manageability, and on-demand usage [1]. These challenges from cloud applications present new opportunities for CNDBs that traditional on-premise enterprise database systems cannot fully address. CNDBs have the features of multi-tenant, compute and storage disaggregation, logs as the database, etc. These features make the database more elastic and scalable, which addresses several challenges described above. Same as traditional databases, CNDBs also support Artificial Intelligence (AI) technology for database optimization. AI technologies applied in the features of CNDBs dramatically improve the performance of the database. In the background of the constant development of AI technology, AI-empowered CNDBs are the trend. Nowadays, the development of CNDBs is still in its infancy, and the application of AI technologies in CNDBs is immature [2]. Without a maturity model for AI-empowered CNDBs, database developers may be confused about the application of AI technologies, and database users may be confused about selecting CNDBs. Therefore, a maturity model for assessing the AI-empowered CNDBs, which serves as a tool to assess the as-it situation of CNDBs and sheds light on step-by-step improvements, is on demand.

The current maturity models for assessing database service capability are oriented to all databases and cover many dimensions [3]. However, the architecture of CNDBs is different from traditional distributed databases. CNDBs are designed to take advantage of cloud infrastructure [4,5,6]. And CNDBs’ performance dramatically relies on the cloud resource management strategies compared with traditional databases, while the database maturity model without the resource perspective fails to assess the CNDBs’ performance. For example, since CNDBs provide services for multiple tenants with a high resource scheduling capability, the maturity model should assess the comprehensive performance of the database in resource allocation for multiple tenants. Last but not least, as the application of AI technologies can significantly improve the resource utilization [7,8,9,10,11], the maturity model should consider the AI dimension. For example, AI technologies can predict the resources required by tenants and perform efficient resource scheduling. To this end, the existing maturity models are unsuitable for assessing AI-empowered CNDBs. Conducting a systematic synthesis of AI-empowered CNDBs from the perspective of resources is needed to bring out the most important dimensions and indicators for assessing and improving the performance of CNDBs.

Our study aims to develop a maturity model of AI-empowered CNDBs, helping developers assess and improve the capability of CNDBs to apply AI technologies from the resource perspective to better leverage them for applications. Our study adopts a systematic literature review and expert interviews to develop the maturity model. Moreover, we develop an assessment tool based on the model to assess CNDBs and provide an assessment case to prove the maturity model.

The contributions of our study are threefold. First, we propose a theoretical maturity model for assessing CNDBs. Especially, the model has indicators for the capability of CNDBs to apply AI technologies to their resource management. Second, our findings provide the foundation to help researchers assess the development level of AI-empowered CNDBs and formulate measures for step-by-step improvement according to the characteristics of the next higher level of the maturity model. Third, the method of developing the maturity model in our study has a reference role for the research of maturity models in other AI-empowered fields, and further promotes the application of AI technologies in more fields.

The rest of this paper is structured as follows. Section “Related work” reviews the state-of-the-art maturity models. Section “Analysis Methods and Results” presents the research methods that conduct our maturity model. Section “Definition” defines the proposed maturity model. Section “Assessment” introduces the assessment tool and the assessment case. Section “Conclusion and Future work” concludes the paper.

Related work

This section analyzes related studies about maturity models and reveals the limitations of the existing maturity models that lead to our study.

AI technology has been applied in many fields [12,13,14,15]. Enterprises usually utilize the maturity model related to technologies to appreciate the capabilities of technologies and improve enterprises’ capability to apply technologies [16]. A maturity model has two common components: the measured objects and maturity levels. The former are dimensions or criteria such as application targets of technologies within specific measured indicators. The latter are a set of sequential development stages/degrees for the examined object. Maturity models are proposed for guiding developers in designing databases, managing cloud resources, and employing AI technologies. Table 1 lists relevant maturity models in our study context.

Table 1 Relevant maturity models in the context of our study

The model in Table 1 cannot be used to assess AI-empowered CNDBs. First, the “service capability maturity model of data center” and “service capability maturity model of database” propose the standard specification to measure the service capacity of data centers and databases. They are generalized ones and cover various dimensions. For example, the “service capability maturity model of data center” has three domains and 11 sub-domains with 33 specific capabilities; and the “service capability maturity model of database” has three domains with 27 specific capabilities. However, CNDBs have distinctive features, making it difficult for these maturity models to assess the performance of CNDBs. Second, the “Cloud Application Maturity Model” focus on cloud resource utilization in cloud applications, not in CNDBs. Third, the “Maturity model to assess the development of industrial AI in smart manufacturing” is a maturity model that helps manufacturing firms assess their performance in the industrial AI journey. It cannot assess the performance of AI technologies applied in CNDBs. Moreover, even if we combine the “Maturity model to assess the development of industrial AI in smart manufacturing” with the “Cloud Application Maturity Model”, it can only assess the performance of AI technologies in cloud applications. To this end, these maturity models cannot assess AI-empowered CNDBs from the resource perspective, either individually or in combination.

Analysis methods and results

Over recent years, the number of published maturity models has increased considerably [20, 21]. However, the methodological rigor regarding model development is weak and flawed, resulting in the quality of the maturity models that do not match the current publication quantity [22]. Hence, Felch et al. suggest using literature review and explorative research methods to develop maturity models. And many studies have adopted the systematic literature review (SLR) method and the expert interview to conduct maturity models [19, 23, 24]. We follow the convention to develop the maturity model of AI-empowered CNDBs.

To develop the maturity model, we first conduct a systematic review of empirical studies to identify the measured indicators. Then, we perform expert interviews to establish the maturity levels and determine the characteristics related to different development stages of CNDBs. This section explains the analysis and results of the systematic review and expert interview.

Literature analysis

We review and analyze the literature on CNDBs and AI for CNDBs to identify the measured indicators of the model. The systematic literature review (SLR) method is a better choice because a comprehensive literature analysis on assessing AI-empowered CNDBs is rare. The SLR method follows a rigorous procedure for searching and selecting the sample studies. It is a methodical process of collecting and organizing the published empirical studies with systematic selection criteria to reduce the deviation.

We adopt the evidenced-based paradigm [25] to perform the SLR. As shown in Fig. 1, the SLR process contains four steps. First, following the ways of determining the keywords [26, 27], we identify three major search terms based on the aim of our study: “cloud-native database,” “artificial intelligence,” and “assessment” to develop the alternative terms for search. These keywords are connected with Boolean operators to serve as search strings. Our search begins with the search strings. In this way, we obtain a comprehensive perspective on literature. Second, we perform the search in the specific eight online databases and filter papers from non-computer industries to identify an initial list of articles (n = 150) for selection. Third, we retain 15 papers according to our inclusion and exclusion criteria (shown in Fig. 1). Then, we conduct the forward (finding citations to the papers) and backward (using the reference list to identify new papers) search to include 32 articles further. A total of 47 suitable articles are eventually retrieved. Finally, we review each of the 47 articles thoroughly and identify a list of indicators for assessing AI-empowered CNDBs. In the following, we analyze these articles regarding CNDBs and AI for CNDBs.

Fig. 1
figure 1

The SLR process in our study

CNDBs approximately belong to two branches. One is based on Spanner, such as CockrochDB, TiDB, YugabyteDB, etc. The other is based on Aurora, such as Socrates, PolarDB, CynosDB, ArkDB, TarusDB, etc. These databases have different features, but most of their features are the same. Table 2 compares several CNDBs and shows that their common features are multi-tenant, compute and storage disaggregation, cross Az/Region, near-data processing, logs as the database, and distributed and shared memory.

Table 2 Comparison of several databases

Furthermore, as a database designed for cloud architecture, CNDBs’ performance is dominated by the effectiveness of cloud resource management. Recent studies apply AI technologies to resource management [34,35,36].

Table 3 enumerates several studies. We can group them into four categories: resource prediction, resource scheduling, resource control, and resource scaling.

Table 3 Studies about AI empowered resource management

In summary, we identify two dimensions for the maturity model: the cloud-native database and artificial intelligence. Table 2 shows that the cloud-native database dimension has six indicators. And Table 3 shows that the artificial intelligence dimension has four indicators. We finally identify ten indicators for the maturity model based on the results of SLR. These indicators will be described in the section “Definition”.

Expert interviews

Our study adopts the method of the semi-structured expert interview to establish the maturity levels of the proposed maturity model. There are two reasons for it. First, since there are few articles about determining the maturity levels, the SLR method cannot be applied to identify the levels. Second, determining the maturity levels is subjective, and researchers have different opinions on their definitions, so summarizing expert insights can cover the views to the maximum extent.

To determine the list of experts to be interviewed, we find the relevant studies and identify the authors and their affiliations from the studies based on the results of SLR. Since these selected studies have a few industrial reports, it helps to identify the experts with the expertise or work experience in developing AI-empowered CNDBs. Eventually, we invited eight experts to participate in our study. Among them, five are consultants, and three are Product Managers (PM). All participants have a minimum job experience in database and AI technology of 3 years.

To obtain the knowledge and experience of the experts about AI-empowered CNDBs, we conduct a guideline of the interview, which is developed from the literature review. The guideline consists of three parts: start-up, trigger, and follow-up questions. The start-up introduces the purpose of the interview to the experts and helps us understand their job position, background, and related experience. In the trigger part, we give these experts the description of the identified indicators. Then, the experts should provide us with the number of maturity levels and the description of each level based on the indicators identified from the systematic literature review. The follow-up questions part collects new ideas from the experts.

After interviewing the experts, we collect the information they provide. In the interviews, we ask the interviewees’ opinions on the number of maturity levels. Seven participants answer four levels, and only one gives five levels (the sixth participant). However, it was difficult for the sixth participant to distinguish nuances and describe refined levels. So, we finally exclude the opinion of this participant and determine that the maturity model has four levels. After the experts provide the number of maturity levels and their descriptions of each level, we first identify the similarities of each level based on the experts’ descriptions and then develop a definition for each level. Table 4 shows the relevant quotations extracted from interviews to support the concepts for maturity levels.

Table 4 The relevant quotations extracted from interviews

Definition

In the previous sections, we identify two dimensions with ten indicators and four levels of the proposed maturity model. We will introduce them specifically in the following.

Dimensions and indicators

Dimensions and indicators are the components of the maturity model, and they are identified in the SLR process. Our maturity model has two dimensions, including “cloud-native database” and “artificial intelligence”, with ten indicators that explain the AI-empowered CNDBs from the resource perspective. Table 5 shows the dimensions and indicators.

Table 5 dimensions and indicators of the proposed maturity model

Cloud-native database dimension

The CNDB dimension employs the features of CNDBs as indicators, including six indicators in total: multi-tenant, compute and storage disaggregation, cross-Az/Region, near-data processing, logs as the database, and distributed and shared memory. The description of these indicators is shown in Table 6.

Table 6 The description of the indicators of cloud-native dimension

Artificial intelligence dimension

The AI dimension depicts the capabilities of AI technologies applied to resource management in CNDBs. It has four indicators:

  • Smart resource prediction focuses on applying AI technologies to predict the usage trends of resources (CPU, memory, I/O, and network) [37].

  • Smart resource scheduling refers to analyzing the existing resource usage over time and past resource levels to realize automatic and efficient resource scheduling [42].

  • Smart resource control emphasizes controlling the resource (CPU, memory) usage and consumption of database servers because resources should not be over-utilized or under-utilized [44].

  • Smart resource scaling concerns deciding when and how to expand resources according to the user’s resource utilization. In other words, it is to realize the automatic scaling function of resource containers [52].

Interleaving of CNDBs dimension and AI dimension

The above CNDBs and AI indicators depend on each other. In particular, the capabilities of smart resource prediction and smart resource scheduling in the AI dimension can vary significantly according to specific features, such as multi-tenant, distributed and shared memory. And databases should consistently establish the capabilities of smart resource control and smart resource scaling in all features of CNDBs. We show the detailed description in Table 7.

Table 7 Interleaving of CNDB and AI dimensions in our study

According to the analysis and the results on dimensions, indicators, and their interleaving, we propose the indicator matrix for AI-empowered CNDBs, as shown in Fig. 2. The matrix is an abstract representation of the interleaving of the two dimensions. It provides a conceptual view of intelligent transformation when applying AI technologies to CNDBs in their developing processes. The matrix can help analyze the intelligent development of CNDB indicators. On the one hand, the coarse-grained AI indicators, namely the long bar across all CNDB indicators, indicates that its capability has the same impact on all CNDB indicators. For example, the capabilities of smart resource control and resource scaling should be holistically planned and applied thoroughly across the CNDB. On the other hand, the fine-grained AI indicators, namely the separated bar that across CNDB indicators independently, its capability changes significantly for different CNDB indicators. For example, the database can serve multi-tenant users more efficiently and intelligently if developers apply AI technologies to realize automatic resource prediction and scheduling. The indicator matrix is useful for understanding the correlation between AI and CNDB indicators.

Fig. 2
figure 2

Indicator matrix for AI-empowered CNDBs

Maturity levels

Another important component of the maturity model is the maturity level. Our maturity model has four levels covering AI-ready, AI-usage, Semi-automatic, and automatic level. They describe the planning objectives and implement path of AI-empowered CNDBs.

In the section “Expert interviews”, we obtain expert opinions by conducting semi-structured interviews to describe the characteristics of maturity levels. As shown in Table 8, our study summarizes the characteristics of AI-empowered CNDBs at different maturity levels and determines the concept of these levels.

Table 8 The maturity level identified from our study and their concepts

Maturity model

We represent dimensions and indicators by the indicator matrix and identify four maturity levels. We integrate the indicator matrix and maturity levels to construct the maturity model. Moreover, we provide supplementary descriptions and complementary examples to understand the maturity model.

Figure 3 shows the maturity model structure constructed by the indicator matrix and maturity level. We accumulate the indicator matrix to each level, namely the superposition of the indicator matrix on the four maturity levels, forming the structure shown in Fig. 3. It intuitively shows a roadmap for achieving AI-empowered CNDBs, from AI-ready to automatic level, and helps database developers to improve the maturity level of CNDBs. However, Fig. 3 lacks semantics and fails to give practical guidance, which poses a challenge to the practical application of maturity models.

Fig. 3
figure 3

Integrated maturity levels to indicator matrix

To understand how to achieve a higher maturity level of AI-empowered CNDBs, we provide Table 9 as a supplement to Fig. 3. The supplement provides detailed exemplifications about the characteristics of the integrated maturity levels and AI indicators. For example, we could draw the following guidelines from Table 9.

  • To achieve a higher level of smart resource prediction, databases should apply AI technologies to predict the usage trend of resources integrating by multiple parts of databases.

  • To achieve a higher level of smart resource scheduling, databases should automatically analyze the historical resource usage level and capture the current resource usage in time to optimize resource scheduling.

  • To achieve a higher maturity level of smart resource control, databases should monitor the usage of various resources in each part of the database to realize automatic resource control.

  • To achieve a higher maturity level of smart resource scaling, databases should perform self-decision for the time and method of expanding resources based on the current resource usage.

Table 9 Characteristics of the integrated maturity levels and AI indicators

To adequately describe the maturity model, we should combine Table 9 and Fig. 3 to give each CNDB indicator a complementary table similar to Table 9. The complement includes the activities related to the characteristics of the integrated three maturity levels with AI indicators and a CNDB indicator since the highest level is introduced in Table 6. But it would generate a large amount of information. For abbreviation, we take the multi-tenant indicator as an example to provide the corresponding complement, as shown in Table 10. This complement helps developers make better use of the maturity model to improve the maturity level of the AI indicators when CNDBs focus on the multi-tenant feature.

Table 10 The characteristics of the integrated other three maturity levels and the multi-tenant indicator

Assessment

As mentioned above, our study develops a maturity model of AI-empowered CNDBs. To use the maturity model, we propose an assessment tool based on the model to help developers identify the maturity level of CNDBs. And we provide an assessment case to prove the maturity model.

Assessment tool

We transform the maturity model from a matrix of dimensions to a tool that enables developers to assess their AI-empowered CNDBs. The tool helps developers identify activities and opportunities on the path to achieving their AI-empowered goals. We introduce the tool, explain how to use it, and give an example and some suggestions in the following.

The tool relies on the form of a table to help assess. The table covers all the interleaving of CNDB and AI indicators. It has six child tables, each representing the interleaving of a CNDB indicator and all AI indicators. In each child table, the characteristics of AI indicators at different maturity levels are restated as yes/no questions. In other words, CNDBs are performing an activity, or it is not. This yes/no format eliminates the ambiguity in assessing the level of compliance for a specific activity. The tool’s core data is presented in Appendix 1.

To analyze the maturity level of CNDBs, we give a simplified example of the assessment strategies. First, we assume that the indicators are not weighted during the assessment. Developers can consider the selected AI technologies capabilities of the CNDBs to achieve this level only if the CNDB developer responds “yes” to all questions for the specific integration of CNDB and AI indicators at that maturity level. Second, when the actual situation of the CNDB meets the required characteristics of a certain level (e.g., level 1) but does not respond “yes” to all questions for a higher level (e.g., level 2), the CNDB is then determined as the lower level (i.e., level 1). Third, the CNDB can apply for a higher-level assessment only if it meets the requirements of the lower level. As shown in Fig. 4, we give an example of the maturity levels of the indicators.

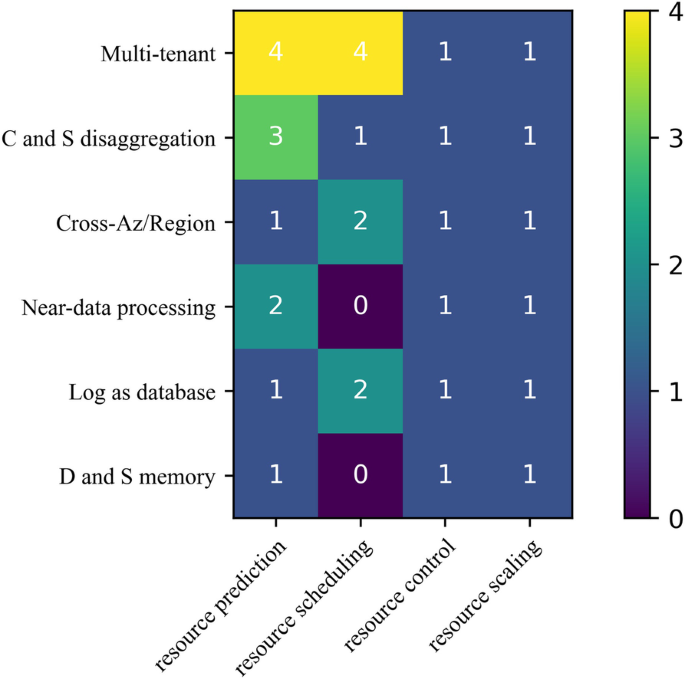

Fig. 4
figure 4

Maturity level of the interleaving of two dimensions (an example)

We analyze an example of the assessment results shown in Fig. 4 and illustrate the suggestions based on the results. In Fig. 4, the CNDB realizes automatic resource prediction and scheduling for the multi-tenant feature by applying AI technologies, while it only performs simple resource prediction for the distributed and shared memory feature. At this point, the database developer should put more effort into smart resource prediction for the distributed and shared memory feature. Significantly, when implementing AI technologies, developers should improve the capabilities of CNDBs step by step rather than blindly pursue the highest goal. For example, from AI-ready level to AI-usage level, but not to semi-automatic and automatic level directly. This tool helps developers assess the current level of CNDBs and recommend the next level as a target.

Assessment case

Now a large number of CNDBs have emerged, but they are still in the preliminary stage. We take POLARDB as an example and give the assessment results of its two versions.

The assessment relies on the internal materials for each established indicator of CNDBs. To perform the assessment, developers use the assessment tool based on the materials and make their judgments (i.e., giving yes/no answers) to each question from the lowest level (see Appendix 1). However, we cannot obtain these internal materials since they involve trade secrets. In the end, we rely on the published papers [31, 51] and public information to perform assessments. The assessment results obtained in this way are not objective, while the overall development trend of CNDBs reflected in the results is objective. We can verify the maturity model through the overall development trend of CNDBs. We use the maturity model to analyze the maturity levels of POLARDB’s two versions. Figure 5 presents the assessment results, and we analyze the development trend through the results.

Fig. 5
figure 5

The assessment results of POLARDB v1.0 and v2.0

POLARDB v1.0 implements the basic functions without intelligent optimization. We argue that the maturity levels of the indicators are level 1 (i.e., AI-ready level), as shown in Fig. 5(a). POLARDB v2.0 optimizes the database in many aspects by applying AI technologies, making the database achieve preliminary intelligence. The maturity levels of several indicators increase by a level compared to v1.0, as shown in Fig. 5(b). The improvements are shown as follows.

  • First, the maturity level of the interleaving of multi-tenant and smart resource scheduling is raised to level 2. POLARDB v2.0 can intelligently schedule resources in the resource pool by applying AI technologies to meet the needs of multiple tenants.

  • Second, for the distributed and shared memory indicator, the capabilities of POLARDB on smart resource prediction and smart resource scheduling meet level 2. POLARDB v2.0 can predict the size of memory resource blocks participating in memory pooling and schedule the resources in the memory pool by applying AI technologies.

  • Third, to the entire database, all CNDB indicators realize level 2 of smart resource control and smart resource scaling. POLARDB v2.0 can intelligently allocate different computing nodes for OLAP and OLTP to control the computing resources occupied by OLAP. And it can automatically bring resources into the scope of resource management to scale out resources.

The assessment results show that the maturity levels of POLARDB are low, but the overall trend shows a gradually mature development direction. In other words, although the assessment results are subjective, the overall development direction of the versions is consistent with the proposed maturity model. The results prove that our maturity model is effective.

Conclusions and future work

Our study proposes a maturity model of AI-empowered CNDBs that contains CNDB and AI dimensions with ten indicators and four maturity levels, based on the SLR and expert interviews. The maturity model contributes to understanding and assessing the capabilities of AI technologies applied in CNDBs. The findings of our study help database developers select appropriate targets and formulate improvement measures to realize AI-empowered CNDBs. The analysis of the assessment case shows that although the maturity levels of CNDB are low, its development direction conforms to the maturity model.

Our work can be extended in multiple directions. First, we follow the guidelines of Wolfswinkel et al. [25] to search and select articles, and our search was limited to the eight specific online databases with our keywords. There may still be relevant studies that have not been included in our SLR. Although these are the main sources on assessing AI-empowered CNDBs addressing confidence that our SLR has identified the key literature, some researchers may still question the comprehensiveness of the results. We welcome researchers and practitioners to discuss more key literature to supplement the results of this study. Second, the indicators of the maturity model are identified according to the current development of CNDBs. With the continuous development of CNDB, the features of the CNDBs will change. And the indicators of maturity model will also change accordingly. In the future, researchers may need redefine the indicators with the same method. Third, the assessment tool in our study requires developers to make judgments on the corresponding questions based on relevant materials, resulting in a heavy assessment workload. It is difficult to perform the large-scale operation in actual database assessment applications. Developing an intelligent assessment tool by applying deep learning technologies (e.g., NLP) is an item of future work.

Availability of data and materials

The data used to support the findings of this study are available from the corresponding author upon request.

Abbreviations

CNDBs:

Cloud-native databases

AI:

Artificial Intelligence

SLR:

Systematic literature review

PM:

Product Managers

References

  1. Li F (2019) Cloud-native database systems at Alibaba: opportunities and challenges. Proc VLDB Endowment 12(12):2263–2272

    Article  Google Scholar

  2. Ton That DH, Wagner J, Rasin A, Malik T (2019) PLI+: efficient clustering of cloud databases. Distributed Parallel Databases 37(1):177–208

    Article  Google Scholar

  3. GB/T 33136–2016 Information technology service—Service capability maturity model of data center. Available at: https://openstd.samr.gov.cn/bzgk/gb/newGbInfo?hcno=F7A2242CAA62FD4466E8BAB0F92661D8. Accessed 20 June 2022

  4. Zhan C, Su M, Wei C et al (2019) AnalyticDB: real-time OLAP database system at alibaba cloud. Proc VLDB Endowment 12(12):2059–2070

    Article  Google Scholar

  5. Antonopoulos P, Budovski A, Diaconu C et al (2019) Socrates: the new sql server in the cloud. In: Proceedings of the 2019 International Conference on Management of Data, pp 1743–1756

    Chapter  Google Scholar

  6. Pang Z, Lu Q, Chen S et al (2021) ArkDB: a key-value engine for scalable cloud storage services. In: Proceedings of the 2021 International Conference on Management of Data, pp 2570–2583

    Chapter  Google Scholar

  7. Chen Y, Zhao F, Lu Y, Chen X (2021) Dynamic task offloading for mobile edge computing with hybrid energy supply. Tsinghua Sci Technol. https://doi.org/10.26599/TST.2021.9010050

  8. Xu J, Li D, Gu W, Chen Y (2022) UAV-assisted task offloading for IoT in smart buildings and environment via deep reinforcement learning. Build Environ 222:109218

  9. Chen Y, Zhao F, Chen X, Wu Y (2021) Efficient multi-vehicle task offloading for mobile edge computing in 6G networks. IEEE Trans Veh Technol 71(5):4584–4596

    Article  Google Scholar

  10. Xu X, Jiang Q, Zhang P, Cao X et al (2022) Game theory for distributed IoV task offloading with fuzzy neural network in edge computing. IEEE Trans Fuzzy Syst

  11. Chen Y, Gu W, Li K (2022) Dynamic task offloading for internet of things in mobile edge computing via deep reinforcement learning. Int J Commun Syst 2022:e5154

  12. Huang J, Tong Z, Feng Z (2022) Geographical POI recommendation for internet of things: a federated learning approach using matrix factorization. Int J Commun Syst 2022:e5161

  13. Xu X, Tian H, Zhang X, Qi L, He Q, Dou W (2022) DisCOV: distributed COVID-19 detection on X-ray images with edge-cloud collaboration. IEEE Trans Serv Comput 15(3):1206–1219

  14. Sandhu AK (2021) Big data with cloud computing: discussions and challenges. Big Data Mining Analytics 5(1):32–40

    Article  Google Scholar

  15. Zhang Y, Zhang H, Cosmas J, Jawad N et al (2020) Internet of radio and light: 5G building network radio and edge architecture. Intell Converged Netw 1(1):37–57

    Article  Google Scholar

  16. Comuzzi M, Patel A (2016) How organisations leverage big data: a maturity model. Ind Manag Data Syst 116(8):1468–1492

    Article  Google Scholar

  17. Guoqiang GAI, Tingkun Y, Jun XIE, Chenning HUANG (2021) Database service ecology and system in China. Inform Commun Technol Policy 47(1):57–62

    Google Scholar

  18. Spillner J, Bogado Y, Benítez W, López Pires F (2018) Co-transformation to cloud-native applications: development experiences and experimental evaluation. In: 8th International Conference on Cloud Computing and Services Science (CLOSER). SciTePress, Funchal, pp 19–21

    Google Scholar

  19. Chen W, Liu C, Xing F, Peng G, Yang X (2021) Establishment of a maturity model to assess the development of industrial AI in smart manufacturing. J Enterp Inf Manag 35(3):701–728

    Article  Google Scholar

  20. Tarhan A, Turetken O, Reijers HA (2016) Business process maturity models: a systematic literature review. Inf Softw Technol 75:122–134

    Article  Google Scholar

  21. Sadiq RB, Safie N, Abd Rahman AH et al (2021) Artificial intelligence maturity model: a systematic literature review. PeerJ Comput Sci 7:e661

    Article  Google Scholar

  22. Felch V, Asdecker B (2020) Quo Vadis, business process maturity model? Learning from the past to envision the future. In: International conference on business process management. Springer, Cham, pp 368–383

    Chapter  Google Scholar

  23. Dutta A, Roy R, Seetharaman P (2022) An assimilation maturity model for IT governance and auditing. Inf Manag 59(1):103569

    Article  Google Scholar

  24. Qi L, Hu C, Zhang X, Khosravi MR, Sharma S, Pang S, Wang T (2020) Privacy-aware data fusion and prediction with spatial-temporal context for smart city industrial environment. IEEE Transact Industr Inform 17(6):4159–4167

    Article  Google Scholar

  25. Wolfswinkel JF, Furtmueller E, Wilderom CP (2013) Using grounded theory as a method for rigorously reviewing literature. Eur J Inf Syst 22(1):45–55

    Article  Google Scholar

  26. Kitchenham BA, Budgen D, Brereton P (2015) Evidence-based software engineering and systematic reviews. CRC Press, Boca Raton

    Book  Google Scholar

  27. Chen Y, Xing H, Ma Z, Chen X, Huang J (2022) Cost-efficient edge caching for NOMA-enabled IoT services. Chin Commun

  28. Corbett JC, Dean J, Epstein M et al (2013) Spanner: Google’s globally distributed database. ACM Transact Comput Syst (TOCS) 31(3):1–22

    Article  Google Scholar

  29. Huang D, Liu Q, Cui Q et al (2020) TiDB: a raft-based HTAP database. Proc VLDB Endowment 13(12):3072–3084

    Article  Google Scholar

  30. Verbitski A, Gupta A, Saha D et al (2017) Amazon aurora: design considerations for high throughput cloud-native relational databases. In: Proceedings of the 2017 ACM International Conference on Management of Data, pp 1041–1052

    Chapter  Google Scholar

  31. Cao W, Liu Y, Cheng Z et al (2020) POLARDB meets computational storage: efficiently support analytical workloads in cloud-native relational database. In: 18th USENIX conference on file and storage technologies (FAST 20), pp 29–41

    Google Scholar

  32. Cao W, Liu Z, Wang P et al (2018) PolarFS: an ultra-low latency and failure resilient distributed file system for shared storage cloud database. Proc VLDB Endowment 11(12):1849–1862

    Article  Google Scholar

  33. Depoutovitch A, Chen C, Chen J et al (2020) Taurus database: how to be fast, available, and frugal in the cloud. In: Proceedings of the 2020 ACM SIGMOD International Conference on Management of Data, pp 1463–1478

    Chapter  Google Scholar

  34. Huang J, Lv B, Wu Y, Chen Y, Shen X (2021) Dynamic admission control and resource allocation for mobile edge computing enabled small cell network. IEEE Trans Veh Technol 71(2):1964–1973

    Article  Google Scholar

  35. Chen Y, Liu Z, Zhang Y, Wu Y, Chen X, Zhao L (2020) Deep reinforcement learning-based dynamic resource management for mobile edge computing in industrial internet of things. IEEE Transact Industr Inform 17(7):4925–4934

    Article  Google Scholar

  36. Nath S, Wu J (2020) Deep reinforcement learning for dynamic computation offloading and resource allocation in cache-assisted mobile edge computing systems. Intell Converged Netw 1(2):181–198

    Article  Google Scholar

  37. Herodotou H, Lim H, Luo G et al (2011) Starfish: a self-tuning system for big data analytics. 5th Biennial Conf Innovative Data Syst Res (CIDR'11) 11(2011):261–272. Asilomar

  38. Li L, Gruenwald L (2016) An SLA and operation cost aware performance re-tuning algorithm for cloud databases. 2016 IEEE 9th Int Conf Cloud Comput (CLOUD) 2016:966–969

  39. Wang X, Li N, Zhang L, Zhang X, Zhao Q (2021) Rapid trend prediction for large-scale cloud database KPIs by clustering. 2021 IEEE/ACM Int Workshop Cloud Intell (CloudIntelligence) 2021:1–6

  40. Xiong P, Chi Y, Zhu S, Moon HJ, Pu C, Hacgümüş H (2014) SmartSLA: cost-sensitive management of virtualized resources for CPU-bound database services. IEEE Transact Parallel Distribut Syst 26(5):1441–1451

    Article  Google Scholar

  41. Wang L, Xu J, Zhao M (2012) Application-aware cross-layer virtual machine resource management. In: Proceedings of the 9th international conference on Autonomic computing, pp 13–22

    Chapter  Google Scholar

  42. Sotiriadis S, Bessis N, Buyya R (2018) Self managed virtual machine scheduling in cloud systems. Inf Sci 433:381–400

    Article  Google Scholar

  43. Tan J, Zhang T, Li F et al (2019) iBTune: individualized buffer tuning for large-scale cloud databases. Proc VLDB Endowment 12(10):1221–1234

    Article  Google Scholar

  44. Armağan Ö, Gören-Sümer L (2014) Feedback control for multi-resource usage of virtualised database server. Comput Electr Eng 40(5):1683–1702

    Article  Google Scholar

  45. Omara FA, Khattab SM, Sahal R (2014) Optimum resource allocation of database in cloud computing. Egypt Inform J 15(1):1–12

    Article  Google Scholar

  46. Zhang X, Wu H, Chang Z et al (2021) ResTune: resource oriented tuning boosted by meta-learning for cloud databases. In: Proceedings of the 2021 International Conference on Management of Data, pp 2102–2114

    Chapter  Google Scholar

  47. Shen Z, Subbiah S, Gu X, Wilkes J (2011) CloudScale: elastic resource scaling for multi-tenant cloud systems. In: Proceedings of the 2nd ACM Symposium on Cloud Computing, pp 1–14

    Google Scholar

  48. Salmanian Z, Izadkhah H, Isazadeh A (2022) Auto-scale resource provisioning in IaaS clouds. Comput J 65(2):297–309

    MathSciNet  Article  Google Scholar

  49. JV BB, Dharma D (2018) HAS: hybrid auto-scaler for resource scaling in cloud environment. J Parallel Distribut Comput 120:1–15

    Article  Google Scholar

  50. Narasayya V, Menache I, Singh M et al (2015) Sharing buffer pool memory in multi-tenant relational database-as-a-service. Proc VLDB Endowment 8(7):726–737

    Article  Google Scholar

  51. Cao W, Zhang Y, Yang X et al (2021) Polardb serverless: a cloud native database for disaggregated data centers. In: Proceedings of the 2021 International Conference on Management of Data, pp 2477–2489

    Chapter  Google Scholar

  52. Das S, Li F, Narasayya VR, König AC (2016) Automated demand-driven resource scaling in relational database-as-a-service. In: Proceedings of the 2016 International Conference on Management of Data, pp 1923–1934

    Chapter  Google Scholar

Download references

Acknowledgements

The authors would like to thank all anonymous reviewers for their invaluable comments.

Funding

This paper is supported by the National Natural Science Foundation of China under Grant No. 62162050.

Author information

Authors and Affiliations

Authors

Contributions

Jie Song is the corresponding author and contributed to the “Introduction”, “Definition” and “Assessment” sections. Xiaoyue Feng contributed to all of the manuscript sections. Tianzhe Jiao contributed to the “Related works” section and the “Analysis Methods and Results” section. Chaopeng Guo contributed to the “Assessment” section. All authors have read and approved the manuscript.

Corresponding author

Correspondence to Jie Song.

Ethics declarations

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix

Appendix

Please insert Table 11 here.

Table 11 The assessment tool developed in our study for assessing AI technologies capabilities for a CNDB

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Feng, X., Guo, C., Jiao, T. et al. A maturity model for AI-empowered cloud-native databases: from the perspective of resource management. J Cloud Comp 11, 39 (2022). https://doi.org/10.1186/s13677-022-00318-1

Download citation

  • Received:

  • Accepted:

  • Published:

  • DOI: https://doi.org/10.1186/s13677-022-00318-1

Keywords

  • Cloud-native database
  • Maturity model
  • AI-empowered
  • Resource management
  • Maturity assessment
