Cloud failure prediction based on traditional machine learning and deep learning
Journal of Cloud Computing volume 11, Article number: 47 (2022)
Cloud failure is one of the critical issues since it can cost millions of dollars to cloud service providers, in addition to the loss of productivity suffered by industrial users. Fault tolerance management is the key approach to address this issue, and failure prediction is one of the techniques to prevent the occurrence of a failure. One of the main challenges in performing failure prediction is to produce a highly accurate predictive model. Although some work on failure prediction models has been proposed, there is still a lack of a comprehensive evaluation of models based on different types of machine learning algorithms. Therefore, in this paper, we propose a comprehensive comparison and model evaluation for predictive models for job and task failure. These models are built and trained using five traditional machine learning algorithms and three variants of deep learning algorithms. We use a benchmark dataset, called Google Cloud Traces, for training and testing the models. We evaluated the performance of models using multiple metrics and determined their important features, as well as measured their scalability. Our analysis resulted in the following findings. Firstly, in the case of job failure prediction, we found that Extreme Gradient Boosting produces the best model where the disk space request and CPU request are the most important features that influence the prediction. Second, for task failure prediction, we found that Decision Tree and Random Forest produce the best models where the priority of the task is the most important feature for both models. Our scalability analysis has determined that the Logistic Regression model is the most scalable as compared to others.
Cloud computing is at the forefront of a global digital transformation . It allows a business to provide an extra layer of security in terms of information security and allows them to raise the level of efficiency of operation to a new level. According to Business Fortune Insight, the North American market has spent approximately 78.28 billion dollars on cloud services. The cloud computing market is expected to continue to expand from $219B in 2020 to $791.48B in 2028 .
The implementation and deployment of the cloud system opens up to deal with different types of cloud failure . Failing to handle these failures will result in degradation of quality of service (QoS), availability, and reliability. It will ultimately lead to an economic loss for both cloud consumers and providers . This challenge is commonly addressed with fault tolerance management, which offers the ability to detect, identify, and handle faults without damaging the final result of cloud computing . There are several categories of fault tolerance techniques that include redundancy techniques, fault-aware policies (i.e., reactive and proactive policies), and load balance . In this paper, we focus on proactive policies that can be implemented with a failure prediction technique trained using machine learning algorithms. Failure prediction is significant in preventing the occurrence of failure and in minimizing the maintenance costs of fault tolerance management. As there are different types of cloud failure, we pay particular attention to the prediction of job and task failure. Both failures are interconnected (i.e., a job contains one or more tasks) and should be tackled simultaneously.
Therefore, in this paper, our aim is to build and evaluate a set of trained models to predict the job and task termination status (i.e. failure or success). For this reason, we have chosen five traditional machine learning algorithms (TML) and three variants of deep learning algorithms (DL). TML algorithms include logistic regression (LR), decision tree (DT), random forest (RF), gradient boost (GB), and extreme gradient boost (XGBoost). Meanwhile, the DL algorithms refer to single-layer long-short-term memory (LSTM), two-layer (bi-layer) LSTM, and three-layer (tri-layer) LSTM. We used the benchmark dataset, Google Cluster Traces (GCT), published in 2011, to train and test the models. We then perform a series of evaluations to find the best models. Therefore, this work contributes threefold. First, an approach to comprehensively produce and evaluate predictive failure models (Section 3). Second, the results and findings of four types of analyzes, namely exploratory data analysis, feature analysis, performance analysis, and scalability analysis (Section 4). Third, a review of cloud failure prediction and machine learning approaches specifically related to GCT, as well as other datasets (Section 5).
The remainder of this paper is organized as follows. Section 2 explains the dataset used and the fundamental background of cloud failures. Section 3 presents the approach to conducting this study. Section 4 provides the results and findings of the analysis. Section 5 summarizes the related works. Section 6 concludes the paper with several future works.
In this section, the dataset used in this study is introduced, followed by a fundamental understanding of cloud failures.
Google Cluster Traces
Up to date, Google has released three public trace datasets for research and academic use. The first one was released in 2007 and contains 7-hour workload details. The dataset contains only basic information, including time, job id, task id, job category, and number of cores and memory. Both the cores and the memory count have been normalized.
The second dataset contains traces of 29 days’ workload from about 12,500 machines in the month of May 2011. The data consist of 672,074 jobs and around 26 million tasks that have been submitted by the user . Unlike the previous dataset, this one includes more information about each task’s resource utilization, as well as information about the task itself, such as scheduling class and task priority.
The third dataset is the most current, documenting the use of cloud resources from eight separate clusters, with one cluster containing roughly 12,000 computers in May 2019, and was released in early 2020 . Compared to the 2011 dataset, this dataset focuses on resource requests and utilization and contains no information about end users. The 2019 dataset has three additions: CPU utilization information histograms for each 5 minute period, information regarding shared resources reservation by a job, and job-parent information for master/worker relationships such as MapReduce’s jobs.
The data provided in this version can generally be divided into machine details, and job and task details.
The machine details are provided in two tables, which are machines events and machine attributes. Every unique machine in both of these tables is identified by machine ID, a unique 64-bit identifier. The table machine events consists of a timestamp, machine ID, event type, platform ID, and the capacity of each machine. This table records all events related to a machine, such as adding and removing machines from the cluster. Each record has its own timestamp that indicates when the event occurs. There is also information on the machine platform representing the microarchitecture and chip-set version of the machine, and the normalized value of the machine CPU and memory capacity. In the case of the table machine attributes, it contains details of machine properties such as kernel version, machine operation clock speed, and the external IP address that is linked to the machine.
Four tables are provided to describe the details of the job and tasks, which are table job event, table task event, table task constraint, and table resource usage.
Tables job event and task event are used to describe the life cycle of the job or the task. Each job is identified by a unique 64-bit identifier, while each unique task is identified by the combination of job ID and task index. Every event from submission to termination is recorded in these tables. The type of event is identified by their event type column, where the value zero indicates the job or task submitted by the user, the value one indicates that the task has been scheduled to run on a machine, values two to six indicate that the task has been terminated, while values seven and eight indicate that the task details or requirements have been updated.
Furthermore, there is also a column that indicates whether a task or a job has been synthesized as a replacement for a missing record. Alongside all the columns mentioned above, there is a column for scheduling class in both tables. The scheduling class is indicated by a single integer value from zero to three, where zero indicates a nonproduction task, while three indicates a latency-sensitive task. Lastly, there is one column for a username and two more columns for job names. These columns have been anonymized by combining data from several internal name fields.
In the case of the table task event, there are six more columns in addition to all the ones mentioned above. One of the columns is the machine ID, which determines which machine the task is run on. The second column is the priority of the task, which is valued from zero as the least priority to 11 as the most important task. Next, there are three columns detailing the normalized amount of every requested resource, which are CPU resources, memory resources, and disk space resources. Lastly, there is a column that attributes the constraint of running on a different machine. If there is a value in the column, we note that the task must be executed on a machine different from the machine currently running a different task from the same job.
The table task constraint discloses the constraints associated with each task, which may be zero or one or more. Task constraints prevent a task from running on a certain machine. Each record in the task constraint table represents exactly one task event record. Finally, there is a table resource usage. This table discloses the amount of computing resources, such as CPU, memory, and disk space, that have been used for each task. This usage is recorded for each 5-minute or 300-second measurement period.
Failure in Cloud
This section explains the failure and fault tolerance categories in the cloud environment.
Categories of Cloud Failure
The cloud computing, like any other computing system, is susceptible to failure. Cloud computing system fails when it fails to perform its predefined function due to hardware failures or unexpected software failures. The more complex the computing system, the higher the probability that the system will fail. There are two classifications of failures, namely architecture-based and occurrence-based failures . These failure categories are summarized in Table 1.
Architecture-based failures include two types of failure, defined as service and resource failures. Service failure usually occurs due to software failure, such as unplanned reboots and cyberattacks, or scheduling failure, such as service timeout. Meanwhile, resource failure is caused by hardware failure, such as power outages, system breakdown, memory problems, and complex circuit design. The occurrence-based failure consists of two types of failure, specifically correlated and independent failures. Correlated failure is a failure that occurs due to another domain of failure. For example, a cloud resource is unavailable due to a power outage that affects the cloud infrastructure. Meanwhile, independent failure is caused by external factors, such as human error and computer overheating.
As we are concerned about the termination status of the job and task, our work can be associated with service failure, where the main cause is driven by scheduling failure.
Fault Tolerance in Cloud Computing
Despite the advancement of cloud computing technology, cloud computing performance is still hampered by its vulnerability to failure. Therefore, fault tolerance is one of the fundamental requirements of cloud computing. There are different ways of classifying fault tolerance approaches [5, 8, 9]. Here, we highlight two major tolerance approaches, namely the reactive and proactive approach.
The reactive fault tolerance approach reduces the effect of failure on the execution of an application. When a failure occurs in the cloud environment, the reactive fault tolerance approach takes effect. There are several techniques used in the reactive fault tolerance approach. One of them is task replication . This technique is used to duplicate tasks on multiple resources. This replication increases the likelihood that at least one task will be completed correctly. The second technique is the re-submission of tasks . When a task fails, it will be rerun with the same node or with a different resource.
The proactive fault tolerance approach is based on the principle of preventing the entire failure from occurring. For this approach, the condition of the physical system is constantly monitored, and the occurrence of a system failure must be predicted. If the probability of a fault occurring is high, cloud service providers will take a preventive measure, such as removing hardware from the service cluster or performing corrective measures on the software. Failure prediction can be built using the information collected from previous cloud failures. Machine learning is an excellent tool for predicting software and hardware failures in cloud infrastructures. Failure prediction is considered a proactive fault tolerance approach if it is implemented in the cloud infrastructure .
Existing work has implemented the proactive tolerance approach, such as predicting hardware failure in the cloud farm  and predicting memory failure in a computer system . Another example is the work of , where a machine learning algorithm is constructed to predict task failure in the cloud system. The prediction model enables the system to efficiently manage the resources available in the cloud system, ensuring that minimum failure occurs, potentially disrupting the availability of the cloud resources.
This section introduces and explains the approach proposed to carry out this study.
Figure 1 shows the approach to implement the comprehensive comparison study of the prediction of job and task failure driven by the GCT dataset. We divide the activities involved into three phases, namely data handling, model generation, and analysis and experiments. Phase data handling comprises the activity of extracting from the published tables (that is, the job event and task event tables) and preparing the two datasets, which we call data set A, which comprises the job-level termination data and dataset B, which comprises the task-level termination data. Table 2 shows the sample of dataset A, while Table 3 shows the sample of dataset B. Phase model generation involves the process of developing and training predictive models based on the TML and DL algorithms. The predictive model is meant to address the classification problem, that is, to classify the termination status of each job or task, either success or failure. Phase analysis and experiments comprises four analyzes, namely exploratory data analysis (EDA), performance analysis (PA), feature importance analysis (FA) and scalability analysis (SA). The EDA is applied to uncover the behavior of the dataset. The input data for the EDA are referred to the published dataset. PA is used to determine the quality of predictive models based on certain metrics to determine the best models. FA is used to identify the feature importance of the predictive models. SA is applied to understand the scalability of predictive models in relation to different data sizes. The input data for PA, FA, and SA are referred to datasets A and B.
Furthermore, Fig. 2 shows the technical workflow and platforms for implementing the proposed approach presented in Fig. 1. There are two platforms that are used to implement the overall phases. First, we use the Google Cloud Platform (GCP)  to handle data and generate models. Second, we used a local machine to perform analysis and experiments. For the GCP, we configure a virtual machine with 4 CPU cores and 16 GB of memory with a NVIDIA Tesla T4 GPU. Meanwhile, the specification of local machine is based on 2 CPU cores with a clock speed of 2.30 GHz and 20 GB of memory.
In this section, we elaborate on the two main tasks for data handling, namely, data extraction and preparation, as presented in Fig. 1.
The sources of data are retrieved from Google Cloud Storage (GCS). Information on the dataset is available at  for the 2011 version. We downloaded the GCT dataset with a size of approximately 400 GB. urllib library was used to access the data stored in the GCS. The files were stored in a zipped file and partitioned. The number of partitions was embedded in the Uniform Resource Locator (URL) of the GCS. Then, all data were extracted using the gzip library to generate the intermediate dataset, namely, the job event table and task event table in csv format. To automate this task, a function was built to load, extract, and save the intermediate dataset into the respective directory.
This task involves several subtasks, which are data cleaning, data integration, data reduction, data transformation, and class balancing. We utilized the Dask library instead of Pandas to process the data since Dask enables parallelism. Having said that, Dask provides similar capability as Pandas, since it is built on top of Pandas. The intermediate data sets, namely, the job event table and the task event table, are the main input for this task. The aim is to prepare two new datasets, namely, a job-level termination dataset (i.e., dataset A) and a task-level termination dataset (i.e., dataset B). The details of each subtask are as follows.
In the case of the GCT dataset, we perform data cleaning, in particular, we handle missing values in the task event table. There are three columns affected by this problem, namely CPU request, memory request, and disk space request. We solve this problem by removing related records that contain missing values using the Pandas function dropna. We then make use of the visualization approach to check the data. We used a boxplot to observe the data distribution for the continuous data chart and a bar and pie chart to observe the categorical data. It is important to note that we also found some outliers in the task event table. However, we have decided to keep these records because they can potentially contribute to identifying the termination status of the job and predicting task failure.
In this study, we need to integrate data from the job event and task event table into a single table to produce the job-level termination data set (i.e., data set A). This task is needed to increase the relevant features for dataset A. To support data integration, we need to identify the most appropriate values from the task event table to be merged with the record in the job event table. This is important since one job event can have multiple task events. For this reason, we apply a data aggregation step in which each set of task event records associated with each job is aggregated based on their three features, namely CPU requests, memory requests, and disk space requests. The purpose is to find the maximum value for each of them. These maximum values are then used to merge with the job event records. The data integration task is implemented using the merge function of the Dask library. Meanwhile, dataset B is not involved in the integration task because the existing features are sufficient for modeling purposes.
This task is carried out to obtain the subset of the entire dataset. It is needed to enable us to conduct the analysis and experiments using the available platform with a limited budget. Hence, this task involves two objectives. The first is to reduce the number of columns or features, which is supported by the correlation analysis. The second objective is to reduce the number of rows by deciding the subset of the dataset.
For the first objective, we first change the string datatype of the respective features into a numerical datatype. This is done using Pandas’ astype function. After that, we construct a Heatmap to identify the correlation between all the respective features and to determine which features to be removed from the dataset. In general, those features that have weak to no correlation with the outcome of a job or task are removed. Once removed, the only features that remain in dataset A are the scheduling class and resource-related requests (i.e. CPU requests, memory requests and disk space requests). Meanwhile, the remaining features of dataset B are scheduling class, priority and resource-related requests.
For the second objective, we reduce the rows or records on the basis of two filters. The first filter uses the timestamp feature, where we have decided to select data from the first fourteen (14). As the value is in a timestamp format, we have to convert the day into microseconds to enable the filtering task. For the second filter, we have decided to remove some records using the event type feature. There are 9 distinct values in event type. Here, we have chosen to remove those with their event types considered incomplete lifecycle (that is, job / task submission (0), job / task scheduled (1), update while still in queue (7), and update during running (8)).
In this task, the focus is on re-categorizing the termination status in both datasets, A and B. Hence, the even type feature is used for this reason. Due to the previous data reduction, the remaining event type values are evict (2), fail (3), finished (4), kill (5) and lost (6) which indicate the termination status of each job or task. Based on these values, we categorize the type of event into two, success (that is, where the type of event equals 4) and failure (i.e., other than 4).
This task is needed due to the number of records of the failure and success classes being imbalanced. There are several techniques that can be used to balance them. Here, we apply the synthetic minority sampling technique (SMOTE) . In general, SMOTE facilitates the selection of examples that are closed in the feature space, drawing a line between the examples in the feature space, and drawing a new sample at a point along that line. The SMOTE process will increase the amount of data for the minority class and will also aid in model construction and training, especially for the DL models in the later stage.
During this phase, two types of machine learning algorithms are implemented, classified as TML and DL algorithms. Each dataset, A and B, is divided into two parts, specifically 70% for training and 30% for testing. The algorithms involved are as follows.
Traditional Machine Learning Algorithms
We have implemented three types of algorithms to address the classification problem, which are regression, tree, and ensemble, respectively. In the case of regression, LR  is chosen since it is the most investigated regression algorithm in machine learning. For the tree, we have selected DT  since it is the primary tree machine learning algorithm for the classification problem. Lastly, for the ensemble category, we have chosen RF , GB , and XGBoost . These machine learning algorithms were implemented using the scikit-learn library , except XGBoost, which was implemented using the XGBoost  library. All models were built as a default model with a small change in the default arguments. However, for the LR model, the number of maximum iterations has been changed because the default value is insufficient for converging all solvers. Solver is an optimization algorithm for calculating the loss of the LR model.
Deep Learning Algorithms
The last three machine learning algorithms will be three different variants of the LSTM  based algorithms. They are differentiated by the number of layers. The three variants of the DL model are Single Layer LSTM algorithm, Bi-Layer LSTM algorithm (two hidden layers), and Tri-Layer LSTM (three hidden layers), respectively. Finally, we add a dense layer to ensure that our algorithm produces only a single value for a prediction. The epoch is set to 100 to ensure we gain the best model possible. To reduce training times and prevent overfitting of the model, training is automatically stopped if there is no improvement of the validation loss value after 10 epochs.
Analysis & Experiments
This phase comprises exploration activities, identification of the feature importance and determination of the best models in terms of performance and scalability. Each of them is explained below.
Exploratory Data Analysis
This analysis focuses on exploring the data in the job event table and the task event table before preparing the data for the machine learning task. The job event table comprises of eight columns namely Timestamp, Missing Info, Job ID, Event Type, User Name, Scheduling Class, Job Name, and Logical Job Name, Meanwhile, the task event table comprises of thirteen columns namely Timestamp, Missing Info, Job ID, Task Index, Machine ID, Event Type, User Name, Scheduling Class, Priority, CPU Request, Memory Request, Disk Space Request, and Different Machine Constraint. Several types of analysis are performed, namely data distribution analysis for exploring the continuous type features and data classification analysis for exploring the discrete type features. We then produce a series of visualizations, specifically a bar chart and a pie chart to visualize the results of data categorization and a box plot to visualize the results of data distribution.
This analysis focuses on measuring the performance of predictive models towards building highly accurate classifiers. The analysis is divided into job-level and task-level predictive models. A large amount is used to train and test the models, namely 1 million records for the job-level prediction and 14 million records for the task-level prediction. A set of evaluation metrics is applied to measure each model, namely error rate, precision, sensitivity, specificity, and F-score. These measures can be obtained from the confusion matrix generated, which consists of four parameters: True positive (TP), true negative (TN), false positive (FP) and false negative (FN).
Feature Importance Analysis
The feature importance refers to the score that measures the importance of each feature in a predictive model. Feature importance helps to understand the relative importance of each feature in estimating the models. Feature importance does not relate to the accuracy of the model. The importance of each feature is determined by a score calculated by predicting the training data. A high score means that the feature will have high priority in determining the outcome of the prediction. In this study, the scores of feature importance are calculated using the library Dalex .
This analysis focuses on measuring the scalability of predictive models, which means the ability of the models to scale in response to the amount of data. It is determined by measuring the time taken to make the prediction based on the given input data. For this analysis, we have prepared a few sets of data for analyzing the job-level and task-level predictive models. In the case of the job level, there are three sets of input data of different sizes, namely (1) 10,000 rows, (2) 100,000 rows, and (3) 1,000,000 rows. For the task level, we prepared four sets of input data, specifically, (1) 10,000 rows, (2) 100,000 rows, (3) 1,000,000 rows, and (4) 10,000,000 rows. These input data are taken from the job event table and the task event table. For this analysis, the event type (i.e. the dependent variable) is ignored, and only the independent variables are considered. The process of preparing the data is similar to the process of data handling discussed in Section 3.2 that excludes data reduction, data transformation, and class balancing.
Results and Findings
This section explains the results of analysis and experiments, namely, related to exploratory data analysis, performance, feature importance, and scalability aspects.
Results of Exploratory Data Analysis
We explain the results based on two tables, which are the job event and the task event table.
Job Event Table
This table contains eight columns (or features) and 2,012,242 rows, where three of the columns take a hash string type and the rest are defined as integer type. Meanwhile, there are only 672,074 unique job identifiers. Each job has at least three occurrences, namely, job submission, job scheduling, and job termination. Figure 3 shows the distribution of scheduling classes in the job event table, while Fig. 4 shows the job termination status classified by their scheduling class.

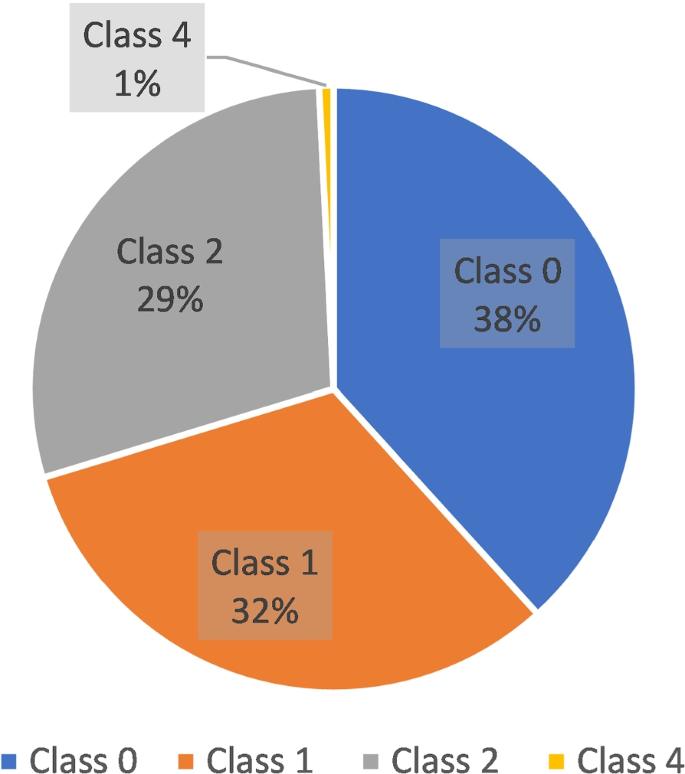

There are four scheduling classes where scheduling class 0 indicates the non-production jobs (e.g. non-business critical analysis), scheduling class 3 represents latency-sensitive jobs (e.g. serving revenue-generating user requests), while scheduling classes 1 and 2 represent the jobs that are somewhere between the least and the most latency one. Based on Fig. 3, almost half of the jobs are identified as class 0. There are around 5,000 jobs designated as class 3, 215,000 jobs as class 1 and 194,000 jobs as class 2. From Fig. 4, about 385,582 jobs finished normally, and 274,341 jobs were killed due to user interruption, or their dependent jobs have died. About 10,000 jobs were failed due to task failures. Lastly, about 22 jobs were evicted because of executing jobs with higher priority, the scheduler overcommitted, the actual demands exceeded the machine capacity, the machines became unusable, or the disks were failed.

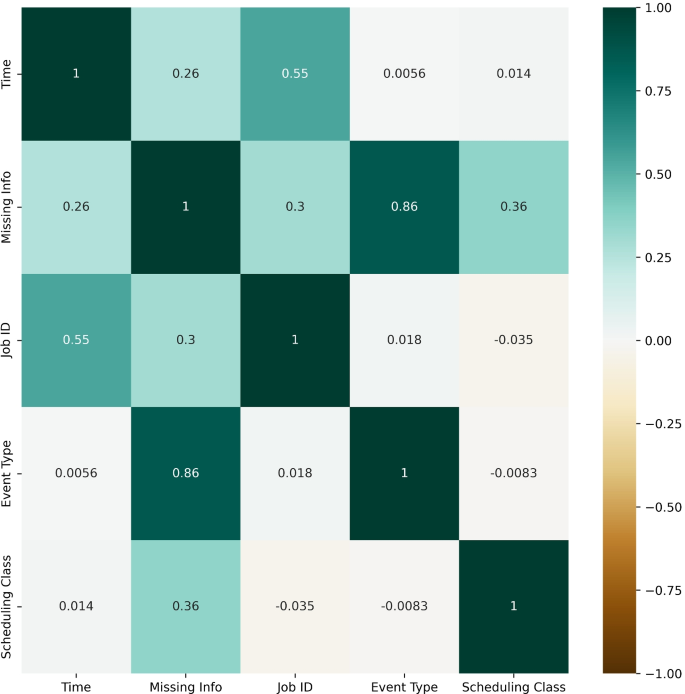

Figure 5 shows the correlation between the features in the job event table using heatmap. As shown, we can observe that event type is highly correlated with missing info. Also, note that other features have a weak or no correlation with event type. Two features, namely user name and job name, are not considered in this correlation, as we focus only on anonymous values.
Task Event Table
This table contains 13 columns (or features) and 144,648,288 rows, where eight of the columns are integer types, three are floating types, and one column is string type. There are 25,424,731 unique tasks in the table. A unique task is identified by the combination of the job id and the task index. Similarly to the job event table, a single task may contain at least three occurrences, namely, task submission, task scheduling, and task termination. Of 25,424,731 rows, 18,375 rows were synthesized, which is approximately 7% of the total records. Figure 6 shows the distribution of priority tasks, while Fig. 7 shows the termination status of tasks categorized by priority.
From Fig. 6, we can see that more than half of the task priority in the dataset is identified as level 0 which represents the least priority task. Unlike the job, task priority plays a significant role in determining the resource access for each task. From Fig. 7, we can see that the ratio of failed tasks to finished tasks is 3 to 4. This means that from the total of failed tasks and finished tasks, 3 of 4 tasks did not finish correctly. This ratio is abnormal, as a cloud service provider usually aims for 99.9% service availability. Therefore, we can assume that there were a series of outages at the site while monitoring the traces.
The distribution of resource requests is shown in Fig. 8. As shown, the average value for the CPU request per task is around 0.0125 to 0.0625 of the total CPU resources in a machine. The amount of memory request required is usually in the range of 0.01553 to 0.03180, while the disk space request is in the range of 0.000058 to 0.000404. The values of all resources have been normalized from 0 to 1. As a result, we may conclude that the amount of disk space needed is insignificant compared to the available resource. We can also see that each requested task takes less than 10% or 0.1 of the total CPU and memory requests.
Figure 9 shows the correlation of features in the task event table using heatmap. From the figure, we can see that event type has a weak correlation with other features. In addition to that, we notice that there is a positive correlation between resource usage and priority. Scheduling class does not appear to be affected by the amount of resources requested and the status of the task. Although it is a weak correlation, missing info is adversely correlated with resource requests.
Feature Importance Results
Herein, we present the results of feature importance based on job-level and task-level failure prediction.
Job Level Failure Prediction
Figure 10 shows the features that matter the most for all models driven by machine learning. With the exception of the GB and XGBoost models, in general, scheduling class and CPU request are the most significant features in determining the result of the job termination status. These two features score around 30 to 35% for their importance in cloud job termination status. For the three DL algorithms, it has been shown that CPU request is the most important feature in determining the termination status of the cloud job, whereas for the LR model, memory request is the most important feature in predicting the termination status of the job.
Task Level Failure Prediction
As shown in Fig. 11, the priority is the most important feature in predicting the termination status of the task. For the TML algorithms, with the exception of GB, the priority importance score is 0.2, which means that it has been the main factor in determining 20% of the result of the given dataset. In the case of resource-related requests (i.e., CPU request, memory request, disk space request), it has been determined that memory request is the most important feature for TML models, excluding the DT model where disk space request is the most important. For DL models, it has shown that memory request is the most important feature to predict the outcome in Single-Layer LSTM and Bi-Layer LSTM, while for Tri-Layer LSTM, disk space request in the most important resource request.
We present the performance results based on the prediction of failures for the job level and the task level.
Job Level Failure Prediction
Table 4 shows the performance of each model using the training dataset, while Table 5 shows the performance of all models trained to classify the termination status of the test dataset. We can observe that the performance of all LSTM models is lower than the performance of the TML models, excluding the LR model. Specifically, the XGBoost model has the best accuracy at 93.25% end at 93.10%. The F-score scores of 0.9325 and 0.9310 further demonstrated that XGBoost is the best model of all the models generated in this experiment. XGBoost also demonstrated the highest precision, correctly identifying 94.31% of the termination statuses of the job. Furthermore, the XGBoost sensitivity and specificity scores are 91.92% and 96.07%, respectively, indicating that it can successfully predict the termination status of the job.
The second highest accuracy is recorded by the DT model. The results for the XGBoost and DT models show only a slight difference in terms of accuracy, precision, and specificity performance during the testing and training phase. The DT model has achieved 93.27% accuracy during training and 93.23% accuracy during testing, with a precision of 92.19% during training and 91.95% during testing. Similarly to XGBoost, the DT model also obtained a high score for sensitivity and specificity during the training and testing phase, demonstrating that the model can correctly classify the job termination status.
The GB model has the third highest accuracy at 90.72% during the testing phase compared to the RF at 89.65%. However, during the training phase, the GB model shows a lower accuracy at 90.72% compared to the RF at 93.27%. It has also shown better performance during the testing phase, where its F-score is 0.8874 during the testing phase, while the F-score in the training phase is 0.8098. Therefore, the RF model is the fourth model used to predict job failure prediction, although the accuracy is slightly lower during testing, which is 89.65%. The LR model has the least accuracy compared to another model. This model has the lowest F-score and accuracy among the other TML models in this experiment. The LR model managed to obtain the accuracy score of 65% and incorrectly classify the result of 35% of the jobs in the dataset.
Finally, with the exception of the LR model, the three LSTM models developed for this experiment performed somewhat worse than other TML algorithms. This may be caused by underfitting the models when there is not enough data for the model to interpret the complexity of the data to make the correct classification. We also observed that there were not many differences in performance despite their differences in the number of hidden layers. We also can conclude that the amount of LSTM hidden layer suitable for this experiment is two, as we can see there is a dip in performance for Tri-Layer LSTM compared to Bi-Layer LSTM.
Task Level Failure Prediction
Table 6 shows the performance of each model using the training dataset, while Table 7 shows the performance of each model trained based on the test dataset. As shown, the best models to predict task-level failure prediction are the RF and DT models. Both achieved 89.75% accuracy during the testing phase. However, the RF model gains a slight edge during the training phase with 92.47% accuracy, while the obtained DT model achieved 89.75%. Both the DT and RF models managed to correctly classify 78.4% of the task that ended normally. This trend can be seen in most machine learning models.
XGBoost has the third highest accuracy at 89.35% during the testing phase compared to GB at 87.87%. The same is true for the training phase where the accuracy for the GB model is 87.81% and the accuracy for XGBoost at 89.34%. F-Score for XGBoost is 0.9120 and 0.9119, while the F-Score for the GB model is 0.9003. The LR model has the lowest accuracy compared to another model. This model has the lowest F-score and accuracy among the other TML models for this experiment. The LR model has achieved 70% accuracy and wrongly classified 30% of the task in the dataset.
Finally, similar to the job-level failure prediction, the three LSTM models performed marginally worse than all TML models excluding the LR model. The accuracy score for all LSTM models is between 86% and 87%. We also observed that there are not many differences in terms of performance between the three LSTM models despite their differences in the number of hidden layers.
We present the scalability results based on the prediction of the failure level of the job and the task level.
Job Level Failure Prediction

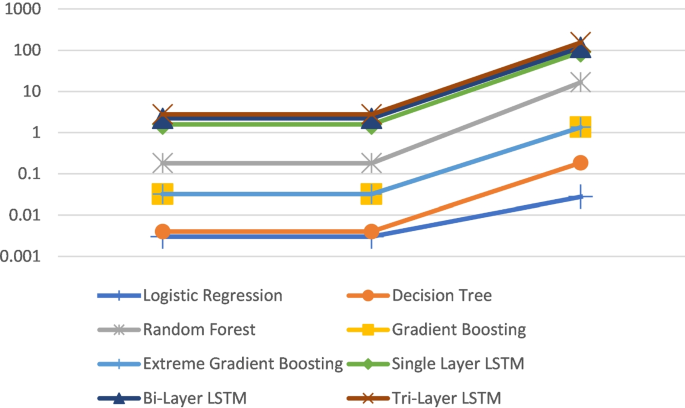

Figure 12 illustrates the scalability result of the job-level prediction models. For the TML models, we found that on average a single prediction will take around 2 to 3 microseconds per prediction, whereas the DL models take around 2 to 3 milliseconds for a single prediction. The best model for TML is based on the LR model, where it can predict up to 1 million inputs in under one second.
Task Level Failure Prediction

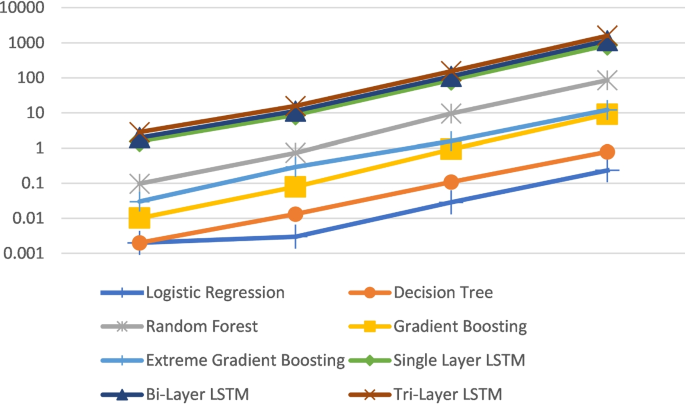

We notice that the time taken for a task-level prediction is similar to that for the job-level prediction. Figure 13 illustrates the scalability result of the task-level prediction models. For the TML models, we found that on average a single prediction will take around 2 to 3 microseconds per prediction, whereas the DL models take around 2 to 3 milliseconds for a single prediction. The best model for the TML model is based on the LR model, where it can predict up to 10 million inputs in less than two seconds.
In this section, we discuss related work in three aspects. First, we review the work that has addressed the prediction of job and task failure using the GCT dataset, as shown in Table 8. Second, we review the work that addressed different types of failure prediction using different types of dataset, as shown in Table 9. Third, we review other types of prediction that have specifically used the GCT dataset as shown in Table 10.
The review resulting in Table 8 is based on three key elements. First, we identify the prediction scope to determine whether the related work addresses job failure or task failure, or both. Second, we identify the feature studied in relation to the GCT dataset. Third, we determine the applied machine learning algorithms for producing predictive models, which we categorize into SML, TML, and DL. For comparison purposes, we focus on the first and third elements, whilst the second element is meant to provide more information of the related works. From the prediction scope, we can conclude that most related work addresses either job or task failure prediction. Limited work has addressed both failures. With regard to the algorithms applied, we notice that most of the related work has applied TML algorithms. There are limited studies that applied DL and only one study applied SML. Our work concerns addressing both job and task failure prediction, where highly accurate predictive models are constructed and evaluated from two categories of algorithms, namely the TML and DL algorithms. Thus, compared to related works, our work is more comprehensive in determining the best predictive models, since we cover both types of failure and utilize more algorithms from TML and DL.
We then expand our review beyond the prediction of job and task failures. We are concerned with the coverage of algorithms applied in related work. The review resulting in Table 9 is also based on three key elements, similar to Table 8. The main difference is that the table contains related works that utilized a dataset other than GCT. Therefore, its failure prediction scope is not intended to train predictive models for job and task failure. However, we take them into account, since these works are still within the cloud computing area, and the applied algorithms can also be categorized into SML, TML, and DL. This review can provide additional references to interested readers in a broader context of failure prediction and also beyond the use of the GCT dataset. Although these works are not comparable to our work in relation to the targeted failure prediction problem, we can conclude that there are still limited works that comprehensively evaluate the failure predictive models (i.e., using multiple types of machine learning algorithm) as presented in the table.
Furthermore, the review that resulted in Table 10 is also based on three key elements, similar to Table 8. The main similarity is that the related work is those utilized in the GCT dataset. Meanwhile, the key difference is that we broaden the scope of the prediction beyond the failure prediction perspective. This summary may provide a wider context for the use of GCTs to interested readers. As shown, we can conclude that, in addition to failure prediction, GCT has been used mainly to predict workload. We can also conclude that more work has applied multiple categories of machine learning algorithms to find the best models. Therefore, it supports our strategy to comprehensively address the failure prediction problem with TML and DL. Furthermore, our work also contributes to the use of GCT from a failure prediction perspective with a comprehensive evaluation.
Conclusion and Future Work
In this paper, we have proposed a comprehensive evaluation approach to predict task failure and failure. For this reason, we constructed five TML models and three DL models and compared their performance in predicting job and task failure using the GCT dataset. Our performance analysis showed that the best performing model for predicting job-level failures is the XGBoost classifier, which has achieved an accuracy score of 94.35% and an F-score of 0.9310. In the case of task-level prediction, we found two best-performing models, which are based on DT and RF. Both models have obtained an accuracy score of 89.75% and an F-score of 0.9154. Overall, the results have shown that the TML models perform slightly better than the DL models in classifying job and task termination status. Furthermore, our analysis of feature importance determined that scheduling class and CPU request are the most significant features for TML, while disk space request and memory request are the most important features for DL in the context of prediction of job failure. Meanwhile, for task-level prediction, resource requests is the dominant one for TML while priority is the most important feature for DL models. Finally, our scalability analysis found that TML models can make the prediction in a reasonably short time, even though they are executed on consumer-level hardware.
There are several recommendations for future work. First, a multi-objective prediction will be useful for supporting cloud resource management. For example, the prediction of workload and failure can be addressed simultaneously when automatically deciding on resource allocation, scheduling, or provisioning. Training for this kind of predictive model can benefit from the GCT dataset. Second, the scope of the prediction can be expanded to the energy efficiency aspect. This challenge is important for cloud service providers to minimize their costs. Additionally, it also supports the Sustainable Development Goals agenda. However, training for this kind of model should use other potential datasets. Third, the application of transfer learning techniques can be explored towards producing the best quality of predictive models for the cloud resource management.
