Privacypreserving cloudedge collaborative learning without trusted thirdparty coordinator
Journal of Cloud Computing volume 12, Article number: 19 (2023)
Abstract
Cloudedge collaborative learning has received considerable attention recently, which is an emerging distributed machine learning (ML) architecture for improving the performance of model training among cloud center and edge nodes. However, existing cloudedge collaborative learning schemes cannot efficiently train highperformance models on largescale sparse samples, and have the potential risk of revealing the privacy of sensitive data. In this paper, adopting homomorphic encryption (HE) cryptographic technique, we present a privacypreserving cloudedge collaborative learning over vertically partitioned data, which allows cloud center and edge node to securely train a shared model without a thirdparty coordinator, and thus greatly reduces the system complexity. Furthermore, the proposed scheme adopts the batching technique and single instruction multiple data (SIMD) to achieve parallel processing. Finally, the evaluation results show that the proposed scheme improves the model performance and reduces the training time compared with the existing methods; the security analysis indicates that our scheme can guarantee the security in semihonest model.
Introduction
With the significant advances of Internet of Things (IoT), large amounts of data are generated through terminal IoT devices at the edge of the network [1]. Edge computing [2], that extends the capabilities of cloud centre to locations close to terminal IoT devices, has been widely recognized as a potential big data analysis framework. To further mine the potential value of IoT big data, there is an increasing need to bring machine learning (ML) to edge computing, namely edge learning [3, 4]. However, if all data analysis and processing tasks are placed on the edge nodes, the quality of data analysis services is difficult to guarantee due to the limited capabilities of edge nodes [5]. Moreover, in some scenarios, single edge node holds incomplete training data and wants to cooperate with the cloud center to accomplish the model training.
Unfortunately, the data collected by edge nodes from terminal IoT devices is generally valuable and sensitive, and is not able to be directly exchanged in realworld applications due to regulatory regulations and commercial competition [6]. That is, data is commonly stored locally and isolated among different data nodes, which is also called the “data isolation” problem [7]. Blockchain, as a decentralized, distributed, and immutable ledger structure, is considered an adaptable alternative for tackling trustabsence issue in a distributed environment. Consequently, the distributed structure of blockchain is suitable for building cloudedge collaborative computing [8]. Blockchain technology has been used ensure the security and fairness of data processing. Recently, there is a growing focus on training machine learning models across distributed blockchain nodes without compromising privacy or violating regulations. The concept of collaborative learning (CL) has been introduced [9] to meet such requirements, which refers to the process where all parties keep training data locally and can collaboratively train a joint model without exchanging their raw data [10]. Recently, CL for logistic regression (CLLR) [11] has received considerable attention for its efficiency, simplicity and interpretability, which offloads the logistic regression (LR) training tasks of edge nodes to the cloud center. Based on privacy protection methods like homomorphic encryption (HE) [12], secure multiparty computation (MPC) [13], and differential privacy (DP) [14], several privacypreserving CLLR schemes have been proposed. According to the distribution characteristics of training data, the existing works [15,16,17,18,19,20,21,22,23,24,25,26,27,28] are divided into two categories: horizontal CLLR (HCLLR) [15,16,17,18,19] and vertical CLLR (VCLLR) [20,21,22,23,24,25,26,27,28]. HCLLR is suitable for datasets held by different entities with the same feature dimensions but different sample spaces [15]. By contrast, VCLLR is applicable to the scenario where different features of the same set of objects are owned by different entities [20]. For the VCLLR, the features owned by a single entity are incomplete, the model training requires all entities to complete together, and thus the training process is more complicated [27].
However, for HEbased methods, the update of model parameters has the potential risk of additional private information leakage even in the semihonest security setting [29]. For MPCbased methods, after performing secret sharing (SS) [30] on sparse samples, the sparse samples will become dense, and thus could not be handled efficiently. For DPbased methods, due to the model training process adds the noise, the speed of model convergence will be affected, and model accuracy degrades. To address these problems, we present a privacypreserving cloudedge CLLR (CECLLR) in this paper.
Our contributions
This work has the following main contributions:

Firstly, using an approximate HE algorithm [31], we present a secure CECLLR on vertically partitioned data without the coordination of the thirdparty, which can train a shared model by combining the data from edge node and cloud centre without disclosing raw data and model information, and reduces the complexity of collaborative learning.

Secondly, using the batching technique [31] and SIMD operation, the proposed CECLLR scheme enables the parallel computing, which greatly improves the computational efficiency and considerably reduces the communication complexity. Besides, the proposed scheme uses least squares to solve the problem that HE cannot efficiently compute sigmoid function.

Finally, on three available datasets [32], the performance comparisons demonstrate that, for the proposed CECLLR scheme, compared with related schemes [20, 26], the training time is reduced by nearly \(3.6\%  83.0\%\); the accuracy, F1score, and AUC improves almost \(0.3\%  2.9\%\), \(0.1\%  5.9\%\), and \(0  0.02\), respectively. Moreover, the security analysis indicates that our scheme can guarantee the security.
Organization
The remainder of this work is arranged as follows. Section Related works reviews the previous literature. In Section Preliminaries, the preliminaries are discussed. Section Proposed scheme explains our scheme in detail. Section Performance evaluation describes the evaluation results. In Section Security analysis, the security of our scheme is proved. Finally, Section Conclusion summarizes the work.
Related works
There have been several studies [15,16,17,18,19,20,21,22,23,24,25,26,27,28] training LR model while preserving the privacy of sensitive data. In general, existing works implement CLLR by using techniques such as HE [12], MPC [13], and DP [14]. According to the distribution characteristics of training data, existing works [15,16,17,18,19,20,21,22,23,24,25,26,27,28] are able to be divided into two categories: HCLLR [15,16,17,18,19] and VCLLR [20,21,22,23,24,25,26,27,28]. A review and summary of the existing works [15,16,17,18,19,20,21,22,23,24,25,26,27,28] are introduced below.
For the HCLLR schemes [15,16,17,18,19], using an additive HE algorithm [33] and a dada aggregation protocol [34], Mandal et al. [15] proposed a secure horizontal federated LR, where each party is able to train its own model on local dataset and upload its updated model weights to a thirdparty coordinator that generates a global model weights by aggregating the received model weights. Adopting an additive SS [35, 36], Cock et al. [16] designed a privacypreserving highperformance CLR training scheme with a TTP initializer. Wang et al. [17] proposed a CECLLR analysis method between cloud centre and edge nodes through multikey fully HE [37]. By an additive HE [38], Zhu et al. [18] described a valueblind model update method for privacypreserving LR analysis in a collaborative setting, which protects model privacy by sharing encrypted model parameters among the training parties. Ghavamipour et al. [19] introduced two distributed training methods for secure collaborative LR analysis, but each party needs to transmit multiple shares of its data to other parties separately, which results in a high communication burden. However, in the existing HCLLR schemes [15,16,17,18,19], data communication among data owners and thirdparty coordinator increases the training complexity and the risk of privacy leakage. Moreover, it’s hard to find a thirdparty that is trusted by any parties.
For the VCLLR schemes [20,21,22,23,24,25,26,27,28], based on an additive HE scheme [38], Hardy et al. [20] designed an approximation of Sigmoid to achieve federated LR, but their scheme degrades the model accuracy and requires thirdparty coordinator. Yang et al. [21] presented a vertical federated LR using quasiNewton method and additive HE [38]. By an additive SS [39], Zhang et al. [22] introduced a secure CL framework for distributed features. Yang et al. [23] presented a parallel distributed vertical federated LR architecture based on an additive HE scheme [38], which does not require a thirdparty entity. Li et al. [24] described a vertical CL system for twoparty LR based on an approximate HE scheme [31]. Using an additive HE algorithm [38], Wei et al. [25] designed a secure twoparties CLLR on vertically partitioned data. Combining an additive HE algorithm [38] and an secret sharing technique [40], on vertically distributed largescale sparse training data, Chen et al. [26] presented a secure CLLR scheme by sharing model parameters between two parties. Based on an additive HE [38], He et al. [27] introduced a parallel solution for implementing secure vertical federated LR, which ensures the model accuracy by utilizing a piecewise function, but degrades the efficiency. By adopting an DP algorithm [41] and an HE scheme [38], Sun et al. [28] presented a federated learning algorithm for privacypreserving vertical CLR, which removes the thirdparty entity. However, existing VCLLR schemes [20,21,22,23,24,25,26,27,28] have a low training efficiency and model accuracy.
Preliminaries
System model
As is shown in Fig. 1, the system model consists of two semitrusted parties: cloud centre \(\textrm{P}_a\) and edge node \(\textrm{P}_b\). The datasets \(\textrm{D}_a\) and \(\textrm{D}_b\) of \(\textrm{P}_a\) and \(\textrm{P}_b\) are vertically partitioned, namely, \(\textrm{P}_a\) has the labels and part of the features, \(\textrm{P}_b\) has another part of the features. \(\textrm{D}_a\) and \(\textrm{D}_b\) are isolated due to regulations and privacy concerns. \(\textrm{P}_a\) and \(\textrm{P}_b\) collaboratively obtain a joint LR model over their data without revealing the privacy of their sensitive data. The blockchain collects the iterative model parameters as audit records. The description of symbols in this paper are introduced in Table 1.
Homomorphic encryption
HE allows direct calculation on ciphertext without decryption, and can ensure that the calculation on ciphertext is consistent with that on plaintext. Cheon et al. [31] described an approximate HE based on ring learning with errors [42], which includes the operations as follows:

\(\{\textrm{sk}_i, \textrm{pk}_i, \textrm{gk}_i, \textrm{rk}_i\} \leftarrow\) KeyGen(N, Q): On input the parameters \(\{N, Q\}\), it outputs secret key \(\textrm{sk}_i\), public key \(\textrm{pk}_i\), galois key \(\textrm{gk}_i\), and relinearization key \(\textrm{rk}_i\) for party \(\textrm{P}_i\).

\([\![ \boldsymbol{m}_1 ]\!] \leftarrow\) Enc\((\boldsymbol{m}_1, \textrm{pk}_i)\): On input the message vector \(\boldsymbol{m}_1\) and \(\textrm{pk}_i\), it outputs the ciphertext \([\![ \boldsymbol{m}_1 ]\!]\).

\(\boldsymbol{m}_1 \leftarrow\) Dec\(([\![ \boldsymbol{m}_1 ]\!], \textrm{sk}_i)\): On input the ciphertext \([\![ \boldsymbol{m}_1 ]\!]\) and \(\textrm{sk}_i\), it outputs the message vector \(\boldsymbol{m}_1\).

\([\![ \boldsymbol{m}_1 + \boldsymbol{m}_2 ]\!] \leftarrow\) Add\(([\![ \boldsymbol{m}_1 ]\!], [\![ \boldsymbol{m}_2 ]\!])\): On input two ciphertexts \([\![ \boldsymbol{m}_1 ]\!]\) and \([\![ \boldsymbol{m}_2 ]\!]\), it outputs the ciphertext \([\![ \boldsymbol{m}_1 + \boldsymbol{m}_2 ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!] + [\![ \boldsymbol{m}_2 ]\!]\).

\([\![ \boldsymbol{m}_1 + \boldsymbol{m}_2 ]\!] \leftarrow\) Add_Plain\(([\![ \boldsymbol{m}_1 ]\!], \boldsymbol{m}_2)\): On input the ciphertext \([\![ \boldsymbol{m}_1 ]\!]\) and message vector \(\boldsymbol{m}_2\), it outputs the ciphertext \([\![ \boldsymbol{m}_1 + \boldsymbol{m}_2 ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!] + \boldsymbol{m}_2\).

\([\![ \boldsymbol{m}_1 + \cdots + \boldsymbol{m}_{n} ]\!] \leftarrow\) Add_Many\(([\![ \textrm{M} ]\!])\): On input the ciphertext list \([\![ \textrm{M} ]\!]\) = \(\{[\![ \boldsymbol{m}_1 ]\!], \cdots , [\![ \boldsymbol{m}_{n} ]\!] \}\), it outputs the ciphertext \([\![ \boldsymbol{m}_1 + \cdots + \boldsymbol{m}_{n} ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!] + \cdots + [\![ \boldsymbol{m}_{n} ]\!]\).

\([\![ \boldsymbol{m}_1  \boldsymbol{m}_2 ]\!] \leftarrow\) Sub(\([\![ \boldsymbol{m}_1 ]\!], [\![ \boldsymbol{m}_2 ]\!]\)): On input two ciphertexts \([\![ \boldsymbol{m}_1 ]\!]\) and \([\![ \boldsymbol{m}_2 ]\!]\), it outputs the ciphertext \([\![ \boldsymbol{m}_1  \boldsymbol{m}_2 ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!]  [\![ \boldsymbol{m}_2 ]\!]\).

\([\![ \boldsymbol{m}_1  \boldsymbol{m}_2 ]\!] \leftarrow\) Sub_Plain\(([\![ \boldsymbol{m}_1 ]\!], \boldsymbol{m}_2)\): On input the ciphertext \([\![ \boldsymbol{m}_1 ]\!]\) and message vector \(\boldsymbol{m}_2\), it outputs the ciphertext \([\![ \boldsymbol{m}_1  \boldsymbol{m}_2 ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!]  \boldsymbol{m}_2\).

\([\![ \boldsymbol{m}_1 * \boldsymbol{m}_2 ]\!] \leftarrow\) Mul(\([\![ \boldsymbol{m}_1 ]\!], [\![ \boldsymbol{m}_2 ]\!], \textrm{rk}_i\)): On input two ciphertexts \([\![ \boldsymbol{m}_1 ]\!]\), \([\![ \boldsymbol{m}_2 ]\!]\) and relinearization key \(\textrm{rk}_i\), it outputs the ciphertext \([\![ \boldsymbol{m}_1 * \boldsymbol{m}_2 ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!] * [\![ \boldsymbol{m}_2 ]\!]\).

\([\![ \boldsymbol{m}_1 * \boldsymbol{m}_2 ]\!] \leftarrow\) Mul_Plain(\([\![ \boldsymbol{m}_1 ]\!], \boldsymbol{m}_2, rk_i\)): On input the ciphertext \([\![ \boldsymbol{m}_1 ]\!]\), message vector \(\boldsymbol{m}_2\), and relinearization key \(\textrm{rk}_i\), it outputs the ciphertext \([\![ \boldsymbol{m}_1 * \boldsymbol{m}_2 ]\!]\) = \([\![ \boldsymbol{m}_1 ]\!] * \boldsymbol{m}_2\).

\([\![ \boldsymbol{m}_2 ]\!] \leftarrow\) Rotate_Vector(\([\![ \boldsymbol{m}_1 ]\!], k, \textrm{gk}_i\)): On input the ciphertext \([\![ \boldsymbol{m}_1 ]\!]\) = \([\![ [m_{1,0}, m_{1,1}, \cdots , m_{1,\frac{N}{2}1}] ]\!]\), k, and \(\textrm{gk}_i\), it rotates \([\![ \boldsymbol{m}_1 ]\!]\) left by k, and outputs the ciphertext \([\![ \boldsymbol{m}_2 ]\!]\) = \([\![ [m_{1,k}, \cdots , m_{1,\frac{N}{2}1}, m_{1,0}, \cdots , m_{1,k1} ] ]\!]\).
Sigmoid approximation
The main idea of binary LR is to output weights \(\boldsymbol{w} = \{ {w_0}, \cdots ,{w_{n}}\}\) that minimizes the loss function
where \(\boldsymbol{x}_i = \{ 1, x_{i,1}, \cdots , x_{i,n} \}\) and \(y_i \in \{0, 1\}\). The following gradient descent (GD)
can be employed to obtain the extremum of \(J(\boldsymbol{w})\), where \(\alpha ^{(k)}\) and \(\boldsymbol{w}^{(k)}\) are the learning rate and the weights at the kth iteration. Since approximate HE algorithm [31] is unable to perform sigmoid operations \(\sigma (x)= \frac{1}{{1 + {e^{  x}}}}\) effectively, the evaluation of \(\sigma (x)\) is a barrier to the implementation of CECLLR. By the method of least squares, we obtain a polynomial function \(f(x) = w_0 + w_1 x  w_3 x^3 + w_5 x^5  w_7 x^7\) of 7degree to approximate sigmoid function \(\sigma (x)\), where \(w_0 = \frac{1}{2} ,w_1 = \frac{1.73496}{8},w_3 = {\frac{4.19407}{8^3}}, w_5 = {\frac{5.43402}{8^5}}, w_7 = {\frac{2.50739}{8^7}}\). The maximum error value between g(x) and \(\sigma (x)\) is about 0.032 over the domain \([8, 8]\).
Proposed scheme
We present a privacypreserving CECLLR on vertically partitioned datasets \(\textrm{D}_a\) and \(\textrm{D}_b\), where \(\textrm{D}_a\) contains m samples \(\{y_i, x_{i,1}, \cdots , x_{i,n_1} \}\) with \(y_i \in \{0, 1\}\), \(\textrm{D}_b\) contains m samples \(\{ x_{i,n_1+1}, \cdots , x_{i,n_1+n_2}\}\), and \(i \in [m]\). The first column and other columns of \(\textrm{D}_a\) represent the label and features, respectively. Each column of \(\textrm{D}_b\) represents a feature. For ease of description, we assume \(m = l \cdot \frac{N}{2}\) for \(l \in \mathbb {Z}^ *\), if the constraint do not meet, the parties pad 0. Moreover, we define the Algorithm 1, 2, which are able to be found in Appendix A. Using the batching techniques from RLWEbased approximate HE [31], our scheme is able to pack and encrypt a message vector containing \(\frac{N}{2}\) messages into one ciphertext, and thus reduces the time of model training by parallel processing based on SIMD. We describe our CECLLR scheme as follows.
Preprocessing

\(\textrm{P}_b\) computes \(l=\left\lceil { \frac{2m}{N} }\right\rceil\), produces \(\{ \textrm{sk}_b, \textrm{pk}_b, \textrm{rk}_b, \textrm{gk}_b \} \leftarrow \textrm{KeyGen}(N,Q)\), encrypts \(\textrm{D}_b\) into \((l \times n_2)\) ciphertexts
$$\begin{aligned}{}[\![ {\boldsymbol{x}_{i,n_1+j}} ]\!] = \textrm{Enc} ( [ {x_{i \cdot \frac{N}{2},n_1+j}}, \cdots ,{x_{(i+1) \cdot \frac{N}{2} 1,n_1+j}} ], \textrm{pk}_a ), \end{aligned}$$(1)where \(i = 0,1,\cdots ,l1, j = 1,2,\cdots ,n_2\), encrypts the initial weights \(\{ {w^{(0)}_{n_1+1}}, \cdots ,{w^{(0)}_{n_1+n_2}}\}\) into \(n_2\) ciphertexts
$$\begin{aligned}{}[\![ {\boldsymbol{w}^{(0)}_{n_1+j}} ]\!] = \textrm{Enc}( [ w^{(0)}_{n_1+j},\cdots ,w^{(0)}_{n_1+j} ]_{1\times \frac{N}{2}}, \textrm{pk}_a) , \end{aligned}$$(2)where \(j = 1,2,\cdots ,n_2\), and sends \(\{N, Q\}\), \(\textrm{pk}_b\), \(\textrm{rk}_b\), \(\textrm{gk}_b\), e, \(\{ [\![ {\boldsymbol{x}_{i,n_1+j}} ]\!]: i = 0,1,\cdots ,l1, j = 1,2,\cdots ,n_2 \}\), \(\{ [\![ {\boldsymbol{w}^{(0)}_{n_1+j}} ]\!]: j = 1,2,\cdots ,n_2 \}\) to \(\textrm{P}_a\).

\(\textrm{P}_a\) computes \(l=\left\lceil { \frac{2m}{N} }\right\rceil\), sets \(\textrm{D}_a\) into \((l \times (n_1+1))\) message vectors
$$\begin{aligned} {\boldsymbol{x}_{i,j}} = [ {x_{i \cdot \frac{N}{2},j}}, \cdots ,{x_{(i+1) \cdot \frac{N}{2}1,j}} ], \end{aligned}$$(3)$$\begin{aligned} {\boldsymbol{y}_{i}} = [ {y_{i \cdot \frac{N}{2}}}, \cdots ,{y_{(i+1) \cdot \frac{N}{2}1}} ], \end{aligned}$$(4)where \(i = 0,1,\cdots ,l1\), \(j = 1,2,\cdots ,n_1\), sets the message vectors
$$\begin{aligned} {\boldsymbol{x}_{i,0}} = [ 1, \cdots ,1 ]_{1\times \frac{N}{2}}, \end{aligned}$$(5)where \(i = 0,1,\cdots ,l1\), encrypts the initial weights \(\{ {w^{(0)}_{0}}, \cdots ,{w^{(0)}_{n_1}}\}\) into \((n_1+1)\) ciphertexts
$$\begin{aligned}{}[\![ {\boldsymbol{w}^{(0)}_{j}} ]\!] = \textrm{Enc}( [ w^{(0)}_{j}, \cdots ,w^{(0)}_{j} ]_{1\times \frac{N}{2}}, \textrm{pk}_b ), \end{aligned}$$(6)where \(j = 1,2,\cdots ,n_1\), sets the message vectors
$$\begin{aligned} {\boldsymbol{\frac{\alpha }{m}}}=[ \frac{\alpha }{m}, 0, \cdots , 0 ]_{1\times \frac{N}{2}}, \end{aligned}$$(7)$$\begin{aligned} \boldsymbol{a}_i = [ a_i, \cdots , a_i ]_{1\times \frac{N}{2}}, \end{aligned}$$(8)where \(i=0,1,3,5,7\), and sets the lists
$$\begin{aligned} \boldsymbol{\textrm{X}}'{[i]} = \{ {\boldsymbol{x}_{i,0}}, \cdots , {\boldsymbol{x}_{i,n_1}} \}, \end{aligned}$$(9)$$\begin{aligned}{}[\![ \boldsymbol{\textrm{X}}^{\prime \prime }]\!]{[i]} = \{ [\![ {\boldsymbol{x}_{i,n_1+1}} ]\!], \cdots , [\![ {\boldsymbol{x}_{i,n_1+n_2}} ]\!] \}, \end{aligned}$$(10)where \(i = 0,1,\cdots ,l1\),
$$\begin{aligned}{}[\![ \textrm{Y} ]\!] = \{ [\![ {\boldsymbol{y}_{0}} ]\!], \cdots , [\![ {\boldsymbol{y}_{l1}} ]\!] \}, \end{aligned}$$(11)$$\begin{aligned}{}[\![ \textrm{W}^{(0)} ]\!] = \{ [\![ {\boldsymbol{w}^{(0)}_{0}} ]\!], \cdots , [\![ {\boldsymbol{w}^{(0)}_{n_1+n_2}} ]\!] \}. \end{aligned}$$(12)
Training
\(\textrm{P}_a\) and \(\textrm{P}_b\) jointly perform the Algorithm 3.
Reconstructing

\(\textrm{P}_a\) sends \(\{ \textrm{O}^{(e)}{[n_1+1][0]},\cdots ,\textrm{O}^{(e)}{[n_1+n_2][0]} \}\) to \(\textrm{P}_b\), \(\textrm{P}_b\) computes
$$\begin{aligned} & \{ w^{(e)}_{n_1+1}, \cdots , w^{(e)}_{n_1+n_2} \} \nonumber\\ =&\{ \textrm{P}^{(e)}{[n_1+1][0]}+\textrm{O}^{(e)}{[n_1+1][0]}, \cdots , \textrm{P}^{(e)}{[n_1+n_2][0]}+\textrm{O}^{(e)}{[n_1+n_2][0]} \} \end{aligned}$$(13)
\(\textrm{P}_b\) sends \(\{ \textrm{P}^{(e)}{[0][0]},\textrm{P}^{(e)}{[1][0]}, \cdots ,\textrm{P}^{(e)}{[n_1][0]} \}\) to \(\textrm{P}_a\), \(\textrm{P}_a\) computes
$$\begin{aligned} \{ w^{(e)}_{0}, \cdots , w^{(e)}_{n_1} \} = \{ \textrm{P}^{(e)}{[0][0]}+\textrm{O}^{(e)}{[0][0]},\cdots ,\textrm{P}^{(e)}{[n_1][0]}+\textrm{O}^{(e)}{[n_1][0]} \} \end{aligned}$$(14)
Performance evaluation
We compare our CECLLR and related schemes [20, 26]. All evaluations are performed on a 64bits desktop with Linux system, 16 GB memory and i7 CPU. We choose initial weights \(\{ {w^{(0)}_{0}}, \cdots ,{w^{(0)}_{n_1}}\}\) = \(\{ 0, \cdots ,0 \}\), \(\{ {w^{(0)}_{n_1+1}}, \cdots ,{w^{(0)}_{n_1+n_2}}\}\) = \(\{ 0, \cdots ,0 \}\), learning rate \(\varphi =0.15\), and maximum number of iterations \(e =20\). For the schemes [20, 26], Paillier cryptosystem [38] is chosen to support HE computations. For our scheme, we utilize the SEAL library [43] to instantiate HE computations [31]. To ensure the security with \(\kappa = 80\) bits, we select prime number \(p, q=512\) bits and \(n=1024\) bits in schemes [20, 26]. In our scheme, the rescaling operation in Mul and Mul_Plain needs the modulus reduction of \(6q_0\) and \(4q_1\) bits, the ciphertext modulus of the output in each iteration \(q_2\) needs to be larger than \(q_0\) to achieve the correctness and accuracy. Let \(q_0 = 50\), \(q_1 = 40\) and \(q_2 = 60\), we obtain \(Q = 6q_0 + 4q_1 + q_2 = 520\) bits, \(N =2^{15} \ge \frac{{\kappa + 110}}{{7.2}} \cdot \log Q\). On three datasets [32]: \(\Phi _1\)  uis, \(\Phi _2\)  Edinburgh, and \(\Phi _3\)  nhanes3, we compare our CECLLR with related schemes [20, 26] in terms of training time, accuracy, F1score, AUC. \(\Phi _1\) has 8 features and 575 samples; \(\Phi _2\) has 9 features and 1253 samples; \(\Phi _3\) has 15 features and 15649 samples. \(\textrm{P}_a\) has the labels and the first 4 features \(\{\mathfrak {l}, \mathfrak {f}_1\mathfrak {f}_4\}\) of \(\Phi _1\), \(\textrm{P}_b\) has the last 4 features \(\{\mathfrak {f}_5\mathfrak {f}_8\}\) of \(\Phi _1\); \(\textrm{P}_a\) has the labels and the first 5 features \(\{\mathfrak {l}, \mathfrak {f}_1\mathfrak {f}_5\}\) of \(\Phi _2\), \(\textrm{P}_b\) has the last 4 features \(\{\mathfrak {f}_6\mathfrak {f}_9\}\) of \(\Phi _2\); \(\textrm{P}_a\) has the labels and the first 8 features \(\{\mathfrak {l}, \mathfrak {f}_1\mathfrak {f}_8\}\) of \(\Phi _3\), \(\textrm{P}_b\) has the last 7 features \(\{\mathfrak {f}_9\mathfrak {f}_{15}\}\) of \(\Phi _3\). All presented results are the average of 10 tests, the validity of results is obtained by 5fold crossvalidation. The performance comparisons among our CECLLR scheme and the schemes [20, 26] are shown in Table 2, where “\(\surd\)” means “Satisfied”, “\(\times\)” denotes “Not satisfied”. From Table 2, we obtain that our CECLLR is able to train a model in less time without degrading the model performance than the schemes [20, 26], and does not need a thirdparty coordinator.
From Fig. 2, we see that, compared with [20, 26], the training time in our method (1.23 min) reduces nearly 3.9% and 46.8% over \(\Phi _1\); the training time in our method (2.15 min) reduces almost 3.6% and 35.4% over \(\Phi _2\); the training time in our method (2.45 min) reduces about 73.0% and 83.0% over \(\Phi _3\).

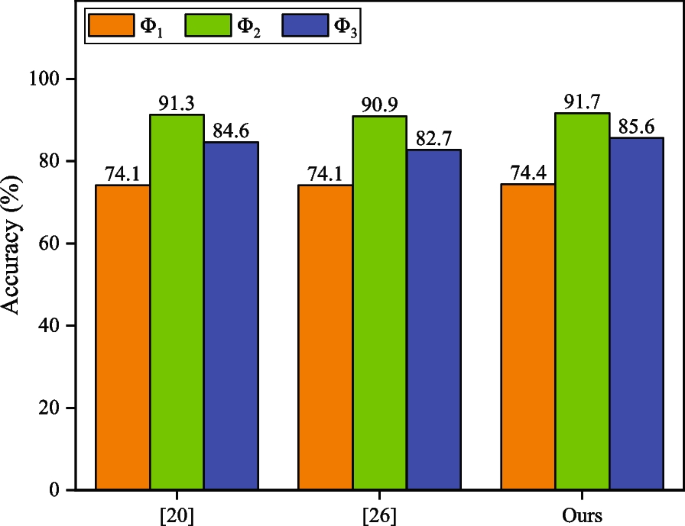

From Fig. 3, we see that, compared with [20, 26], the accuracy in our method (74.4%) is nearly 0.3% and 0.3% increase over \(\Phi _1\); the accuracy in our method (91.7%) is almost 0.4% and 0.8% increase over \(\Phi _2\); the accuracy in our method (85.6%) is about 1.0% and 2.9% increase over \(\Phi _3\).
From Fig. 4, we see that, compared with [20, 26], the F1score in our method (85.2%) has nearly 0.1% and 0.1% increase over \(\Phi _1\); the F1score in our method (77.9%) has almost 0.4% and 2.6% increase over \(\Phi _2\); the F1score in our method (61.5%) has about 5.9% and 1.4% increase over \(\Phi _3\).
From Fig. 5, we see that, compared with [20, 26], the AUC in our method (0.58) is nearly 0.01 and 0.02 increase over \(\Phi _1\); the AUC in our method (0.96) is the same over \(\Phi _2\); the AUC in our method (0.90) is about 0.01 and 0.01 increase over \(\Phi _3\).
Security Analysis
Let \(\textrm{P}_a\) and \(\textrm{P}_b\) learn \({pk}_b\), \({rk}_b\), \({gk}_b\), and only \(\textrm{P}_b\) gets \({sk}_b\), our CECLLR is to compute an objective functionality \(f =\{f_a, f_b\}\) in semihonest model [44]. For inputs \(\{m_a, m_b\}\) of \(\{ \textrm{P}_a, \textrm{P}_b \}\), the outputs \(\{f_a(m_a,m_b), f_b(m_a,m_b)\}\) for \(\{ \textrm{P}_a, \textrm{P}_b \}\) are random, and neither party can infer private data beyond its output. Next, we demonstrate the security of our CECLLR by means of simulationbased security [45].
Definition 1
Let \(\Pi\) represent a protocol to calculate deterministic functionality \(f =\{f_a, f_b\}\). Given inputs \(\{m_a, m_b\}\) of \(\{ \textrm{P}_a, \textrm{P}_b \}\), and security parameter \(\kappa\), the views for \(\textrm{P}_a\) and \(\textrm{P}_b\) in \(\Pi\) are represented as \(\mathcal {V}_{a} (\kappa , m_a, m_b) = \{ {pk}_b, {rk}_b, {gk}_b, m_a, o_a \}\) and \(\mathcal {V}_{b} (\kappa , m_a, m_b) = \{ {sk}_b, {pk}_b, {rk}_b, {gk}_b, m_b, o_b \}\), where \(m_a\) denotes \(\textrm{P}_a\)’s input, \(m_b\) denotes \(\textrm{P}_b\)’s input, \(o_a\) represents the output for \(\textrm{P}_a\), and \(o_b\) represents the output for \(\textrm{P}_b\). \(\Pi\) has the ability to calculate f securely in the semihonest model if there are two simulators \(\mathcal {S}_a\) and \(\mathcal {S}_b\) with probabilistic polynomialtime, such that
Theorem 1
Suppose that \({P}_a\) and \({P}_b\) do not collude, and approximate HE algorithm [31] meets the semantic security, the proposed CECLLR could achieve the security under semihonest model.
Proof
Following simulationbased security [45], we demonstrate that we could construct \(\mathcal {S}_{\mathcal {A}_a}\) and \(\mathcal {S}_{\mathcal {A}_b}\), such that
where \(\mathcal {V}_{\mathcal {A}_a}\) and \(\mathcal {V}_{\mathcal {A}_b}\) represent the views of corrupted parties \(\mathcal {A}_a\) and \(\mathcal {A}_b\), respectively. We prove that \(\mathcal {A}_a\) and \(\mathcal {A}_b\) cannot distinguish the above two equations.
Against corrupted \(\mathcal {A}_a\): Given \(\kappa\), input \([\![ \boldsymbol{c} ]\!]\) and output \(\boldsymbol{o}_a\) of \(\mathcal {A}_a\), we build a \(\mathcal {S}_{\mathcal {A}_a}\) to simulate the view of \(\mathcal {A}_a\). To do this, we analyze \(\mathcal {V}_{\mathcal {A}_a} (\kappa , [\![ \boldsymbol{C} ]\!], sk_b)\). Since \(\mathcal {A}_a\) does not get other message from \(\mathcal {A}_b\), \(\mathcal {V}_{\mathcal {A}_a} (\kappa , [\![ \boldsymbol{c} ]\!], sk_b)\) consists of \([\![ \boldsymbol{c} ]\!]\) and random message \(\boldsymbol{r}_a\). Given \(\kappa\), \([\![ \boldsymbol{c} ]\!]\), and \(\boldsymbol{o}_a\), \(\mathcal {S}_{\mathcal {A}_a}\) produces the simulation \(([\![ \boldsymbol{c} ]\!], \boldsymbol{r}_a)\) of \(\mathcal {V}_{\mathcal {A}_a} (\kappa , [\![ \boldsymbol{c} ]\!], sk_b)\). Therefore, we obtain:
According to the above analysis, we could obtain that \(\mathcal {S}_{\mathcal {A}_a}\)’s output and \(\mathcal {A}_a\)’s view is indistinguishable. Therefore, our CECLLR is secure against semihonest \(\mathcal {A}_a\).
Against corrupted \(\mathcal {A}_b\): Given \(\kappa\), input \(sk_b\) and output \(\boldsymbol{o}_b\) of \(\mathcal {A}_b\), we build a \(\mathcal {S}_{\mathcal {A}_b}\) to simulate the view of \(\mathcal {A}_b\). With regards to this, we analyze \(\mathcal {V}_{\mathcal {A}_b} (\kappa , [\![ \boldsymbol{c} ]\!], sk_b)\). Since the only data received by \(\mathcal {A}_b\) is \([\![ \boldsymbol{c} ]\!]\), \(\mathcal {V}_{\mathcal {A}_b} (\kappa , [\![ \boldsymbol{c} ]\!], sk_b)\) consists of \(sk_b\) of \(\mathcal {A}_b\), random messager \(\boldsymbol{r}_b\) and ciphertext \([\![ \boldsymbol{o}_b ]\!]\). Given \(\kappa\), \(sk_b\), and \(\boldsymbol{o}_b\), \(\mathcal {S}_{\mathcal {A}_b}\) produces the simulation of \(\mathcal {V}_{\mathcal {A}_b} (\kappa , [\![ \boldsymbol{c} ]\!], sk_b)\). \(\mathcal {S}_{\mathcal {A}_b}\) encrypts \(\boldsymbol{o}_b\) with \(pk_b\) into \([\![ \boldsymbol{o}^{\prime }_b ]\!]\), and produces the output \((sk_b, \boldsymbol{r}_b, [\![ \boldsymbol{o}^{\prime }_b ]\!])\). Therefore, we obtain:
From the above analysis, we could obtain that \(\mathcal {S}_{\mathcal {A}_b}\)’s output and \(\mathcal {A}_b\)’s view is indistinguishable. Therefore, our CECLLR is secure against semihonest \(\mathcal {A}_b\).
Conclusion
In this paper, using an approximate HE algorithm, we present a CECLLR without thirdparty coordinator while achieving the security of the raw data and model information for all parties. The proposed scheme adopts the batching and SIMD achieves a parallel processing. The performance evaluations based on the experiments show that, compared with existing methods, our scheme has lower training time and higher model performance. In future work, we will improve our scheme to support complex model training and datasets, and optimize our scheme to resist attacks by malicious parties.
Availability of data and materials
The supporting data can be provided on request.
References
Feng J, Liu L, Pei Q, Li K (2022) Minmax cost optimization for efficient hierarchical federated learning in wireless edge networks. IEEE Trans Parallel Distrib Syst 33(11):2687–2700
Shi W, Jie C, Quan Z, Li Y, Xu L (2016) Edge computing: Vision and challenges. IEEE Internet Things 3(5):637–646
Feng J, Zhang W, Pei Q, Wu J, Lin X (2022) Heterogeneous computation and resource allocation for wireless powered federated edge learning systems. IEEE Trans Commun 70(5):3220–3233
Liu L, Zhang J, Song SH, Letaief KB (2020) Clientedgecloud hierarchical federated learning. In: IEEE International Conference on Communications. Piscataway, IEEE, pp 1–6
Feng J, Liu L, Pei Q, Hou F, Wu J (2021) Service characteristicsoriented joint optimization of radio and computing resource allocation in mobileedge computing. IEEE Internet Things J 8(11):9407–9421
Mohassel P, Zhang Y (2017) Secureml: A system for scalable privacypreserving machine learning. In: IEEE Symposium on Security and Privacy. Piscataway, IEEE, pp 19–38
Yang Q, Liu Y, Chen T, Tong Y (2019) Federated machine learning: concept and applications. ACM Trans Intell Syst Technol 10(2):1–19
Du J, Cheng W, Lu G, Cao H, Chu X, Zhang Z, Wang J (2022) Resource pricing and allocation in mec enabled blockchain systems: An a3c deep reinforcement learning approach. IEEE Trans Netw Sci Eng 9(1):33–44
Konenčný J, Mcmahan HB, Yu FX, Richtárik P, Suresh AT, Bacon D (2016) Federated learning: Strategies for improving communication efficiency. Preprint at https://arxiv.org/abs/1610.05492
Du J, Yu FR, Lu G, Wang J, Jiang J, Chu X (2020) Mecassisted immersive vr video streaming over terahertz wireless networks: A deep reinforcement learning approach. IEEE Internet Things J 7(10):9517–9529
Ding C, Zhou A, Liu Y, Chang RN, Hsu CH, Wang S (2022) A cloudedge collaboration framework for cognitive service. IEEE Trans Cloud Comput 10(3):1489–1499
Rivest RL, Adleman LM, Dertouzos ML (1978) On data banks and privacy homomorphisms. Found Secure Comput 76(4):169–179
Yao AC (1982) Protocols for secure computations. In: 23rd Annual IEEE Symposium on Foundations of Computer Science. Piscataway, IEEE, pp 1–5
Dwork C, Kenthapadi K, Mcsherry F, Mironov I, Naor M (2006) Our data, ourselves: privacy via distributed noise generation. In: Advances in Cryptology  EUROCRYPT 2006: International Conference on the Theory and Application of Cryptographic techniques. Springer, Heidelberg, pp 486–503
Mandal K, Gong G (2019) Privfl: Practical privacypreserving federated regressions on highdimensional data over mobile networks. In: 10th ACM SIGSAC Conference on Cloud Computing Security Workshop. ACM, New York, pp 57–68
Cock MD, Dowsley R, Nascimento ACA, Railsback D, Shen JW, Todoki A (2021) High performance logistic regression for privacypreserving genome analysis. BMC Med Genomics 14(1):1–18
Wang C, Xu J, Yin L (2021) A secure cloudedge collaborative logistic regression model. In: IEEE Congress on Cybermatics/14th IEEE International Conference on Internet of Things/14th IEEE International Conference on Cyber, Physical and Social Computing/17th IEEE International Conference on Green Computing and Communications/7th IEEE International Conference on Smart Data. Piscataway, IEEE, pp 244–253
Zhu R, Jiang C, Wang X, Wang S, Zheng H, Tang H (2020) Privacypreserving construction of generalized linear mixed model for biomedical computation. Bioinformatics 36(Supplement_1):128–135
Ghavamipour AR, Turkmen F, Jian X (2022) Privacypreserving logistic regression with secret sharing. BMC Med Inform Decis Mak 22(89):1–11
Hardy S, Henecka W, IveyLaw H, Nock R, Patrini G, Smith G, Thorne B (2017) Private federated learning on vertically partitioned data via entity resolution and additively homomorphic encryption. Preprint at https://arxiv.org/abs/1711.10677
Yang K, Fan T, Chen T, Shi Y, Yang Q (2019) A quasinewton method based vertical federated learning framework for logistic regression. Preprint at https://arxiv.org/abs/1912.00513
Zhang Y, Bai G, Li X, Curtis C, Ko RKL (2020) Privcoll: Practical privacypreserving collaborative machine learning. In: 25th European Symposium on Research in Computer Security. Springer, Heidelberg, pp 399–418
Yang S, Ren B, Zhou X, Liu L (2019) Parallel distributed logistic regression for vertical federated learning without thirdparty coordinator. Preprint at https://arxiv.org/abs/1911.09824
Li Q, Huang Z, Lu WJ, Hong C, Qu H, He H, Zhang W (2020) Homopai: A secure collaborative machine learning platform based on homomorphic encryption. In: IEEE 36th International Conference on Data Engineering. Piscataway, IEEE, pp 1713–1717
Wei QJ, Li Q, Zhou ZP, Ge ZQ, Zhang YG (2020) Privacypreserving twoparties logistic regression on vertically partitioned data using asynchronous gradient sharing. Peer Peer Netw Appl 14(3):1379–1387
Chen C, Zhou J, Wang L, Wu X, Fang W, Tan J, Wang L, Ji X, Liu A, Wang H (2021) When homomorphic encryption marries secret sharing: secure largescale sparse logistic regression and applications in risk control. In: 27th ACM SIGKDD International Conference on Knowledge Discovery and Data Mining. ACM, New York, pp 2652–2662
He D, Du R, Zhu S, Zhang M, Liang K, Chan S (2022) Secure logistic regression for vertical federated learning. IEEE Internet Comput 26(2):61–68
Sun H, Wang Z, Huang Y, Ye J (2022) Privacypreserving vertical federated logistic regression without trusted thirdparty coordinator. In: 6th International Conference on Machine Learning and Soft Computing. ACM, New York, pp 132–138
Li Z, Huang Z, Chen C, Hong C (2019) Quantification of the leakage in federated learning. Preprint at https://arxiv.org/abs/1910.05467
Shamir A (1979) How to share a secret. Commun ACM 22(11):612–613
Cheon JH, Kim A, Kim M, Song Y (2017) Homomorphic encryption for arithmetic of approximate numbers. In: Advances in Cryptology  ASIACRYPT 2017: 23rd International Conference on the Theory and Application of Cryptology and Information Security. Springer, Heidelberg, pp 409–437
Kim A, Song Y, Kim M, Lee K, Cheon JH (2018) Logistic regression model training based on the approximate homomorphic encryption. BMC Med Genomics 83(Supplement 4):23–31
Joye M, Libert B (2013) Efficient cryptosystems from \(2^k\)th power residue symbols. In: Advances in Cryptology  EUROCRYPT 2013: 32nd Annual International Conference on the Theory and Applications of Cryptographic Techniques. Springer, Heidelberg, pp 76–92
Bonawitz K, Ivanov V, Kreuter B, Marcedone A, Seth K (2017) Practical secure aggregation for privacypreserving machine learning. In: 2017 ACM SIGSAC Conference on Computer and Communications Security. ACM, New York, pp 1175–1191
Cock MD, Dowsley R, Horst C, Katti R, Nascimento A, Poon WS, Truex S (2019) Efficient and private scoring of decision trees, support vector machines and logistic regression models based on precomputation. IEEE Trans Dependable Secure Comput 16(2):217–230
Reich D, Todoki A, Dowsley R, Cock MD, Nascimento A (2008) Privacypreserving classification of personal text messages with secure multiparty computation: an application to hatespeech detection. In: 33rd International Conference on Neural Information Processing Systems. Springer, Heidelberg, pp 3757–3769
Chen H, Dai W, Kim M, Song Y (2019) Efficient multikey homomorphic encryption with packed ciphertexts with application to oblivious neural network inference. In: ACM SIGSAC Conference on Computer and Communications Security. ACM, New York, pp 395–412
Paillier P (1999) Publickey cryptosystems based on composite degree residuosity classes. In: Advances in Cryptology  EUROCRYPT 1999: International Conference on the Theory and Application of Cryptographic techniques. Springer, Heidelberg, pp 223–238
Dan B, Laur S, Willemson J (2008) Sharemind: A framework for fast privacypreserving computations. In: 13th European Symposium on Research in Computer Security. Springer, Heidelberg, pp 192–206
Boyle E, Gilboa N, Ishai Y (2015) Function secret sharing. In: Advances in Cryptology  EUROCRYPT: 34th Annual International Conference on the Theory and Applications of Cryptographic Techniques. Springer, Heidelberg, pp 337–367
Dwork C, McSherry F, Nissim K, Smith A (2006) Calibrating noise to sensitivity in private data analysis. In: Theory of Cryptography. Springer, Heidelberg, pp 265–284
Lyubashevsky V, Peikert C, Regev O (2010) On ideal lattices and learning with errors over rings. In: Advances in Cryptology  EUROCRYPT 2010: 29th Annual International Conference on the Theory and Applications of Cryptographic Techniques. Springer, Heidelberg, pp 1–23
SEAL Microsoft SEAL (release 4.0). Microsoft Research, Redmond. https://github.com/Microsoft/SEAL. Accessed Mar 2022.
Goldreich O (2006) Foundations of Cryptography: Volume.I, Basic Applications. Cambridge University Press, Cambridge
Küsters R, Datta A, Mitchell JC, Ramanathan A (2008) On the relationships between notions of simulationbased security. J Cryptol 21:492–546
