Abstract
The Underwater Internet of Things (UIoT) has emerged as one of the prominent technologies in the development of future ocean monitoring systems, where mobile edge elements (such as autonomous underwater vehicles (AUVs)) provide a promising method for the data collection from sensor nodes. However, as an important part of the UIoT, underwater wireless sensor networks (UWSNs) are severely affected by the underwater dynamic environment. For instance, node locations change continuously, which significantly increases the difficulty of data collection. To solve this problem, the concept of an inevitable communication space (ICS) is proposed. The ICS is calculated by analyzing the variation in the position of nodes and the communication range. Furthermore, an ICSbased dynamic data collection algorithm (ICSDDCA) for UIoT is proposed to collect underwater data. This method utilizes the ICS instead of the initial location of the node for data collection to further improve the performance of the algorithm and shorten the data collection time. The simulation results demonstrate that compared with the energyefficient data collection over AUVassisted (EEDA) and data collection algorithms based on probabilistic neighborhood (PNCSGHA), ICSDDCA can effectively reduce the collection time, while ensuring the full completion of data collection.
Introduction
The Internet of Things (IoT) has widely applied in smart home, smart city, and transportation [1,2,3,4]. As the important technologies of the IoT, mobile devices and wireless technologies provide great potential developments for mobile edge computing [5]. Mobile edge computing is a computing paradigm that implements cloud computing services on the edges of network by using mobile edge devices. Mobile edge devices are closer to the network edge and have the advantages of storage, mobility, and computing.
As an extension of IoT in the marine environment, Underwater Internet of Things (UIoT) has a wide application prospect in water quality monitoring, pollution observation, ocean resource exploration [6], which have attracted more and more attention from academic institution and industry [7, 8]. Underwater wireless sensor network (UWSN) is an imprtant part of the UIoT, which is composed of a large number of underwater sensor nodes (i.e., anchored nodes, mobile nodes, and surface sink) with the ability to sensing, acquisition and communication [9]. Underwater node can communicate with other node via underwater acoustic links. In most of UIoT, underwater sensor nodes are fixed by anchor rope to prevent them from being washed away by the current. Anchored sensor nodes towed by rope move within a certain range with the water current and perceive data of the surrounding environment. Then the perceived data is collected to the sink node on water surface or base station on near shore for further process. Data collection in the UIoT can be regarded as a mobile edge application [10].
Multihop data collection methods and autonomous underwater vehicle aided (AUVaided) data collection methods are common methods for data collection [11, 12]. The advantage of the former is that the data collection delay is shorter than using AUV to collect data. However, the drawback of multihop data collection is that nodes have the problem of unbalanced energy consumption [13, 14]. The forwarding nodes close to the sink node consume more energy [15]. Besides, the mobility of nodes leads to dynamic changes in the network topology and even leads to communication interruption, thus affecting the feasibility of the multihop data collection algorithms. The latter can compensate for the defect of unbalanced energy consumption caused by multihop transmission [16,17,18] and be more tolerant to frequent topology changes. However, in the dynamic underwater environment, the actual position of the anchored node does not always stay at its initial position because of the anchored node moves within a certain range with the water current. When AUV moves to the predefined position according to a certain strategy, the nodes may have deviated from their initial position, hindering data collection. In order to successfully collect the data perceived by anchored nodes, AUV needs to move with the node. The time of data collection is largely prolonged. This study aims to resolve the problem by eliminating the side effects caused by the mobility of nodes to reduce the path length of AUV and the time of data collection.
To address this problem, a new concept of inevitable communication space (ICS) based on communication range and movement range of node is proposed. By calculating the ICS, AUV does not need to consider the exact position of sensor node any more for data collection. As long as AUV passes through the ICS of sensor node, it is ensured to have a link between AUV and this node to communicate with each other. Furthermore, an ICSbased dynamic data collection algorithm (ICSDDCA) is proposed to reduce the path length of AUV, where the ICS information is used instead of the initial position of the anchored nodes to plan the route of data collection for AUV.
To the best of our knowledge, using the ICS to eliminate the impact of node mobility is a highly efficient method for path planning of AUV. The main contributions of this study are as follows:

1
The concept of inevitable communication space (ICS) based on node mobility is proposed. The ICS is calculated by analyzing the variation in the position of nodes and the communication range while fully considering the mobility of nodes.

2
An ICSbased dynamic data collection algorithm (ICSDDCA) is proposed, which makes AUV pass through the ICS instead of the initial position, thereby shortening the path length.
The remainder of this paper is organized as follows. In Section 2, a brief survey of underwater data collection is presented. Section 3 describes the network model of UIoT. Section 4 analyzes the theoretical basis of ICS and presents the calculation steps. Section 5 proposes an ICSbased dynamic data collection algorithm. The experimental results are presented in Section 6. Finally, in Section 7, the main results are summarized, and future research is discussed.
Related works
Researchers have proposed numerous data collection methods for UIoT. Some works are listed in Table 1.
In the multihop data collection scheme, nodes transmit data to the sink node through a multihop process of underwater acoustic communication. A typical multihop collection method is depthbased routing protocol (DBR) [19]. DBR transmits data to sink node along the direction of depth reduction. Because the depth information of nodes are more accessible, DBR replaces the location information with depth information of nodes. To address the energylimitation problem, either the best relay nodes are selected or a periodic sleep/activation mode is used to reduce energy consumption [20, 21]. In a sparse network, the routing overhead of data collection can be reduced via power adjustments. Yuan et al. utilized a singleleadermultifollower Stackelberg game to propose the EnergyEfficient Localization Algorithm (EELA) to adjust the communication power [22]. Even great efforts have been tried, unbalanced energy consumption is still a nonnegligible problem in multihop data collection scheme.
To solve the unbalanced energy consumption problem, some studies [17, 18, 23, 27] used AUVs or mobile nodes to collect underwater data. Chen et al. [17] proposed the Mobicast method for static sensor nodes, where AUV collects data according to the userdefined paths. Gjanci et al. [18] designed a greedy and adaptive AUV pathfinding (GAAP) heuristic algorithm to prioritize data collection with different information value. Han et al. [23] proposed a data collection algorithms based on probabilistic neighborhood for underwater acoustic sensor networks (PNCSGHA), in which the AUV traverses a probabilistic neighborhood covering set for data collection. Gao et al. [27] proposed that the target nodes in the monitoring area can be covered by multiple AUVs or multiple mobile nodes to complete the data collection. To balance the energy consumption of the nodes, Yan et al. [24] proposed the energyefficient data collection over AUVassisted (EEDA), in which the network is divided into several small areas according to the deployment of data receivers. The sensor nodes relay data to a data receiver through a rigid graph, and AUV traverses the data receivers to retrieve the data. In [10, 28], it is assumed that the network is clustered with cluster heads and ordinary nodes. The ordinary node sends data to its cluster head, and AUV visits all the cluster heads to collect data. The energy consumption is balanced by regularly updating cluster heads. Cheng et al. [29] proposed a data gathering protocol that considers the importance of data. Important data are transmitted to the sink node through multihop routing. Other nodes forward the data to nodes close to AUV. Then, these nodes transmit the data directly to AUV.
Considering node mobility, Zhou et al. [25] proposed a path planning method based on the location uncertainty of water surface nodes (PPMLUWSN) to collect data. In this structure, multiple anchored nodes are fixed at different depths via an anchor rope, and the anchor nodes located on the same rope transmit data to the water surface nodes through multihop transmission. Then, a highaltitude unmanned aerial vehicle (UAV) visits the water surface nodes to collect the stored data, which are restricted mobile nodes. The deviation range of the water surface node is limited to a circle, thus, this method is suitable for 2D structures in special environments. In a 3D underwater space, the movement of the nodes is more complex. The deviation range of the nodes is no longer limited to a circle, but a 3D space. Considering the characteristics of water delamination, Han et al. [26] divided the network into two layers with different mobility characteristics, and proposed a stratificationbased data collection scheme (SDCS). The nodes in the upper layer move with the water flow, and transmit data through a multihop process. The nodes in the lower layer are considered as relatively static, and AUV is used to collect data in this layer. By using different data collection algorithms in different network layers, the energy consumption of nodes can be reduced and the network lifetime can be prolonged. However, this method is suitable for the specific underwater environment.
In summary, the existing data collection methods rarely consider the data collection problem due to node movement in a 3D underwater space. For a 3D dynamic underwater environment, the sensor node may have moved to other locations before AUV arrives at the pointed location according to the planned path. Therefore, it increases the difficulty of data collection and prolongs the time of data collection. Thus, static locationbased path planning of AUV is not adequate for effective data collection. Therefore, considering the mobility of nodes in 3D underwater environment, a dynamic data collection algorithm is proposed in this paper. This article attempts to reduce the time of data collection and improve the efficiency of data collection.
Network model
Model description
We investigate the problem in a 3D underwater space with a monitoring area of \(L \times W \times H\), where L, W, and H are length, width, and depth respectively. The monitoring area is described by a 3D coordinate system with coordinate axes, as illustrated in Fig. 1. The UIoT consists of N underwater anchored nodes, capable of sensing data from surrounding environment, and AUV can move around and be responsible for collecting the data sensed by underwater anchored nodes. The set of anchored nodes is \(V=\{V_1, V_2, \dots , V_N\}\). The anchored sensor nodes are prone to deviate from their initial position and move within a spherical crown surface due to the influence of water flow [30, 31].
For \(\forall V_k \in V\), its communication radius and deviation radius at time t are denoted as Rc(k) and \(Ra(k)^t\). As shown in Fig. 2, \(\theta\) is the maximum offset angle, \(\phi _k^t\) is the current offset angle with respect to the initial position of node \(V_k\), and \(l_k\) is the length of anchor rope of node \(V_k\). The deviation radius at time t can be calculated by \(l_k\) and \(\phi _k^t\), that is \(Ra(k)^t=l_k \sin \phi _k^t\) [30]. During the offset movement, the possible locations of anchored node \(V_k\) shape a spherical crown \(SC_k\). The node coordinates regarding the initial and offset positions at time t are denoted as \((x_k^0, y_k^0, l_k)\) and \((x_k^t, y_k^t, z_k^t)\), respectively. Consequently, based on the initial position and offset angle, the coordinate of \(V_k\) at time t can be expressed as [30, 31]
where \(\phi _k^t \in (0,\theta ]\), \(\phi ^{'t} _k\) is the angle between the projection of the anchored rope in the xy plane and the xaxis. The distance between the initial position and current position of node is \(\sqrt{(x_k^tx_k^0)^2+(y_k^ty_k^0)^2+(z_k^tl_k)^2}=l_{k} \sqrt{2(1\cos \phi _k^t)}\). When the length of the anchor rope is fixed, the larger the offsetting angel is, the longer the distance of node motion will be. The offset angle determines whether the node is still in the initial communication range after movement.
The offset angle is related to the movement of the current model. According to the typical multilayer current model [32], the network monitoring area is divided into several layers. The ocean currents move at a constant speed and direction within a certain layer. The speed and direction of ocean currents affect the offset angle. In a more realistic scenario, a layer with greater depth has a smaller current velocity [33]. The nearer a layer is to the water surface, the greater the water flow rate is.
Definitions and assumptions
Homogeneous anchored sensor nodes are considered in this paper. All anchored sensor nodes are assumed to have the same capability of computing, sensing, and communication. To clarify the network model and simplify the problem, other assumptions and definitions are provided.
Assumptions:

1
The anchor nodes are randomly deployed in the 3D underwater environment.

2
The initial locations of anchored nodes are known (e.g., from manual deployment or by using localization techniques), but the locations after movement are unknown.

3
\(Ra_m(k)<Rc(k)\), \(Ra_m(k)\) is the maximum deviation radius corresponding to the maximum offset angle \(\theta\).

4
The velocity of AUV is constant and set to \({v_m}\).
Definition 1: Inevitable communication space (ICS) of node. For \(\forall V_k \in V\), the ICS of \(V_k\) is defined as ICS\((V_k, Rc(k))=\cap _{\forall p_k \in SC_k} \{ q \mid d(p_k,q) \le Rc(k) \}\), where q is a point in UIoT and \({p_k}\) is a point in \(SC_k\).
Calculation of ICS
Owing to the influence of water flow, the anchored nodes are likely to drift off their initial positions. Furthermore, their deviation range is a spherical crown surface, as shown in Fig. 2. The red dotted sphere represents the possible communication range when the node is at the current deviation position. The offset movement of nodes within the spherical crown surface results in an uncertain node position. The location uncertainty increases the difficulty of underwater data collection. To reduce the time and difficulty of collecting data while considering the node offset movement, the ICS of nodes is calculated, which is the intersection of all possible communication ranges.
When the communication radius is larger than the maximum deviation radius, the ICS of nodes exists. Regardless of where the node is within its deviation range, AUV can communicate with the sensor node granted it passes through the ICS.
Calculating the ICS of a node is crucial. The calculation steps of the ICS are as follows:
Step 1. According to the sampling segmentation method, the offset angle is evenly divided into several equal angles. Then, we cut the spherical crown surface into several circles with decreasing radii, as shown in Fig. 3(a). The anchored node can be seen as moving on the circles whose center is on a straight line but whose radius varies. The circles are called deviation circles. A 3D spherical communication range exists at each possible location, as shown in Fig. 3(a). In Fig. 3(a), \(O_1\) and \(O_2\) are the boundary locations where node \(V_k\) moves to the boundary of its deviation range. The red dotted sphere centered at \(O_1\) with a radius of Rc(k) in Fig. 3(a) shows the communication range of node \(V_k\) at its deviation position at present time.
Step 2. When node \(V_k\) moves to two symmetrical positions of a deviation circle, there is an intersection area because the communication radius is greater than the deviation radius, as shown in Fig. 3(b). In Fig. 3(b), the black circle represents a deviation circle. The gray dotted spheres with a radius Rc(k) show the 3D communication ranges of node \(V_k\) at the two symmetrical positions. The red areas represent the intersection areas between the two communication ranges.
Step 3. The intersection area can be obtained by calculating the communication and the deviation radii. As shown in Fig. 3(b), the minor and major axis semidiameters of the intersection area can be obtained from the communication and current deviation radii. The major axis semidiameter \(R1(k)=R3(k)=\sqrt{Rc(k)^2Ra(k)^{t2}}\), minor axis semidiameter \(R2(k)=Rc(k)Ra(k)^t\), and \(\sqrt{Rc(k)^2Ra(k)^{t2}}\)
\(>(Rc(k)Ra(k)^t)\).
Step 4. As shown in Fig. 3(c), the purple area is the intersection area that described in the Fig. 3(b). As the node moves, it becomes the blue area in Fig. 3(c) when the intersection area rotates 180 degrees. As the intersection region rotates, the intersection of all possible communication areas on a deviation circle is a sphere with radius R2(k), as shown in Fig. 3(c). There is an intersection area on each deviation circle. The intersection of the intersecting areas on all deviation circles constitutes an inevitable communication space (ICS). Regardless of where the node is within its deviation range, AUV can communicate with the node granted it passes through the ICS.
For \(\forall V_k \in V\), when the node moves from boundary position to initial position, \(\sin \phi _k^t\) and \(Ra(k)^t\) decrease, since \(Ra(k)^t=l_k \sin \phi _k^t\). Because communication radius Rc(k) is a fixed value, and the deviation radius \({Ra(k)^t}\) decreases as the offset angle decreases, R1(k), R2(k), and R3(k) are all increased. The intersection area with radius R2(k) increases gradually as shown in Fig. 3(d). When \(Ra(k)^t=Ra_m\) (i.e., \(R2(k)=Rc(k)Ra_m\)), the intersection area is at the minimum, and when \(Ra(k)^t=0\) (i.e., \(R2(k)=Rc(k)\)), the intersection area is at the maximum. The ICS of node can be seen as the intersection of the maximum and minimum intersection area. The green area in Fig. 3(d) represents the ICS of node.
Hence, for \(\forall V_k \in V\), the \(ICS(V_k, Rc(k))\) can be calculated using the communication range and the deviation radius. The ICS of node satisfies the following conditions:
where \((x_k^0,y_k^0,l_k)\) is the initial position coordinate of node \(V_k\), and \((x_k^0,y_k^0,l_k \cos \theta )\) is the center coordinate of the maximum deviation circle of node \(V_k\).
Therefore, the ICS of a node can be calculated using the initial position, maximum offset angle, communication radius, and maximum deviation radius. And the size of ICS is mainly determined by the minimum value of R2, the minimum value of R2 is \(R2=RcRa_m=Rcl_k sin \theta\).
ICSDDCA
Path planning procedure
According to the ICS obtained in previous section, this section combines ICS and path planning of AUV to reduce the time of data collection. Suppose AUV can move continuously in any direction and stop anywhere, and the area has no obstacles that hinder AUV movement. AUV dives underwater at regular intervals to collect relevant data sensed by the anchored nodes.
Most methods regard the path planning of AUV as a traveling salesman problem (TSP), which is a class of NP hard problems. AUV moves to the initial position of the nodes to collect data. If the node deviates from its initial position, its current position coordinates need to be predicted using different prediction approaches. Then AUV moves toward the predicted position coordinates of node. The operations of location prediction and AUV movement are repeated until AUV successfully visits all nodes and collects the data. The uncertainty movement of nodes increases the difficulty of data collection, as well as the time of collection.
The focus of this study is to propose an ICSbased dynamic data collection algorithm (ICSDDCA), in which AUV moves to ICS rather than the initial position of node to visit nodes and collect data. The travel time of AUV from node \({V_i}\) to node \({V_j}\) is \(t(i,j)=\frac{d(p_{i},p_j)}{v_m}\), where \(d(p_{i},p_j)\) is the travel distance of AUV, \(p_{i}\) is the point in ICS\((V_{i}, Rc(i))\), and \(v_m\) is the moving velocity of AUV. Suppose that AUV starts from the sink node. Then, the objective function that minimizes the data collection time can be formulated as:
If AUV moves from node \(V_i\) to \(V_j\), then \(a_{ij}=1\), otherwise \(a_{ij}=0\). The first constraint indicates that AUV can only leave once for each node. \(N+1\) indicates that AUV eventually returns to the sink node and unloads the collected data. The second constraint means that AUV can only arrive once to each node. The third constraint indicates that all nodes must be visited. In contrast to the traditional methods that use the original position directly for the distance calculation, our proposed method also needs to consider the uncertainty caused by node mobility when calculating the movement distance for AUV.
In order to plan the path of AUV, we must solve the problems of determination of target node and the determination of destination location coordinates on ICS of the target node. The target node is determined based on the 3D convex hull algorithm. After selecting the target node \(V_k\), it is necessary to determine a point \(p_k\) in ICS as the destination location coordinates after AUV moves. The details of ICSDDCA are as follows:
Step 1. The calculation of ICS. The ICS of each anchored node is calculated using Eq. (2). Then, the boundary information of ICS is determined.
Step 2. The selection of target node. Using the 3D convex hull algorithm, a maximum 3D convex polyhedron is determined by connecting the initial location coordinates of nodes to the sink node, as shown by gray solid line in Fig. 4(a).
Step 3. The center of the convex polyhedron is point o. The intersection of the line between the vertex and the center of convex polyhedron and the ICS of node is regarded as the target location point. These target location points are connected as the initial path, as indicated by black dotted line in Fig. 4(a).

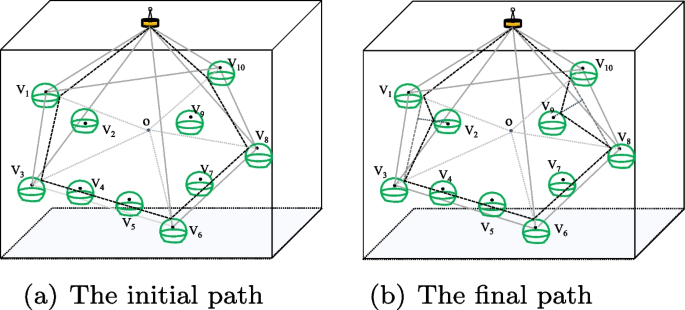

Step 4. There are still some discrete anchored nodes in polyhedron. When the minimum distance between initial position of these nodes and the nearest initial path is less than communication radius, AUV can visit these node when passing through this path. Otherwise, the target location points of these nodes need additional calculation. The intersection of the shortest distance and ICS is regarded as the target location point of discrete sensor nodes, as indicated by black dotted line in Fig. 4(b).
Step 5. The total time of AUV visiting all nodes is calculated.
The process of data collection is described as Algorithm 1.
This algorithm operates as follows. First, according to the communication radius and the maximum offset angle \(\theta\), the boundary location coordinates, where the node moves to the boundary of its deviation range, are computed using Eq. (1) for each node in V. The ICS of a node is calculated using Eq. (2) (Lines 1 to 4). The initialization parameters and the maximum 3D convex polyhedron are determined by connecting the initial location coordinates of nodes to the sink node (Lines 5 to 9). Then, according to the ICS of nodes, target location points are calculated, and the visit sequence is determined (Lines 10). By calculating the distance between discrete nodes and convex polyhedron, we can determine whether the discrete nodes can be visited. If the distance is greater than communication radius, the target location point on ICS needs to be calculated (Lines 11 to 16). When all nodes are visited, the time of data collection T is returned.
Analysis of ICSDDCA
The advantage of ICS
Letâ€™s first analyze the advantages of ICS computing for data collection. In the case of communication radius is large enough, in order to ensure that AUV can communicate with node, it moves to the initial position of node to collect the data. As shown in the Fig. 5, AUV moves from point A to the initial position \(B_4\) of node to collect data, and the moving distance is \(AB_4 \). For ICSDDCA, the effect of data collection using ICS of node is the same as that using initial position. However, if ICS of node is used, the moving distance of AUV is \(AB \), and \(AB < AB_4 \). That is, using ICS of node can reduce the unnecessary path of AUV moving from region boundary of ICS to initial position of node, which helps to shorten the path length of AUV and time of data collection.
If AUV communicates with a node based on the communication radius, that is, AUV moves to the edge of the communication area to communicate with the node, AUV needs to adjust the movement trajectory according to the position of node. Some localization or prediction schemes are used to determine the location of nodes. The trajectory of AUV moving with node is shown in Fig. 5. The moving distance of AUV based on the position of node is \(AB_1 \). For effective data collection, the trajectories of AUV moving with the node are \(B_1B_2 \) and \(B_2B_3 \). Owing to the limitations of cost, energy, and environment, the locations of nodes are inaccurate. In other words, the movement of node in its deviation range increases the path length of AUV and the time of data collection. Moreover, positioning and prediction algorithm increase the cost of network. Compared with using communication radius, using ICS can avoid some needless moving paths of AUV due to AUV moves with node.
Analysis of complexity
The time complexity of PNCSGHA is \(O(N^2)\). For EEDA, the time complexity of constructing a optimal rigid graph in a subarea is \(O(N^3)\). Thus, the complexity of constructing rigid graphs in M subareas is \(O(M \cdot N^3)\). The complexity of routing algorithm in a subarea is O(N). Therefore, the complexity of EEDA is \(O(M \cdot N^3)\). The time complexity of ICSDDCA is related to the number of nodes. The time complexity for calculating ICS of nodes is O(N). According to algorithm 1, the complexity of constructing a convex polyhedron is O(NlogN). The time complexity of adding discrete nodes to the visit sequence composed of a 3D convex polyhedron is \(O(NM)\), where M is the number of nodes that make up the polyhedron. As a result, the time complexity of ICSDDCA is \(O(N)+O(NlogN)+O(NM)=O(NlogN)\). Therefore, the complexity of the proposed scheme is smaller than those of the EEDAc and PNCSGHA. The performance advantage of ICSDDCA is shown by the simulation results in next section.
Simulation evaluation
ICSDDCA is evaluated by observing the performance variation when adopting different parameters and by comparing ICSDDCA to EEDA, PNCSGHA. For EEDA, AUV selects the next cluster to be visited based on the distance. AUV moves to the communication range of clusterhead node to collect data. If clusterhead node moves out of the communication range of initial position, the path of AUV needs to be adjusted according to the node position to complete the data collection. PNCSGHA is a nearest neighbor heuristic trajectory planning algorithm, in which AUV traverses a probabilistic neighborhood covering set for data collection. Similarly, the path of AUV needs to be adjusted again when node moves out of the communication range of initial position. EEDAICS is the improved algorithm of EEDA that takes into account the ICS of node.
ICSDDCA is implemented in MATLAB, and the result is the average of 10 repetitive simulation results. N anchored sensor nodes are randomly distributed in an underwater convex space. Every node has the same maximum offset angle.
The offset angle is determined by the velocity and direction of water flow that lashes the node. The relationship between velocity of the water flow and offset angle can be analyzed through the force balance of node [34]. According to the result of [34], it can be calculated as
where \(\xi\) is a constant environmental parameter value, and \(\overrightarrow{u_k(t)}\) is the velocity at which the water flow lashes node \(V_k\) at time t. In the multilayer current model, the current velocity is related to depth. The nearer a layer is to the water surface, the greater the water flow rate is. The water velocity is u.
It can be observed from Eq. (4) that offset angle \(\phi _k^t\) of node \(V_k\) in time t is related to the square of velocity \(\overrightarrow{u_k(t)}^2\). Furthermore, when the velocity reaches its maximum value, the offset angle can also obtain its maximum value. In other words, the offset angle can be obtained when the velocity and direction of the current are given. In multilayer current model, the velocity and direction of water flow are constant at a certain depth. In other words, the velocity of water flow affects the offset angle and the movement of nodes. The parameters are shown in Table 2.
The effect of number of nodes
The data collection time with respect to varying number of nodes using EEDA, PNCSGHA, EEDAICS, and ICSDDCA are compared. Figure 6 illustrates the data collection time with \(Rc=200m\) and \(v_m=1m/s\). From Fig. 6, it is observed that the data collection time of ICSDDCA is less than that of the other algorithms. Because the ICSDDCA proposed in this study states that AUV moves directly to ICS to collect data, AUV does not need to move according to the node deviation. For EEDAICS, AUV moves directly to ICS to collect data as well. Therefore, it takes less time than EEDA. For EEDA and PNCSGHA, AUV needs to move according to the node deviation. Therefore, they take more time than ICSDDCA.
The effect of communication radius
Figure 7 shows that the communication radius of sensor nodes has a significant influence on data collection time. With an increase in the communication radius, the ICS becomes larger, so it takes less time for AUV to collect data from ICS than from initial position. Therefore, ICSDDCA effectively reduces the time required for data collection via the ICS construction. With an increase in communication radius, the advantages of ICSDDCA are becoming increasingly obvious. When communication radius is sufficiently large, AUV can successfully collect data as long as it passes the initial location of node. Therefore, when \(N=5\) and \(v_m=1m/s\), the data collection time of PNCSGHA remains unchanged after \(Rc = 250m\). Compared to EEDA and PNCSGHA, ICSDDCA reduces the time required for data collection by 26.7% and 33.84%, respectively, when \(Rc=250m\). When communication radius is large enough, the time of ICSDDCA cannot be infinitely reduced, it tends to a certain range. For EEDAICS, AUV moves directly to ICS to collect data, and AUV does not need to move with node. Therefore, it takes less time than the EEDA. However, it selects the node closest to AUV as the next visit node. It tends to be trapped in local optima. Therefore, it takes more time than the ICSDDCA.
The effect of the speed of AUV

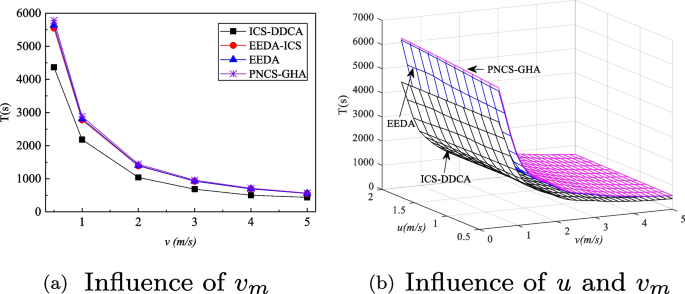

The speed of AUV has a significant influence on the data collection time, as shown in Fig. 8. Figure 8(a) shows a comparison of the data collection times of EEDA, PNCSGHA, EEDAICS, and ICSDDCA with respect to different speed settings of AUV, where \(N=5\) and \(Rc=200m\). In Fig. 8(a), when the speed of AUV is very small, it requires more time to chase the moving sensor nodes. For EEDA and PNCSGHA, it takes a longer time to complete data collection. However, when the speed of AUV is greater, the collection time is reduced. When the speed of AUV is greater, it can catch up with the sensor nodes to complete data collection before the node moves too far. According to Fig. 8(a), we can conclude that the time of ICSDDCA is less than EEDA, PNCSGHA, and EEDAICS regardless of the change in AUV speed. This is because AUV in ICSDDCA passes through the ICS of node to collect data. When the speed of AUV is greater, the results of EEDA and EEDAICS are almost the same. In the followup analysis, ICSDDCA is mainly compared with EEDA and PNCSGHA.
The mobility of anchored nodes has a significant influence on data collection time. In Fig. 8(b), Zaxis represents the time taken by AUV to complete data collection, Xaxis represents the speed of AUV, and Yaxis represents the water velocity. According to physical oceanography, the water velocity is usually 1 m/s to 2 m/s on average. The water velocities of 1m/s and 2m/s are recorded as the general velocity and faster velocity, respectively. The water velocity cannot be zero in the actual situation. In this paper, the flow velocity of 0.5m/s is considered close to static [26]. When the water flows slowly, nodes move slightly (nodes can be regarded as stay at the initial position), the time required for data collection will be reduced with the increase of the speed of AUV. When the speed of AUV is large enough, the time of ICSDDCA is close to that of EEDA and PNCSGHA. However, when AUV is slow, even if the nodes move slightly, AUV still requires more time to chase the moving sensor nodes. Thus, it takes more time to complete data collection. Compared to EEDA and PNCSGHA, the time required for data collection of ICSDDCA is significantly shorter.
The effect of node movement
The influence of node mobility and communication radius on time was observed and analyzed in this simulation. Two observations can be seen in Fig. 9. When u is fixed, an increase in Rc results in a reduction in collection time. When communication radius is sufficiently large, the data collection time of PNCSGHA remains unchanged, while the data collection time of EEDA and ICSDDCA tends to a certain range. The time of EEDA and PNCSGHA is greater than that of ICSDDCA. The time of PNCSGHA is also greater than that of the EEDA. If communication radius is sufficiently large, AUV can successfully collect data when it moves to initial position of node. For EEDA, AUV moves to communication range of the node to collect data. Therefore, the time of EEDA is less than that of PNCSGHA. When Rc is fixed, the collection time increases as u increases. If nodes move frequently, AUV requires more time to chase the moving sensor nodes. For ICSDDCA, when Rc is sufficiently large, the offset movement of nodes does not lead to a change in data collection time. No matter how the nodes move, as long as the ICS is formed, AUV can pass through ICS to collect data. Therefore, the value of u has an inconspicuous effect on the collection time when Rc is sufficiently large.
The effect of length of anchor rope
For multilayer current model, the layer with greatest depth has the smallest current velocity. The depth of node is determined by the length of anchor rope. The nodes close to the water surface with a longer anchor rope are greatly affected by the flow. Thus, these nodes move more frequently. In addition, for \(\forall V_k \in V\), the maximum deviation radius of \(V_k\) is defined as \(Ra_m(k)=l_k \sin \theta\), and \(Ra_m(k)<Rc(k)\). When the maximum offset angle \(\theta\) is fixed, the maximum deviation radius increases as \(l_k\) increases. According to the previous analysis, the major and minor axis semidiameters of the intersection area on a deviation circle are \(R1(k)=R3(k)=\sqrt{Rc(k)^2Ra(k)^{t2}}\), and \(R2(k)=Rc(k)Ra(k)^t\), respectively. Because communication radius Rc(k) is a fixed value, and the deviation radius \(Ra(k)^t\) increases as \(l_k\) increases, while R1(k), R2(k), and R3(k) all decrease. Thus, the ICS of node \(V_k\) is small. The nodes with longer anchor ropes have greater deviation ranges and smaller ICS. For \(\forall V_{k} \in V\), when communication radius \(Rc(k)=200m\) and the maximum offset angle \(\theta =\pi /18\), the length of anchor rope can be calculated as \(l_k < Rc(k)/ \sin \theta\).
Figure 10 illustrates the influence of the length of anchor rope with \(Rc(k)=200m\), \(\theta =\pi /18\), \(v_m=1m/s\), and \(N=5\). When u is fixed, an increase in \({l_k}\) results in a reduction in collection time. As \({l_k}\) becomes longer, the node is closer to the sink node located on the water surface, and the time AUV takes to collect data becomes smaller. However, ICS of the node decreases as \({l_k}\) increases. Therefore, the time taken by AUV to collect data becomes dynamically smaller. The times of EEDA and PNCSGHA are greater than that of ICSDDCA. For ICSDDCA, the offset movement of nodes does not lead to a change in data collection time when \(Rc(k)=200m\). AUV collects data via the ICS. For EEDA and PNCSGHA, when \({l_k}\) is fixed, the collection time increases as u increases. Therefore, regardless of the length of anchor rope, as long as the ICS can be formed, ICSDDCA requires less time to collect data.
Therefore, ICSDDCA effectively shortens the time of data collection in 3D UIoT. Compared to PPMLUWSN proposed by Zhou et al., we propose the concept of ICS and extend the ICS to a 3D underwater environment. In dynamic underwater sensor networks, it is important to consider both the ICS and path planning of AUV. This algorithm, which considers the joint problem of ICS and path planning, is also suitable for other 3D scenes.
Conclusion
To solve the dynamic data collection problem of node location uncertainty in complex marine environments, we propose an ICSbased dynamic data collection algorithm (ICSDDCA). First, the concept of an inevitable communication space (ICS) is proposed. The ICS is obtained by analyzing the deviation range and communication radius of anchored sensor nodes. Then, the problems of ICS and path planning are considered jointly to improve the performance of data collection algorithms and shorten the data collection time. Compared to previous algorithms, ICSDDCA extends the concept of ICS to a 3D underwater environment and improves the performance of underwater data collection algorithms. The simulation results show that ICSDDCA shortens the time of data collection through constructing ICS. Compared to EEDA, PNCSGHA, and EEDAICS, ICSDDCA reduces the time required for data collection. Compared to EEDA, EEDAICS reduces the time required for data collection. AUV does not need to be adjusted when nodes deviate from their initial positions. Thus, the ICS concept can be combined with other algorithms to further improve the performance of the algorithms.
In the future work, the proposed algorithm can be applied to other application scenarios, such as, target detection, navigation and obstacle avoidance, hierarchical data collection, and multiobjective path planning. The concept of ICS can also be introduced into other dynamic path planning algorithms of AUV to further shorten the path length of AUV. And in the process of data collection, the influence of motion status and velocity of AUV are not considered. In the future work, we will analyze the impact of motion status and velocity of AUV on data collection. In addition, the size of ICS can be changed by adjusting the power of nodes to reduce energy consumption and ensure communication. And this will be the focus of our future work. Besides, the data collection of heterogeneous nodes is also a research focus of our future work.
Availability of data and materials
The data used to support the findings of this work is available from the corresponding author upon request.
Abbreviations
 IoT:

Internet of things
 UIoT:

Underwater internet of things
 UWSNs:

Underwater wireless sensor networks
 AUV:

Autonomous underwater vehicles
 ICS:

Inevitable communication space
 ICSDDCA:

ICSbased dynamic data collection algorithm
References
Qiu T, Chen N, Li K, Atiquzzaman M, Zhao W (2018) How can heterogeneous internet of things build our future: a survey. IEEE Commun Surv Tutor 20(3):2011â€“2017
Xiao T, Chen L, Sha C, Sun L, Wang R, Liu A, Ahmed F (2018) Noise tolerant localization for sensor networks. IEEE/ACM Trans Networking 26(4):1701â€“1714
Yu K, Yu J, Cheng X, Yu D, Dong A (2021) Efficient link scheduling solutions for the internet of things under rayleigh fading. IEEE/ACM Trans Networking 29(6):2508â€“2521
Yu K, Wang Y, Yu J, Yu D, Cheng X, Shan Z (2019) Localized and distributed link scheduling algorithms in iot under rayleigh fading. Comput Netw 151(14):232â€“244
Wang T, Zhang G, Alam BZ, Liu A, Jia W, Xie M (2018) A novel trust mechanism based on fog computing in sensorcloud system. Futur Gener Comput Syst 109:573â€“582
Qiu T, Zhao Z, Zhang T, Chen C, Chen C (2020) Underwater internet of things in smart ocean: System architecture and open issues. IEEE Trans Ind Informat 16(99):1
Mohsan S, Mazinani A, Othman N, Amjad H (2022) Towards the internet of underwater things: A comprehensive survey. Earth Sci Inform 15:735â€“764
Mary D, Ko E, Kim S, Yum S, Shin S, Park S (2021) A systematic review on recent trends, challenges, privacy and security issues of underwater internet of things. Sensors 21(24):8262
Coutinho RWL, Boukerche A, Vieira LFM, Loureiro A (2016) A novel centrality metric for topology control in underwater sensor networks. MSWiM'16: Proceedings of the 19th ACM International Conference on Modeling, Analysis and Simulation of Wireless and Mobile Systems, New York, pp 205â€“212
Cai S, Zhu Y, Wang T, Xu G, Liu A (2019) Data collection in underwater sensor networks based on mobile edge computing. IEEE Access 7:65357â€“65367
Zhao Z, Qu W, Liu C, Qiu T, Guang X (2019) A novel selforganizing routing algorithm for underwater internet of things. 2019 IEEE 23rd International Conference on Computer Supported Cooperative Work in Design (CSCWD), Porto, pp 470475. https://doi.org/10.1109/CSCWD.2019.8791882
Hollinger GA (2012) Underwater data collection using robotic sensor networks. IEEE J Sel Areas Commun 30(5):899â€“911
Qiu T, Li B, Qu W, Ahmed E, Xin W (2019) Tosg: A topology optimization scheme with global small world for industrial heterogeneous internet of things. IEEE Trans Ind Inform 15(6):3174â€“3184
Ghoreyshi SM, Shahrabi A, Boutaleb T (2017) Voidhandling techniques for routing protocols in underwater sensor networks: Survey and challenges. IEEE Commun Surv Tutor 19(2):800â€“827
Boukerche A, Coutinho RWL, Loureiro AAF, Vieira LFM (2018) Underwater wireless sensor networks: A new challenge for topology controlbased systems. ACM Comput Surv 51(1):19.1â€“19.36
Duan R, Du J, Jiang C, Ren Y (2020) Value based hierarchical information collection for auv enabled internet of underwater things. IEEE Internet Things J PP(99):1
Chen YS, Lin YW (2013) Mobicast routing protocol for underwater sensor networks. IEEE Sensors J 13(2):737â€“749
Gjanci P, Petrioli C, Basagni S, Phillips C, Boloni L, Turgut D (2018) Path finding for maximum value of information in multimodal underwater wireless sensor networks. IEEE Trans Mob Comput 17(2):404â€“418
Yan H, Shi ZJ, Cui JH (2008) DBR: Depthbased routing for underwater sensor networks. NETWORKING 2008 Ad Hoc and Sensor Networks, Wireless Networks, Next Generation Internet. NETWORKING 2008. Lecture Notes in Computer Science, Springer, Berlin, 4982:7286. https://doi.org/10.1007/9783540795490_7
Rahman MA, Lee Y, Koo I (2017) Eecor: An energyefficient cooperative opportunistic routing p rotocol f or underwater acoustic sensor networks. IEEE Access 5:14119â€“14132
Dong M, Ota K, Liu A (2017) Rmer: Reliable and energyefficient data collection for largescale wireless sensor networks. IEEE Internet Things J 3(4):511â€“519
Yuan Y, Liang C, Kaneko M, Chen X, Hogrefe D (2019) Topology control for energyefficient localization in mobile underwater sensor networks using stackelberg game. IEEE Trans Vehicular Technol, 68(2):14871500
Han G, Li S, Jiang J, Zhu C, Zhang W (2017) Data collection algorithms based on probabilistic neighborhood for underwater acoustic sensor networks. Sensors 17(2):316
Yan J, Yang X, Luo X, Chen C (2018) Energyefficient data collection over AUVassisted underwater acoustic sensor network. IEEE Syst J 12(4):35193530
Zhou J, Yang J, Xiao F, Yan X, Liu L (2019) Path planning method based on the location uncertainty of water surface nodes in underwater sensor network. 2019 IEEE 25th International Conference on Parallel and Distributed Systems (ICPADS), Tianjin, pp 711716
Han G, Shen S, Song H, Yang T, Zhang W (2018) A stratificationbased data collection scheme in underwater acoustic sensor networks. IEEE Trans Veh Technol 67(11):10671â€“10682
Gao X, Chen Z, Wu F, Chen G (2017) Energy efficient algorithms for ksink minimum movement target coverage problem in mobile sensor network. IEEE/ACM Trans Networking PP(6):1â€“12
Khan M, Ahmed SH, Jembre YZ, Kim D (2019) An energyefficient data collection protocol with auv path planning in the internet of underwater things. J Netw Comput Appl 135:20â€“31
Cheng CF, Li LH (2016) Data gathering problem with the data importance consideration in underwater wireless sensor networks. J Netw Comput Appl 78:300â€“312
Liu L, Wang R, Xiao F (2012) Topology control algorithm for underwater wireless sensor networks using gpsfree mobile sensor nodes. J Netw Comput Appl 35(6):1953â€“1963
Liu L, Zhang N, Liu Y (2015) Topology control models and solutions for signal irregularity in mobile underwater wireless sensor networks. J Netw Comput Appl 51:68â€“90
Pompili D, Melodia T, Akyildiz IF (2006) Deployment analysis in underwater acoustic wireless sensor networks. WUWNet '06: Proceedings of the 1st International Workshop on Underwater Networks, New York, pp 48â€“55
Halkin D, Rossby T (2010) The structure and transport of the gulf stream at 73\(^{\circ }\)w. J Phys Oceanogr 15(11):1439â€“1452
Liu C, Zhao Z, Qu W, Qiu T, Sangaiah AK (2019) A distributed node deployment algorithm for underwater wireless sensor networks based on virtual forces. J Syst Archit 97:9â€“19
