Joint DNN partitioning and task offloading in mobile edge computing via deep reinforcement learning
Journal of Cloud Computing volume 12, Article number: 116 (2023)
Abstract
As Artificial Intelligence (AI) becomes increasingly prevalent, Deep Neural Networks (DNNs) have become a crucial tool for developing and advancing AI applications. Considering limited computing and energy resources on mobile devices (MDs), it is a challenge to perform computeintensive DNN tasks on MDs. To attack this challenge, mobile edge computing (MEC) provides a viable solution through DNN partitioning and task offloading. However, as the communication conditions between different devices change over time, DNN partitioning on different devices must also change synchronously. This is a dynamic process, which aggravates the complexity of DNN partitioning. In this paper, we delve into the issue of jointly optimizing energy and delay for DNN partitioning and task offloading in a dynamic MEC scenario where each MD and the server adopt the pretrained DNNs for task inference. Taking advantage of the characteristics of DNN, we first propose a strategy for layered partitioning of DNN tasks to divide the task of each MD into subtasks that can be either processed on the MD or offloaded to the server for computation. Then, we formulate the tradeoff between energy and delay as a joint optimization problem, which is further represented as a Markov decision process (MDP). To solve this, we design a DNN partitioning and task offloading (DPTO) algorithm utilizing deep reinforcement learning (DRL), which enables MDs to make optimal offloading decisions. Finally, experimental results demonstrate that our algorithm outperforms existing nonDRL and DRL algorithms with respect to processing delay and energy consumption, and can be applied to different DNN types.
Introduction
As a core technology supporting modern Artificial Intelligence (AI) mobile applications, Deep Neural Networks (DNNs) have widespread applications in computer vision, natural language processing, image recognition, virtual reality (VR), augmented reality (AR) and other fields [1,2,3]. However, considering that the high computational complexity of DNNbased inference tasks, it is difficult to execute these DNNbased inference tasks directly on mobile devices (MDs) having constrained computation and energy resources.
In order to cope with the excessive demand on computing resources for computeintensive DNN tasks, the traditional solution resorts to the cloud datacenter with strong computing power for intensive computation [4]. In this case, the task data arriving at MDs is transmitted to the remote cloud datacenter for computation, and the result is returned to the local devices once the computation is complete. However, this cloudbased method involves the transmission of large amounts of data via a longdistance widearea network (WAN), resulting in high transmission energy consumption and delay, and cannot meet the requirements of energysensitive and delaysensitive DNN inference tasks. To address this issue, mobile edge computing (MEC) [5,6,7] is proposed as an emergent computing mode that places computational and storage resources on edge nodes near MDs [8], enabling computeintensive DNNbased applications to be executed in a realtime responsive manner, i.e., edge intelligence [1, 9, 10]. This novel manner can meet the low delay and low energy consumption requirements of DNN tasks [11,12,13,14]. In MEC, we can take advantage of the characteristics of DNN to offload part or all of the tasks on MDs to the MEC server to support realtime edge AI applications [15, 16].
Although edge intelligence technology has brought many benefits [17], edgebased DNN inference tasks remain heavily reliant on stable and reliable communication conditions between the MD and the edge server [9]. Considering that the network environment is often changing and easily disturbed in actual deployment, it is particularly important to further optimize DNN partitioning and task offloading in the dynamic network environment. Therefore, in response to the everchanging network environment, we need to explore more robust and flexible DNN partitioning and task offloading techniques. In addition, since the number of tasks generated by MDs is randomly variable, the probability of the state transition is unknown.
On these issues mentioned above, in this paper, we first dynamically partition DNN tasks by layer into subtasks that can be executed on the MD or the MEC server [18]. Towards low delay and low energy consumption edge intelligence, we utilize the joint optimization method to formulate the energydelay tradeoff of MDs as a Markov decision process (MDP) [19]. Thereafter, we adopt traditional deep reinforcement learning (DRL) algorithms, including the Deep QNetwork (DQN) and Double Deep QNetwork (DDQN) algorithms, to make MDs learn the optimal offloading policy while considering the future dynamic characteristics of the system environment. Nevertheless, we find that traditional DRL algorithms do not converge or converge slowly. To address this problem, we design a DNN partitioning and task offloading strategy based on Proximal Policy Optimization (PPO) algorithm, which can decrease energy consumption, reduce processing delay, and can also be extended to various types of DNNs. In the end, numerous simulation experiments are carried out to validate the effectiveness of our proposed method in enabling ondemand edge intelligence with low delay and low energy consumption.
In summary, this paper makes the following main contributions:
\(\bullet\) We present a novel approach for DNN task partitioning, which utilizes a layered partitioning method to divide the tasks of each MD into smaller subtasks that can be computed on the MD or offloaded to the server for processing.
\(\bullet\) We study the optimization of energy consumption and processing delay for DNN partitioning and task offloading in a dynamic MEC scenario consisting of multiple MDs with buffer and one MEC server, where each MD and the MEC server use the pretrained DNNs for task inference. And we construct the processing delay model and energy consumption model for the MEC system. Then, we further formulate the optimization problem as an MDP problem.
\(\bullet\) To address the above issue, we propose a DNN partitioning and task offloading (DPTO) algorithm based on DRL. At the same time, we evaluate the processing delay, energy consumption, and utility of our DPTO algorithm in simulation experiments, and numerous experimental results indicate that our DPTO algorithm surpasses existing nonDRL and DRL algorithms, effectively reduces the processing delay and energy consumption, and simultaneously can be applied to various types of DNNs.
The rest of this paper is structured as follows. Section “Related work” presents a detailed overview of the related work that is most relevant to this paper. In section “System model and problem formulation”, we first introduce the processing delay model and the energy consumption model, and then expound the process of modelling the joint optimization problem as an MDP problem. Section “DRLbased algorithm design” discusses the design of our DPTO algorithm based on DRL. In section “Performance evaluation”, we conduct extensive simulation experiments to evaluate the performance of our proposed approach. Finally, in section “Conclusion”, we summarize our contributions and conclude the paper.
Related work
Recently, discussions on DNN partitioning and task offloading have received more and more attention. Since the number of data generated by the computation of some intermediate layers of the DNN model is relatively small, they are sent to the edge server with less transmission energy consumption and delay than the original data through the network, which stimulates the method of DNN partitioning and task offloading [1]. In addition, given the multilayer structure of the DNN and the strong interdependence between neurons in each layer, it is difficult to partition computations in the same layer. And since there are some restrictions on the granularity of DNN partitioning in programming, it is not feasible to partition DNN arbitrarily. Therefore, designing an effective DNN partitioning and task offloading scheme is a challenging problem.
To cope with this challenge, many researchers have made some efforts in the field of DNN partitioning and task offloading. For example, a lightweight scheduler, i.e., Neurosurgeon, tailored for a basic edge computing network consisting of a single user and one server was introduced by Kang et al. [18]. The scheduler facilitated automatic DNN partitioning between the MD and the datacenter. However, applying Neurosurgeon to complex multiuser MEC networks presents some unresolved issues. He et al. [20] assumed that a fixed set of partitions was used to partition the DNN. The main focus of their approach was to optimize the DNN partitioning on the MEC server to minimize delay, instead of selecting partition points. Nevertheless, the fixed partition deployment of DNN on the MEC server may not be practical in multiuser MEC networks due to the various types of DNNs. In addition, Gao et al. [14] introduced two novel approaches that aim to optimize the partitioning and offloading of DNN tasks. And these two algorithms have the best performance in terms of delay, energy, and the price paid to the server for each MD. Furthermore, they are also be extended to a wide range of DNN types.
According to the above DNN partitioning and task offloading strategy, for MDs with constrained computing and energy resources, task offloading to servers for processing is a feasible solution [21,22,23]. Some existing work focuses on the delay optimization in task offloading. Specifically, Li et al. [9] introduced a framework called Edgent for collaborative inference of DNN utilizing edge computing through deviceedge synergy. Their approach facilitated adaptive partitioning of DNN computation between the device and edge, and allowed for premature termination of inference at a suitable intermediate DNN layer to minimize computation delay. To increase the amount of allowable delayaware DNN service requests, Li et al. [24] devised a new strategy that involves optimizing DNN partitioning and multithread execution parallelism. This approach aims to maximize the throughput of DNN inference, which is especially crucial in DNNbased applications that require realtime processing. Chen et al. [4] proposed a solution to the problem of excessive delay in offloading by delegating partially computeintensive tasks to remote clouds or edges. The latest researches [25, 26] investigated task offloading policies aimed at fulfilling the lowlatency demands of users.
Another area of related work focuses on energy optimization in offloading. For example, Chen et al. [27] addressed the problem of dynamic task offloading in digital twinenabled MEC, and designed an energyefficient algorithm based on DRL with the goal of maximizing energy efficiency and workload balancing among the ESs. In [28], they proposed a solution that utilizes DRL to tackle the challenge of AOIaware energy control and computing offloading in a dynamic IIoT environment. The approach designed by the authors enables effective energy management and computing offloading, while considering the changing nature of the IIoT system. Li et al. [29] developed an energyefficient algorithm to minimize total energy consumption. The tradeoff between system performance and energy consumption was investigated by Zhou et al. [30] in a multicloud system using UAVs.
The third type of work relates to the joint optimization of delay and energy. To be concrete, in the research on computing offloading for IOT devices in LEO satellite edge computing, Chen et al. [31] investigated the challenge of ensuring Qos while minimizing overall costs. To address this issue, they proposed a distributed approach that takes into account multiple constraints, including computing resources, delay and energy consumption, to achieve Qosaware computing offloading. In [32], the author investigated the energy and delay tradeoff in a MEC system using energy harvesting devices. Furthermore, there have been studies [33, 34] that have proposed an online Lyapunov optimization technique for balancing the energy consumption and delay.
Although there are numerous studies on jointly optimizing energy and delay in task offloading, these existing offloading methods are not common for offloading DNN tasks in dynamic MEC systems. Therefore, unlike previous works, this paper primarily concentrates on effectively tackling the challenge of reducing the energy consumption and processing delay in a dynamic MEC scenario through DNN partitioning and task offloading. To address this issue, we put forward a DRLbased DPTO approach, which is detailed in Section “DRLbased algorithm design”.
System model and problem formulation
Our research focuses on a dynamic MEC scenario, which involves a plurality of MDs embedded with task buffers for temporarily storing unprocessed tasks and one MEC server, as illustrated in Fig. 1. We use \(U=\{1,2,...,n\}\) to represent the collection of MDs, where n is an integer representing the overall amount of MDs in the collection. And each MD and the MEC server in this MEC scenario use pretrained DNNs to compute their tasks. We consider a system with time slots, each with length \(\tau\). The time slots are indexed by \(t\in \{0,1,...,T1\}\). The uth MD receives \(D_u(t)\) DNN tasks and has \(Q_u(t)\) tasks currently stored in the buffer at the start of time slot t. The sum of \(D_u(t)\) and \(Q_u(t)\) gives the total size of tasks that the uth MD needs to process. In addition, the DNN model adopted by the uth MD has \(L_u\) layers.

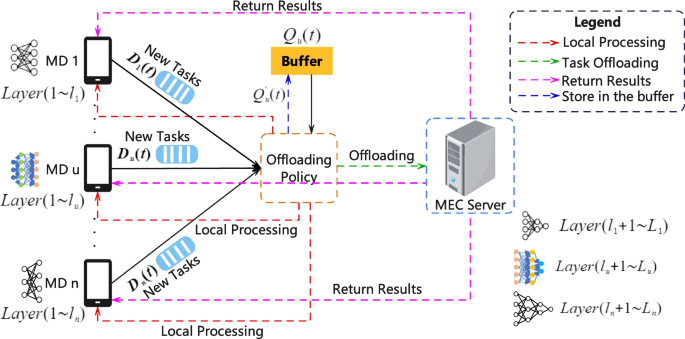

Figure 1 provides a detailed illustration of DNN partitioning and task offloading for MDs. The uth MD has the flexibility to choose between two task execution modes: local computation and offloading to the server via a reliable wireless channel for processing. According to the offloading policy, it can further decide how many layers to compute on the MD and how many layers to compute on the MEC server, both of which are indicated by \(\alpha _{u,L}(t)\) and \(\alpha _{u,M}(t)\). Specifically, when \(\alpha _{u,L}(t)=L_u\), \(\alpha _{u,M}(t)=0\), means that the tasks are computed locally on the MD, but when \(\alpha _{u,L}(t)=0\), \(\alpha _{u,M}(t)=L_u\), means that the tasks are computed on the MEC server. Specially, when \(\alpha _{u,L}(t)\) and \(\alpha _{u,M}(t)\) are both 0, this indicates that the tasks are stored in the buffer temporarily for later processing, instead of being computed. The unexecuted tasks are represented by \(Q_u^{'}(t)\), which can be modeled as \(Q_u^{'}(t)=\left( D_u\left( t\right) +Q_u\left( t\right) \right) \cdot \left( 1\frac{\alpha _{u,L}\left( t\right) +\alpha _{u,M}\left( t\right) }{L_u}\right)\). In brief, the decision made by the uth MD could be considered as an action tuple \(a_u=[\alpha _{u,L}(t),\alpha _{u,M}(t)]\in A\), in which A denotes the collection of all the action tuples and \(\alpha _{u,L}(t)+\alpha _{u,M}(t)\in \{0, L_u\}\). The system model uses the primary notations listed in Table 1.
Thereafter, we will provide a detailed system model by analyzing two aspects, including processing delay model and energy consumption model.
Processing delay model
Since the delay caused by task partitioning is very small compared to the total delay during the entire DNN task processing, we can disregard it. Therefore, the processing delay consists of four parts: the computation delay of the uth MD \(T_{u,loc}(t)\), the data upload delay from the uth MD to the server \(T_{u,up}(t)\), the computation delay of the server \(T_{u,mec}(t)\), and the data download delay from the server to the uth MD \(T_{u,do}(t)\). We partition DNN tasks on the uth MD by layer into subtasks, which are represented by the sequence \(\left\{ M_{u,1},...,M_{u,l},...,M_{u,L_u}\right\}\), where \(1\le l \le L_u\). Denote \(M_{u,l}\) as the subtask l on the uth MD. The input matrix size of each layer in the DNN model depends on the specific model structure and the dimensions of the input data. In general, for convolutional layers, the input matrix size depends on the size of the input image, the number of channels, and the size of the convolutional kernel. For fully connected layers, the input matrix size is determined by the number of output nodes in the previous layer and the number of nodes in the current layer. With reference to [35], for the inference request on the uth MD, the input matrix size is in direct proportion to the computation delay of each layer in the DNN. We call \(f_{u,l}\) the ratio of the input matrix of the DNN layer l on the uth MD to the initial data size \(D_u(t)\). Specially, \(f_{u,1}=1\). For the subtask \(M_{u,l}\), we denote the input matrix size by \(Y_{u,l}(t)\) and it is represented as follows:
where the value of \(f_{u,l}\) can be derived from the historical data on inference requests during the model training process.
With reference to [36,37,38], we can represent the computation delay \(T_{u,l}^{loc}(t)\) for the DNN layer l on the uth MD as
where \(\xi _{u,loc}(t)\) represents the processing time taken by the uth MD to process one unit of data, and \(Y_{u,l}(t)\) is given in (1). Similarly, the computation delay \(T_{u,l}^{mec}(t)\) for the DNN layer l of the uth MD on the MEC server as
where \(\xi _{mec}(t)\) is a constant representing the time required by the MEC server to process one unit of data. We suppose that the DNN layer 1 to layer \(k_u\) is computed on the uth MD, and layer \(k_u+1\) to layer \(L_u\) is computed on the server, where \(k_u\) represents the DNN layer k on the uth MD, and \(1 \le k_u \le L_u\). Therefore, we can represent the computing delay on the uth MD locally as
where \(T_{u,l}^{loc}(t)\) is given in (2). We can model the computing delay on the MEC server as follows:
where \(T_{u,l}^{mec}(t)\) could be obtained in (3).
We consider that MDs could send the processed data to the MEC server, causing additional transmission delay and energy consumption during the transmission period. Specifically, based on the Shannon theory [39], we can denote the transmission data rate \(R_{u,up}(t)\) from the uth MD to the MEC server as
where \(B_u(t)\) and \(h_u(t)\) are the channel bandwidth and channel power gain available between the uth MD and the MEC server, respectively, \(N_0\) represents the power spectral density of noise, and the uth MD has the upload power \(P_u^{up}(t)\). In addition, we use \(O_{k_u}(t)\) to denote the output data size from the DNN layer \(k_u\) on the uth MD in time slot t. Thereafter, according to (6), the data upload delay from the uth MD to the MEC server is
Similarly, during the download of the output results computed by the MEC server to the MDs, there will also produce transmission delay. We use \(R_{u,do}(t)\) to indicate the data download rate from the MEC server to the uth MD, which is given by:
where the transmission power of the MEC server is denoted by \(P_M(t)\). According to (8), we can obtain the data download delay from the MEC server to the uth MD \(T_{u,do}(t)\) as
where the output data size from the last DNN layer \(L_u\) on the uth MD in time slot t is represented by \(O_{L_u}(t)\).
Specially, when the tasks are computed locally, i.e., \(\alpha _{u,L}(t)=L_u\), \(\alpha _{u,M}(t)=0\), we do not upload data to the MEC server, correspondingly, the download delay is zero, and so is the computation delay of the MEC server. On the contrary, if \(\alpha _{u,L}(t)=0\), \(\alpha _{u,M}(t)=L_u\), i.e., the tasks are computed only on the server. Therefore, the local computation delay on the uth MD is zero. If \(\alpha _{u,L}(t)=0\), \(\alpha _{u,M}(t)=0\), i.e., the tasks need to wait for later processing. In the current time slot t, the processing delay and energy consumption of the uth MD are both equal to 0. To sum up, the total processing delay of the uth MD can be modeled as
where \(T_{u,M_1}(t)=T_{u,mec}(t)+T_{u,up}(t)+T_{u,do}(t)\) and \(T_{u,M_2}(t)=T_{u,loc}(t)+T_{u,mec}(t)+T_{u,up}(t)+T_{u,do}(t)\).
Energy consumption model
The MEC server has an uninterrupted power supply from the power grid, so we can disregard the energy consumption of the MEC server for computing and downloading the calculation results to the MDs [19]. Furthermore, the energy consumption caused by task partitioning is so small for the entire DNN task processing process that we can ignore it. Therefore, the main energy consumption in our system comes from the computing energy of MDs and the data transmission energy from MDs to the MEC server. We can model the computing energy consumption of DNN tasks on the uth MD as
where the computing power of the uth MD is denoted by \(P_u^{exe}(t)\). \(T_{u,loc}(t)\) is the computing delay on the uth MD and is given in (4). The energy consumption of uploading the output data of the DNN layer \(k_u\) executed by the uth MD to the MEC server is
where \(\tau\) is the duration of each slot.
Specially, when the tasks are computed only on the MD, the MD does not need to send data to the MEC server. Therefore, the only energy cost for the uth MD is the local computing energy cost. On the contrary, if the tasks are computed only on the MEC server, the only energy consumption \(E_u(t)\) is the energy consumed to send data from the uth MD to the server. Overall, the energy consumption \(E_u(t)\) for the uth MD is given by the following formula:
where \(E_{u,M}(t)=E_{u,loc}(t)+E_{u,up}(t)\).
Problem formulation
According to the conditions of the current channel, MDs decide the amount of DNN layers to be computed on the MEC server and locally. When the channel conditions remain good for an extended period, the amount of tasks in the buffer \(Q_u(t)\) will become zero after a time slot \(t>0\). At this time, the number of tasks arriving at the uth MD \(D_u(t)\) is equal to the number of tasks to be processed.
Storing DNN tasks in the buffer temporarily will have a substantial influence on the service quality and user satisfaction. Thus, we denote \(\omega \cdot Q_u^{'}(t)\) as the punishment. In summary, in time slot t, the total cost of the uth MD consists of processing delay, energy cost, and punishment, and it can be modeled as
where \(\mu\), \(\upsilon\), \(\omega\) are the weights of delay, energy cost, and punishment respectively.
The objective is to finish the DNN tasks quickly and use the least amount of energy, by reducing the system cost as much as possible without exceeding the computational limits. We define \(\xi _{u,loc}^{min}\) and \(\xi _{mec}^{min}\) as the minimum time taken by the uth MD and the server to process a unit of data, respectively. \(R_{u,up}^{max}\) is the maximum data upload speed from the uth MD to the server. \(R_{u,do}^{max}\) is the maximum data download speed from the server to the uth MD. In summary, the following expression shows how to describe the problem:
where the constraint (16) indicates that the tasks are being buffered or computed. Specifically, when the tasks are buffered, it means that the sum of the number of layers computed on the MD and the server is equal to 0. However, when the tasks are processed, the sum is the amount of layers of the DNN model \(L_u\) on the uth MD. The constraints (17) and (18) illustrate that the time taken by the uth MD and the server to process a unit of data is not less than the minimum value, respectively. The constraint (19) bounds the maximum data transmission rate from the uth MD to the server. The constraint (20) bounds the maximum data downloading rate from the server to the uth MD.
As discussed above, the decision taken by the uth MD is represented by \(a_u(t)=[\alpha _{u,L}(t),\alpha _{u,M}(t)]\). The current state \(s_u(t)\) can be obtained by the uth MD through observing the system, which is composed of the arrived tasks \(D_u(t)\), the channel power gain between the uth MD and the server \(h_u(t)\), and the tasks stored in buffer \(Q_u(t)\). Thus, the current state \(s_u(t)\) could be represented as \(s_u(t)=[D_u(t),h_u(t),Q_u(t)]\in S\), and S is the state collection. In time slot t, the uth MD computes the immediate reward \(R_u(t)\) after performing the action \(a_u(t)\) in the state \(s_u(t)\). Since we aim to finish the DNN tasks fast and ensure the minimum energy consumption, we define the reward function \(R_u(t)\) as the total cost \(C_u(t)\) consumed by the uth MD, i.e., \(R_u(t)=C_u(t)\). Therefore, according to the action collection A, state collection S, and the immediate reward \(R_u(t)\), we can model the optimization problem as an MDP problem.
Our goal is to enable each MD to learn the optimal strategy \(\pi ^*\), i.e., \(a=\pi ^*(s)\). Concretely, we have \(a=(a_1, a_2, a_3, ..., a_n)\) and \(s=(s_1, s_2, s_3, ... , s_n)\). Since the arrival of tasks by the uth MD \(D_u(t)\) is random in our system model, we don’t know the probability distribution function (PDF). Therefore, we propose to use DRL to solve the MDP problem without explicitly specifying the transition probabilities.
DRLbased algorithm design
If we use the traditional reinforcement learning algorithm Qlearning to tackle the MDP problem described in the preceding section, it will produce a huge number of states, and the problem of dimensional disaster will be encountered in continuous tasks. To overcome this difficulty, we design a DRLbased DNN partitioning and task offloading (DPTO) algorithm. We use a policybased Proximal Policy Optimization (PPO) algorithm with two neural networks, which can effectively address the above optimization problem \(\varvec{\textrm{P}1}\). Figure 2 illustrates the framework of the DPTO algorithm.
The fundamental idea of our approach is to incorporate neural network technology to resolve the original MDP problem. The input to the neural network is the present state s(t) of the agent, and then the corresponding action a(t) is obtained. By taking the action a(t), the next state \(s(t+1)\) of the agent is updated and the reward value \(R_u(t)\) is computed. According to the objective function including reward and action, the weight parameters in the neural network are updated by gradient rise, so as to obtain the action decision that makes the overall reward value smaller.
Our approach utilizes two distinct neural networks, namely actor and critic. The state makes the action decision through the actor network, in which the action is a probability value obtained after softmax, and then after sampling, the index value of the action will be obtained. However, the state obtained an expectation of the rewards of the agent through the critic network. According to the status, actions and rewards obtained at each time step, we update the parameters of the network.
Policy Gradient is used to update the parameters of the policy to minimize the cumulative reward. Specifically, the goal of the Policy Gradient is to compute the probability distribution of each action and to choose the action through this distribution in order to minimize the cumulative reward. We take the following gradient estimator:
where \(\pi _\theta\) represents a random policy parameterized by \(\theta\), \(\hat{R}(t)\) denotes an estimation of the advantage function in time slot t, and the expectation \(\hat{\mathbb {E}}_t\) represents the empirical average of limited batch of samples.
The learning ratio is a hyperparameter that governs the extent to which the parameters in the algorithm are updated, and it determines the step size of each parameter update. We introduce a measure to quantify the difference between the previous and updated policies, and define it as the probability ratio of actions under the two policies, as shown below:
Generating the policy distribution and selecting actions based on that distribution are the responsibilities of the actor network. During training, the actor network is updated by adjusting its parameters to minimize the expected reward. However, to prevent the policy from changing too drastically and causing instability, the update is limited within an acceptable ratio of \(\epsilon\), which is controlled by a hyperparameter called the clipping parameter. Based on PPOClip algorithm, the loss function of the actor network is denoted as follows:
where \(clip=clip(r_t(\theta ), 1\epsilon , 1+\epsilon )\). The clip function bounds the excessive update, which can prevent the bad policy of agent caused by the uncertainty of Monte Carlo sampling.
We update the critic network using data from the experience pool after updating the actor network. To achieve this, we compute the advantage function using the experience data, which represents the difference between the anticipated reward of taking an action and the anticipated reward of following the current policy. Specifically, the advantage function can be mathematically defined using the following formula:
where,
And we set \(\lambda =1\). The value of \(\varvec{V}(s(t+1))\) and \(\varvec{V}(s(t))\) can be obtained by utilizing the critic network. Given the neural network structure we adopt, which shares parameters between the policy and the value function, a loss function is required that incorporates the policy agent and the value function error. Specifically, we define the loss function as follows:
where \(c_1\) and \(c_2\) are coefficients. Z represents the entropy reward of the possibility of global exploration of new policies by the critic network and \(Z=S[\pi _\theta ](s(t))\). \(\varvec{L}_t^{vf}(\theta )\) is the square difference loss. This goal can be further enhanced by increasing entropy reward to ensure full exploration. This goal is approximately minimized in each iteration.
Algorithm 1 provides a detailed description of the DPTO algorithm.
Performance evaluation
This section presents the results of extensive simulation experiments carried out to validate the effectiveness of our proposed DPTO algorithm. The open source machine learning framework Pytorch in Python was used for constructing and training the neural networks.
Experimental setup
Metrics
The evaluation of our proposed method is based on three defined metrics: processing delay, energy consumption, and system cost, which are specified in Eqs. (10), (13), and (14), respectively. To further evaluate the performance of our proposed method, we compare it with existing nonDRL and DRL algorithms.
Parameter setting
We adopt some of the parameter settings used in [14] for our simulation experiments. Optimizing the hyperparameters of DRL network training is an ongoing process that requires continuous adjustments to achieve the best convergence and performance. Specifically, we assume that the MEC system architecture consists of one MEC server and five MDs, where we use the Orange Pi Win Plus as the MD, and the computing power and offloading power of each MD are 4.05 W and 4 W, respectively. We consider the MEC server to have a transmission power of 600 W and set the available channel bandwidth between the uth MD and the MEC server to 10 KHz. The power spectral density of noise is 30 dbm/KHz. The uth MD and the MEC server require different amounts of time to process one KB of data, with processing times ranging from 0.0001 to 0.001 seconds and 0.00001 to 0.00005 seconds, respectively.
According to [19], we suppose that the channel power gain between the uth MD and the server, which is denoted as \(h_u(t)\), follows the Markov property. Specifically, we have \(P(m_u/10000\le h_u(t+1)\le m_uh_u(t)=m_u)=0.9\) and \(P(0\le h_u(t+1)\le m_u/10000 h_u(t)=m_u)=0.1\), where \(m_u=1.2\times 10^6\). The computational tasks \(D_u(t)\) are randomly generated, with sizes randomly selected from the range 1 MB to 5 MB. Considering that it is possible for a subtask producing output data that is less or more than its original input data, the value of the parameter \(f_{u,l}\) is varied from 0.1 to 2 [35]. For the three weights of the total cost \(C_u(t)\) of the uth MD, we set \(\mu =20\), \(\upsilon =5\), \(\omega =1\). We train four DNN models with different computation difficulty over the cifar10 dataset [40], including VGG16, VGG13, ALEXNET, and LENET, and the difficulty decreased from VGG16 to LENET in turn. Table 2 provides a detailed overview of the parameter settings used in our system.
Experimental results
Comparison experiments with nonDRL algorithms
To evaluate the performance of our proposed DPTO algorithm, we compare it with the following three traditional nonDRL algorithms, where the adopted DNN is the VGG16 model.
(1) Local execution: The computation of all layers of DNN tasks is processed on local MDs.
(2) Offloading execution: The computation of all layers of DNN tasks is offloaded to the MEC server for processing.
(3) Random: The DNN tasks are randomly layered and offloaded to the server for computation.
The average processing delay and average energy consumption of the four algorithms under different bandwidths are illustrated in Fig. 3(a) and (b), respectively. From the figure, we can see that the delay and energy consumed by DNN tasks computed on local MDs do not change with the change in bandwidth. Since local execution does not need to offload data to the server, it has nothing to do with bandwidth. However, in the other three methods, the average processing delay and average energy consumption decrease as the bandwidth increases. As the bandwidth between the MD and the server increases, the data uploading and downloading rates will also increase, reducing average processing delay and energy consumption. When there are sufficient bandwidth resources in the dynamic network environment, we tend to offload subtasks to the server for processing. On the contrary, when bandwidth resources are scarce, we tend to compute subtasks on local MDs. These two figures also show that the DPTO algorithm is superior to the other three nonDRL algorithms. This is because the DPTO algorithm utilizes deep neural networks as strategy functions to improve strategies through backpropagation and gradient optimization to better adapt to complex environments.
Figure 4 shows the comparisons of four different algorithms under different DNN types, and verify the scalability of our DPTO algorithm to various DNN types. Figure 4(a) indicates how the average processing delay varies with various types of DNNs, and Fig. 4(b) indicates how the average energy consumption varies with various types of DNNs. By analyzing these two figures, we can notice that the trend is that the average processing delay and energy consumption of all four algorithms decrease as the computation difficulty of the DNN decreases. When dealing with DNN tasks that have relatively high computation difficulty (i.e., VGG16, VGG13, and ALEXNET), local execution can be both timeconsuming and energyconsuming because the computation and energy resources available to local MDs are limited. Conversely, when dealing with DNN tasks that have relatively low computation difficulty (i.e., LENET), offloading execution and random execution become slow and energyconsuming due to high uploading delay and energy consumption. And we can also see that the DPTO algorithm is always outperforming other three nonDRL algorithms with respect to the average processing delay and energy consumption, regardless of the type of DNNs. This is because the DPTO algorithm provides flexible policy optimization methods, adopts adaptive adjustment of hyperparameters, and considers realtime conditions and optimization objectives.
Comparison experiments with DRL algorithms
The following experiments will compare our DPTO algorithm with two commonly utilized DRL algorithms, which are used to resolve dynamic optimization problems that have a discrete action space. These two algorithms are widely used and are listed below.
(1) Deep QNetwork (DQN): DQN is a DRL algorithm based on value rather than policy. Its primary idea is to use neural network techniques to estimate the Qvalue function, which helps to solve reinforcement learning problems that have a highdimensional state space. In this algorithm, the neural network takes the environmental state as input and produces the Qvalue for every feasible action as output. The algorithm follows the \(\varepsilon\)greedy strategy to choose an action and updates the neural network parameters to minimize the objective function at each time step. In the updating process, it uses the experience replay technology to alleviate the data correlation problem, and at the same time uses the target network to reduce the fluctuation of the objective function.
(2) Double Deep QNetwork (DDQN): DDQN aims to overcome the overestimation problem of Qvalue in the DQN algorithm. In this algorithm, the Qnetwork parameters used when selecting the action and fitting the target are not the same set of parameters, but parameters at different times, which can decouple the selecting action from the evaluating action. It trains two Q networks and selects the smaller Qvalue to compute TDerror at the same time, which could reduce the overestimation error. In addition, by using the output of the evaluation network to determine the optimal action of the target network, the DDQN algorithm can more effectively mitigate the overestimation problem.
We train our proposed method and two other DRL algorithms for 500 iterations, and compare their convergence rate and performance according to experimental results. To achieve stable training and efficient learning, we set both the DQN and DDQN algorithms to have an experience pool size of 10000 and a batch size of 200. The reward values during the initial 500 epochs are presented in Fig. 5. And the experimental results demonstrate that the DPTO and DDQN algorithms achieve gradual convergence within the first 34 and 110 epochs, respectively. In contrast, the DQN algorithm does not converge even after 500 iterations. Because the DQN algorithm uses maximization operations to select actions, which can lead to the problem of overestimating the value function. As shown in Fig. 5, out of the three algorithms, the DPTO algorithm achieves the fastest convergence speed and the lowest reward value. On the one hand, this is because the DPTO algorithm limits the amplitude of policy updates in each update, which can keep policy updates within a controllable range. On the other hand, the DPTO algorithm optimizes the policy directly and uses multiple sampling trajectories for policy updates.
Figure 6 gives the processing costs of the DPTO algorithm and the other two DRL algorithms under different bandwidths. We can notice that as the bandwidth between the MD and the server increases, the processing costs of the three algorithms all decrease. The DQN algorithm is the worst and most unstable. This is due to the fact that there are some differences between the target network and the action network in the DQN algorithm, which leads to unstable training and nonconvergence, and also the DQN algorithm needs to represent the state as a fixedlength vector, which limits the expressive ability of the state space and leads to poor performance in some tasks. Our DPTO algorithm has the best performance under different bandwidths. Because the DQN and DDQN algorithms use the greedy strategy based on the Qvalue to optimize the strategy. However, the DPTO algorithm optimizes the strategy by constraining the maximum and minimum values of the objective function, which can better ensure the stability and convergence of the strategy.

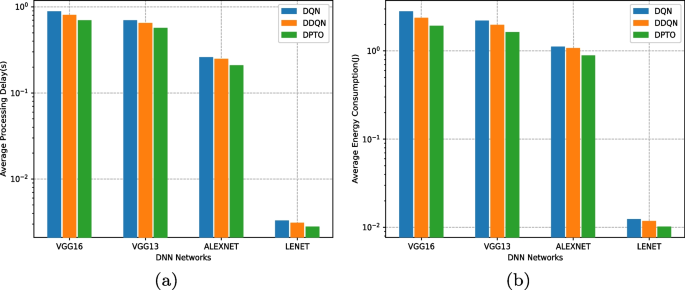

Figure 7 indicates the comparisons of three different DRL algorithms under different DNN types, where Fig. 7(a) displays how the average processing delay varies with various DNN types, and Fig. 7(b) displays how the average energy consumption varies with various DNN types. Obviously, we can see that the three DRL algorithms have lower average processing delay and energy consumption when the DNN computation difficulty is lower. This is because the higher the computation difficulty of DNN tasks, the higher the computational delay and energy consumption. Furthermore, our DPTO algorithm consistently outperforms the DQN and DDQN algorithms in both processing delay and energy consumption, regardless of the DNN types. Because the DPTO algorithm is based on PPO, and PPO uses online data directly for training, it can make efficient use of sampled data and has better stability.
Conclusion
This paper investigates the joint optimization of energy and delay for DNN partitioning and task offloading in a MEC system consisting of a MEC server and multiple MDs with buffers. We partition the DNN tasks into subtasks by layer and offload all or part of them to the server for processing. Then, we formulate the processing delay and energy consumption as a joint optimization problem and further model it as an MDP problem. To tackle this problem, we design a DRLbased approach, which can help MDs to choose the best offloading policy. Finally, through a large number of experiments, we find that our DPTO algorithm achieves superior performance in minimizing both processing delay and energy consumption compared to the existing nonDRL and DRL algorithms, and can be extended to different DNN types.
In the future, we will investigate DNN partitioning and task offloading in a scenario with multiple MDs and multiple servers. We will also explore other optimization techniques to further improve the performance of DNN partitioning and task offloading in the context of MEC systems. Furthermore, considering the importance of privacy issues during task offloading, we will delve into the content related to privacy issues in DNN partitioning and task offloading.
Availability of data and materials
Data are available on the website: Cifar10: https://www.cs.toronto.edu/~kriz/cifar.html.
Abbreviations
 AI:

Artificial intelligence
 DNNs:

Deep neural networks
 MDs:

Mobile devices
 MEC:

Mobile edge computing
 MDP:

Markov decision process
 DPTO:

DNN partitioning and task offloading
 DRL:

Deep reinforcement learning
References
Chen J, Ran X (2019) Deep learning with edge computing: A review. Proc IEEE 107(8):1655–1674
Szegedy C, Liu W, Jia Y, Sermanet P, Reed S, Anguelov D, Erhan D, Vanhoucke V, Rabinovich A (2015) Going deeper with convolutions. 2015 IEEE Conference on Computer Vision and Pattern Recognition (CVPR). p 1–9. https://doi.org/10.1109/CVPR.2015.7298594
Wang D, Nyberg E (2015) A long shortterm memory model for answer sentence selection in question answering. In Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics and the 7th International Joint Conference on Natural Language Processing (Volume 2: Short Papers). Association for Computational Linguistics, Beijing, China. p 707–712. https://doi.org/10.3115/v1/P152116
Chen Z, Hu J, Chen X, Hu J, Zheng X, Min G (2020) Computation offloading and task scheduling for dnnbased applications in cloudedge computing. IEEE Access 8:115537–115547
Mao Y, You C, Zhang J, Huang K, Letaief KB (2017) A survey on mobile edge computing: The communication perspective. IEEE Commun Surv Tutor 19(4):2322–2358
Mach P, Becvar Z (2017) Mobile edge computing: A survey on architecture and computation offloading. IEEE Commun Surv Tutor 19(3):1628–1656
Xiao Z, Dai X, Jiang H, Wang D, Chen H, Yang L, Zeng F (2020) Vehicular task offloading via heataware MEC cooperation using gametheoretic method. IEEE Internet Things J 7(3):2038–2052
Lin L, Liao X, Jin H, Li P (2019) Computation offloading toward edge computing. Proc IEEE 107(8):1584–1607
Li E, Zeng L, Zhou Z, Chen X (2020) Edge AI: Ondemand accelerating deep neural network inference via edge computing. IEEE Trans Vis Comput Graph 19(1):447–457
Xu D, Li T, Li Y, Su X, Tarkoma S, Jiang T, Crowcroft J, Hui P (2021) Edge intelligence: Empowering intelligence to the edge of network. Proc IEEE 109(11):1778–1837
Tang X, Chen X, Zeng L, Yu S, Chen L (2021) Joint multiuser DNN partitioning and computational resource allocation for collaborative edge intelligence. IEEE Internet Things J 8(12):9511–9522
Dong F, Wang H, Shen D, Huang Z, He Q, Zhang J, Wen L, Zhang T (2022) Multiexit DNN inference acceleration based on multidimensional optimization for edge intelligence. IEEE Trans Mob Comput 1. https://doi.org/10.1109/TMC.2022.3172402
Dong C, Hu S, Chen X, Wen W (2021) Joint optimization with DNN partitioning and resource allocation in mobile edge computing. IEEE Trans Netw Serv Manag 18(4):3973–3986
Gao M, Shen R, Shi L, Qi W, Li J, Li Y (2023) Task partitioning and offloading in DNNtask enabled mobile edge computing networks. IEEE Trans Mob Comput 22(4):2435–2445
Li W (2020) Geoai: Where machine learning and big data converge in giscience. J Spat Inf Sci 20:71–77
Li W, Batty M, Goodchild MF (2020) Realtime GIS for smart cities. J Geog Inf Sci 34(2):311–324
Zhou Z, Chen X, Li E, Zeng L, Luo K, Zhang J (2019) Edge intelligence: Paving the last mile of artificial intelligence with edge computing. Proc IEEE 107(8):1738–1762
Kang Y, Hauswald J, Gao C, Rovinski A, Mudge T, Mars J, Tang L (2017) Neurosurgeon: Collaborative intelligence between the cloud and mobile edge. SIGARCH Comput Archit News 45(1):615–629
Zhang G, Ni S, Zhao P (2022) Learningbased joint optimization of energy delay and privacy in multipleuser edgecloud collaboration MEC systems. IEEE Internet Things J 9(2):1491–1502
He W, Guo S, Guo S, Qiu X, Qi F (2020) Joint DNN partition deployment and resource allocation for delaysensitive deep learning inference in IoT. IEEE Internet Things J 7(10):9241–9254
Li K, Zhao J, Hu J et al (2022) Dynamic energy efficient task offloading and resource allocation for nomaenabled IoT in smart buildings and environment. Build Environ. https://doi.org/10.1016/j.buildenv.2022.109513
Chen Y, Zhao J, Wu Y et al (2022) Qoeaware decentralized task offloading and resource allocation for endedgecloud systems: A gametheoretical approach. IEEE Trans Mob Comput. https://doi.org/10.1109/TMC.2022.3223119
Huang J, Wan J, Lv B et al (2023) Joint computation offloading and resource allocation for edgecloud collaboration in internet of vehicles via deep reinforcement learning. IEEE Syst J. https://doi.org/10.1109/JSYST.2023.3249217
Li J, Liang W, Li Y, Xu Z, Jia X, Guo S (2023) Throughput maximization of delayaware DNN inference in edge computing by exploring DNN model partitioning and inference parallelism. IEEE Trans Mob Comput 22(5):3017–3030
Liu G, Dai F, Huang B, Qiang Z, Wang S, Li L (2022) A collaborative computation and dependencyaware task offloading method for vehicular edge computing: a reinforcement learning approach. J Cloud Comput 11
Zhang J, Ma B, Huang J (2020) Deploying GIS services into the edge: A study from performance evaluation and optimization viewpoint. Secur Commun Netw 2020:1–13
Chen Y, Gu W, Xu J, et al (2022) Dynamic task offloading for digital twinempowered mobile edge computing via deep reinforcement learning. China Commun. https://doi.org/10.23919/JCC.ea.20220372.202302
Huang J, Gao H, Wan S, et al (2023) Aoiaware energy control and computation offloading for industrial IoT. Futur Gener Comput Syst 139:29–37
Li S, Zhang N, Jiang R, Zhou Z, Zheng F, Yang G (2022) Joint task offloading and resource allocation in mobile edge computing with energy harvesting. J Cloud Comput Adv Syst Appl 11(1):1–14
Zhou Y, Ge H, Ma B et al (2022) Collaborative task offloading and resource allocation with hybrid energy supply for UAVassisted multiclouds. J Cloud Comput 11. https://doi.org/10.1186/s13677022003172
Chen Y, Hu J, Zhao J, Min G (2023) Qosaware computation offloading in LEO satellite edge computing for IoT: A gametheoretical approach. Chin J Electron. https://doi.org/10.23919/cje.2022.00.412
Zhang G, Zhang W, Cao Y, Li D, Wang L (2018) Energydelay tradeoff for dynamic offloading in mobileedge computing system with energy harvesting devices. IEEE Trans Ind Inform 14(10):4642–4655
Xu J, Chen L, Zhou P (2018) Joint service caching and task offloading for mobile edge computing in dense networks. IEEE INFOCOM 2018  IEEE Conference on Computer Communications. p 207–215. https://doi.org/10.1109/INFOCOM.2018.8485977
Chen L, Zhou S, Xu J (2018) Computation peer offloading for energyconstrained mobile edge computing in smallcell networks. IEEE/ACM Trans Networking 26(4):1619–1632
Xu Z, Zhao L, Liang W, Rana OF, Zhou P, Xia Q, Xu W, Wu G (2021) Energyaware inference offloading for DNNdriven applications in mobile edge clouds. IEEE Trans Parallel Distrib Syst 32(4):799–814
Chen J, Chen S, Wang Q, Cao B, Feng G, Hu J (2019) iraf: A deep reinforcement learning approach for collaborative mobile edge computing IoT networks. IEEE Internet Things J 6(4):7011–7024
Jeong HJ, Lee HJ, Shin CH, Moon SM (2018) Ionn: Incremental offloading of neural network computations from mobile devices to edge servers. In Proceedings of the ACM Symposium on Cloud Computing (SoCC'18). Association for Computing Machinery, New York. p 401–411. https://doi.org/10.1145/3267809.3267828
Yang Q, Luo X, Li P, Miyazaki T, Wang X (2019) Computation offloading for fast CNN inference in edge computing. In Proceedings of the Conference on Research in Adaptive and Convergent Systems (RACS'19). Association for Computing Machinery, New York. p 101–106. https://doi.org/10.1145/3338840.3355669
Shannon CE (2001) A mathematical theory of communication. ACM SIGMOBILE Mob Comput Commun Rev 5(1):3–55
Krizhevsky A, Hinton G, Sutskever I (2009) Learning multiple layers of features from tiny images. Tech. Rep. TR200908, Computer Science Department, University of Toronto
