Container orchestration on HPC systems through Kubernetes


Containerisation demonstrates its efficiency in application deployment in Cloud Computing. Containers can encapsulate complex programs with their dependencies in isolated environments making applications more portable, hence are being adopted in High Performance Computing (HPC) clusters. Singularity, initially designed for HPC systems, has become their de facto standard container runtime. Nevertheless, conventional HPC workload managers lack micro-service support and deeply-integrated container management, as opposed to container orchestrators. We introduce a Torque-Operator which serves as a bridge between HPC workload manager (TORQUE) and container orchestrator (Kubernetes). We propose a hybrid architecture that integrates HPC and Cloud clusters seamlessly with little interference to HPC systems where container orchestration is performed on two levels.


Cloud computing demands high-portability. Containerisation ensures environment compatibility by encapsulating applications together with their libraries, configuration files and other dependencies [1], thus enabling users to move and deploy programs easily among clusters. Containerisation is a virtualisation technology [2]. Rather than simulating the holistic operating system (OS) as in a Virtual Machine (VM), containers only share the host OS. This feature makes containers more lightweight than VMs. Containers are dedicated to run micro-services [3] and one container mostly hosts one application. Nevertheless, containerised applications can become complex, e.g. thousands of separate containers may be required in production. The production can benefit from container orchestrators that can provide efficient environment provisioning and auto-scaling [4].

Big Data Analytics hosted on Cloud are compute-intensive or data-intensive, mainly due to deployment of Artificial Intelligence (AI) or Machine Learning (ML) applications, which demand extremely fast knowledge extraction in order to make rapid and accurate decisions. High Performance Computing (HPC) systems are traditionally applied to perform large-scale financial and engineering simulation that demand low latency and high throughput. HPC is not ready to fully support AI applications due to their complex environment requirements. In the muti-tenant environment of an HPC cluster, it is difficult to install new software packages since this may alter working environments of existing users and even raise security concerns. Furthermore, HPC systems, especially HPC production systems, usually provide a complete stack of software packages which often do not allow user customisation. Containerising AI applications can be a potential solution.

Nevertheless, typical HPC jobs are large workloads that are normally hardware-specific. HPC jobs are often submitted to a batch queue within a workload manager where jobs wait to be scheduled from minutes to days. An HPC cluster is typically equipped with a workload manager. A workload manager is composed of a resource manager and a job scheduler. A resource manager [5] allocates resources (e.g. CPU and memory), schedules jobs and guarantees no interference from other user processes. A job scheduler determines the job priorities, enforces resource limits and dispatches jobs to available nodes [6]. A container orchestrator, such as Kubernetes [3], on its own does not address all the requirements of HPC systems, therefore, cannot replace existing workload managers in HPC centres. HPC workload managers, such as TORQUE, lack micro-service support and deeply-integrated container management capabilities in which container orchestrators manifest their efficiency.

This work contributes to the following aspects.

  • We present a hybrid architecture that is composed of an HPC cluster and a Cloud cluster, where container orchestration on the HPC cluster can be performed by the container orchestrator (i.e. Kubernetes) located in the Cloud cluster. Little modification is required on the HPC systems;

  • We propose a dual-level scheduling for container jobs on HPC systems;

  • We describe the implementation of a tool named Torque-Operator which bridges TORQUE and Kubernetes.

The rest of the article is organised as follows. First, we present the background on the key technologies and the challenges in “Background” section. Next, “Related work” section briefly reviews the work of state of the art. We describe the proposed architecture and the structure of Torque-Operator in “Architecture and tool description” section. Following that, performance evaluation is given in “Use cases” section. Last, “Conclusion and future work” section concludes this paper and proposes future work.


This section presents a concise background of technologies and techniques on orchestration of HPC and Cloud clusters, which leads to the motivation description of connecting Cloud clusters with HPC clusters. Orchestration under this context means automated configuration, coordination and management of HPC systems and Cloud computing systems.

Workload managers for HPC

A key component of an HPC system is its workload manager. Slurm [7] and TORQUE [8] are the two main-stream workload managers. Often TORQUE is coupled with a complex job scheduler, e.g. Moab [9].


The structure of a TORQUE managed cluster consists of a head node and many compute nodes as illustrated in Fig. 1 where only three computer nodes are shown. The head node (coloured in blue in Fig. 1) controls the entire TORQUE system. A pbs_server daemon and a job scheduler daemon are located on the head node. The batch job is submitted to the head node (in some cases, the job is first submitted to a login node and then transferred to the head node). A node list that records the configured compute nodes in the cluster is maintained on the head node. We briefly describe the procedure of job submission on TORQUE as follows:

  1. 1.

    The job is submitted to the head node by the command qsub. The job is normally written in a PBS (Portable Batch System) script. A job ID will be returned to the user as the standard output of qsub.

    Fig. 1

    TORQUE structure. pbs_server, scheduler and pbs_mom are the daemons running on the nodes. Mother Superior is the first node on the node list that finds by the scheduler

  2. 2.

    The job record, which incorporates a job ID and the job attributes, is generated and passed to pbs_server.

  3. 3.

    pbs_server transfers the job record to the job scheduler (e.g. Moab) daemon. The job scheduler daemon adds the job into a job queue and applies a scheduling algorithm to it (e.g. FIFO) which determines the job priority and its resource assignment.

  4. 4.

    When the scheduler finds the list of suitable nodes for the job, it returns the job information to pbs_server. The first node on this list becomes the Mother superior and the rest are called sister MOMs or sister nodes. pbs_server allocates the resources and passes the job control as well as execution information to the pbs_mom daemon installed on the mom superior node instructing to launch the job on the assigned compute nodes.

  5. 5.

    The pbs_mom daemons on the compute nodes manage the execution of jobs and monitors resource usage. pbs_mom will capture all the outputs and direct them to stdout and stderr into the output and error files of the job and copy them to the designated location when the job completes successfully. The job status (completed or terminated) will be passed to pbs_server by pbs_mom. The job information will be updated.

Before and after a job execution, TORQUE executes prologue and epilogue scripts to prepare systems and perform node health check, append text to output and error log files, clean up system, etc.

In TORQUE, nodes are partitioned into different groups called queues. In each queue, the administrator sets limits for resources such as walltime and job size. This feature can be useful for job scheduling in a large HPC cluster where nodes are heterogeneous or certain nodes are reserved for special users.


The structure of a Slurm [7] managed cluster is composed of one or two Slurm servers and many compute nodes. Figure 2 illustrates its structure. A Slurm server hosts the slurmctld daemon which is responsible for cluster resource and job management. Slurm servers and the corresponding slurmctld daemons can be deployed in active/passive mode in order to provide service of high reliability for computing clusters. Each compute node hosts one instance of the slurmd daemon, which is responsible for job staging and execution. There are additional daemons, e.g. slurmdbd that allows to collect and record accounting information for multiple Slurm-managed clusters and slurmrestd that can be used to interact with Slurm through a REST API. The Slurm resource list is held as a part of the slurm.conf file located on Slurm server nodes, which contains a list of nodes including features (e.g. CPU speed and model, amount of installed RAM) and configured partitions including partition names, list of associated nodes and priorities.

Fig. 2

Slurm structure [7]

Implementation of AI in HPC

The advancement of ML and Deep Learning (DL) have brought higher performance and more accurate solutions to applications in different domains, e.g. computer vision and natural language processing. ML and DL algorithms are often data intensive and computation demanding. Industry and academia seek the solutions in Cloud computing, as it allows large datasets to be easily ingested and managed to train algorithms, and enables ML and DL models to scale efficiently at low cost. Compared with Cloud, HPC systems show the advantages in computational power, storage and security [10]. Exploiting HPC infrastructures for ML and DL training is becoming a topic of increasing importance [11].

AI applications are usually developed with high level scripting languages or frameworks, e.g. TensorFlow [12] and Pytorch [13], which often require connections to external systems to download a list of open-source software packages during application execution. For example, an AI application written in Python cannot be compiled into an executable that includes all the dependencies necessary for execution as in C/C++, therefore, the developers need flexibility to customise their execution environments. Since HPC environments, especially on HPC production systems, are often based on closed source applications and their users have restricted account privileges and security restrictions [14], for instance the access to external systems is blocked. Deployment of AI applications on HPC infrastructure is challenging. Containerisation can be a potential candidate, which enables easy transition of AI workloads to HPC while fully taking advantage of HPC hardware and the optimised libraries of AI applications without compromising security on HPC systems.


A container is an OS level virtualisation technique that provides application execution environment separation. Figure 3 differentiates the architecture of VMs and containers. A traditional VM loads an entire guest OS into memory, which can occupy gigabytes of storage space on the host and requires a significant fraction of system resources to run. Per contra, a container can utilise the dependencies on its host OS. The host merely needs to start new processes to boot new containers [15], thus making start-up time of a container similar to that of a native application [1622]. Apart from portability, containers can also guarantee reproducibility, i.e. once a workflow has been defined and stored in the container, its included working environment remains unaltered regardless of its running occurrences. Containers can run inside VMs as this is the case in most of the Cloud clusters [23].

Fig. 3

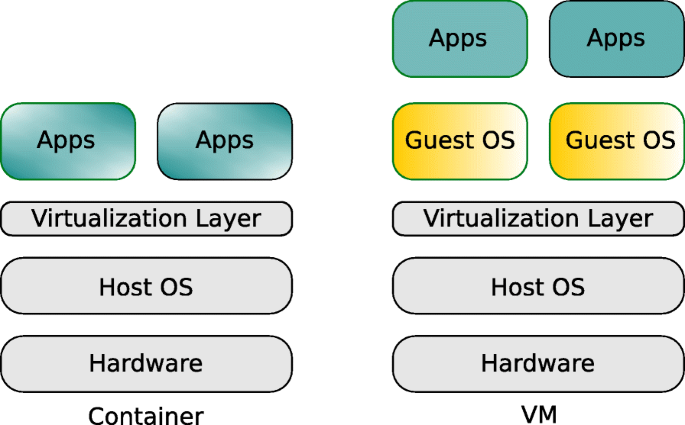

Structure VMs and containers. On the VM side, the virtualisation layer often appears to be Hypervisor while on the container side it is the container runtime

There are multiple technologies that realise the concept of containers, e.g. Docker [24], Singularity [25], Shifter [26], Charlie Cloud [27], Linux LXC [28] and Rkt Core OS [18]. Docker may be the most popular one on Cloud. Singularity developed for HPC systems shows the following merits:

  • Run with user privileges and need no daemon process. Acquisition of root permission is only necessary when building images, which can be performed on user working computers;

  • Seamless integration with HPC. Singularity natively supports GPU, Message Passing Interface (MPI) [29] and InfiniBand. In contrast with Docker, it demands no additional network configurations;

  • Portable via a single image file. Au contraire, Docker is built up on top of layers of files.

Most Docker images can be converted to Singularity images. Singularity has thereby become the standard container runtime in practice for HPC systems.

HPC applications are often specifically optimised for the nodes, which is not the case for containerised applications. Furthermore, not all containerised applications can execute in parallel. Considering that performance is essential for HPC applications, it poses the key question on massive usage of containerised applications on HPC clusters [30].

Container orchestration for cloud clusters

The complex containerised applications in production can benefit immensely from container orchestrators that offer [3133]:

  • Resource limit control. This feature reserves the CPU and memory for a container, which restrains interference among containers and provides information for scheduling decisions;

  • Scheduling. Determine the policies on how to optimise the placement of containers on specific nodes;

  • Load balancing. Distribute the load among container instances;

  • Health check. Verify if a faulty container needs to be destroyed or replaced;

  • Fault tolerance. Create containers automatically if applications or nodes fail;

  • Auto-scaling. Add or remove containers automatically.

Kubernetes [32] has a rapidly growing community and ecosystem with numerous platforms being developed upon it. Its architecture is composed of a master node and many worker nodes. Kubernetes runs its containers inside pods that are scheduled to the worker nodes. A pod can encapsulate one or multiple containers. Kubernetes provides its services by deployment that are created by submission of yaml files. In the yaml file, users specify the services and computation.

Kubernetes is based on a highly modular architecture which abstracts the underlying infrastructure and allows internal customisation, such as deployment of different software defined network or storage solutions. It supports various Big-Data frameworks (e.g. Hadoop MapReduce [34], Apache Spark [35] and Kafka [36]) and can be connected with Ansible [37] which is a widely-used software orchestration tool in Cloud clusters. Kubernetes includes a powerful set of tools to control the life cycle of applications, e.g. parameterised redeployment in case of failures, state management, etc. Furthermore, Kubernetes incorporates an advanced scheduling system which can even specify different schedulers for each job. Kubernetes supports software defined infrastructuresFootnote 1 and resource disaggregation [38] by leveraging container-based deployment and particular drivers (e.g. Container Network Interface driver) based on standardised interfaces. These interfaces enable the definition of abstractions for fine-grain control of computation, states and communication in multi-tenant Cloud environment along with optimal usage of the underlying hardware resources.

Related work

This paper extends our work-in-progress study [39] that has briefly described the preliminary design of the Torque-Operator and platform architecture, which enables the convergence of HPC and Cloud systems. In [39], a simple testing case was also given to illustrate validation of the implementation. We herein extend the description of the platform architecture and the structure of Torque-Operator. Furthermore, performance evaluation is demonstrated by three ML use cases.

A few studies [1, 40, 41] have been carried out on container orchestration for HPC clusters, since HPC systems are just starting to adopt the containerisation technology. Some works [39, 42, 43] have been performed on the general issues of bridging the gap between conventional HPC and service-oriented infrastructures. Nevertheless, literature has shown numerous works [31, 4446] on container orchestration for Cloud clusters, though this is out of the scope for this paper.

Liu et al. [42] showed how to dynamically migrate computing resources between HPC and OpenStack clusters based on demand. At a higher level, IBM has demonstrated the ability to run Kubernetes pods on Spectrum LSF (an HPC workload manager).

Piras et al. [43] implemented a method that expanded Kubernetes clusters onto HPC clusters through Grid Engine (an HPC workload manager). Contrary to our work, submission is performed by the PBS job to launch Kubernetes jobs. Therefore, HPC nodes are added to Kubernetes clusters by installing Kubernetes core components (i.e. kubeadm, Kubelet) and Docker container runtime on HPC nodes. On HPC, especially HPC production systems, it is difficult to add new software packages as this can cause security concerns and alter working environment for current users.

Khan et al. [1] proposed to containerise HPC workloads and install Mesos [47] and Marathon on HPC clusters for resource management and container orchestration. Its orchestration system can obtain the appropriate resources satisfying the needs of requested services within defined Quality-of-Service (QoS) parameters, which is considered to be self-organised and self-managed meaning that users do not need to specifically request resource reservation. Nevertheless, this study has not shown insight into novel strategies of container orchestration for HPC systems.

Julian et al. [40] proposed their prototype for container orchestration in an HPC environment. A PBS-based HPC cluster that can automatically scale up and down as load demands by launching Docker containers using Moab scheduler. Three containers serve as front-end system, scheduler (it runs workload manager inside) and compute node (launches pbs_mom daemon). More compute node containers are scheduled when there are no sufficient number of physical nodes. Unused containers are destroyed via external Python scripts when jobs complete. Similarly, an early study [41] described two models that can orchestrate Docker containers using an HPC resource manager. The former model launches a container to mimic one compute node which holds all the processes assigned to, whilst the latter boots a container per process. However this work seems to be less appealing to HPC systems. MPI applications dominate HPC programs, which can be automatically scaled with Singularity runtime support.

Wrede et al. [48] performed their experiments on HPC clusters using Docker Swarm as the container orchestrator for automatic node scaling and using C++ algorithmic skeleton library Muesli [49] for load balance. Nevertheless, its proposed working environment is targeted for Cloud clusters. Usage of Docker cannot be easily extended to HPC infrastructures especially to HPC production systems due to the security concerns.

Architecture and tool description

Traditional HPC workload managers lack efficiencies in container scheduling and management, and often do not provide integrated support for environment provisioning (i.e. infrastructure, configuration and dependency). Table 1 compares the main differences between HPC workload managers and container orchestrators.

Table 1 Comparison of HPC workload managers and container orchestrators

Cloud clusters demonstrate flexibility in environment customisation. The corresponding container orchestrators, such as Kubernetes, show their advantages in container management. In this section, we propose a platform architecture that bridges Cloud and HPC clusters, where users can customise the execution environment on the Cloud cluster to develop and deploy their service programs, meanwhile the compute-intensive or data-intensive jobs can be scheduled to HPC clusters where their performance could be significantly enhanced. The jobs are co-scheduled and co-managed by both Kubernetes and TORQUE. More specifically, on the first-level, the jobs are scheduled by Kubernetes and then by TORQUE on the second level.

Architecture and the testbed setting

The platform consists of an HPC cluster with TORQUE as its workload manager and a Cloud cluster with Kubernetes as its container orchestrator. Its architecture is illustrated in Fig. 4 on the left. For simplicity, Fig. 4 shows a limited number of nodes and a single TORQUE queue. However, the architecture is not limited to this node number and can be extended to support more nodes and TORQUE queues. The only requirement here is the existence of one or more shared login nodes.

Fig. 4

Platform architecture. The login node belongs to both the Kubernetes and TORQUE clusters. The HPC cluster encompasses only one queue in the figure. The virtual node (inside the login node structure) on the right figure corresponds to the TORQUE queue on the left figure. Multiple virtual nodes can be generated when multiple TORQUE queues exist

The HPC cluster is composed of a head node, compute nodes (execute workload) and login nodes. The login node highlighted in Fig. 4 plays the indispensable role of bridging the TORQUE and Kubernetes clusters. It is a VM node that serves as one of the worker nodes in the Kubernetes cluster (the Cloud cluster), meanwhile, it acts as a login node for TORQUE. The login node only submits the TORQUE job to the HPC cluster and is not included in the TORQUE compute node list. Job submission on the HPC cluster side will not be scheduled to this login node. The Kubernetes cluster incorporates a master node that schedules the jobs to the worker nodes. The work nodes deliver the services or perform computation. This architecture brings the following merits:

  • Provide a unified interface for users to access the Cloud and the HPC clusters. Jobs are submitted in the form of yaml;

  • Except Singularity, no additional software packages are needed to be installed in the HPC system. Hence it gives little impact on the working environment of existing HPC users;

  • Users have flexibility to run containerised and non-containerised applications (on the HPC side);

  • The performance of compute-intensive or data-intensive applications can be significantly improved via execution on the HPC cluster;

  • Containers scheduled by Kubernetes to HPC clusters can take advantage of the container scheduling strategies of Kubernetes, where TORQUE lacks its efficiency.

Architecture of torque-operator

We developed a tool named Torque-Operator that bridges Kubernetes and TORQUE. Torque-Operator is an extension of WLM-Operator [50]. It connects with Kubernetes by creating a deployment called torque-operator on the Kubernetes cluster as shown in Fig. 5. The tool is written in the Golang programming language. A virtual node (named torque-sycri-k8s-2-batch in Fig. 6) is created, which corresponds to one TORQUE queue. Figure 6 shows the virtual node information. Virtual node is a concept in Kubernetes. It is not a real worker node, however, it contains the information of its corresponding HPC queue (e.g. the number of nodes per queue) and can schedule the jobs to real worker nodes. The virtual node connects Kubernetes to other APIs and allows developers to deploy pods and containers with their own APIs. The number of virtual nodes can be multiple when more than one queue exists on the TORQUE cluster. The services provided by the deployment are carried out by four Singularity containers which:

  • generate the virtual node;

    Fig. 5

    The deployment of Torque-Operator. The deployment has been running continuously to provide services

    Fig. 6

    The virtual node generated by Torque-Operator. Only one node label is displayed and the rest is omitted in the figure for simplicity

  • fetch the queue information of the TORQUE cluster and add the information to the virtual node as its node label. A node label indicates the restrictions of a node. The jobs that meet such restrictions can be scheduled to the node. For example, the label of the virtual node ( in Fig. 6) denotes that the TORQUE cluster contains 2 compute nodes, thus a Kubernetes job which requests more than 2 compute nodes will be in a pending status;

  • launch TORQUE jobs to the Kubernetes cluster by pods;

  • transfer the TORQUE jobs to the TORQUE cluster and return the results obtained on the TORQUE cluster to the directory which is specified in the yaml file submitted by users as indicated in Fig. 7 Line 20.

    Fig. 7

    An example of the Kubernetes yaml script. The script encloses a PBS script. Submission is performed as a normal yaml job submission, i.e. <DOLLAR/>kubectl apply -f <DOLLAR/>HOME/cow_job.yaml

Besides the four containers, Torque-Operator also includes a Linux service program named red-box running on the login node as shown already in Fig. 4. Red-box builds a Unix socket which allows data exchange among the Kubernetes and TORQUE processes. Torque-Operator introduces a new Kubernetes object kindi.e. Torquejob. As users can use kubectl get pods to display the pod information, they can perform kubectl get torquejob to show the status of jobs submitted to TORQUE. Users can also view the status of TORQUE jobs using the PBS commands qstat on the login node (marked in red dashed line in Fig. 4).

The PBS job script is encapsulated into a Kubernetes yaml job script. The yaml script is submitted from the login node. An example of the yaml script named cow_job.yaml is illustrated in Fig. 7. The PBS job is included from Line 7 to Line 14. More precisely, the job requests 30 minutes walltime and one compute node. It executes a Singularity image called lolcow.sif located in the home directory, which is pulled from Syslab registry. Its results and error messages will be written in low.out and low.err, respectively. Line 12 sets the necessary PATH environment variable to find the Singularity executable located in /usr/local/bin on the HPC system.

The TORQUE job script part is abstracted by Toque-Operator. A Kubernetes pod is generated to transfer the PBS job specification to a scheduling queue of the HPC cluster (e.g. waiting queue or test queue as in TORQUE job scheduler, while the concept of queue in Fig. 4 is the partition of nodes). Torque-Operator invokes the TORQUE binary qsub that submits the job to the TORQUE cluster. When the job completes, Torque-Operator creates a Kubernetes pod which redirects the results to the directory that the user specifies.

The yaml job submitted from the Kubernetes login node is scheduled by the Kubernetes master node to the virtual node. The virtual node transfers the abstracted jobs to the TORQUE queue through the login node. Figure 8 illustrates the main procedures of container job submission and execution from the Kubernetes cluster to the TORQUE cluster.

Fig. 8

The workflow of job execution procedure

User permission management

With WLM-Operator [50], all submitted jobs will be executed on the HPC cluster on behalf of a single user. This gives performance limitation and causes security concern especially in an HPC production system, as multiple users may submit jobs simultaneously and their data confidentiality cannot be guaranteed. Furthermore, we need multi-user support in order to enable individual monitoring, accounting, fair-share scheduling and other features per single user or per group of users which are supported by default on TORQUE. This is achieved in Torque-Operator by providing a dynamic adaptation of the user context through automatically reconfiguring the Kubernetes virtual node along with the corresponding red-box socket (see Fig. 4) to use the right user privileges. The current reconfiguration mechanism [51] brings multi-user support that addresses the confidentiality issues, though it still lacks the capability of concurrent submissions from multiple users. We propose to add this feature to a future release of Torque-Operator.

Use cases

The proposed architecture and tool herein are implemented in the testbed of the EU research project CYBELEFootnote 2. We present two use cases from the CYBELE project for functionality validation and performance evaluation. The two use cases herein are named Pilot Wheat Ear and Pilot Soybean Farming, respectively. In addition, we give the performance evaluation on an open-source MPI benchmark: BPMFFootnote 3 (“Pilot and benchmark description” section). All the three applications are containerised in Singularity. Table 2 lists the key software packages and their dependencies encapsulated in Singlarity images for the three applications.

Table 2 The key software packages and their dependencies packed in Singularity images for each application

It is straightforward to build a Singularity image which is as easy as installing software packages in a Linux system. We illustrate a snapshot of the Singularity build script for Pilot Soybean Farming in Fig. 9 as an example. The other two scripts carry the same principle. In Fig. 9, the image is based on Ubuntu image version 18.04 as indicated in Line 2. Line 4 (%environment) starts the section on definition of the environment variables that will be set at runtime (from Line 5 to Line 8). Commands in the %post (Line 10) section are executed after the base OS (i.e. Ubuntu 18.04) has been installed at build time, more specifically, from Line 11, all the necessary software packages and dependencies are installed.

Fig. 9

A snapshopt of the Singularity build script for Pilot Soybean Farming

Pilot and benchmark description

Pilot Wheat Ear is targeted for provisioning of autonomous robotic systems within arable frameworks. More specifically, the application provides a framework for automatic identification and count of wheat ears in fields from the data collected by sensors on ground so that it enables crop yield prediction at early stages and can suggest decisions for sales planning. The application trains a DL algorithm written in Python on Fastai/Pytorch [52][13] framework based on a series of RGB images (138 images, 95 MB in total). An example of the images is illustrated in Fig. 10a.

Fig. 10

Examples of Pilot images. The Sentinel-2 image deliver information of three key stages of soya growth

Pilot Soybean Farming focuses on the application of ML in soybean farming. Its goal is to develop a prediction algorithm that is able to infer hidden dependencies between the input parameters and the yield. The ML algorithm, more specifically the Random Forest algorithm [53], is implemented in Python’s Scikit learn library [54]. The training dataset consists of two Sentinel-2 [55] images (the total size of images: 4.9 GB) with 13 spectral bands, at a resolution of 10m and yield monitor data (total size: 569 MB) from Austrian soybean farms. The pipeline includes modules for image stacking, cropping to the field boundaries, yield map interpolation from point measurements and a Random Forest module for yield prediction. An example of the Sentinel-2 image (only a single band of the image is displayed) is shown in Fig. 10b.

The aforementioned pilots are in developing stage and are not yet publicly accessible. The former can only scale on the cores of one single node while the latter only executes on a single core of one node. To demonstrate the performance improvement that the HPC cluster can bring and illustrate that the approaches introduced herein can be applied in more general cases, we present performance evaluation on an MPI benchmark BPMF [56, 57]. The BPMF benchmark adopts the ML algorithm, i.e. the Bayesian Probabilistic Matrix Factorization (BPMF) method, to predict compound-on-protein activity using Markov Chain Monte Carlo. It uses a Gibbs sampler and works with MPI and Eigen library handling the linear algebra and related algorithms. Each sampling iteration consists of two distinct regions on compounds and protein activities. The number of sampling iterations is set to be 100 in this experiment. MPI [29, 58] applications as the conventional parallel programs for HPC are well designed to scale on multiple or many cores. Table 3 summarises the descriptions of the two pilots and the MPI benchmark.

Table 3 Descriptions of the pilots and BPMF

Two approaches are often used to execute MPI applications using Singularity, i.e. hybrid model and bind model. The former compiles MPI binaries, libraries and the MPI application into a Singularity image. The latter binds the container on a host location where the container utilises the MPI libraries and binaries on the host HPC systems. The latter model has smaller image size since it does not include compiled MPI libraries and binaries in the container image. However, the latter has some drawbacks:

  • The MPI version that is used to compile the application in the container must be compatible with the version of MPI available on the host;

  • Users must know where the host MPI is installed;

  • User must ensure that binding the directory where the host MPI is installed is possible.

We chose the hybrid model as mounting storage volumes on the host as in the bind model can require privileged operations. In the hybrid model, the MPI launcher of the host system invokes Singularity container and Singularity launches the MPI application within the container. We use Open MPI [59] with version v4.0.4 as the MPI library.

Performance evaluation

Performance evaluation is carried out on the testbed with the technical specifications indicated in Table 4. Singularity is the container runtime of our choice, as it provides a secure means to capture and distribute software and their environments. Kubernetes supports Docker by default, though it can be adjusted to support services for Singularity by adding Singularity-CRI Footnote 4 [60]. Table 5 concludes the list of core applications to be installed on the testbed. In general, Kubernetes cluster can support both the Singularity runtime and the Docker runtime. Ideally the worker nodes which run Docker containers should not be linked to HPC clusters. Romana is deployed as the network model for the container network interface (CNI) of Kubernetes. Without this additional network model, the pods located on different hosts could not establish communication with each other. Romana [61] is an open source network and security automation solution that enables deployment of Kubernetes without an overlay network. It supports Kubernetes Network Policy to provide isolation across network namespaces.

Table 4 Technical Specifications of the testbed
Table 5 The list of core applications for the testbed

Figure 11 compares the performance difference for Pilot Wheat Ear, Pilot Soybean Farming and BPMF runing on the Cloud cluster (VM) and HPC cluster. On the VM cluster, the applications only execute with 2 processes as it is the maximal number of the VM cores on one node. The performance ranges from execution with 2 processes to 20 processes as the maximal number of the cores on one HPC node. We only present the results of Pilot soybean Farming running on one core as it is a sequential program. The performance details are given in Table 6. The results are stable, which are the average of three executions. The variances of execution time are shown in the table in brackets. Figure 11 indicates that the performance of the three applications has been significantly improved when running on the HPC cluster comparing with that on the VM node (by 64.06%, 48.45% and 38.20% running on two cores). Execution time of Pilot Wheat Earand BPMF on the HPC cluster are further shortened with incrementing core numbers. The time spent in job scheduling from Cloud to HPC is negligible compared to the total execution time. The potential immense gain for the out-of-the-box performance is one major reason for levaraging HPC to AI applications, while usage of containers make deployment of AI applications portable on HPC clusters.

Fig. 11

Time comparison for the two pilots and BPMF running on the Cloud node and HPC node

Table 6 Execution time on the Cloud and HPC cluster for 3 use cases on a single node (unit: minutes)


It is difficult to migrate applications from Cloud to HPC clusters. Although containerising applications can meet the portability requirements, their performance is not always satisfying. HPC clusters demonstrate their advantages by running applications concurrently on many cores and nodes. Obviously the performance of applications on bare-metal HPC nodes surpasses that on VM nodes, even though VM nodes are configured with more powerful CPU in the testbed. However, the programs which do not scale benefit less from running on HPC systems, as this is the case for Pilot Soybean Farming that is a sequential program.

HPC applications tend to scale on many cores. This article intends to propose a methodology which can provide a common interface between HPC and Cloud clusters enabling container orchestration on HPC systems. This structure is particularly important for AI applications that tend to be compute-intensive or data-intensive, thereby, can benefit immensely from HPC clusters. Scalability of AI applications on HPC nodes should be taken into account. This can be addressed by containerising the DL Framework Horovod [62] (Horovod adopts MPI concepts, which enables massive HPC node scaling) into Singularity images. Alternatively, Spark Engine (Spark provides data parallelism) can be encapsulated into Singularity. In this case, Spark jobs will be scheduled by HPC workload managers such as TORQUE or Slurm in preference to big-data schedulers, e.g. Apache Hadoop YARN [63] or Mesos. However, it is out of scope of this paper to discuss parallelisation for containerised AI applications.

It is worth noting that our proposed architecture (Fig. 4) can be flexible, i.e. job submission is not restricted to the login node. Users can submit their jobs from the rest of the Kubernetes nodes which are connected with this login node in the same Kubernetes cluster. The master node will schedule the submission to the login node and the TORQUE job will be transferred to the HPC cluster. On our architecture, the login node which connects the Cloud and HPC systems are located in the two network domains: the domains of HPC cluster and Cloud cluster. On an HPC production system, a more portable and secure approach is to connect the login node remotely to the HPC cluster via ssh, although this could cause performance degradation when there is a large amount of data transmission.

Conclusion and future work

This article described an architecture and the structure of Torque-Operator. The architecture creates a synergy between HPC and Cloud. It provides users with flexibility to run containerised and non-containerised jobs with the same submission interface. Compute-intensive or data-intensive jobs can gain higher performance by scheduling from the Cloud cluster to the HPC cluster with the scheduling performed by both Kubernetes and TORQUE. Two use cases of the EU research project CYBELE are presented to demonstrate the merits of our design. Nevertheless, the proposed architecture is not limited to the usages of our project pilots. We generalised its application by showcasing an open-source MPI benchmark containerised in Singularity.

In future work, it could be interesting to compare efficiency of container orchestration of our hybrid architecture with container scheduling performed by TORQUE only. This will hugely depend on the development of the AI use cases of the CYBELE project. Currently, container orchestration policies rely on Kubernetes. The next steps can be carried out on improvement of the container scheduling of TORQUE. In addition, the login node can accept the regular Kubernetes yaml file instead of embedding a TORQUE PBS script within it, and the orchestrator is able to analyse the job size so that it can determine whether to submit jobs to HPC clusters or schedule them to the Cloud clusters. In the latter case, the embedded PBS yaml will be automatically generated for HPC job submission.

Availability of data and materials

Not applicable.


  1. 1.

    Software-defined infrastructure (SDI) is the definition of technical computing infrastructure entirely under the control of software with no operator or human intervention. It operates independent of any hardware-specific dependencies and is programmatically extensible.

  2. 2.

    CYBELE: Fostering Precision Agriculture and Livestock Farming through Secure Access to Large-Scale HPC-Enabled Virtual Industrial Experimentation Environment Empowering Scalable Big Data Analytics.

  3. 3.

  4. 4.

    Singularity-CRI: it is Singularity-specific implementation of Kubernetes CRI (CRI: Container Runtime Interface).
