A split-federated learning and edge-cloud based efficient and privacy-preserving large-scale item recommendation model

Abstract

The combination of federated learning and recommender system aims to solve the privacy problems of recommendation through keeping user data locally at the client device during the model training session. However, most existing approaches rely on user devices to fully compute the deep model designed for the large-scale item recommendation; therefore, imposing high calculation and communication overheads on resource-constrained user devices. Consequently, achieving efficient federated recommendations across ubiquitous mobile devices remains an open research problem. To this end, in this paper we propose an efficient and privacy-preserving federated learning framework which is based on the cloud-edge collaboration for large-scale item recommendation called SpFedRec. In our method, to reduce the computation and communication cost of the federated two-tower model, a split learning approach is applied to migrate the item model from participants’ edge devices to the computationally powerful cloud side and compress item data while transmitting. Meanwhile, to enhance the feature representation, the Squeeze-and-Excitation network mechanism is used on the backbone model to optimize the perception of dominant features. Moreover, because the gradients transmitted contain private information about the user; therefore, we propose a multi-party circular secret-sharing chain based on secret sharing for better privacy protection. Extensive experiments using plausible assumptions on two real-world datasets demonstrate that our proposed method improves the average computation time and communication cost by 23% and 49%, respectively. Furthermore, the proposed model accomplishes comparable performance with other state-of-art federated recommendation models.

Introduction

Nowadays, information technology including storage and computing is viewed as on-demand facilities, denoted as "X as a Provider." Large-scale data owners typically outsource their data to clouds to reduce the cost of data storage and management while enhancing privacy. Even so, data owners do not have direct control over their data stored on remote cloud servers, which raises concerns about their cloud services being illegally acquired or mistreated by cloud service providers (CSPs), particularly for sensitive data such as health records, official records, and email messages etc. Even though many CSPs argue that their cloud services include several security measures such as access control, firewalls, and penetration testing, concerns about the safety and confidentiality of cloud services remain major roadblocks to the widespread adoption of cloud computing [1]. Because of the foregoing, privacy-preserving suggestions have become a research hotspot as user privacy [2] and data security [3] concerns have grown. Under strict regulatory requirements such as GDPR and CPRA [4] federated learning (FL) [5] is regarded as one of the most efficient privacy-preserving machine learning paradigms. Coordinated by a central server, participants of FL cooperatively train a model whereas keeping the training data locally. Since FL can mitigate the systematical privacy hazards of a central machine learning scenario, it fits the need for privacy protection and data safety in recommender systems (RS).

Ammad et al. [6] combined the FL and collaborative filtering and proposed FCF. FCF avoids the centralized collection of users' local training data to ensure privacy and achieves minimal performance loss. However, the gradients uploaded by the client to the server can still expose the user’s confidentiality. Following FCF, Lin et al. [7] proposed a federated collaborative filtering recommendation (FedRec) model by explicit feedback. They proposed an obfuscated populating method: (1) Client randomly sampling a set of unrated items list and assigned with false rating values. (2) hybrid with real local historical data to compute the design gradients and upload it to the server, thus avoiding the server-aware local historical interaction. Subsequent research extends the FL-based RS into different application scenarios. Flanagen et al. [8] proposed the first federated multi-view matrix factorization (FED-MVMF) algorithm, which solves the cold-start problem by integrating information from multiple data sources.

Qi et al. [9] proposed the FedNewsRec framework by combining news recommendations with FL, they used a local differential privacy technique to add random noise to the gradients to protect the privacy of the user. Chen et al. proposed a privacy-preserving POI recommendation framework (PriRec) for the POI recommendation scenario, some of the public data including POI description and category information is stored on the server to reduce the communication cost on the client side. Luo et al. [10] proposed an FL-based social recommendation model that utilizes contrastive learning to eliminate heterogeneity of data distribution among users.

Additionally, although several approaches have been planned to enhance the efficiency of FL-based RS, they do not openly report the challenge within large-scale item recommendations. Muhammad et al. [11] proposed the FedFast algorithm, which combines the GMF (Generalized Matrix Factorization) with FL. The FedFast accelerates the convergence of FedGMF by using client-side sampling and enabling parameter sharing among clustering users, which can complete the training with a small number of selected users, circumventing the delay caused by some inefficient clients. Reisizadeh et al. [12] also selected only some clients for model training and utilized low-precision quantization methods to compress the model parameters. Some studies [6, 13, 14] reduce the communication cost between the client and the server by performing multiple iterations of training locally on the client side. However, they do not decrease the absolute workload on a client device.

Qin et al. [15] proposed a novel privacy-preserving recommender scheme framework based on federated learning, which enables the server to build a matching model using explicit feedback from a subset of users but causes privacy exposure. Utmost present works undertake that all client devices are immediately accessible and have sufficient power to contribute in FL training. However, in large-scale item recommendation, FL-based recommendation still faces the challenge of communication and computation limitations from the client device. (1) The RSs in the industry are designed for massive data analysis with large and complex models [16]. Many consumer-grade mobile devices cannot handle the local training task, thus leading to model training failure. (2) large-scale RS often has millions of items to be filtered, and a centralized RS can alleviate this part of the work with the matching mechanism under strict latency requirements. However, in the FL recommendation scenario, since the server cannot directly access the users’ data, the vast volume of raw item data has to be transmitted to the user’s device, producing considerable communication and calculation overhead. In summary, a major challenge for implementing large-scale item federated recommendations is: How to efficiently compress the computation and communication overhead under privacy protection and enable resource-limited ubiquitous mobile devices to satisfy the performance requirement of federated large-scale item recommendations.

In this study, to overcome the challenge of the FL client-side computation and communication compression while ensuring privacy, we propose a cloud-edge collaboration-based Split Federated Recommendation framework (SpFedRec). The SpFedRec leverages the two-tower recommendation model's unique structure and separates the two independent sub-networks of user and item models based on split learning. The RS server (cloud side) is responsible for maintaining the training and updating of the item model. In contrast, the client device (edge side) maintains the training and update of the user model. Meanwhile, the RS server can provide the required low-dimensional item embeddings to the clients involved in FL training or online prediction, avoiding large-scale item data transfer. With SpFedRec, the client device can complete the similarity matching of cached user embedding and server-provided items embedding for online inferring by lightweight computation. To further improve feature utilization and thus enhance recommendation performance in a decentralized state of data and models, we utilize the SENet mechanism to learn feature importance dynamically. Currently, many privacy-preserving techniques are introduced into FL, such as secure multi-party computation (MPC) [17], differential privacy (DP) [18], and homomorphic encryption (HE) [19] as the local gradient updates may reveal private user information [20]. Because DP introduces random noises into the global model, affecting its accuracy, and HE requires too much extra computation [21, 22], we opt for MPC, which can offer provable privacy guarantees for multi-party gradient aggregation at a lower computational cost.

This paper concentrates on two useful compression objectives for FL-based RS in particular. (1) Good Communications Compression [23] decreases communication overhead when FL training and online inferring devices are used. (2) Local Computation Reduction [19, 24] decreases computation workload when devices participate in FL training and online inference. The two-tower model is commonly used to pre-filter huge items in large-scale item RS [25,26,27]. The two-tower model is distinguished by the fact that the user and item features are modeled as separate sub-networks and cached individually [28]. When performing online inferring, only the cached embeddings of users and products must be matched for similarity. It is possible to separate these two independent sub-models, and their training and online inference can be conducted in separate entities. We highlight our research contributions as given below:

• • We propose SpFedRec for efficient and privacy-preserving large-scale item recommendation. Apart from preventing users from sharing their private local data, we adopt a practical cloud-edge collaborative split learning approach to enable SpFedRec significantly reduce the computation and communication overhead on resource-constrained participants. SpFedRec can alleviate the critical communication and computation bottleneck for existing FL-based recommenders.

• • To defend against the semi-honest server and malicious participants who may infer user data from intermediate information generated by the FL training process, we propose a multi-party circular secret-sharing chain to encrypt the gradient information. We further introduce the obfuscated item request strategy to conceal the label information.

• • We conduct extensive experiments on two real-world datasets to verify the effectiveness and efficiency of our proposed models, and results show that SpFedRec outperforms the state-of-art baselines. At the same time, it achieves effective communication and computation reduction.

The rest of this paper is organized as follows. In Sect. "RQ2: Is the computation and communication efficiency of SpFedRec significantly improved compared to the baseline models in the naïve FL setting?", we offer a brief overview of the related work and a few existing recommendation systems. Sect. "RQ3: How do hyper-parameter settings and affect the performance and efficiency of SpFedRec?" introduces the preliminary knowledge and discusses several research methodologies. In Sect. "RQ4: How does our proposed privacy protection mechanism influence the performance and efficiency of SpFedRec?", we delibrate our proposed framework called SpFedRec. In Sect. 5, we present our experimental settings and the obtained results. Finally, we conclude our paper in Sect. 6 and suggest few directions for further research and investigation.

Related work

These days, mobile edge computing as a technological innovation is gaining traction [29], particularly the issue of MEC computing offloading. The majority of current research uses delay, energy usage, a weighted sum of energy usage, and delay as the computing offloading effectiveness indicators. To achieve the optimum solution task scheduling technique for delay-based computational offloading, Liu et al. [30] developed an effective one-dimensional evolutionary algorithm to tackle the challenge of power-constrained delay reduction. Ning et al. [31] suggested an adaptive heuristic allocation of resources for dynamic offloading judgments, taking into account the cooperation of mobile edge computing and cloud computing. Wu et al. [32] developed a computing offloading framework based on nonorthogonal multiple access (NOMA) innovations to reduce the total finish time of all mobile terminal jobs. Zhang et al. [33] combined computing offloading, information caching, and allocation of resources into a single model and created an asymmetric tree structure to reduce the total delay usage of computing tasks. On other hand, communication and computation represent a significant bottleneck in enabling practical applications of cross-device federated learning [4]. The bandwidth of the mobile device's uplink channel is much narrower than the bandwidth of the connection inside the server, and the mobile network is expensive and unreliable. Meanwhile, consumer-grade processors in mobile devices are far less capable than the GPU on deep-learning servers. In deep learning models, the training session on client devices will consume a significant amount of time and power, which is unacceptable to users.

Additionally, most existing FL-based recommendation studies assume that all client devices are immediately available and have sufficient capacity to undertake the computation of the entire recommendation model [6], which is tough for a mobile device with limited resources, especially since industrial RS are in huge size and have massive amounts of item data. Although several approaches have been planned to enhance the efficiency of FL-based RS, they do not openly address the challenge within large-scale item recommendations. There are some studies on the problem of minimizing total mobile energy usage under the restriction of computational delay. Muhammad et al. [11] proposed the FedFast algorithm, which combines the GMF (Generalized Matrix Factorization) with FL. The FedFast accelerates the convergence of FedGMF by using client-side sampling and enabling parameter sharing among clustering users, which can complete the training with a small number of selected users, circumventing the delay caused by some inefficient clients. Reisizadeh et al. [12] also selected only some clients for model training and utilized low-precision quantization methods to compress the model parameters. Some studies [6, 13, 14] reduce the communication cost between the client and the server by performing multiple iterations of training locally on the client side. However, they do not reduce the absolute workload on a client device. Qin et al. [15] proposed a novel privacy-preserving recommender system framework based on federated learning, which enables the server to build a matching model using explicit feedback from a subset of users but causes privacy exposure.

Even so, the above said privacy and scheme load problems were planned for cloud computing or mobile cloud computing situations. This restriction has motivated our study to discover a solution for the FL client-side computation and communication compaction challenging task while maintaining privacy, and we suggest a split federated recommendation framework based on cloud-edge collaboration (SpFedRec). It proposes the suggested framework for efficient and privacy-preserving large-scale item recommendation. Apart from preventing users from sharing their private local data, we adopt a practical cloud-edge collaborative split learning approach “SpFedRec” that significantly reduces the computation and communication overheads on resource-constrained participants. Moreover, we believe that our proposed SpFedRec model could improve the critical communication and computation bottleneck for existing FL-based recommenders.

Preliminaries

This section introduces some basics and preliminary knowledge about our backbone model, split-learning, and secure multi-party computing.

Backbone model

The standard setting of the two-tower model is 3 layers, fully linked neural network for both the item and user model, i.e., the Deep Semantic Similarity Model (DSSM) [28]. The most important characteristic of the two-tower design is that the user and item model are two independent sub-networks, as shown in Fig. 2(a). The two sub-networks can be cached separately so that the online prediction only requires similarity matchings in memory, which is friendly to the industrial world that values computation efficiency. The two-tower model recommendation structure is extensively utilized in advertising (Facebook) [34], information retrieval (Google) [30], and recommendation (YouTube) [35].

Specifically, the goal of utilizing the two-tower model for large-scale item recommendation is to retrieve a subset of (hundreds of) items for a given user for subsequent ranking. There are two different embedding functions $\mathrm{u}\left(\mathrm{x},{\uptheta }_{\mathrm{u}}\right)$ and $\mathrm{v}\left(\mathrm{y},{\uptheta }_{\mathrm{v}}\right)$, mapping both user $\{{\mathrm{x}}_{\mathrm{i}}{\}}_{\mathrm{i}=1}^{\mathrm{N}}$ and item ${\left\{{\mathrm{y}}_{\mathrm{j}}\right\}}_{\mathrm{j}}^{\mathrm{M}}$ to a k-dimensional vector space. The output is the similarity matching of the two embeddings by Eq. 1. The object of training is to learn the parameters ${\uptheta }_{\mathrm{u}}$ and ${\uptheta }_{\mathrm{v}}$ based on the training data $\mathrm{D}:={\left\{\left({\mathrm{x}}_{\mathrm{i}},{\mathrm{y}}_{\mathrm{j}},\mathrm{r}\right)\right\}}_{\mathrm{i}=1}^{\mathrm{T}}$, where the $\mathrm{r}$ is the label that indicates if the user interacts with an item.

$$Sim\left(x,y\right)=\langle u\left(x,{\theta }_{u}\right),v\left(y,{\theta }_{v}\right)\rangle$$

(1)

Given a user $\mathrm{x}$, the probability of getting item $\mathrm{y}$ from corpus $\mathrm{M}$ can be considered as a multi-classification problem, the SoftMax function as illustrate in Eq. 2. And the loss function is a log-likelihood loss as illustrate in Eq. 3, where the $\mathrm{T}$ denote the batch size.

$$\mathrm{P}\left(\mathrm{y}|\mathrm{x},{\uptheta }_{\mathrm{u}},{\uptheta }_{\mathrm{v}}\right)=\frac{{\mathrm{e}}^{\mathrm{Sim}\left(\mathrm{x},\mathrm{y}\right)} }{{\sum }_{\mathrm{j}=1}^{\mathrm{M}}{\mathrm{e}}^{\mathrm{Sim}\left(\mathrm{x},{\mathrm{y}}_{\mathrm{j}}\right)}}$$

(2)

$${\mathrm{L}}_{\mathrm{T}}\left({\uptheta }_{\mathrm{u}},{\uptheta }_{\mathrm{v}}\right):=-\frac{1}{\mathrm{T}}\sum_{\mathrm{i}\in \left|\mathrm{T}\right|}{\mathrm{r}}_{\mathrm{i}}\mathrm{log}(\mathrm{P}\left(\mathrm{y}|\mathrm{x},{\uptheta }_{\mathrm{u}},{\uptheta }_{\mathrm{v}}\right))$$

(3)

Split learning

Split learning is a deep learning paradigm based on server and client collaboration [36]. Unlike the FL setups that emphasis on data and model distribution, the core idea of split learning is to divide the training and inference process of a deep model by layers and execute them in different entities [37].

The Cloud-Edge collaborative split learning in the U-shape configuration is a privacy-preserving variation, as shown in Fig. 1. The Edge-side includes various mobile devices, such as tablets, mobile phones, and laptops) with limited computational resources but various data sources. Edge devices train deep models based on local data to provide better information services to edge-side users. However, due to the limitation of computational power, it cannot complete the local training but requests the cloud server for co-computation. The cloud side provides redundant computing resources as a service to the edge-side devices. Both client-side input data and labels are not transferred to the cloud to ensure edge-side data privacy [38].

Fig. 1

Cloud-Edge Collaborative Split learning in U-Shape configuration [4]. The L_s denote the edge-side cut layer and the L_n represent the cloud-side output layer

Formally, there is a deep model training task including $\mathrm{n}$ hidden layers $\mathrm{L}\_\mathrm{i}$, $\mathrm{i}\in [1,\mathrm{n}]$. An edge-device needs to train the deep model based on local data $\mathrm{D}$ but with insufficient computational capacity. The edge-device begins the model training with forward propagation until it reaches the split layer ${\mathrm{L}}_{\mathrm{s}}$ where $\mathrm{s}<\mathrm{n}$. The feature mapping of ${\mathrm{L}}_{\mathrm{s}}$ is then encrypted and sent to the cloud for further propagation ${\mathrm{L}}_{\mathrm{s}+1}\to {\mathrm{L}}_{\mathrm{n}}$. The output of the ${\mathrm{L}}_{\mathrm{n}}$ will be sent back to the client for loss computation. The output layer’s encrypted gradients will be directed to the cloud and backpropagation is from the ${\mathrm{L}}_{\mathrm{n}}$ to the split layer in a opposite path. The gradients of ${\mathrm{L}}_{\mathrm{s}}$ will be returned to the edge-side, and the rest of backpropagation will be finished. The above steps go through multiple iterations until the model converges.

Based on the cloud-edge collaborative split learning, we can split the hidden layer of a deep learning-based FL training task from a resource-constrained edge device. The cloud server that provides the computation service will handle the split workload, improving the efficiency of FL training and online inferring. To our knowledge, we proposed the first split learning-based federated recommendation framework to improve the computation efficiency and model training durations.

Secure multiparty computing

MPC is an algorithmic protocol based on cryptography to achieve privacy computing, and it is a comprehensive application of a variety of cryptography-based tools [17]. MPC ensures that multiple participants $\{{\mathcal{p}}_{\mathrm{i}}{\}}_{\mathrm{i}\in \left[1,\mathrm{n}\right]}$ can jointly accomplish a specific confidential computation task $\mathrm{f}({\mathrm{x}}_{1},{\mathrm{x}}_{2},\dots ,{\mathrm{x}}_{\mathrm{n}})$ without revealing their private data ${\mathrm{x}}_{\mathrm{i}}$, each party does not receive any additional information other than its inputs and outputs in the end of the task. MPC has been widely used in FL based RS for intermedia parameter secure aggregation, such as PriRec [39] and SeSoRec [40]. Here, we present the Addition MPC protocol by secret sharing that we will use in SpFedRec for secure gradient and BP error signal aggregation.

Denote multiple participants $\{{\mathcal{p}}_{\mathrm{i}}{\}}_{\mathrm{i}\in \left[1,\mathrm{n}\right]}$ wish to compute the sum of their data ${\mathrm{x}}_{\mathrm{i}}$ without revealing their secrets. Each party ${\mathcal{p}}_{\mathrm{i}}$ generates $\mathrm{n}$ random data ${\mathrm{x}}_{\mathrm{i}}^{1},{\mathrm{x}}_{\mathrm{i}}^{2},\dots ,{\mathrm{x}}_{\mathrm{i}}^{\mathrm{n}}$ such that they satisfy Eq. 4. Then, send the split secrets to the corresponding party to enable the computation as Eq. 5. Finally, the computation results of Eq. 5 are aggregated to obtain the sum of all parties’ data as Eq. 6. With the secret sharing-based MPC protocol, none of the members can access others’ private data but can obtain the final sum result. The secrecy of the members’ data cannot be broken when the total number of adversarial members is less than $\left(\mathrm{n}-1\right)$.

$${\mathrm{x}}_{\mathrm{i}}^{1}+{\mathrm{x}}_{\mathrm{i}}^{2}+\dots +{\mathrm{x}}_{\mathrm{i}}^{\mathrm{n}}={\mathrm{x}}_{\mathrm{i}}, \mathrm{i}\in \left[1,\mathrm{n}\right]$$

(4)

$${\mathrm{x}}_{\mathrm{i}}^{*}={\mathrm{x}}_{1}^{\mathrm{i}}+{\mathrm{x}}_{2}^{\mathrm{i}}+\dots +{\mathrm{x}}_{\mathrm{n}}^{\mathrm{i}}, \mathrm{i}\in \left[1,\mathrm{n}\right]$$

(5)

$$\mathrm{SUM}\left({\mathrm{x}}_{1},{\mathrm{x}}_{2},\dots ,{\mathrm{x}}_{\mathrm{n}}\right)={\sum }_{\mathrm{i}=0}^{\mathrm{n}}{\mathrm{x}}_{\mathrm{i}}^{*}$$

(6)

The SpFedRec framework

This section presents the proposed SpFedRec model and its design in detail. We first discuss the problem definition and then systematically explain the overall framework, training steps, and online forecast. We conclude the section with an argument of backbone model variations. We list important notations used throughout the paper in Table 1.

Table 1 List of mathematical notations

Problem definition

Suppose that the recommendation server has a large-scale item data $\mathrm{V}=\left\{{\mathrm{v}}_{1},{\mathrm{v}}_{2},\dots \right\}$ and a list of clients $\mathrm{C}=\left\{{\mathrm{c}}_{1},{\mathrm{c}}_{2},\dots \right\}$. Each client ${\mathrm{c}}_{\mathrm{i}}$ is a user of recommendation service, his/her personalized feature ${\mathrm{u}}_{\mathrm{i}}$ and interaction history are combined as ${\mathrm{D}}_{\mathrm{i}}={\left\{{\mathrm{u}}_{\mathrm{i}},\left({\mathrm{v}}_{\mathrm{j}},\mathrm{r}\right)\right\}}_{\mathrm{j}=1}^{\mathrm{M}}$ stored locally on his/her device. The ${\mathrm{u}}_{\mathrm{i}}\in \mathcal{X}$ and ${\mathrm{v}}_{\mathrm{j}}\in \mathcal{Y}$ are both feature representations of the respective feature space, and $\mathrm{r}$ is the interaction label. Let ${\mathrm{M}}_{\mathrm{u}}\left(\mathrm{u},{\uptheta }_{\mathrm{u}}\right)$ and ${\mathrm{M}}_{\mathrm{v}}\left(\mathrm{v},{\uptheta }_{\mathrm{v}}\right)$ be the embedding functions for user and item features representations, that can map user and item features to a uniformed low-dimensional dense vector $\widetilde{\mathrm{u}}$ and $\widetilde{\mathrm{v}}$ for similarity matching, respectively.

The goal of SpFedRec is to collaborate clients from $\mathrm{C}$ to jointly learn model parameters ${\uptheta }_{\mathrm{u}}$ and ${\uptheta }_{\mathrm{v}}$ in a computationally and communicationally efficient way, while the training data ${\mathrm{D}}_{\mathrm{i}}$ is distributed among the clients’ resource-limited mobile device.

Framework overview

The overall framework of the proposed SpFedRec model is shown in Fig. 2(c). The Rec Server maintains the large-scale item data $V$, and $N$ different client device ${c}_{i}$ maintains the local user data ${D}_{i}$.

Fig. 2

Illustration of two-tower recommendation model in a centralized setting, b naïve federated learning setting, and c split federated learning framework (SpFedRec)

In contrast to the naïve setting of the federated two-tower model shown in Fig. 2(b), the computation of the two-tower model is split into two independent sub-models, the user model and the item model. The edge side client device is responsible for updating and computing the user model, while the powerful Rec Server on the cloud side maintains the item model. The model compression reduces the amount of communication when clients download and upload model parameters and improves the computation efficiency for the model update.

The large-scale item data will be mapped into low-dimensional dense vectors through the server-side item model and provided to the clients. In fact, the lightweight item embedding will further reduce the clients’ computation and communication overheads during the training and online inferring phases.

Each client mixes randomly selected negative items with actual samples when sending item embedding requests to the Rec Server (Obfuscated Items Request), ensuring that the Rec Server cannot obtain the natural interaction history of individual users. A secure aggregation server (SAS) is applied to carry out secure aggregation of gradients and back-propagation (BP) error signal by circular secret-sharing chain (Sec 3.3.2). The privacy protection setting is able to against semi-honest adversaries ($<\mathrm{N}-1$) from recover the user’s original training data.

In the following subsections, we are going to elaborate on the training process which is embedded to the proposed SpFedRec model.

Split federated learning

At initial stage ($\mathrm{t}=0)$, the Rec Server initializes the two independent sub-networks as ${\mathrm{M}}_{\mathrm{u}}\left(\mathrm{u},{\uptheta }_{\mathrm{u}}^{0}\right)$ and ${\mathrm{M}}_{\mathrm{v}}\left(\mathrm{v},{\uptheta }_{\mathrm{v}}^{0}\right)$. Then randomly sample $\mathrm{K}$ available clients ${\mathrm{C}}^{0}={\left\{{\mathrm{c}}_{\mathrm{k}}^{0}\right\}}_{\mathrm{k}=1}^{\mathrm{K}}$, distribute the initialized user model ${\mathrm{M}}_{\mathrm{u}}\left(\mathrm{u},{\uptheta }_{\mathrm{u}}^{0}\right)$ to each sampled client for local user model training and SAS for global user model update.

Client-side local training

The first step of local client-side training is requesting items embedding from Rec Server. However, sending the raw item list to the server may leak private user information. Thus, we propose obfuscated item request, a client ${\mathrm{c}}_{\mathrm{t}}^{\mathrm{k}}$ randomly samples a subset of items ${\mathrm{V}}_{\mathrm{k}}^{-}$ as negative samples and combines it with positive samples ${\mathrm{V}}_{\mathrm{k}}^{+}$. Denoting the obfuscated item request list as ${\mathrm{V}}_{\mathrm{k}}^{\mathrm{t}}={\mathrm{V}}_{\mathrm{k}}^{+}\cup {\mathrm{V}}_{\mathrm{k}}^{-}=\{{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}{\}}_{\mathrm{j}=1}^{\mathrm{T}}$, where the $\mathrm{T}=\left|{\mathrm{V}}_{\mathrm{k}}^{\mathrm{t}}\right|$ as the local batch size. Once received the obfuscated item request, the Rec Server will compute the item embedding by Eq. 7 and returns items embeddings list $\widetilde{{\mathrm{V}}_{\mathrm{k}}^{\mathrm{t}}}=\{\widetilde{{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}}{\}}_{\mathrm{j}=1}^{\mathrm{T}}$ to the client device.

$$\widetilde{{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}}={M}_{v}\left({v}_{kj}^{t},{\uptheta }_{v}^{t}\right),j\in \left[1,T\right]$$

(7)

While pending the items embeddings from Rec Server, the client ${\mathrm{c}}_{\mathrm{t}}^{\mathrm{k}}$ compute the user embedding $\widetilde{{\mathrm{u}}_{\mathrm{t}}^{\mathrm{k}}}$ by Eq. 8. Combined the user embedding with received items embedding as local training set ${\mathrm{B}}_{\mathrm{k}}^{\mathrm{t}}=\{\widetilde{{\mathrm{u}}_{\mathrm{t}}^{\mathrm{k}}},\left(\widetilde{{\mathrm{v}}_{\mathrm{k}}^{\mathrm{t}}},{\mathrm{r}}_{\mathrm{j}}\right){\}}_{\mathrm{j}=1}^{\mathrm{T}}$. Then, the client computes the similarity matching of each training set pairs by Eq. 9 and obtains the average loss by Eq. 10. Denote the local gradients of the user model as $\nabla {\uptheta }_{\mathrm{uk}}^{\mathrm{t}}$, which are computed as Eq. 11. The local gradients of the user model will be securely uploaded to the SAS for global aggregation by circular secret-sharing chain.

$$\widetilde{{\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}}}={\mathrm{M}}_{\mathrm{u}}\left({\mathrm{u}}_{\mathrm{k}},{\uptheta }_{\mathrm{u}}^{\mathrm{t}}\right)$$

(8)

$$\mathrm{sim}\left({\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}},{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}\right)=\frac{\widetilde{{\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}}}\cdot \widetilde{{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}}}{\Vert \widetilde{{\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}}}\Vert \Vert \widetilde{{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}}\Vert }$$

(9)

$$\mathrm{P}\left({\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}|{\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}},{\uptheta }_{\mathrm{u}}^{\mathrm{t}},{\uptheta }_{\mathrm{v}}^{\mathrm{t}}\right)=\frac{{\mathrm{e}}^{\mathrm{sim}\left({\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}},{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}\right)}}{{\sum }_{\mathrm{j}=1}^{\mathrm{T}}{\mathrm{e}}^{\mathrm{sim}\left({\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}},{\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}\right)}}$$

(10)

$${\mathrm{L}}_{{\mathrm{B}}_{\mathrm{k}}}^{\mathrm{t}}=-\frac{1}{\mathrm{T}}{\sum }_{\mathrm{j}=1}^{\mathrm{T}}{\mathrm{r}}_{\mathrm{j}}\cdot \mathrm{log}\left(\mathrm{P}\left({\mathrm{v}}_{\mathrm{kj}}^{\mathrm{t}}|{\mathrm{u}}_{\mathrm{k}}^{\mathrm{t}},{\uptheta }_{\mathrm{u}}^{\mathrm{t}},{\uptheta }_{\mathrm{v}}^{\mathrm{t}}\right)\right)$$

(11)

$$\nabla {\uptheta }_{\mathrm{ku}}^{\mathrm{t}}=\frac{\partial {\mathrm{L}}_{{\mathrm{B}}_{\mathrm{k}}}^{\mathrm{t}}}{\partial {\uptheta }_{\mathrm{u}}^{\mathrm{t}}}$$

(12)

Circular secret-sharing chain

The circular secret-sharing of local user model gradients and loss starts with secret splitting. Each client ${\mathrm{c}}_{\mathrm{k}}^{\mathrm{t}}$ split the gradients of local user model $\nabla {\uptheta }_{\mathrm{ku}}^{\mathrm{t}}$ as two random matrixes ${\left[\nabla {\uptheta }_{\mathrm{ku}}^{\mathrm{t}}\right]}_{1}$ and ${\left[\nabla {\uptheta }_{\mathrm{ku}}^{\mathrm{t}}\right]}_{2}$ that they satisfy Eq. 13. Split the loss in the same way to satisfy Eq. 14. Then, each client ${\mathrm{c}}_{\mathrm{k}}^{\mathrm{t}}$ delivers part of the secret ${\left[\nabla {\uptheta }_{\mathrm{ku}}^{\mathrm{t}}\right]}_{2}$ and ${\left[{\mathrm{L}}_{{\mathrm{B}}_{\mathrm{k}}}^{\mathrm{t}}\right]}_{2}$ to the next client ${\mathrm{c}}_{\mathrm{k}+1}^{\mathrm{t}}$. The last client, ${\mathrm{c}}_{\mathrm{K}}^{\mathrm{t}}$, will pass his/her part of the secret to the first client ${\mathrm{c}}_{1}^{\mathrm{t}}$. The process is under SAS's coordination and forming a circular secret-sharing chain. After received the part of the secret from another client, sum it with the reserved part and obtain a mixed-secrets $\nabla {{\uptheta }_{\mathrm{ku}}^{\mathrm{t}}}^{*}$ and ${{\mathrm{L}}_{{\mathrm{B}}_{\mathrm{k}}}^{\mathrm{t}}}^{*}$ by Eq. 15. Finally, during the las step each client uploads the mixed-secrets to the SAS for global model update.

$${\left[\nabla {\theta }_{ku}^{t}\right]}_{1}+{\left[\nabla {\theta }_{ku}^{t}\right]}_{2}=\nabla {\theta }_{ku}^{t}$$

(13)

$${\left[{L}_{{B}_{k}}^{t}\right]}_{1}+{\left[{L}_{{B}_{k}}^{t}\right]}_{2}={L}_{{B}_{k}}^{t}$$

(14)

$$\nabla {{\uptheta }_{ku}^{t}}^{*}={\left[\nabla {\uptheta }_{ku}^{t}\right]}_{1}+{\left[\nabla {\uptheta }_{(k-1)u}^{t}\right]}_{2}, {{L}_{{B}_{k}}^{t}}^{*}={\left[{L}_{{B}_{k}}^{t}\right]}_{1}+{\left[{L}_{{B}_{(k-1)}}^{t}\right]}_{2}$$

(15)

Global model update

The SAS is responsible for the global user model update. Denote the average gradients of the user model as $\overline{\nabla {\uptheta }_{\mathrm{u}}^{\mathrm{t}}}$ and the average loss of model as $\overline{{\mathrm{L}}^{\mathrm{t}}}$, which are computed as Eq. 16.

$$\overline{\nabla {\uptheta }_{u}^{t}}=\frac{1}{K}{\sum }_{k=1}^{K}\nabla {{\uptheta }_{ku}^{t}}^{*}, \overline{{L}^{t}}=\frac{1}{K}{\sum }_{k=1}^{K}{{L}_{{B}_{k}}^{t}}^{*}$$

(16)

The SAS will send the average loss of the model to the Rec Server. Then, SAS will update the global user model by the average gradients of the user model through the FedAdam optimizer [41] as Eq. 17, where the $\upeta$ is the learning rate, ${\upbeta }_{1}$, ${\upbeta }_{2}$, and $\uptau$ are hyper-parameters. The updated global user model parameters ${\uptheta }_{\mathrm{u}}^{\mathrm{t}+1}$ are distributed to all clients served for the next round of training.

$$\begin{array}{c}{m}_{u}^{t}={\upbeta }_{1}{m}_{u}^{t-1}+\left(1-{\upbeta }_{1}\right)\overline{\nabla {\uptheta }_{u}^{t}}\\ {\upmu }_{u}^{t}={\upbeta }_{2}{\upmu }_{u-1}^{t}+\left(1-{\upbeta }_{2}\right){\left(\overline{\nabla {\uptheta }_{u}^{t}}\right)}^{2}\\ {\uptheta }_{u}^{t+1}={\uptheta }_{u}^{t}+\upeta \frac{{m}_{u}^{t}}{\sqrt{{\upmu }_{u}^{t}}+\uptau }\end{array}$$

(17)

After received the average loss of the model from SAS, the Rec Server compute the average gradients of item model $\overline{\nabla {\uptheta }_{\mathrm{v}}^{\mathrm{t}}}$ by Eq. 18.

$$\overline{\nabla {\uptheta }_{v}^{t}}=\frac{\partial \overline{{L}^{t}}}{\partial {\uptheta }_{v}^{t}}$$

(18)

Similarly, we use the FedAdam optimizer to update the universal entry model as Eq. 19. The efficient global entry model ${\mathrm{M}}_{\mathrm{v}}\left(\mathrm{v},{\uptheta }_{\mathrm{v}}^{\mathrm{t}+1}\right)$ will provide obfuscated items embedding for next training round.

$$\begin{array}{c}{m}_{v}^{t}={\beta }_{1}{m}_{v}^{t-1}+\left(1-{\beta }_{1}\right)\overline{\nabla {\theta }_{v}^{t}}\\ {\mu }_{v}^{t}={\beta }_{2}{\mu }_{v-1}^{t}+\left(1-{\beta }_{2}\right){\left(\overline{\nabla {\theta }_{v}^{t}}\right)}^{2}\\ {\theta }_{v}^{t+1}={\theta }_{v}^{t}+\eta \frac{{m}_{v}^{t}}{\sqrt{{\mu }_{v}^{t}}+\tau }\end{array}$$

(19)

Finally, update the training iteration as $\mathrm{t}=\mathrm{t}+1$ until the model convergence.

Online inferring

After finishing the model’s training, the Rec Server will generate item embeddings based on the present global entry design. Denote the item embedding as $\widetilde{\mathrm{V}}$ and allocate it to all client devices. When performing online inferring, a client device only needs to compute the resemblance matching of locally cached user embedding $\widetilde{\mathrm{u}}$ and each item embedding within $\widetilde{\mathrm{V}}$. Transferring low-dimensional dense item embedding will be much less overhead to the client's communication than transferring the original item data.

Model variations

The backbone model is a three-layer, fully linked neural network for both item and user model. However, the standard setting makes insufficient use of contralateral feature information due to the separate training of these two towers. Inspired by [42], we utilize SENet mechanism to improve the perception of core features in the hidden layer, thus enhance their information representation in the similarly matching phase.

The SENet enhanced model architecture for both user and item model is illustrated in Fig. 3. The feature embedding layer can embed the sparse feature of user and item data into dense real-value vector $\mathrm{D}=\left[{\mathrm{d}}_{1},{\mathrm{d}}_{2},\dots ,{\mathrm{d}}_{\mathrm{f}}\right]$, where $\mathrm{f}$ denotes the number of features, ${\mathrm{d}}_{\mathrm{i}}\in {\mathrm{R}}^{\mathrm{h}}$ and $\mathrm{D}\in {\mathrm{R}}^{\mathrm{f}\times \mathrm{h}}$ where $\mathrm{h}$ is the embedding size. The feature embedding will be fed into the SE Block, which includes the three steps of feature embedding manipulation highlighted in Fig. 4.

Fig. 3

The SENet enhanced model architecture for user and item model. The SE Block including three phases of feature embedding manipulation, Squeeze, Excitation and Reweight

Fig. 4

Flowchart of feature embedding

Squeeze

This step compressing the feature embedding in the spatial dimension, apply average pooling to turn two-dimensional feature embedding $\mathrm{D}$ into a real number vector $\mathrm{A}=\left[{\mathrm{a}}_{1},{\mathrm{a}}_{2},\dots ,{\mathrm{a}}_{\mathrm{f}}\right]$, where ${\mathrm{a}}_{\mathrm{i}}$ is a scalar value and compute by Eq. 20.

$${a}_{i}={F}_{sq}\left({d}_{i}\right)\frac{1}{h}={\sum }_{j=1}^{h}{d}_{i,j}$$

(20)

Excitation

This step captures the weight of feature embedding and represent it as a weight vector $\mathrm{S}.$ The weight of feature embedding can be calculated as Eq. 21. The $\upsigma$ and $\updelta$ are activation functions. ${\mathrm{W}}_{1}\in {\mathrm{R}}^{\mathrm{f}\times \frac{\mathrm{f}}{\mathrm{r}}}$, and ${\mathrm{W}}_{2}\in \frac{\mathrm{f}}{\mathrm{r}}\times \mathrm{f}$ represent two fully connected layers, where the $\mathrm{r}$ is reduction ratio to control capacity and computational cost [43].

$${s}_{i}={F}_{ex}\left({a}_{i}\right)=\upsigma \left({W}_{2}\cdot\updelta \left({W}_{1}\cdot {a}_{i}\right)\right)$$

(21)

Reweight

The final does field-wise multiplication of $\mathrm{D}$ and $\mathrm{S}$ and outputs the embedding $\mathrm{E}=\left[{\mathrm{e}}_{1},{\mathrm{e}}_{2},\dots {\mathrm{e}}_{\mathrm{f}}\right]$, and ${\mathrm{e}}_{\mathrm{i}}\in \mathrm{R}$, which can be calculated as Eq. 22. Since the value range of $\mathrm{a}$ is in $\left[\mathrm{0,1}\right]$, the new embedding will retain useful features and suppress less useful ones to improve model performance.

$${e}_{i}={F}_{re}\left({d}_{i},{s}_{i}\right)={d}_{i}\cdot {s}_{i}$$

(22)

Finally, the user and item embedding are output by the multiple hidden layers compressing several fully connected layers. Let ${\mathrm{E}}^{\left(0\right)}$ as the output of SE Block and fed into the hidden layers. The feed-forward process is computed by Eq. 23. The $\mathrm{l}$ is the depth of hidden layer, $\upsigma$ is the activation function, ${\mathrm{W}}^{\left(\mathrm{l}\right)}$ and ${\mathrm{b}}^{\left(\mathrm{l}\right)}$ as the weight and bias of $\mathrm{l}$-th layer. The ${\mathrm{E}}^{\left(\mathrm{l}\right)}$ is the hidden layer’s output, which also represents the user and item embedding for similarity computation.

$${E}^{\left(l\right)}=\upsigma \left({W}^{\left(l\right)}\cdot {E}^{\left(l-1\right)}+{b}^{\left(l\right)}\right)$$

(23)

In the subsequent experiments, we build DSSM based SpFedRec and SENet enhanced SpFedRec for performance and efficiency evaluation.

Evaluation setup

This section introduces our evaluation settings.

Datasets

To evaluate the performance of the proposed model “SpFedRec” against the state-of-art baseline approaches, we conducted several experiments on two real datasets i.e. MovieLens-1 M [44] and Adressa-1 week [45], as explained as below:

MovieLens-1 M

It contains about 1 million explicit rating data for over 3,000 movies from 6,022 users. It includes movie’s metadata (movieID, title, genres) and user features including (UserID, Gender, Age, Occupation, Zip-code). Following [46], we converted explicit ratings to implicit ones by treating not rated items as negative implicit feedback.

Adressa-1 week

It is a real-world online news dataset which is released by multiple Norwegian news publishers. This dataset contains up to 2 million clicks from 186,255 users on 14,732 news items. Following [47], we use (news_id, news_title, key_words, news_body) as item features. Since Adressa does not contain user features, therefore we randomly sampled five clicked news for the first 2 days as user feature.

To ensure that each client has sufficient interaction records, we removed the users with less than 20 implicit records in both two datasets. For each positive feedback, randomly sample 10 negative interactive items for obfuscated item requests. The statistics of the two datasets are presented in the following Table 2.

Table 2 Statistics of MovieLens-1 M and Adressa-1 week datasets

Evaluation metrics

The evaluation is in Top-K recommendation, and we verify the performance of SpFedRec and baseline models using Recall@10, NDCG@10, and AUC as evaluation metrics. Recall@10 and NDCG@10 focus on the very top of recommendation list, while AUC measures overall accuracy.

For communication efficiency evaluation, we evaluate the client’s communication size per round of training and online inferring in megabytes. For computation efficiency evaluation, we evaluate time spent per round of training and online inferring in milliseconds. Each experiment is repeated five times independently, and the average results are reported.

Implementation details

We implemented all models including the baseline methods with PyTorch in our numerical experiments. The feature embedding size is set to 20 for MovieLens and 60 for Adressa. For SE Block, the two activation functions are Relu, and the reduction ratio is set to 3. The backbone model with three-layer fully linked neural network and the neuron density for each layer is set as < 256, 128, 128 > . The activation function for individually layer is tanh. $\mathrm{K}$ is set as 120 for MovieLens-1 M and 150 for Adress-1 week. To mitigate overfitting, we apply dropout and set the dropout rate as $0.2$. The learning rate is 0.0001. We initialize the user and item model parameters by Gaussian distribution with a mean of 0 and a standard deviation of $0.1$. We conduct our experiments with dual-NVIDIA 2080Ti GPUs as the server and a MacBook Pro with an M1 chip as the client device.

Experiments

Following the evaluation settings in Sect. "RQ4: How does our proposed privacy protection mechanism influence the performance and efficiency of SpFedRec?", we conduct experiments to evaluate our proposed SpFedRec framework. Specifically, we intend to verify our major claims by answering to the following four research questions:

• 1. RQ1: How does our method perform compared with baseline models?

• 2. RQ2: Is the computation and communication efficiency of SpFedRec significantly improved compared to the baseline models in the naïve FL setting?

• 3. RQ3: How do hyper-parameter settings $\rho$ and $K$ affect the performance and efficiency of SpFedRec?

• 4. RQ4: How does our proposed privacy protection mechanism influence the performance and efficiency of SpFedRec?

Performance evaluation (RQ1)

As the core of SpFedRec model is its capability of performing recommendation, we compare SpFedRec with the following seven baseline methods, including the centralized DSSM, DSSM in naïve setting of FL, and other state-of-art FL recommender systems.

• 1. DSSM [28]. The centralized version of DSSM is a deep semantic matching model for large corpus item recommendation and information retrieval. The setting of its hidden layer is the same as the backbone model.

• 2. FCF [6]. The Federated Collaborative Filtering approach is an FL-based matrix factorization for the privacy-preserving recommendation. The client reserves the training data and maintains the update of the user feature vector and the gradient update of the item feature vector.

• 3. FedMVMF [46]. The Federated multi-view matrix factorization recommendation model utilized side-information from both users and items to improve FL-based CF's performance and alleviate the cold start problem.

• 4. FedNewsRec [9]. The FedNewsRec is a FL based privacy-preserving recommendation model designed for news recommendation.

• 5. FedDSSM [48]. The FL based DSSM model in the naïve setting, the client device is accountable for the training of both user and item model.

• 6. SpFedRec. In this model, we will be using our proposed SpFedRec framework to train the backbone model in a privacy-preserving and efficient manner.

• 7. SpFedRec-SENet. In this model, we will be using our proposed SpFedRec framework to train the SENet enhanced backbone model in a privacy-preserving and well-organized manner.

The experimental results of all these models are shown in Table 3, and we have the following observations during the numerical experiments:

• • Compared to the centralized baseline model, SpFedRec performs worse than the centralized DSSM but within the performance loss of FL [4]. The reason for the performance loss could be the bias introduced by the gradient averaging.

• • Compared to the naive setting of FL based DSSM (FedDSSM), SpFedRec has only a slight performance loss. The use of average error for backward propagation of the item model is probably causing the minor performance loss. This result indicates that training the two-tower model using the SpFedRec framework does not affect the performance too much.

• • The SpFedRec-SENet outperforms the state-of-art federated recommender models except less well than the FedNewsRec model on the Adressa dataset. The result demonstrates that our model well handled the task of large-scale item recommendation.

• • The SpFedRec-SENet significantly outperforms SpFedRec on both datasets (AUC +2.2% and +4.2% on the two datasets, respectively) and achieves comparable results to the centralized model. The main reason is that SE Block enhances the information utilization of the dominant features while weakening the noise feature, allowing the dominant features to gain more weight in the similarity computation phase.

Table 3 Comparison of our proposed models and relevant baselines on MovieLens and Adressa

Efficiency comparison (RQ2)

This subsection presents the efficiency comparison of FedDSSM, SpFedRec, and SpFedRec-SENet on MovieLens and Adressa datasets. The evaluation includes the computation time (training time and online inferring time) by milliseconds and communication overhead (training communication cost and inferring communication cost) by megabytes. The simulation of client computation is conducted on a MacBook pro with the M1 CPU. The total parameter size of DSSM is 0.57 MB and SENet enhanced is 1.03 MB. The computation of each client for each round is performed one by another and reported average score. The simulation results are reported in Table 4. The table highlight that on both datasets, utilizing the SpFedRec framework can significantly improve the efficiency of the federated two-tower model on the client’s device computation. Especially on Adressa dataset, it is reducing the total time from 21690 to 574 ms and reducing the total communication from 571.48 MB to 9.37 MB, which yields an improvement of 38 × faster and 60 × less communication overhead. The SpFedRec-SENet, with the addition of the SENet Block computation, improves 23 × faster and 49 × less communication. More specifically, we observed the following impacts during the experiments:

• • The communication and computation overhead rise with the size of item data, but the growth rate of SpFedRec is flatter than the naïve FL setting.

• • In the dataset with a large number of items and dense features (Adressa), SpFedRec more significantly reduces the computational and communication overhead for federated training and online prediction, further validating the effectiveness of SpFedRec in large-scale item recommendation scenarios.

• • The overall efficiency comparison results show that SpFedRec is more friendly to the resource-constrained mobile device than the naïve FL setting regarding computation time and communication size.

Table 4 The efficiency comparison results of FedDSSM, SpFedRec, and SpFedRec-SENet on MovieLens and Adressa

Hyper-parameter investigation (RQ3)

This subsection studies the influence of negative sampling rate on model performance, and the influence of selected user size on convergence iterations, server aggregation time, device secret sharing time, and device training communication size.

First, we studied the effect of parameter ρ. From the Fig. 5, we observe that the performance of SpFedRec and SpFedRec-SENet improves as $\uprho$ increases. The results are consistent with previous works, such as Shen et al. [49], of applying DSSM in a centralized recommendation scenario.

Fig. 5

The performance comparison with different ρ on Adressa

Secondly, we study the effect of parameter K. The amount of users selected to participate in a training round affects the model's convergence efficiency and secure aggregation efficiency. The comparison results are shown in Fig. 6.

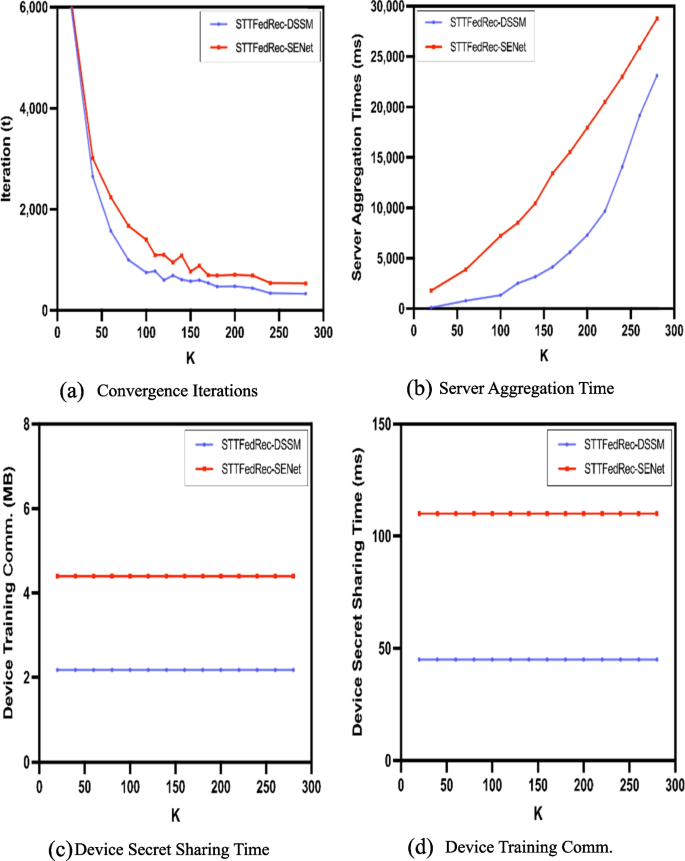

Fig. 6

The effectiveness effect of factor of K on Adressa

As shown in Fig. 6(a), with the increasing of $\mathrm{k}$, the fast the model converges. However, when the number of users involved in a round of training reaches a certain number, the effect on the speed of model convergence gradually decreases.

The impact of $\mathrm{k}$ on secure aggregation time (server-side) is shown in Fig. 6(b), the secure aggregation time increase with larger number of users involved per round of training.

From Fig. 6(a) and Fig. 6(b), we can obtain the optimal number of users involved per training round for SpFedRec.

This should be noted that the proposed multi-party circular secret-sharing chain only needs clients share confidences with the member next to him/her, so that the computation time and communication size of secure aggregation (client-size) is not affected by the $\mathrm{k}$ as shown in Fig. 6(c) and Fig. 6(d).

Privacy protection mechanism investigation (RQ4)

In this section, we study the effect of privacy protection components: To further investigate the effects of the proposed obfuscated item request (OI) and secure aggregation by secret sharing (SA) on model performance and efficiency, in this section, we conduct an ablation study of these two privacy protection components in SpFedRec. We set SpFedRec-DSSM and SpFedRec-SENet as base model and perform it in the following ways: (1) NO-OI: remove the obfuscated item request from SpFedRec, the client will directly request items’ ID of positive samples to the server. The impact of different privacy protection components in SpFedRec on performance and efficiency can be highlighted in Table 5.

Table 5 The impact of different privacy protection components in SpFedRec on performance and efficiency. (Comm. Denote the communication overhead)

The server will mix the negative samples by proportion $\uprho$ and return the computed items embedding to the client. (2) NO-SA: remove the secure aggregation from SpFedRec, the gradients and loss of user model will directly send to the recommendation server for gradients average and item model backpropagation. We noted the following observations in Table 5.

• • The obfuscated item request does not affect the performance and efficiency of the SpFedRec, and there is only a slight decrease in user device training time, which is mainly caused by the random negative sampling operation. The secure aggregation can increase the computation and communication cost of user devices, and also have slightly impact on recommendation performance.

Now, we assess our suggested scheme's computational cost and memory requirements in terms of the data outsourcing phase. During this phase, we take into account the computation complexity as well as storage overhead of the information outsourcing phase, which is primarily due to the index construction runtime and memory requirements. Figures 7 and 8 show the data outsourcing construction runtime and storage overhead compared to the number of records n and ρ attributes. We can see from these figures that both computation complexity and storage overhead progressively increase with n and ρ.

Fig. 7

Comparison of data outsourcing running times and number of the records (where, attribute ρ = 3)

Fig. 8

Comparison of storage overhead and number of records n (where, attributes ρ is between 2 to 5)

Conclusions and future work

In this study, we propose a cloud-edge collaboration based split federated learning framework for the large-scale item recommendation called SpFedRec. In our method, to reduce the computation and communication cost of the federated two-tower model, a split learning approach is applied to migrating the item model from participants’ edge devices and compressing item data transmitting. Meanwhile, to enhance the feature representation, the Squeeze-and-Excitation network mechanism is used on the backbone model to optimize the perception of dominant features. Moreover, because the gradients transmitted contain private information about the user, we propose a multi-party circular secret-sharing chain based on secret sharing for better privacy protection. Extensive experiments using plausible assumptions on two real-world datasets demonstrate that our method improves the average computation time and communication cost by 23% and 49%, respectively. Furthermore, the proposed model attains similar performance with the state-of-art federated recommendation models.

In the future, we aim to test the model in a real-time platform and generalize the obtained outcomes. We will implement deep learning model and integrate them with the proposed learning model to improve the efficiency of the recommendation system in terms of training accuracy. This could be achieved through deploying the recommendation system in various modules so that each module runs independently on different machines i.e. edge cloud, and/or remote cloud. We will investigate how the proposed system can be deployed into various modules and then where each module should run in order to improve the training and prediction durations.
