An intelligent approach of task offloading for dependent services in Mobile Edge Computing

Abstract

With the growing popularity of Internet of Things (IoT), Mobile Edge Computing (MEC) has emerged for reducing the heavy workload at the multi-cloud core network by deploying computing and storage resources at the edge of network close to users. In IoT, services are data-intensive and event-driven, resulting in extensive dependencies among services. Traditional task offloading schemes face significant challenges in the IoT scenario with service dependencies. To this end, this paper proposes an intelligent approach for minimizing latency and energy consumption which jointly considers the task scheduling and resource allocation for dependent IoT services in MEC. Specifically, we establish the system model, communication model as well as computing model for performance evaluation by fully considering the dependent relationships among services, and an optimization problem is proposed for minimizing the delay and energy consumption simultaneously. Then, we design a layered scheme to deal with the service dependencies, and present detailed algorithms to intelligently obtain optimal task scheduling and resource allocation policies. Finally, simulation experiments are carried out to validate the effectiveness of the proposed scheme.

Introduction

With the rapid development of smart mobile devices and Internet of Things (IoT), various IoT services show explosive growth [1]. IoT services enrich people’s lives, but they also put forward higher requirements for hardware resources of IoT devices, such as computing resources, storage resources and battery life [2]. With the dramatic increase in the computational complexity of services in IoT, only relying on the limited computing capacity of IoT devices often can not guarantee the timely execution of various tasks [3]. Given the architecture of IoT devices and the trend of battery development, these problems will also be difficult to solve in the future [4]. Mobile Cloud Computing (MCC) is considered an effective solution to the above problems. In MCC, migrating the data processing and storage of IoT services to the multi-cloud for computing provides users with powerful data computing and storage capabilities. In addition, it reduces energy consumption of IoT devices and prolongs battery life. However, the explosive growth of IoT devices and data transfers poses enormous challenges to MCC [5]. Excessive network load makes it impractical for IoT devices to transfer all the massive data generated to multi-cloud for centralized processing. In addition, some new IoT services requiring extremely low latency are emerging in large numbers. Offloading all these IoT services over the core network to a remote multi-cloud can result in high latency [6]. Therefore, MCC is not suitable for IoT services with very low latency requirements.

Mobile Edge Computing (MEC) is a new computing mode, which focuses on providing users with certain Internet Technology (IT) and cloud computing capabilities at the edge of the mobile network [7]. In 2014, the European Telecommunications Standards Institute (ETSI) proposed the concept of Mobile Edge Computing [8]. MEC provides users with powerful computing, storage, network and communication resources near the edge of their mobile network (such as base stations, wireless access points, etc.), which reduces the latency of tasks and improves the Quality of user Experience (QoE) [9]. In addition, it can alleviate users’ concerns about privacy leaks and ensure data security by eliminating the need to transfer data to multi-cloud for processing [10].

Computational Offloading is one of the key technologies of MEC, which mainly includes the following two aspects [11]:

• (1) Offloading Decision: Deciding whether the task is handled on the local device or on an MEC server;

• (2) Resource Allocation: Allocating the resources needed to process tasks, including computing resources, communication resources, etc.

However, due to the heterogeneity of IoT devices and MEC servers and the diversity of IoT services, it is difficult to obtain a common computational offloading strategy [12, 13]. Therefore, it is necessary to design an appropriate computational offloading strategy based on different MEC environments, IoT services, and optimization objectives.

Modern IoT services often consist of multiple tasks with dependencies [14]. Dependency means that there is a priority constraint between tasks, such as a task cannot be started until all tasks with a higher priority than it have been processed. In MEC, when tasks with dependencies are processed on IoT devices and MEC servers separately or on different MEC servers, data transmission across devices will usually occur. Complex dependencies and commucication between IoT services makes it more difficult to realize optimal offloading decisions and resource allocation schemes [15, 16]. So, in the existing studies, few gave consideration to both offloading decisions and resource allocation to optimize task latency and energy consumption simultaneously. This paper considers task offloading and resource allocation of dependent IoT services in user-oriented MEC scenarios to optimize latency and energy consumption. Different from the previous works, our contributions are as follows.

• (1) To solve the problem of task dependency, this paper presents a layered algorithm based on topological sorting, which layers tasks so that there is no dependency between tasks in the same layer after layering, and then gets the optimal offloading decision and resource allocation of all tasks in the layer in turn.

• (2) To decide whether a task in a layer is offloaded or not, we use the weighted sum of latency and energy consumption to define the cost of local and edge calculations for tasks. To determine the optimal offloading decision and resource allocation scheme, we calculate and compare the minimum cost of a task computed locally and offloaded to MEC server. Simulation experiments were conducted to verify the effectiveness of the algorithm in optimizing latency and energy consumption.

The rest of this paper is organized as follows. In the next section, we discuss the releated works. Then, we present the system model and problem formulation. Based on the system model, the following section gives a layered computational offloading algorithm for the minimum overhead. Next, we conduct experiments to verify the effectiveness of the proposed algorithm. Finally, we conclude the paper in the last section.

Related work

In the computation offloading of MEC, most of the existing researches focus on reducing task latency or energy consumption by studying reasonable offloading decision.

By offloading computing tasks from IoT devices to MEC servers with rich computing resources, latency of tasks can be significantly reduced [17]. Real time applications such as AR, VR and the Internet of Vehicles that are sensitive to time delay require ultra-low time delay to provide continuous services. Therefore, there is a lot of research in MEC that focuses on reducing task delay through task offloading. The literature [18] studied an MEC system that allows computing tasks to be executed in parallel on IoT devices and MEC servers with the goal of reducing the latency of computing tasks. An efficient one-dimensional search algorithm is proposed. Although this scheme has significant effect in reducing delay, there are still some defects. For example, this scheme is not applicable to dependent tasks, and does not consider the signaling cost of terminal receiving feedback from MEC server. The literature [19] studied the problem of task offloading in 5G ultra dense networks and establishes a problem to minimize the total delay of all tasks under the constraint of residual power of IoT devices, which is a mixed integer nonlinear programming problem. On this basis, the author proposes an effective computational offloading scheme, which can reduce task delay by 20% compared with random offloading and uniform offloading schemes. However, the final offloading strategy of this scheme depends too much on the given initial task offloading strategy.

Because rapid energy consumption poses a major obstacle in the contemporary network [19], there are also a lot of researches aimed at reducing energy consumption in MEC. Due to the limited battery life of IoT devices, most relevant researches focus on reducing the energy consumption of IoT devices. In order to reduce the total energy consumption of the MEC system, the literature [20] considers joint optimisation of offloading decisions and wireless resource allocation. The joint optimisation problem is difficult to solve due to its non-convexity and NP-hard property. To reduce the solution complexity, the original problem is transformed into a two-layer optimisation problem. Specifically, the optimal transmission power and subcarrier allocation can be obtained by the Lagrange multiplier method for a given initial task offloading strategy. And on the basis of obtaining the optimal transmission power and subcarrier allocation, the optimal offloading strategy is solved by using the Hungarian algorithm.

In MEC, higher transmission rate requires higher power at the transmitter and receiver, which will reduce task delay, but also lead to more energy consumption, and vice versa [21, 22]. Therefore, it is also an important research direction of computational offloading to comprehensively consider the latency and energy consumption to improve the Quality of Service (QoS) and user experience of MEC system. The literature [23] investigates task offloading and resource allocation in a multi-user MEC system using time division multiple access as the uplink transmission mechanism, which shares a single MEC server. The optimal resource allocation problem is programmed as a convex optimization problem that minimizes the overhead (weighted sum of delay and energy consumption) by considering two cases of limited and unlimited MEC server resources, and the optimal offloading is obtained by solving the problem.

Modern IoT services usually consist of multiple dependent tasks [24]. The literature [25] investigates the offloading of sequentially dependent tasks and concurrent tasks. For sequential dependent tasks, the authors clarify that successive offloading of tasks is required to reduce the overall latency. A violence-based search approach is then used to find the starting and ending tasks that need to be offloaded. For concurrent tasks, the task dependencies are degraded to a tree, and then clusters of tasks are offloaded to minimize latency based on the idea of load balancing. For more general task dependencies (where there are both sequential and concurrent tasks), concurrent tasks are first aggregated into virtual tasks and then the offloading decision for the task is found by using the method of offloading sequentially dependent tasks. For virtual tasks that are decided to be processed on the IoT device, they are then offloaded by using the offloading method for concurrent tasks. Finally, simulation results show that the method is twice as fast as the baseline method and achieves 85% of the performance of the optimal solution.

System model and problem formulation

Task dependency model

As shown in Fig. 1, suppose that an IoT device has a service that needs to be processed. Service generated by the IoT device consists of |V| dependent tasks. Each task can be processed on the IoT device or offloaded to an MEC server through the wireless network. Directed Acyclic Graph (DAG) $G=(V,E)$ is used to model the service dependency [26]. Wherein, node $v_i\in V$ represents the ith task generated by the IoT device, while the edge $<v_i,v_j>\in E$ represents the dependency between tasks (task $v_j$ can only be started after task $v_i$ has completed processing and $v_j$ has received the output of task $v_i$), where $v_i$ is called the precursor task of $v_j$, and $v_j$ is called the successor task of $v_i$. For a given DAG, a task without any precursor is called an entry task, and a task without any successor is called an exit task. For the ith task generated by the IoT device, a quaternion in the form of $v_i=(C_i,D_i,I_i,O_i)$ is used for modeling, where $C_i$ represents the calculation amount of $v_i$, that is, the number of CPU cycles required to process $v_i$, $I_i$ represents the amount of input data that $v_i$ receives from all its precursor tasks, $O_i$ represents the amount of output data of $v_i$ after processing, and $D_i$ represents the amount of data of $v_i$. To ensure the first task is executed from the IoT device and the final processing results can be returned to the IoT device, a virtual entry task $v_{entry}$ and a virtual exit task $v_{exit}$ are added to the DAG [27]. Among them, $C_{entry}=C_{exit}=0$, $D_{entry}=D_{exit}=0$, $I_{entry}=0$, $O_{entry}=I_1$, $I_{exit}=O_{|V|}$, $O_{exit}=O_{|V|}$, and $v_{entry}$ and $v_{exit}$ can only be processed on the local IoT device and cannot be offloaded to an MEC server. For multi entry tasks or multi exit tasks, adding a virtual entry task and an exit task can also simplify the DAG into single entry task and single exit task for easy solution. Therefore, the total number of tasks n is:

$$\begin{aligned} n=|V|+2 \end{aligned}$$

(1)

Fig. 1

An example of service dependency

Communication model

When a task is offloaded to an MEC server or two dependent tasks are processed on different devices respectively (For example, task $v_i$ is processed on the IoT device and its successor task is processed on an MEC server), data transmission between the IoT device and an MEC server through the wireless network is involved, and an appropriate communication model needs to be established to analyze the communication overhead.

• (1) Offload task $v_i$ to an MEC server When the task $v_i$ is offloaded to an MEC server, the uplink data transmission rate $r_i^o$ is:

  $$\begin{aligned} r_i^o=Blog_2(1+\frac{p_i^oh_i}{\sigma _i^2}) \end{aligned}$$

  (2)

  Wherein, B represents the channel bandwidth, $h_i$ represents the channel gain between the base station and the IoT device, $\sigma _i^2$ represents the noise power, $p_i^o$ represents the transmission power that $v_i$ is offloaded from the IoT device, $p^{min}\le p_i^o\le p^{max}$, $p^{min}$ and $p^{max}$ are respectively the minimum and maximum transmission power of the IoT device. Correspondingly, $r^{min}\le r_i^o\le r^{max}$, where, $r^{min}=Blog_2(1+\frac{p^{min}h_i}{\sigma _i^2})$, $r^{max}=Blog_2(1+\frac{p^{max}h_i}{\sigma _i^2})$. The offloading delay required for offloading task $v_i$ to an MEC server is:

  $$\begin{aligned} t_i^o=\frac{D_i}{r_i^o} \end{aligned}$$

  (3)

  Wherein, $\frac{D_i}{r^{max}}\le t_i^o \le \frac{D_i}{r^{min}}$. The energy consumption for transmisson of the IoT device required for offloading task $v_i$ to an MEC server is:

  $$\begin{aligned} e_i^o=p_i^ot_i^o=\frac{D_i\sigma _i^2}{r_i^oh_i}(2^\frac{r_i^o}{B}-1) \end{aligned}$$

  (4)

• (2) Upload the output of the task $v_i$ to an MEC server When a task $v_i$ is processed on the IoT device and a successor task of the task $v_i$ needs to be offloaded to an MEC server, the IoT device needs to transmit the output of $v_i$ to an MEC server through the wireless network. The uplink data transmission rate $r_i^u$ of uploading the output of task $v_i$ is:

  $$\begin{aligned} r_i^u=Blog_2(1+\frac{p_i^uh_i}{\sigma _i^2}) \end{aligned}$$

  (5)

  Wherein, $p^{min}\le p_i^u\le p^{max}$, correspondingly, $r^{min}\le r_i^u\le r^{max}$. The transmission delay required for uploading the output of task $v_i$ to an MEC server is:

  $$\begin{aligned} t_i^u=\frac{O_i}{r_i^u} \end{aligned}$$

  (6)

  Wherein, $\frac{O_i}{r^{max}}\le t_i^u\le \frac{O_i}{r^{min}}$. The transmission energy consumption of the IoT device required for uploading the output of the task $v_i$ to an MEC server is:

  $$\begin{aligned} e_i^u=p_i^ut_i^u=\frac{D_i\sigma _i^2}{r_i^uh_i}(2^\frac{r_i^u}{B}-1) \end{aligned}$$

  (7)

• (3) Download the output of the task $v_i$ to the IoT device When a task $v_i$ is processed on an MEC server, and a successor task of $v_i$ needs to be processed on the IoT device, the MEC server needs to send the output of $v_i$ back to the IoT device through the wireless network. Assuming that the download rate is constant at $r^d$, the transmission delay of downloading the output result of the task $v_i$ is:

  $$\begin{aligned} t_i^d=\frac{O_i}{r^d} \end{aligned}$$

  (8)

Computational model

Because tasks can be processed on the IoT device or offloaded to MEC servers, two different models need to be considered.

• (1) Local computing model The IoT device uses Dynamic Frequency Scaling (DFS) technology to reduce energy consumption [28]. Therefore, the energy consumption of the IoT device during local computing can be reduced by adjusting the CPU frequency. Therefore, the computing delay when task $v_i$ is processed on the IoT device can be expressed as follows:

  $$\begin{aligned} t_i^l=\frac{C_i}{f_i^l} \end{aligned}$$

  (9)

  Wherein, $f_i^l$ represents the calculation frequency of the IoT device when processing task $v_i$ and $f^{max}$ represents the maximum frequency of the IoT device processor. Because $f_i^l\le f^{max}$, so $t_i^l\ge t_i^{min}$, wherein $t_i^{min}=\frac{C_i}{f^{max}}$. The computing energy consumption when task $v_i$ is processed on the IoT device can be expressed as [29]:

  $$\begin{aligned} e_i^l=\kappa f_i^3t_i^l=\kappa \frac{C_i^3}{(t_i^l)^2} \end{aligned}$$

  (10)

  Wherein, $\kappa >0$ refers to the energy efficiency parameter.

• (2) Edge computing model The calculation delay when task $v_i$ is processed on an MEC server can be expressed as:

  $$\begin{aligned} t_i^e=\frac{C_i}{f^e} \end{aligned}$$

  (11)

  Wherein, $f^e$ is the processor frequency of an MEC server.

Problem formulation

Binary variable $a_i$ is used to indicate whether the task $v_i$ is offloaded ( $a_i=1$ indicates that the task $v_i$ is offloaded to an MEC server, $a_i=0$ indicates that the task $v_i$ is processed on the IoT device). During the whole offloading process, the following restrictions need to be met:

• (1) For $\forall <v_i,v_j>\in E$ , the moment $t_j^s$ when the successor task $v_j$ starts processing cannot be earlier than the moment when the precusor task $v_i$ completes processing and the output of the task $v_i$ is received by $v_j$;

• (2) Each task is either offloaded to an MEC server or processed on the local device;

• (3) Tasks on the same device must be processed serially. For example, if task $v_i$ and task $v_j$ are offloaded to an MEC server for processing, one of them must wait for the other to finish processing before it can be processed.

In order to optimize task delay and energy consumption of the IoT device at the same time, referring to [20], the optimization goal is considered as the weighted sum of all task delay and local device energy consumption. In order to facilitate the solution, the startup time of the virtual entry task $v_{entry}$ is set as 0, and the delay of all tasks can be expressed as:

$$\begin{aligned} T=\sum _{i=1}^nt_i^f \end{aligned}$$

(12)

Wherein, $t_i^f$ is the completion time of the task $v_i$.

The energy consumption of IoT devices includes three parts: Firstly, locally computed energy consumption; Secondly, the energy consumption of offloading tasks which need to be processed on MEC servers; Thirdly, the energy consumption for uploading output of tasks which are processed on the local device and whose successor tasks are offloaded to MEC servers. Therefore, the energy consumption of the local device can be expressed as:

$$\begin{aligned} E=\sum _{i=1}^n[(1-a_i)e_i^l+a_ie_i^o]+\sum _{<v_i,v_j>\in E}(1-a_i)a_je_i^u \end{aligned}$$

(13)

Therefore, the problem can be planned as follows:

$$\begin{aligned}{} & {} min\omega _1T+\omega _2E\\{} & {} s.t.\left\{ \begin{array}{l} C1:t_i^s+(1-a_i)t_i^l+a_it_i^e+a_i(1-a_j)t_i^d+(1-a_i)a_jt_i^u\le t_j^s,\forall<v_i,v_j>\in E \\ C2:t_i^s-t_j^s+\chi (3-(1-a_i)-(1-a_j)-x_{i,j})\ge t_j^l,\forall v_i,v_j\in V\\ C3:t_i^s-t_j^s+\chi (3-a_i-a_j-x_{i,j})\ge t_j^e,\forall v_i,v_j\in V\\ C4:x_{i,j}+x_{j,i}=1,\forall v_i,v_j\in V\\ C5:p^{min}\le p_i^o,p_i^u\le p^{max},\forall v_i\in V\\ C6:0<f_i^l\le f^{max},\forall v_i\in V\\ C7:a_i\in \{0,1\},\forall i=1,2,\cdots ,n\\ C8:a_0=a_n=0\\ C9:x_{i,j}\in \{0,1\},\forall v_i,v_j\in V\\ C10:t_i^s\ge 0,\forall v_i\in V \end{array} \right. \nonumber \end{aligned}$$

(14)

Wherein, $\omega _1$ and $\omega _2$ are weighting factors, and $\omega _1+\omega _2=1$, $\chi$ is a large number. The constraint C1 guarantees that for $\forall {<v_i,v_j>\in E}$, the time $t_j^s$ when the task $v_j$ starts possessing is not earlier than the time when the task $v_i$ finishes processing and the output of the task $v_i$ is received by $v_j$. Constraints C2 and C4 ensure that tasks processed on the IoT device must be processed serially. Constraints C3 and C4 ensure that tasks processed on an MEC server must be processed serially. The constraint C5 ensures that the transmission power of the IoT device must be between its maximum power and minimum power. The constraint C6 ensures that the calculation frequency of the IoT device cannot exceed its maximum calculation frequency. Constrain C7 ensures that tasks can only be offloaded to MEC servers or processed on the local device. Constraint C8 ensures that the first task and the last task must be processed on the local device. Constraint C9 guarantees that $x_{i,j}$ can only take 0 or 1. C10 ensures that the start time of task processing cannot be negative. Obviously, this is a mixed integer nonlinear programming problem and an NP-hard problem [27].

Layered computational offloading algorithm

In order to solve the above problems, this section proposes a layered offloading algorithm to minimize the overhead. Firstly, the tasks of the IoT device are layered according to the DAG of dependent services by using the layered algorithm based on topological sorting. After the layering, there is no dependency between the tasks in the same layer. Then the task of each layer is offloaded in order and the optimal resource allocation scheme is obtained.

Concept definition

To facilitate the description and analysis, the following concepts are defined first.

Concept about delay



• (1) Actual computing delay $T_i^{exec}$ of the task $v_i$ The actual processing delay of the task $v_i$ is defined as the actual computing delay of the task $v_i$ on the device (the local device or an MEC server) after the offloading decision. When the task $v_i$ is processed on the local device $(a_i=0)$, its actual computing delay can be expressed as:

  $$\begin{aligned} T_i^{exec}=t_i^l \end{aligned}$$

  (15)

  When the task is processed on an MEC server $(a_i=1)$, the actual computing delay can be expressed as:

  $$\begin{aligned} T_i^{exec}=t_i^e \end{aligned}$$

  (16)

• (2) The time $RT_i$ when the task $v_i$ can be started Referring to [20], the concept of the startable time $RT_i$ of the task $v_i$ on the device (the local device or an MEC server) is introduced. $RT_i$ is defined as the earliest time when the task $v_i$ receives all precursor task outputs and the device is idle at the same time. The time $RT_i^l$ of the task $v_i$ on the local device can be expressed as follows :

  $$\begin{aligned} RT_i^l=max\{T_l^{idle},max_{j\in pred(i)}\{AFT_j+a_jt_j^d\}\} \end{aligned}$$

  (17)

  Wherein, $T_l^{idle}$ represents the idle time of the IoT device, pred(i) represents the collection of all the precusor tasks of the task $v_i$, and $AFT_j$ represents the time when the task $v_j$ is actually completed. The startable time $RT_i^e$ of the task $v_i$ on the MEC server can be expressed as:

  $$\begin{aligned} RT_i^e=max\{T_e^{idle},max_{j\in pred(i)}\{AFT_j+(1-a_j)t_j^u+t_i^o\}\} \end{aligned}$$

  (18)

  Wherein, $T_e^{idle}$ represents the idle time of the MEC server.

• (3) The time $AST_i$ when the task $v_i$ is actually started The time $AST_i$ is defined as the time when the task $v_i$ is actually started to be processed during the processing of all tasks. Because the actual starting time of the task $v_i$ is not earlier than the startable time, so there must be $AST_i\ge RT_i$.

• (4) The time $AFT_i$ when the task $v_i$ is actually completed The actual completion time of a task $v_i$ is equal to the sum of its actual start time and its actual computing delay. Therefore, the actual completion time $AFT_i$ of the task $v_i$ can be expressed as follows:

  $$\begin{aligned} AFT_i=AST_i+T_i^{exec} \end{aligned}$$

  (19)

Concept about energy consumption



• (1) Energy consumption $E_i^l$ of the task $v_i$ processed on the IoT device When the task $v_i$ is processed on the IoT device, the energy consumption of the local device is only the computing energy consumption for processing the task $v_i$. So the energy consumption $E_i^l$ can be expressed as follows:

  $$\begin{aligned} E_i^l=e_i^l \end{aligned}$$

  (20)

• (2) Energy consumption $E_i^e$ of the task $v_i$ processed on an MEC server When the task $v_i$ is processed on an MEC server, the energy consumption of the local device is the energy consumption of offloading the task $v_i$ and the energy consumption of transmitting the output of all its precursor tasks processed on the local IoT device to MEC servers. Therefore, the energy consumption $E_i^e$ can be expressed as follows:

  $$\begin{aligned} E_i^e=e_i^o+\sum _{j\in pred(i)}(1-a_j)e_j^u \end{aligned}$$

  (21)

Layered algorithm

Topological sorting is a standard algorithm for solving the linear sorting of DAG vertices [30]. In the vertex sequence generated by topological sorting, for $\forall <i,j>\in E$, task $v_i$ is before task $v_j$. Topological sorting is used to sort tasks to ensure that all the precursor tasks of the task $v_j$ are ahead of them. However, this method can only produce one task sequence. Therefore, referring to the idea of topological sorting, an algorithm is designed to layer dependent tasks, so that there is no dependency between tasks in the same layer after layering.

In this paper, a layering algorithm is proposed based on topological sequences. The procedure of the algorithm is shown in Algorithm 1. The adjacency table (adjList) is used to store the DAG nodes and their dependencies. Line 2 of the algorithm initializes a queue for subsequent operations. Lines 3-4 of the algorithm put the entry task $v_{entry}$ into the queue. Line 8 indicates that as long as the queue is not empty, the current length of the queue (len) is obtained, which is the number of tasks in the next layer. In line 10-20, len tasks leave the queue in order and are put into the set (curLayer) that stores tasks of the current layer. When each task leaves the queue, the indegree of all its successor tasks will be reduced by 1. If the indegree of a successor task becomes 0, the successor task will be put into the queue. After processing all the tasks of the current layer, put the set (curLayer) into a list storing layers (layerList), and then continue to process the tasks of the next layer. After all tasks are processed, return layering results (layerList).

Algorithm 1 Task layering algorithm

Cost analysis of processing tasks

The cost $Cost_i$ of processing task $v_i$ is divided into two parts: one is the delay required for processing tasks (computational latency and transmission latency); The other is the energy consumption of the IoT device (processing energy consumption or transmission energy consumption) when processing tasks. Therefore, $Cost_i$ can be expressed as:

$$\begin{aligned} Cost_i=\omega _1AFT_i+\omega _2E_i \end{aligned}$$

(22)

Next, we will analyze the cost of the task processed on the local IoT device and offloaded to an MEC server separately according to whether the task is offloaded.

• (1) The cost of task $v_i$ when processed locally When the task $v_i$ is calculated on the local IoT device, according to the previous analysis, $Cost_i$ can be expressed as a function of one variable, with its variable being local computational latency $t_i^l$, so $Cost_i$ can be expressed as follows:

  $$\begin{aligned} Cost_i(t_i^l)=Cost_i^l(t_i^l)=\omega _1(RT_i^l+t_i^l)+\omega _2\kappa \frac{C_i^3}{(t_i^l)^2}=\omega _1RT_i^l+g_i(t_i^l) \end{aligned}$$

  (23)

  Wherein, $g_i(x)=\omega _1x+\frac{\omega _2 \kappa C_i^3}{x^2}$. Obviously, $g_i(x)$ decreases monotonically in the range of $0< x\le \root 3 \of {\frac{2\omega _2\kappa C_i^3}{\omega _1}}$ and increases monotonically in the range of $x\ge \root 3 \of {\frac{2\omega _2\kappa C_i^3}{\omega _1}}$. Use $t_i^{opt}$ to represent the corresponding $t_i^l$ when the local computing overhead $Cost_i^l(t_i^l)$ is optimal. If $\root 3 \of {\frac{2\omega _2\kappa C_i^3}{\omega _1}}\le t_i^{min}$, then $t_i^{opt}=t_i^{min}$. Otherwise, $t_i^{opt}=\root 3 \of {\frac{2\omega _2\kappa C_i^3}{\omega _1}}$. Therefore, $t_i^{opt}=max(\root 3 \of {\frac{2\omega _2\kappa C_i^3}{\omega _1}},t_i^{min})$. Therefore, Algorithm 2 is designed to obtain the minimum cost of task $v_i$ processed on the local IoT device and the corresponding optimal latency of local computing. After obtaining the optimal local latency of the task $v_i$, the optimal computing resource allocated by the local IoT device can be obtained from the equation (9).



  Algorithm 2 Solving for the minimum cost of local computation and its corresponding optimal latency algorithm

• (2) The cost of task $v_i$ when offloaded According to the previous analysis, when the task $v_i$ is offloaded to an MEC server for calculation, $Cost_i$ can be expressed as a binary function, with its variables being $t_i^o$ and $t_j^u$, and its specific form can be expressed as follows:

  $$\begin{aligned} Cost_i(t_i^o,t_j^u)=\omega _1(RT_i^e+t_i^e)+\omega _2[e_i^o+\sum _{j\in pred(i)}(1-a_j)e_j^u] \end{aligned}$$

  (24)

Because the binary function increases the difficulty of solving, offloading task $v_i$ and transmitting the output of its precursor tasks processed on the local IoT device are considered to use the same transmission rate (i.e. $r_j^u=r_i^o=r_i$). At this time, $Cost_i$ is converted into a unary function only related to the transmission rate $r_i$ :

$$\begin{aligned} Cost_i(r_i)= & {} \omega _1(RT_i^e+t_i^e)+\omega _2[\frac{D_i\sigma ^2}{r_ih_i}(2^{\frac{r_i}{B}}-1)+\sum _{j\in pred(i)}(1-a_j)\frac{O_j\sigma ^2}{r_ih_j}(2^{\frac{r_i}{B}}-1)]\nonumber \\= & {} \omega _1(max\{ T_e^{idle},max_{j\in pred(i)}\{ AFT_j+\frac{(1-a_j)O_j+D_i}{r_i}\} \} )+c_i+b_if(\frac{r_i}{B}) \end{aligned}$$

(25)

Wherein, $f(x)=\frac{2^x-1}{x}$, $c_i=\omega _1t_i^e$, $b_i=\frac{\omega _2\sigma _i^2}{B}(\frac{D_i}{h_i}+\sum _{j\in pred(i)}\frac{(1-a_j)Oj}{h_j})$. Obviously, when $x\ge 0$, f(x) is monotonically increasing.

If $r_i\ge R_i^1$, then:

$$\begin{aligned} Cost_i(r_i)=Cost_i^{e1}(r_i)=\omega _1T_e^{idle}+c_i+b_if(\frac{r_i}{B}) \end{aligned}$$

(26)

Wherein, $R_i^1=max_{j\in pred(i)}(\frac{D_i+(1-a_j)O_j}{T_e^idle-AFT_j})$.At this time, $Cost_i(r_i)$ increases monotonically.

If $r_i< R_i^1$, then:

$$\begin{aligned} Cost_i(r_i)= & {} \omega _1max_{j\in pred(i)}\{AFT_j+\frac{(1-a_j)O_j+D_i}{r_i}\} +c_i+b_if_i(\frac{r_i}{B})\nonumber \\= & {} \omega _1max\{MAFT_i^e,max_{j\in pred(i)\wedge a_j=0}\{ AFT_j+\frac{O_j}{r_i}\} \} +h_i(\frac{r_i}{B}) \end{aligned}$$

(27)

Wherein, $MAFT_i^e=max_{j\in pred(i)\wedge a_j=1}(AFT_j)$, $h_i(x)=\frac{a_i}{x}+b_if_i(x)+c_i$, $a_i=\frac{\omega _1D_i}{B}$,  $h_i^{'}(x)=\frac{b_i(ln2\cdot x\cdot 2^x-2^x+1)-a_i}{x^2}$. Obviously, when $x\ge 0$, $ln2\cdot x\cdot 2^x-2^x+1$ is monotonically increasing, so, there are only three possible values of $h_i(x)$ in the range of $[x_1,x_2]$:

• (1) If $h_i^{'}(x)$ is always less than or equal to 0, $h_i(x)$ decreases monotonically, and the optimal value of $h_i(x)$ at this time is obtained at $x=x_2$;

• (2) If $h_i^{'}(x)$ is always greater than or equal to 0, $h_i(x)$ increases monotonically, and the optimal value of $h_i(x)$ at this time is obtained at $x=x_1$;

• (3) When $h_i^{'}(x)$ is less than or equal to 0 at first and then greater than or equal to 0, $h_i(x)$ is a single-peaked function, and 0.618 method can be used to search for the optimal value.

So, the above analysis of solving for the minimum value of h(x) and its corresponding x can be summarized as the function $OPTIMAL(h(x),x_1,x_2)$. Wherein, input of OPTIMAL consists of a monotone or single-peaked function h(x), lower bound $x_1$ and upper bound $x_2$. Output of OPTIMAL are the minimum value $h^{opt}$ of h(x) and its corresponding optimal value $x^{opt}$ of x. Specific steps of function OPTIMAL are as follows. Firstly, Solve for the derivative function $h'(x)$ of h(x). Secondly, three cases are considered. If $h'(x_2)\le 0$, then $x^{opt}=x_2$ and $h^{opt}=h(x_2)$. If $h'(x_1)\ge 0$, then $x^{opt}=x_1$ and $h^{opt}=h(x_1)$. If $h'(x_1)<0$ and $h'(x_2)>0$, then $h^{opt}$ and $x^{opt}$ can be obtained by 0.618 method.

If $R_i^2\le r_i\le R_i^1$, then:

$$\begin{aligned} Cost_i(r_i)=Cost_i^{e2}(r_i)=\omega _1MAFT_i^e+h_i(\frac{r_i}{B}) \end{aligned}$$

(28)

Wherein, $R_i^2=max_{j\in pred(i)\wedge a_j=0}(\frac{O_j}{MAFT_i^e-AFT_j})$. The minimum cost is obtained by function OPTIMAL.

If $r_i\le min(R_i^1,R_i^2)$, then:

$$\begin{aligned} Cost_i(r_i)= & {} \omega _1max_{j\in pred(i)\wedge a_j=0}(AFT_j+\frac{O_j}{r_i})+\omega _1t_i^e+\omega _1\frac{D_i}{r_i}\nonumber \\{} & {} +\frac{\omega _2\sigma ^2}{B}(\frac{D_i}{h_i}+\sum _{j\in pred(i)}(1-a_j)\frac{O_j}{h_j})f( \frac{r_i}{B}) \end{aligned}$$

(29)

Obviously, for $AFT_j$, $\frac{O_j}{r_i}$ is negligible. Therefore, $Cost_i(r_i)$ can be expressed as:

$$\begin{aligned} Cost_i(r_i)=Cost_i^{e3}(r_i)=\omega _1MAFT_i^l+h_i(\frac{r_i}{B}) \end{aligned}$$

(30)

Wherein, $MAFT_i^l=max_{j\in pred(i)\wedge a_j=0(AFT_j)}$. Obtain the minimum cost by function OPTIMAL.

Through the above analysis, the minimum cost of task $v_i$ processed on an MEC server and the corresponding optimal transmission rate can be obtained. After obtaining the optimal transmission rate of the IoT device, the optimal transmission power allocated by the local device can be obtained by equation (2) or (5). The procedure of the algorithm is shown in Algorithm 3. Line 2 calculates $R_i^1$ and $R_i^2$ . Lines 3-4 show that when $R_i^1<r^{min}$, there must be $R_i^1<r_i$, so $Cost_i(r_i)=Cost_i^{e1}(r_i)$, monotonically increasing. Lines 8-10 show that when $R_i^2<r^{min}\le R_i^1<r^{max}$, if $R_i^1\le r_i$, then $Cost_i(r_i)=Cost_i^{e1}(r_i)$, monotonically increasing, so $r_i^{opt,1}=R_i^1$; If $r_i<R_i^1$, then $Cost_i(r_i)=Cost_i^{e2}(r_i)$, the minimum cost $Cost_i^{e2}(r_i^{opt,2})$ and its corresponding optimal transmission rate $r_i^{opt,2}$ can be obtained by function OPTIMAL. Combining these two cases, the minimum cost and its corresponding optimal transmission rate can be obtained when $R_i^2<r^{min}\le R_i^1<r^{max}$, that is $r_i^{opt}=argmin(Cost_i^{e1}(r_i^{opt,1}),Cost_i^{e2}(r_i^{opt,2}))$. Similarly, lines 13-16 consider the minimum cost when $r^{min}\le R_i^2\le R_i^1<r^{max}$. Lines 18-20 consider the minimum cost when $r^{min}\le R_i^1<min(R_i^2,r^{max})$. Line 25 considers the minimum cost when $R_i^2\le r^{min}\le r^{max}\le R_i^1$. Lines 28-30 consider the minimum cost when $r^{min}\le R_i^2\le r^{max}\le R_i^1$. Line 32 considers the minimum cost when $r^{max}\le min(R_i^2,R_i^1)$.

Algorithm 3 Solving for the minimum cost of edge computation and its corresponding optimal transmission rate algorithm

Layered computational offloading algorithm

From the above analysis, the costs of the task computed on the local IoT device or offloaded to an MEC server are obtained separately, which is related to resource allocation scheme. Here we propose an algorithm based on comparing the minimum cost of the task $v_i$ processed on the IoT device and on an MEC server separately to determine the offloading decision and resource allocation of the task $v_i$. The main steps of the algorithm are as follows:

• (1) Call Algorithm 1 to layer tasks;

• (2) For all tasks in the first layer, Algorithm 4 is called to determine whether each task in the same layer is offloaded or not in turn;

• (3) Use the same method in step 2 for subsequent layers until all layers are processed.

The procedure of the intra-layer offloading algorithm is shown in Algorithm 4. For all tasks in a given layer, line 2 of Algorithm 4 indicates that the tasks are arranged in ascending order according to the completion time of each task’s latest precursor task. Lines 3-13 indicate that the minimum cost of the task processed on the local device and processed on an MEC server are calculated separately in order . If the local computing overhead is less than the offloading overhead, the task is processed locally and the optimal computing frequency of the IoT device is obtained. Then, the next idle time of the local IoT device is updated. Otherwise, the task will be offloaded, and the optimal transmission power of the IoT device will be obtained, and then the next idle time of the MEC server will be updated.

Algorithm 4 Intra-layer offloading decision and resource allocation algorithm

Performance evaluation

Setup

The two types of task dependency models shown in Fig. 2 are used for simulation experiments. In Fig. 2(a), tasks can only be executed sequentially, and there is only one task in each layer. In Fig. 2(b), each layer has five tasks, and these five tasks are the precursor tasks of all tasks in the next layer. In addition, the number of tasks in these two types of task dependency models will be set to 10, 20, 30, 40 and 50, respectively, to evaluate the performance of the proposed algorithm under different task numbers and task dependencies.

Fig. 2

Low and high parallelism task dependency model

The bandwidth of the wireless channel is set to 5 MHz. Consider that the white noise power and channel gain are the same when all tasks are offloaded, wherein, $\sigma _1^2=\dots =\sigma _{|v|}^2=\sigma ^2=10^{-10}W$, $h_1=\dots =h_{|v|}=h$. For h, the path fading model is used for modeling [28], and the specific form is as follows:

$$\begin{aligned} h=A_d(\frac{3\times 10^8}{4\pi f_cd_M})^{d_e} \end{aligned}$$

(31)

Wherein, $A_d$ represents antenna gain, $f_c$ represents carrier frequency, $d_M$ represents the distance between IoT device and MEC server, and $d_e$ represents path fading factor. For IoT devices, the maximum calculation frequency $f^{max}$ is set to 0.5 GHz, and the minimum transmission power $p^{min}$ and maximum transmission power $p^{max}$ are set to 0.1 W and 0.5 W respectively. For computing tasks, The required CPU cycle follows the uniform distribution of $[100,200]\times 10^6$ Cycles, the data size follows the uniform distribution of [2, 5] MB, and the computing output follows the uniform distribution of [2, 5] KB. For the MEC server, its calculation frequency $f^e$ is set to 5 GHz. The energy efficiency parameter $\kappa$ is set to $10^{-27}$. Other simulation parameters are shown in Table 1.

Table 1 some other parameters

Comparison experiments

With reference to [31, 32], we compare the proposed algorithm with three other offloading baseline strategies and the earliest completion time offloading strategy proposed in [33]:

• (1) Local computing strategy: The local computing strategy does not involve task offloading. All computing tasks are processed on the local IoT device, and the computing frequency of the IoT device is randomly determined from 0GHz to 0.5GHz.

• (2) Edge computing strategy: In the edge computing strategy, all IoT devices offload their computing tasks randomly to a nearby MEC server for processing, and randomly determine the transmission power of IoT devices from 0.1W to 0.5W.

• (3) Random offloading strategy: In the random offloading strategy, the decision whether task is offloaded or not and which edge server to offload is determined randomly. The calculation frequency is randomly determined from 0GHz to 0.5GHz and transmission power of the IoT device is randomly determined from 0.1W to 0.5W.

• (4) The earliest completion time offloading strategy: Calculate the average calculation and communication cost of each task and determine the processing order of the task, assign the task to the processor with the minimum completion time in turn according to the processing order. The calculation frequency is randomly determined from 0GHz to 0.5GHz and transmission power of the IoT device is randomly determined from 0.1W to 0.5W.

The task latency and energy consumption of IoT devices are used as performance indicators to evaluate the offloading performance of five computational offloading strategies for low parallelism and high parallelism dependent IoT services.

Figure 3 compares the performance of five strategies when $\omega _1=0.9$ and $\omega _2=0.1$. At this time, more attention is paid to the task latency rather than the energy consumption of IoT devices. It can be seen that, for both low-parallelism dependent services and high-parallelism dependent services, the computational offloading strategy proposed in this paper always obtains lower latency than other strategies. For low-parallelism dependent services, the performance of random offloading strategy is between local computing strategy and edge computing strategy, while for high-parallelism dependent services, the performance of random offloading strategy is better than local computing strategy and edge computing strategy. This is because, for low-parallelism dependent services, tasks can only be executed sequentially, that is, the next task can only be started after the precursor task has been processed. Therefore, the performance of the random offloading strategy must be somewhere between the two. For high-parallelism dependent services, when random offloading strategy is adopted, tasks can be processed in parallel to a certain extent. For local computing strategy (or edge computing strategy), the task can only be processed after the IoT device (or MEC server) finishes processing the precursor task. That is, due to the limitations of the processor, the task can only be serial. Therefore, random offloading strategy is superior to local computing strategy and edge computing strategy.

Fig. 3

The performance of five strategies when $\omega _1=0.9$ and $\omega _2=0.1$

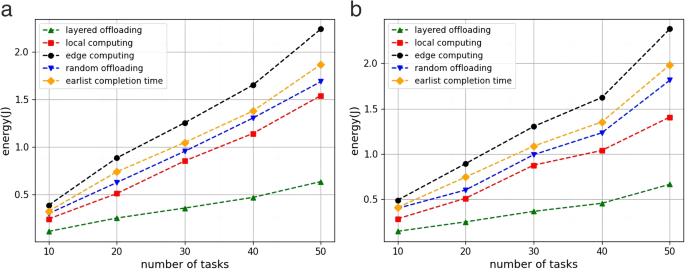

Figure 4 compares the performance of the five strategies when $\omega _1=0.1$ and $\omega _2=0.9$. At this time, more attention is paid to the energy consumption of IoT devices rather than the task latency. It can be seen that, for both low-parallelism dependent services and high-parallelism dependent services, the computational offloading strategy proposed in this paper always obtains lower energy consumption than other strategies. It can be seen that the energy consumption of each computational offloading strategy for low parallelism and high parallelism dependent services is roughly the same. This is because, at this time, more attention is paid to energy consumption, and the dependency between IoT services has less impact on the energy consumption than on the task latency of IoT devices.

Fig. 4

The performance of five policies when $\omega _1=0.1$ and $\omega _2=0.9$

Conclusion

In this paper, task scheduling and resource allocation are comprehensively considered to optimize the latency and energy consumption for dependent IoT services in MEC. We design a computational offloading algorithm based on layering tasks by dependencies, to get the optimal task offloading scheduling and resource allocation scheme. Simulation results show that the proposed algorithm is significantly better than other comparison algorithms in reducing latency and energy consumption.

For our future work, we will consider further improvements in future research:

• (1) In the system model, this paper assumes a constant download rate to facilitate the analysis and optimization of the task latency. However, task results are typically transmitted over wireless networks, which have a time-varying transmission rate. We will further consider the varying download rate and design its corresponding optimization scheme in our future work.

• (2) In the optimization goal, this paper uses the weighted sum of latency and energy consumption as the optimization goal to comprehensively optimize the latency and energy consumption. However, how to determine the weight value is a difficult problem to solve. In the next step, we can consider using multi-objective optimization methods, such as Pareto, multi-objective particle swarm optimization, etc.
