Time series forecasting model for non-stationary series pattern extraction using deep learning and GARCH modeling


This paper presents a novel approach to time series forecasting, an area of significant importance across diverse fields such as finance, meteorology, and industrial production. Time series data, characterized by its complexity involving trends, cyclicality, and random fluctuations, necessitates sophisticated methods for accurate forecasting. Traditional forecasting methods, while valuable, often struggle with the non-linear and non-stationary nature of time series data. To address this challenge, we propose an innovative model that combines signal decomposition and deep learning techniques. Our model employs Generalized Autoregressive Conditional Heteroskedasticity (GARCH) for learning the volatility in time series changes, followed by Complete Ensemble Empirical Mode Decomposition with Adaptive Noise (CEEMDAN) for data decomposition, significantly simplifying data complexity. We then apply Graph Convolutional Networks (GCN) to effectively learn the features of the decomposed data. The integration of these advanced techniques enables our model to fully capture and analyze the intricate features of time series data at various interval lengths. We have evaluated our model on multiple typical time-series datasets, demonstrating its enhanced predictive accuracy and stability compared to traditional methods. This research not only contributes to the field of time series forecasting but also opens avenues for the application of hybrid models in big data analysis, particularly in understanding and predicting the evolution of complex systems.


Navigating the intricate seas of time series forecasting is no small feat, considering its vast applications in domains like traffic management, finance, hydrology, and more [1]. The fusion of cutting-edge sensor technology, computing prowess, and advanced communication channels has bestowed upon us a treasure trove of rich time series data, reshaping the very fabric of how we monitor and control complex real-world systems [2]. In the economic realm, economists ride the waves of stock price fluctuations, foreseeing market trends. Medical maestros employ biological time series data to decipher diseases and gauge patient well-being. Meteorologists, armed with atmospheric time series data, predict the capricious dance of climate changes. Even in the realm of industrial production, time series data orchestrates a symphony to monitor product quality.

Yet, peering into the future isn't a stroll in the park. Time series data, with its intricate dance of trends, cycles, seasons, and unpredictable whims, poses a formidable challenge. Unraveling these intricacies demands a profound understanding to accurately predict the twists and turns that lie ahead. The history of time series forecasting is a rich tapestry, woven with threads of linear regression, autoregressive and moving average models, and the contemporary marvels of deep learning and neural networks [2,3,4]. However, as the data at hand often boasts nonlinearity and non-stationarity, existing methods struggle to extract sufficient features for precise forecasting. Here steps in the unsung hero—signal decomposition. Signal decomposition, akin to an alchemical process, breaks down the complexity of time series data into digestible components—trends, cycles, and random noise. Classical methods like Fourier transform, wavelet transform, and empirical mode decomposition have peeled back the layers, offering glimpses into the intrinsic structure of time series data, becoming indispensable references for forecasting.

Enter the disruptor, deep learning—a juggernaut capable of plumbing the depths of input data with its nonlinear modules [5, 6]. As each module transforms representation levels, deep learning unfurls a multi-level tapestry of understanding, applied with resounding success in realms like computer vision [7, 8], speech recognition [9], and natural language processing [10]. However, the challenge persists, especially with nonlinear and non-stationary datasets. To surmount this, our paper unveils a novel time series forecasting model, seamlessly integrating signal processing and deep learning. A unique network structure emerges, designed to pluck features from sequence data at varying intervals.

Here lie our contributions:

  • We propose a groundbreaking time series forecasting model, marrying the realms of signal processing and deep learning. Our custom-designed network structure is the maestro orchestrating the symphony of feature extraction.

  • We harness GARCH to unravel the volatility nuances of time series changes. The processed data undergoes a transformative dance with CEEMDAN, a signal decomposition virtuoso, significantly decluttering the complexity. Finally, the baton passes to GCN, orchestrating the learning of data features.

  • Our model faces the crucible of assessment against several typical time-series datasets, emerging with enhanced predictive accuracy and heightened stability. The results affirm the transformative potential of our proposed fusion model in the intricate realm of time series forecasting.

Related work

Embarking on the realm of time series data prediction unveils a rich tapestry woven with three distinctive approaches—one delving into statistical forecasts, another navigating the terrain of machine learning, and the third boldly venturing into the uncharted waters of hybrid models. Within the expansive domain of machine learning, a dual landscape emerges, encompassing both traditional methods and the sophisticated depths of deep learning. Simultaneously, hybrid predictive models take center stage, harmonizing the symphony of signal decomposition within time series data and the orchestration of predictive prowess.

In the early stages of time series forecasting exploration, intrepid researchers turned to the tried-and-true path of statistical principles. Burlando P and team unfurled the Autoregressive Moving Average (ARMA) model, forecasting short-term rainfall with commendable success [11]. However, grappling with the tumultuous seas of strongly non-stationary data, the ARMA model faced limitations. To surmount this challenge, a strategic evolution unfolded, giving rise to the Autoregressive Integrated Moving Average (ARIMA) model. This model, showcased by Meyler A in predicting inflation in Ireland, exhibited prowess in dissecting the periodicity and volatility of time series data [12]. Further refinements, such as the Seasonal ARIMA (SARIMA) model by Williams et al., adorned with a seasonal pattern, paved the way for predicting single variable automobile traffic data [13]. Yet, statistical-based models, despite their achievements, found their capabilities somewhat constrained in the face of increasingly complex time series data tasks.

The rise of machine learning heralded a new era, offering a diverse arsenal of solutions. Following this trajectory, Chen et al. and Tay FEH, Cao L introduced Support Vector Machines (SVMs) [14, 15] to forecast financial time series data, showcasing superior performance in nonlinear feature extraction and resilience to data noise [16]. LV et al. embraced the simplicity and adaptability of the K-Nearest Neighbors (KNN) method for short-term power load prediction [17]. Meanwhile, the realm of Artificial Neural Networks (ANNs) unfolded as a powerful tool, with Hung N Q successfully predicting rainfall in Bangkok and Maleki and Goudarzi using ANNs for air AQI sequence data [18,19,20]. The prowess of deep learning, riding the waves of big data and computational power, unfolded with Recurrent Neural Networks (RNNs). Tokgöz A and Ünal G demonstrated its effectiveness in predicting Turkey's power load [21]. However, challenges of vanishing or exploding gradients led to the optimization of RNNs, birthing the Long Short-Term Memory networks (LSTM). Chang Y S et al. harnessed LSTM's capabilities in predicting air pollution data [22, 23]. Integration with Convolutional Neural Networks (CNN) further enhanced predictions, exemplified by Zha et al.'s work in predicting natural gas production [24]. The artistry of Graph Convolutional Networks (GCN) found expression in predicting road traffic speed, as demonstrated by Yu B et al. [25]. Bhatti et al. identifies importance of GCN and its variants in the field of science [26].

In recent years, a cadre of scholars has embraced the avant-garde—hybrid models. These models, fusing signal analysis and prediction, promise superior performance. Mainstream signal decomposition methods such as Empirical Mode Decomposition (EMD), Ensemble EMD (EEMD) [27], and Variational Mode Decomposition (VMD) [28] took the stage. Scholar Zhang W et al. wielded EMD coupled with SVM for short-term power load prediction [29]. Shu and team, innovators, blended EMD with CNN and LSTM, achieving superior predictive results [30]. Experimental validations substantiate the supremacy of such hybrid models over their singular counterparts. Addressing the mathematical gaps in EMD, an improved version emerged Ensemble EMD with Adaptive Noise (EEMDAN). Yan Y et al. harnessed EEMDAN with LSTM to predict wind speed with precision [31]. Zhu Q et al. navigated the challenges of non-stationary signals, combining Variational Mode Decomposition (VMD) with Bi-GRU for rubber futures time series prediction [32]. A further evolution, Complementary Ensemble Empirical Mode Decomposition with Adaptive Noise (CEEMDAN), resolved the white noise transmission conundrum. Zhou F et al. showcased the power of CEEMDAN and LSTM, painting a portrait of carbon price forecasts [33]. We have compiled and summarized the above methods, and Table 1 and 2 display these summaries.

Table 1 Advantages and disadvantages of several common sequence decomposition methods
Table 2 Advantages and disadvantages of several commonly used sequence prediction methods

Considering the advantages and disadvantages of several methods, this study opts for CEEMDAN for the decomposition of time series. This is because, compared to VMD and EEMD, CEEMDAN has stronger adaptability and stability. Compared with models such as SVM, KNN, and ANN, the GCN has a stronger ability to learn data relationships and higher computational efficiency. Compared with LSTM and CNN-LSTM, the GCN has fewer parameters and a simpler structure. Considering all this, we chose the GCN model as the predictive model.

Proposed methodology

Prior to discussing the forecasting method of the GARCH-CEEMDAN-GCN combination model for time series data, our first step is to provide a succinct account of the foundational theories applied in the establishment of this aforementioned hybrid model. This involves detailing the principles and practicalities of the Autoregressive Conditional Heteroskedasticity model (GARCH), the Complete Ensemble Empirical Mode Decomposition with Adaptive Noise (CEEMDAN), and the Graph Convolutional Neural Network (GCN).


Bollerslev, building on the idea of ARMA modeling, constructed the Generalized Autoregressive Conditional Heteroscedasticity model (GARCH). The GARCH model is commonly utilized for modeling financial time series in investment and financial management. It's specifically designed for varying volatility, meaning we can predict different degrees of volatility for different points in time.

The basic form of the GARCH model is as follows:

Assume that the disturbance series \({u}_{t}\) has the following structure:

$${u}_{t}=\sqrt{{h}_{t}}{\epsilon }_{t}$$
$${h}_{t}={\alpha }_{0}+\sum\nolimits_{i=1}^{q}{\alpha }_{i}{u}_{t-i}^{2}+\sum\nolimits_{j=1}^{p}{\beta }_{j}{h}_{t-j},{\epsilon }_{t}\sim N(\mathrm{0,1})$$

In which, \({\sigma }_{\in }^{2}=1\), and \({\alpha }_{0}>0, {\alpha }_{i}\ge 0, {\beta }_{i}\ge 0\)。 Since \(\{{\epsilon }_{t}\}\) is a white noise process and is independent of the past values of \({u}_{t-i}\), both the conditional and unconditional mean of \({u}_{t}\) are zero. However, the conditional variance of \({u}_{t}\) equals \({E}_{t-1}{u}_{t}^{2}\), which is \({h}_{t}\). This model, which allows for conditional heteroscedasticity with both autoregressive terms and moving average terms, is called the Generalized Autoregressive Conditional Heteroskedasticity model, denoted as GARCH(p, q). Clearly, if p = 0, q = 1, then GARCH(0, 1) is the same as the ARCH(1) model. If all \({\beta }_{t}\) are zero, then the GARCH(p, q) is equivalent to the ARCH(q) model. Therefore, the GARCH model can be seen as a generalization of the ARCH model, or the ARCH model can be seen as a special case of the GARCH model.

Introduce the lag operator polynomial:

$$\alpha \left(B\right)={\alpha }_{1}B+\dots +{\alpha }_{q}{B}^{q}$$
$$\beta \left(B\right)={\beta }_{1}B+\dots +{\beta }_{q}{B}^{q}$$

Thus, the GARCH (p, q) model can be represented as:

$${h}_{t}={\alpha }_{0}+\alpha \left(B\right){u}_{t}^{2}+\beta (B){h}_{t}$$

If the roots of 1-β(B) = 0 are all outside the unit circle, then

$${h}_{t}=\frac{{a}_{0}}{1-\beta (1)}+\frac{\alpha (\beta )}{1-\beta (B)}{u}_{t}^{2}={a}_{0}^{*}+\sum_{j=1}^{\infty }{\delta }_{j}{u}_{t-j}^{2}$$

where B is the one-step lag operator at time t, \({a}_{0}^{*}=\frac{{a}_{0}}{1-\beta (1)}\), \({\delta }_{j}\) is the coefficient of \({B}^{j}\) in the expansion of \(\frac{\alpha (\beta )}{1-\beta (B)}\).

Therefore, it can be seen that if a series follows a GARCH(p, q) process, under certain conditions, it can be represented by an infinite order ARCH process with a reasonable lag structure. Thus, in practical applications, for a high-degree ARCH model, it can be represented by a relatively simple GARCH model, which reduces the estimation parameters and facilitates the identification and estimation of the model.


CEEMDAN, standing for Complete Ensemble Empirical Mode Decomposition with Adaptive Noise, is an enhanced version of the EEMD algorithm. It employs a partitioned approach to signal processing and gives rise to the intrinsic mode functions (IMFs) of the signal by way of several decompositions, as demonstrated in Algorithm 1. The unique feature of CEEMDAN, as compared to EEMD, is its adaptive noise generation during the decomposition phase, allowing the process to be steadier and more precise. Furthermore, it capably addresses the endpoint effect and mode mixing issues inherent in conventional EMD. The sequence of operations in the CEEMDAN algorithm is presented in Fig. 1. The procedures for the CEEMDAN algorithm are outlined as follows:

Fig. 1
figure 1

The flowchart of CEEMDAN

1. Incorporate Gaussian white noise into the initial signal \(f(t)\), as demonstrated in Eq. (7):

$${f}_{i}(t) = y(t)+{\varepsilon }_{0}{n}_{i}(t), i=\mathrm{1,2},\cdots ,N$$

The symbol \({\varepsilon }_{0}\) denotes the ratio of signal-to-noise, \({n}_{i}(t)\) symbolizes the Gaussian white noise introduced during the i-th cycle, and N stands for the count of cycles.

2. Carry out EMD decomposition on the newly added signal \({f}_{i}(t)\), which is interleaved with Gaussian white noise, to ascertain the first intrinsic mode function, designated as \({IMF}_{1}\), along with its associated residual component \({r}_{1}\). These are represented in Eqs. (8) and (9).

$${r}_{1}(t) = x(t)-{IMF}_{1}$$

In formula (6), E represents the EMD decomposition operation.

3. Add \({\varepsilon }_{1}{E}_{1}[{n}_{i}(t)]\) to \({r}_{1}(t)\), perform EMD decomposition, and then perform summation and averaging to obtain \({IMF}_{2}\), as shown in formula (10):

$${IMF}_{2}=\frac{1}{N}\sum\nolimits_{i=1}^{N}{E}_{1}\left\{{r}_{1}(t)+{\varepsilon }_{1}{E}_{1}[{n}_{i}(t)]\right\}$$

4. When \(k=\mathrm{2,3},\cdots ,K\), use the corresponding intrinsic mode function to compute the k-th residual component \({r}_{k}(t)\), as depicted in Eq. (11):


5. At every stage, introduce Gaussian white noise to produce a fresh signal, subsequently determine its primary intrinsic mode component, and employ this as a novel mode component for the original signal. Consequently, the k-th mode component in this stage is \({IMF}_{k+1}\), as shown in formula (12):

$${IMF}_{k+1}=\frac{1}{N}\sum\nolimits_{i=1}^{N}{E}_{1}\left\{{r}_{k}(t)+{\varepsilon }_{k}{E}_{k}[{n}_{i}(t)]\right\}$$

6. Carry out the procedures detailed in steps 4 and 5 repeatedly. Once the signal is no longer susceptible to EMD decomposition, the ultimate k mode components and the final residual component of the signal will be realized, as depicted in Eq. (13):

$$R(t) = f(t)-\sum\nolimits_{k=1}^{K}{IMF}_{k}$$

7. The ultimate result of the CEEMDAN decomposition of the signal f(t) is represented in Eq. (14):

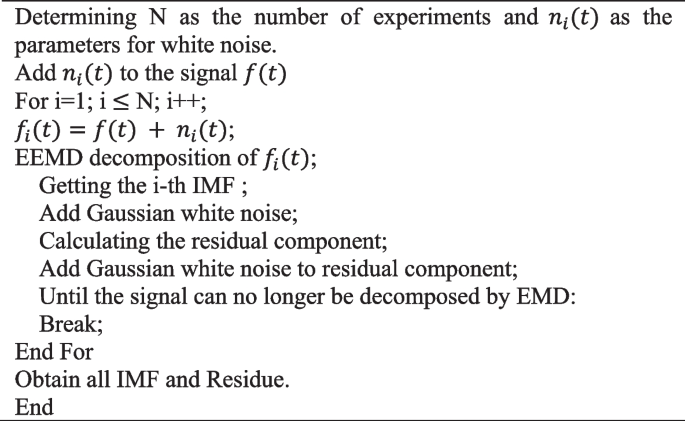

figure a

Algorithm 1. CEEMDAN



A graph can be defined as: G = (V, E), where V represents the collection of all nodes within the graph, and E represents the set of all edges connecting nodes within the graph. The fundamental purpose of a Graph Convolutional Network (GCN) is to discern and extract specific features within graph data. This distinguishes it from traditional Convolutional Neural Networks (CNNs) because a GCN has the capacity to identify and extract spatial features from non-Euclidean topological graphs, determining correlations among the different data points within the graph structure. The principle at the heart of the GCN is to build a system akin to a message-passing mechanism. It starts by drawing from the original graph-structured data, continuously identifying features and transmitting data, with ongoing updates made to the information related to both the target node itself and its associated spatial domain. The equation for GCN is as follows:

$${H}^{(1)}=\sigma ({D}^{-1/2}(A+I){D}^{-1/2}X{W}^{(0)})$$
$${H}^{(l+1)}=\sigma ({D}^{-1/2}(A+I){D}^{-1/2}{H}^{(l)}{W}^{(l)})$$

In the provided equation, A stands for the adjacency matrix, which outlines the spatial relations of the original data points. I denote the identity matrix. Furthermore, \(A+I\) represents an augmented adjacency matrix where self-loops or self-connections have been introduced. D is the degree matrix that signifies the relationship between each node and its neighbors within the graph. The value corresponding to a particular node in the degree matrix is higher if the node is connected to more nodes in the graph. The quantity \({D}^{-1/2}(A+I){D}^{-1/2}\) pertains to the normalization procedure applied to the adjacency matrix. The utility of this operation is to alleviate issues frequently encountered in deep learning, such as the gradient vanishing or exploding problem. The matrix X is a compilation of vertex feature data, embodying the feature matrix. Lastly, W signifies the weight of every edge connection in the graph; \({H}^{(1)}\) symbolizes the outcome derived from the initial message propagation round, while \({H}^{(l+1)}\) denotes the results accumulated from the (l + 1)-th round of updates. \({W}^{(l)}\) corresponds to the connection weight parameter that's been updated and aggregated at the current state. The initialization of the W parameter within the context of the Graph Convolutional Network (GCN) algorithm isn't overly stringent. In contrast with other deep learning models, a GCN allows effective node feature updates through the stacking of shallow layers. This results in a lower volume of parameters and reduces the computational time complexity.

In the context of the raw graph-structured data, continuous feature extraction and data relay processes act on the information within the target node and its adjacent nodes, resulting in dynamic updates. This concept is depicted in Fig. 2.

Fig. 2
figure 2

Structure diagram of GCN

Proposed methodology

The model introduced in this paper achieves highly accurate prediction of time series data by integrating the GARCH model, the CEEMDAN signal decomposition method, and the GCN deep learning method. Time series data has complex characteristics such as high nonlinearity, non-stationarity, and inherent noise in the data itself. The effect is often less than ideal when using a single model for prediction. The GARCH model possesses the ability to capture the dynamic volatility of the time series data. The inputted time series data will become easier to analyze after processing with the GARCH model. The residuals of the GARCH model are further analyzed using the CEEMDAN method, which decomposes the complex signal into a series of intrinsic mode functions (IMFs), contributing to unveiling various frequency components hidden behind the data and can further reduce the complexity of the time series data. Finally, feature extraction from the decomposed IMFs is performed using the Graph Convolutional Neural Network model and predictions are made based on this. The detailed modeling steps are as follows:

  • Preprocess the raw data, fill the missing values in the data with the average value, standardize the data, and arrange all serial data in a uniform chronological order.

  • Process the sequence data to be predicted with the GARCH model.

  • Decompose the data processed by the GARCH model using the CEEMDAN algorithm to get their modal components, IMFs.

  • Use the modal components obtained from the decomposition to build input features for the GCN, then use the GCN network model for prediction to get the final prediction results. The overall structure diagram is shown in the Fig. 3.

Fig. 3
figure 3

The flow chart of the proposed model

Dataset and evaluation metrics


This research utilizes three comprehensive public datasets—Energy, Traffic, and Air Quality—to conduct a thorough analysis. The Air Quality dataset, in particular, plays a pivotal role in this study. Sourced from the China National Environmental Monitoring Center's website (, it provides an extensive record of daily air quality measurements from Guangzhou, Guangdong Province, China. This dataset covers a significant period, from January 1, 2017, to August 14, 2021, offering a rich temporal range for analysis. The dataset is equipped with sensor-based measurements that capture various environmental parameters, providing insights into the air quality trends and patterns over the years. Figure 4 in the study offers a detailed visualization of this dataset, presenting the data in a format that is both informative and accessible. To complement this, Table 3 systematically presents the statistical information derived from the dataset, offering a quantitative overview that includes metrics such as mean values, standard deviations, and other relevant statistical measures.

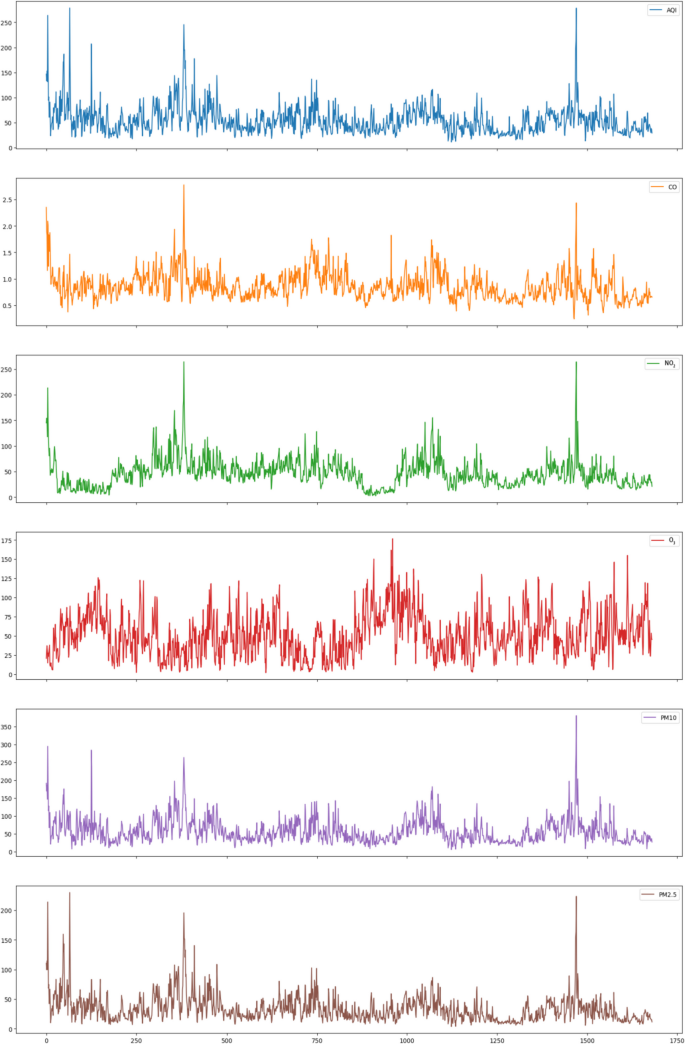

Fig. 4
figure 4

Visualization of air quality data set display

Table 3 Statistical description of AQI and air pollutant patterns 2017–2021

These datasets collectively facilitate a multi-faceted exploration of environmental factors, allowing for a comprehensive understanding of the interplay between air quality, energy consumption, and traffic patterns. The Air Quality dataset, with its extensive coverage and detailed measurements, is particularly instrumental in shedding light on the environmental dynamics of Guangzhou, thereby contributing significantly to the broader objectives of the study.

The Energy dataset, sourced from Kaggle, encompasses energy data logged by sensors from August 4, 2022, through April 23, 2023, at a quarter-hourly sampling frequency. A visual representation of this dataset is provided in Fig. 5, while its statistical overview can be found in Table 4.

Fig. 5
figure 5

Visualization of energy data set display

Table 4 Statistical description of Energy information from 2023–1 to 2023–4

The Traffic dataset, also obtained from Kaggle, comprises data related to traffic flow captured hourly through road sensors between November 1, 2015, and June 30, 2017. A graphic representation of the Traffic dataset is displayed in Fig. 6, with comprehensive statistics provided in Table 5.

Fig. 6
figure 6

Visualization of transportation data set display

Table 5 Statistical description of vehicles 2015–2017

Figure 7 illustrates box plots for all three datasets: Air Quality, Energy, and Traffic. The parameter configurations used in this study are furnished in Table 6.

Fig. 7
figure 7

Shows the statistical description of three datasets: A AQI, B Fossil Gas, and C Vehicles

Table 6 Parameters setting for the algorithms used in this study

Evaluation metrics

This study makes use of four distinct evaluation indices, namely MAE, MSE, MAPE, and R2, to assess the efficacy of the introduced prediction model. The acronyms represent Mean Absolute Error, Mean Square Error, Mean Absolute Percentage Error, and R Squared in order. The mathematical representations of these metrics are provided below:

$$MAE=\frac{1}{n}\sum\nolimits_{i=1}^{n} \left|{\widehat{y}}_{i}-{y}_{i}\right|$$
$${R}^{2}=1-\frac{\sum_{i=1}^{{\text{n}}} {\left({\widehat{y}}_{i}-{y}_{i}\right)}^{2}}{\sum_{i=1}^{{\text{n}}} \left(\overline{y }-{y}_{i}\right)}$$

In the computation of the four appraisal measures, namely, Mean Absolute Error (MAE), Mean Squared Error (MSE), Mean Absolute Percentage Error (MAPE), and the Coefficient of Determination (R2), \({y}_{i}\) stands for the true value of the model's input sample, while \(\widehat{{y}_{i}}\) indicates the prediction rendered by the model. The term n denotes the quantity of input samples and i signifies the index of each sample. For the indicators MAE, MSE, and MAPE, a lower value denotes superior model performance. As for R2, its range is between 0 and 1, inclusive. An R2 value closer to 1 signifies a superior performance attributed to the model.


We have carried out experimental investigations on three distinct datasets, namely, Air Quality, Energy, and Traffic, comparing the output of five diverse models – GCN, EMD-GCN, EEMD-GCN, EMD-CEEMDAN-GCN, and the newly proposed model GARTCH-CEEMDAN-GCN. Figure 8 illustrates the performance of the models when applied to the Air Quality dataset. Similarly, the models' performance against Energy and Traffic datasets can be observed in Figs. 9 and 10 respectively.

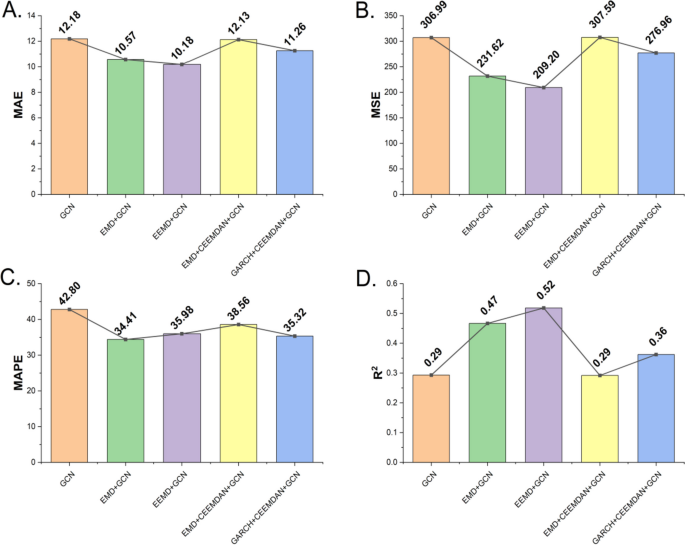

Fig. 8
figure 8

Evaluation results of various models on the Air Quality dataset

Fig. 9
figure 9

Evaluation results of various models on the Energy dataset

Fig. 10
figure 10

Evaluation results of various models on the Traffic dataset

Figure 8 shows the evaluation performances of different models on the AQI dataset. Compared with other models, the MAE metric of GARCH-CEEMDAN-GCN is 7.5% better than GCN, 6.5% worse than EMD-GCN, 10.6% worse than EEMD-GCN, and 7.2% better than EMD-CEEMDAN-GCN. The MSE metric of GARCH-CEEMDAN-GCN is 9.9% better than GCN, 19.6% worse than EMD-GCN, 32.4% worse than EEMD-GCN, and 9.9% better than EMD-CEEMDAN-GCN. The MAPE metric of GARCH-CEEMDAN-GCN is 17.5% better than GCN, 2.6% worse than EMD-GCN, 1.8% better than EEMD-GCN, and 8.4% better than EMD-CEEMDAN-GCN. The R2 metric of GARCH-CEEMDAN-GCN is 24.1% better than GCN, 23.4% worse than EMD-GCN, 30.8% worse than EEMD-GCN, and 24.1% better than EMD-CEEMDAN-GCN.

Figure 9 shows the evaluation performances of different models on the ENERGY dataset. Compared with other models, the MAE metric of GARCH-CEEMDAN-GCN is 61.1% better than GCN, 53.3% better than EMD-GCN, 54.9% better than EEMD-GCN, and 13.6% better than EMD-CEEMDAN-GCN. The MSE metric of GARCH-CEEMDAN-GCN is 86.9% better than GCN, 74.5% better than EMD-GCN, 73.4% better than EEMD-GCN, and 19.7% better than EMD-CEEMDAN-GCN. The MAPE metric of GARCH-CEEMDAN-GCN is 56.2% better than GCN, 38.2% better than EMD-GCN, 50.5% better than EEMD-GCN, and 17.4% better than EMD-CEEMDAN-GCN. The R2 metric of GARCH-CEEMDAN-GCN is 3.1% better than GCN, 1.0% better than EMD-GCN, 1.0% better than EEMD-GCN, and is the same as EMD-CEEMDAN-GCN.

Figure 10 shows the evaluation performances of different models on the TRAFFIC dataset. Compared with other models, the MAE (Mean Absolute Error) metric of GARCH-CEEMDAN-GCN is 70.0% better than GCN, 18.4% better than EMD-GCN, 13.6% better than EEMD-GCN, and 9.6% better than EMD-CEEMDAN-GCN. The MSE (Mean Squared Error) metric of GARCH-CEEMDAN-GCN is 90.5% better than GCN, 26.2% better than EMD-GCN, 17.1% better than EEMD-GCN, and 14.9% better than EMD-CEEMDAN-GCN. The MAPE (Mean Absolute Percentage Error) metric of GARCH-CEEMDAN-GCN is 74.7% better than GCN, 19.0% better than EMD-GCN, 15.4% better than EEMD-GCN, and 7.5% better than EMD-CEEMDAN-GCN. The R2 (R Squared) metric of GARCH-CEEMDAN-GCN is 111.1% better than GCN, 2.2% better than EMD-GCN, 1.1% better than EEMD-GCN, and 1.1% better than EMD-CEEMDAN-GCN.

The experiments on these three datasets show that the proposed model performs poorly on the Air Quality dataset in terms of MAE, MSE, MAPE, and R2 metrics. However, on the Energy and Traffic datasets, the proposed model performs optimally in all indicators. Taken together, the performance of the proposed GARCH-CEEMDAN-GCN hybrid forecasting model is superior to GCN, EMD-GCN, EEMD-GCN, EMD-CEEMDAN-GCN, and GARCH-CEEMDAN-GCN models. This also verifies that using the GARCH model to further preprocess the data can enhance the analytical power of subsequent parts of the model.


In our study on time series forecasting using a hybrid model of deep learning and GARCH for non-stationary series, we found that the integration of deep learning significantly enhances pattern recognition capabilities, particularly in complex and evolving datasets where traditional models fall short. The inclusion of GARCH modeling proved invaluable for handling the inherent variability and volatility, a feature especially pertinent in financial markets. While the model outperforms traditional methods in certain aspects, challenges such as model complexity, computational demands, and the risk of overfitting were notable. These limitations underscore the need for careful data preprocessing and model tuning. The model's practical applications are broad, offering potential benefits in sectors like finance, energy, and retail for improved forecasting and decision-making. However, its practical deployment necessitates balancing its sophisticated capabilities with its computational and expertise requirements. Future research should focus on enhancing interpretability, reducing computational overhead, and exploring adaptability to various types of non-stationary data, considering the ethical and societal implications in sensitive applications like economic forecasting. This study opens avenues for more nuanced and robust forecasting methods in the face of increasingly complex data landscapes.

The practical implications of a time series-forecasting model that combines deep learning with GARCH modeling for non-stationary series are significant and diverse. This approach offers a powerful tool for extracting intricate patterns from complex and evolving data, which is highly relevant in areas like finance, where market volatility and economic indicators show non-stationary behaviors. By leveraging deep learning, the model can identify and learn from underlying patterns and relationships in the data that traditional models might miss. This leads to potentially more accurate and nuanced forecasts, essential for risk management, investment strategies, and economic planning. The use of GARCH modeling adds the ability to understand and predict the variability and volatility in the time series, a crucial aspect in financial forecasting and decision-making processes. Moreover, this hybrid modeling technique can be beneficial in other sectors like weather forecasting, energy consumption analysis, and demand forecasting in retail, where understanding and predicting complex, non-linear patterns is crucial. However, its practical application requires careful consideration of its complexity, computational demands, and the need for expert knowledge in both deep learning and time series analysis.

The proposed method of time series forecasting for non-stationary series using deep learning and GARCH (Generalized Autoregressive Conditional Heteroskedasticity) modeling, while innovative and potentially powerful, does have several limitations:

  • Complexity and Computation Requirements: The integration of deep learning with GARCH modeling results in a complex model structure. This complexity requires significant computational resources for training and inference, especially with large datasets, making it less accessible for smaller organizations or individuals with limited computational capacity.

  • Overfitting Risks: Deep learning models, due to their high parameter count and flexibility, are prone to overfitting, especially when the available data is not sufficiently large or diverse. This can lead to models that perform well on training data but poorly on unseen data.

  • Data Sensitivity and Preprocessing: The performance of this approach heavily depends on the quality and preprocessing of the input data. Non-stationary time series data often require careful preprocessing, such as detrending and deseasonalization, to ensure meaningful patterns are learned.

  • Model Interpretability: Deep learning models, particularly those with complex architectures, suffer from a lack of interpretability. Understanding the internal workings and decision processes of these models can be challenging, which may be a critical drawback in fields where explainability is crucial.

  • Parameter Tuning and Model Selection: The success of the model heavily depends on the choice of architecture for the deep learning component and the parameters of the GARCH model. Finding the optimal configuration requires extensive experimentation and expertise, which can be time-consuming and resource-intensive.

  • Sensitivity to Market Conditions (for financial time series): In financial applications, the model's performance can be highly sensitive to market conditions. Non-stationary series in finance are often influenced by unpredictable external factors, which can lead to significant forecast errors.

  • Generalization Across Different Domains: While the model might be effective for specific types of non-stationary time series, its performance may not generalize well across different domains or types of time series data.

  • Dependency on Historical Data: GARCH models and deep learning both rely heavily on historical data. In situations where historical data may not fully capture future trends or patterns (such as unprecedented economic events), the model's predictions may be less accurate.

  • Training Time: Due to the complex nature of combining deep learning with GARCH models, the training time can be significantly longer than more traditional time series forecasting methods.

  • Requirement for Expert Knowledge: Implementing and tuning this hybrid model requires a deep understanding of both deep learning and econometric models like GARCH. This expertise may not be readily available in all organizations.

  • These limitations highlight the need for careful consideration and possibly the integration of additional techniques or methodologies to address specific challenges when applying this model to real-world time series forecasting problems.


This study explores a hybrid time series prediction model that combines the GARCH-CEEMDAN-GCN model. The model uses a novel approach to preprocess input data for better analysis, then utilizes CEEMDAN for further data decomposition, reducing the complexity of the sequence data and enhancing the ability of the predictive model to learn data correlations and characteristics. In selecting the predictive model, we chose the GCN for its fewer parameters and excellent data learning abilities. Through observing the experimental results, we can find out the following:

  • In predicting time series data, the hybrid prediction model with the GARCH data handling and signal decomposition steps produces better experimental results than single prediction models.

  • When input data is preprocessed through the GARCH model, the convenience of data analysis is further enhanced.

  • The application of the signal decomposition method allows the predictive model to handle input data with reduced complexity without having to deal directly with complex raw data, making it easier for the predictive model to learn data relationships and extract features.

  • Comparative experimental results show that our proposed GARCH-CEEMDAN-GCN based hybrid model offers the best prediction accuracy, is stable, and has strong data fitting capabilities. Furthermore, this model that we proposed can be used to predict time series data in other practical applications, such as forecasting stock prices and temperature changes, demonstrating its significant practical value.
