Abstract

The Internet of Things has the potential of transforming health systems through the collection and analysis of patient physiological data via wearable devices and sensor networks. Such systems can offer assisted living services in real-time and offer a range of multimedia-based health services. However, service downtime, particularly in the case of emergencies, can lead to adverse outcomes and in the worst case, death. In this paper, we propose an e-health monitoring architecture based on sensors that relies on cloud and fog infrastructures to handle and store patient data. Furthermore, we propose stochastic models to analyze availability and performance of such systems including models to understand how failures across the Cloud-to-Thing continuum impact on e-health system availability and to identify potential bottlenecks. To feed our models with real data, we design and build a prototype and execute performance experiments. Our results identify that the sensors and fog devices are the components that have the most significant impact on the availability of the e-health monitoring system, as a whole, in the scenarios analyzed. Our findings suggest that in order to identify the best architecture to host the e-health monitoring system, there is a trade-off between performance and delays that must be resolved.

Keywords

  • Cloud computing
  • Data center failure
  • Emergency call service
  • Availability
  • Edge computing
  • Fog computing
  • e-health

Introduction

The rapid emergence, ubiquity, and convergence of social media, mobility, cloud computing, big data and data analytics, and the Internet of Things (IoT) are transforming how society operates and interacts with each other. Unsurprisingly, the health sector is a major focus of IoT research by both academia and industry due to its potential to reduce costs, increase patient quality of life, and enrich the patient experience [1]. Authors in [2] suggest that the underlying concept of IoT is the pervasive presence of a variety of connected things that can interact with each other and cooperate with their neighboring devices (things) to reach common goals. Things can be sensors, actuators, smart phones, computers, home/work appliances, cars, and any other object that can be connected, monitored and/or actuated [3]. IoT applications have the potential of significantly impacting the everyday-life of users, and are visible in many aspects of modern society including smart cities, smart factories, traffic control, assisted living, e-health etc.

IoT is not without its challenges. The relatively small size and heterogeneity of connected edge devices typically results in limited storage and processing capacity, and consequential issues regarding reliability, performance, and security [4]. These limitations are exacerbated when one considers that IoT applications typically require significant data storage and processing as well as high-speed broadband networks to enable real-time decision making [5]. For instance, in the case of e-health monitoring systems, while the data generated by sensors could be used in diagnostic scenarios ranging from spine injuries to heart disease to cancer, medical image analysis often requires high performance processing and storage resources that are not available from edge devices.

Some of these IoT issues can be mitigated by integrating fog and cloud computing (hereafter referred to as as IoT-to-cloud (I2C) system, crossing from edge devices, fog devices and cloud infrastructure). Cloud computing is now a relatively mature technology and offers IoT use cases improved processing and storage capabilities, scalability, and availability. Fog computing, a relatively new paradigm recognizes the limitations of existing telecommunications networks and connected devices. It extends the cloud paradigm to the edge of the network thereby enabling and supporting vertically-isolated, latency-sensitive applications [6, 7]. Many applications require both fog localization and cloud globalization particularly for data analytics and big data use cases. Fog is particularly well suited to real-time streaming analytics as opposed to historical, big data batch analytics that is normally carried out in a data center [8].

Despite the advantages that cloud and fog computing bring to IoT applications, they also introduce an added layer of management complexity. While improving availability, they introduce new points of failure beyond the discreet IoT device i.e. failures in fog devices and cloud infrastructure components, or as a whole. Availability is critical in many e-health applications particularly those that are actively monitoring patient health and informing decisions by the patient or their health professionals. Any downtime in critical e-health monitoring systems or lost data, including loss of data to the patient, results in any subsequent medical analysis being compromised, putting the patients well-being and life at risk.

Traditional e-health monitoring systems adopt a continuous monitoring strategy. According to [9], “such long-term monitoring consumes storage, uses energy for multiple sensors and sinks, increases computational costs required to analyze data, and increases network usage leading to transmission failures”. As a result, in addition to availability analysis, the system performance requires additional analysis to identify system bottlenecks and propose solutions to mitigate or resolve them.

However, results from pure availability analysis tend to be simplistic since models consider that a system has only two states (functioning or failed). On the other hand, “pure performance analysis of a system tends to be optimistic since it ignores the failure/repair behavior of the system” [10]. To address these issues, we combine availability and performance modeling and analysis to present a more robust evaluation of the target system, in this case an e-health monitoring system.

Some existing works from the literature, such as [1114], have proposed models for e-health systems in the IoT context. However, none of them have considered the integrated scenario relying on edge, fog, and cloud infrastructures. Similarly, both availability and performance models are not tested. Only [14] has considered a real testbed to perform experiments however in this case, they did not present e-health use cases. As such, this paper extends the state of the art through the following contributions:
  • we propose stochastic availability models to understand how failures in edge devices, fog devices, and/or cloud infrastructure impacts on e-health monitoring system availability. These models will also be used to perform sensitivity analysis to understand which components have a significant impact on the I2C-based e-health monitoring system availability;

  • we implement a prototype to conduct performance evaluations in order to feed the stochastic models with real data. This prototype is composed of two different configurations of fog devices, two different network connections to access the cloud instance, and four different geo-locations of cloud instance in order to characterize the heterogeneity of I2C-based systems; and

  • we propose stochastic performance models integrated with the availability models, and real data outputted from the prototype in order to understand how different capacity of fog devices and also different geo-location of cloud instances impact on performance metrics, such as throughput and service time.

The remainder of this paper is organized as follows. Section 3 describes related works. In Section 3, key concepts used in the study are presented. This is followed by our approach to modelling the e-health monitoring system in Section 3. We then present our results in Section 3. The paper concludes in Section 3 with a summary of our work and avenues for further research.

Related work

A number of extant works have proposed solutions to deal with IoT applications integrated with fog and cloud computing. For instance, an analytical model is used in [15] to decide where to process the data obtained from the IoT devices considering renewable energy consumption and the Quality of Service (QoS) of the application. To validate their model, the authors presented a video stream analysis application, where vehicles transmit data on road conditions, such as objects located on the road, to the cloud. This data is then analyzed and shared with other drivers as potential dangers. In [16], authors propose a QoS-aware service distribution strategy that takes in to account both service requirements and resource offerings in a fog-to-cloud scenario including parameters such as energy consumption balance and delay between the fog and cloud.

While these works propose models and evaluate I2C integration, they explore different domains with different levels of criticality. E-health monitoring systems, the focus of our study, has specific constraints not dealt with in the aforementioned works including the load generated by the sensors. Authors in [11] propose a model to represent and evaluate the security of information flow in IoT systems integrated with cloud, using a medical application as an example. They analyzed how service provider availability affects the security of the information flow. Similarly, the authors in [11] use a medical application as a case study for their proposed model analyzing the security of the information flow in IoT systems integrated with cloud infrastructures. In [12], the authors propose a framework that enables multiple applications to share IoT computational devices for health monitoring. The use case scenario in [13] is a wearable IoT architecture for health care systems. In [14], the authors propose stochastic models to represent a health service relying on mobile cloud computing infrastructure (i.e. cloud infrastructure, wireless communication and mobile device). Experiments were conducted considering scenarios with different wireless communication channels (Wi-Fi and 4G), different battery discharge rates, and different timeouts.

Our work differs from these works on e-health applications because we consider an e-health I2C-based system that relies on edge, fog and cloud infrastructures. Based on this novel and emerging scenario, we propose stochastic models to evaluate the availability and performance of this system in three different scenarios. We are also conduct a sensitivity analysis to understand how different values of MTTF and MTTR impact on the availability of the system as a whole. Furthermore, we perform experiments using a prototype in order to obtain real data to use as an input to our stochastic models to give more realistic results and associated discussion.

Background

This section presents our understanding of basic concepts key to this paper including definitions of edge, fog, and cloud computing in Section 3. A brief description of the modeling approaches used in this work is presented in Sections 3 and 3.

Cloud, edge and fog computing

NIST defines cloud computing as “... a model for enabling ubiquitous, convenient, on-demand network access to a shared pool of configurable computing resources (e.g., networks, servers, storage, applications, and services) that can be rapidly provisioned and released with minimal management effort or service provider interaction” [8]. The opportunities presented by the cloud computing paradigm for IT efficiencies and business agility enabled by scalability, rapid deployment, and parallelisation are very attractive to enterprises of all sizes and sectors (Kim, 2009).

Cloud computing and IoT can be viewed as two complementary technologies. The Cloud can compensate for the technological constraints of IoT devices, namely processing, storage and energy limitations, by offering a scalable, cost-effective solution for IoT use cases. Similarly, IoT extends the utility and value of the cloud out in to the real world where enterprises and end users interact with a wide variety of industrial and consumer settings [4]. Thus creating new economic value for both the public and private sector driven through increased asset utilization and employee productivity, improved supply chain and logistics, optimized customer experience, and accelerated innovation [17, 18].

With the proliferation of connected devices and associated IoT applications, massive volumes of data are being generated at the edges of networks. For a variety of reasons including intermittent connectivity and local quality of service (QoS) expectations, in many instances data is processed locally [19]. This scenario where computation happens at the smart end device at the edge of the network, and the related limitations associated with computation at the extreme network periphery, is increasingly referred to as edge computing [20]. According to NIST [21], “edge is the network layer encompassing the smart end devices and their users to provide, for example, local computing capability on a sensor, metering or some other devices that are network-accessible”.

The wide geographic distribution of IoT smart end-devices results in IoT applications usually requiring location-awareness and low latency which provides challenges for conventional cloud infrastructure [22]. To address these challenges, fog computing has been proposed as a practical solution to enable the smooth interaction between cloud and edge devices for content delivery and real-time data processing [23]. NIST define fog computing as [21], “...a horizontal, physical or virtual resource paradigm that resides between smart end-devices and traditional cloud or data centers. This paradigm supports vertically-isolated, latency-sensitive applications by providing ubiquitous, scalable, layered, federated, and distributed computing, storage, and network connectivity”. Similar to cloud, fog computing is a virtualized platform that provides intermediary computation services, both hardware and software, between smart end-devices and traditional cloud data centers [7, 22]. Thus, fog devices are situated closer to the edge devices and can provide limited computational power for a lighter processing of the data collected by the edge devices, as illustrated in Fig. 1.
Fig. 1
Fig. 1

IoT system integrated with cloud and fog computing applied in a smart city scenario

Cloud and fog infrastructures, when integrated, can provide virtually unlimited computational capacity for IoT applications however the QoS and the availability of the cloud infrastructure and fog devices becomes critical dependencies in the overall system. The availability of IoT applications can be impacted by several factors including IoT and fog device failures, as well as issues relating to the cloud infrastructure that impact QoS and availability. The impact of these failures can be exacerbated by the complexity, interdependencies and interconnectivity of the overall integrated system. As discussed earlier, there are many IoT e-health use cases where unavailability of service (even if only for a few seconds) can result in negative patient outcomes ranging from inconvenience to misdiagnosis, and in extreme cases, death. To understand the impact of e-health monitoring system unavailability resulting from fog and cloud failures, we model this scenario using a combination of Stochastic Petri Nets (SPN) and Reliability Block Diagrams (RBD).

Reliability block diagrams

RBD is an instrument that allows relationships to be created amongst the components of a system and is frequently used to perform analyses, such as availability, maintainability, reliability allocation and design improvement decisions based on them [24].

According to [25], an RBD aims to represent the behavior of a system using a graphical structure composed of connected blocks. There are two basic types of configuration: serial and parallel. The former is composed of serial nodes to represent the components of the system. It is similar to logical AND gates i.e. if at least one component fails, the whole system also fails. The latter is composed of parallel nodes that are similar to logical OR gates i.e the system is considered in fault only if all components fail [26, 27].

RBDs are commonly used due their simplicity, but they can not be used to represent systems with more complex behavior [28]. Thus, Stochastic Petri Nets (SPNs) can be used to overcome this deficiency of RBDs.

Stochastic petri nets

A Petri Net is defined as a directed bipartite graph that can be used in modelling and describing information systems; it contains components in its structure such as sets of places and transitions [29, 30]. Petri Nets are called stochastic when each one of the its transitions are associated with a random firing delay that follows a stochastic process (normally following an exponential distribution) [31].

The main components of an SPN are shown in Fig. 2. Places (a) are represented as white circles, while tokens (b) are represented by black circles. Tokens are attached to places, and a set of tokens associated in places can represents a state of system modeled. Transitions are represented by bars and can be enable according preconditions. Transitions can also be divided in to two types: (c) immediate (activated by distribution probability) and (d) timed (activated instantly). Arcs (e) (f) connect places and transitions together and may have weight [32].
Fig. 2
Fig. 2

SPN graphical elements

Sensitivity analysis

In [33], sensitivity analysis is defined as a paradigm that studies how the variation in output is associated to the variation of different inputs of a numerical model. Sensitivity analysis commonly presents some questions that are associated with it, such as “Is there any factor whose variability has a negligible effect on the output?” and “What input factors cause the largest variation in the output?”. Sensitivity analysis targets different points according the application in focus and it can be used to explore several features of a model and an application. The objectives can cover regions of sensitivity, factor importance and function, factor interdependence, assessment of the similarity, factor and model reduction, and uncertainty apportionment [34]. The most common method of conducting sensitivity analysis is to repeat the experiment by varying only one parameter of the system, while the others remain fixed [35] and doing the same for all components of the system. At the end of the experiment, a sensitivity ranking is generated based on the analysis of the outputs obtained from each observation.

Modeling an e-health monitoring system

Handling massive amounts of data can also impair the system in triggering relevant and timely decision making and actuation. In order to enhance the reliability of data transmission and the availability of highly relevant contextual information, there is a need to define efficient data summarizing and filtering mechanisms that can be applied with a conditional scheme [9].

E-health monitoring system

The popularization of smart end devices, tied to the advances in information and network technologies in recent years, have made possible the development of cheaper and more affordable medical systems. IoT has played an important role in the evolution of these systems, providing (low cost) sensors to monitor many aspects of patient life [36].

As described previously, edge devices can use cloud computing to improve the availability and performance of medical applications. For instance, Sierra wireless1 enables the connection between IoT devices and cloud computing infrastructure to collect and analyze real time data from hospitals and home health monitoring devices [36]. As an e-health monitoring system monitors a patient continuously, it collects vast amounts of data that needs to be analyzed in relative real-time without interruption. Significant delays in receipt of data can compromise the efficacy of an e-health application and impact the patient’s well-being and health. In this case, according to [8], fog is positioned to play a significant role in the ingestion and processing of the data close to the source as it is being produced.

In this work, we propose an architecture to represent the behavior of an e-health monitoring system that relies on sensors, fog devices (such as Raspberry Pi2) and cloud infrastructure (public or private cloud services) to process and store patients vital signs data. Figure 3 presents our proposed architecture. We assume that patients have sensors (such as blood sugar measurement, heartbeat monitoring, and epileptic seizure detection) that collect the relevant physiological data and these sensors are coupled to a microcontroller (such as Arduino3). We also assume that we have two different applications that consume collected data: (a) a fog application, and (b) a cloud application. We refer to these applications as web applications.
Fig. 3
Fig. 3

An e-health monitoring system architecture

The fog application can check the normality of the data and, in the case of an anomaly, the application may instigate an action e.g. a call to an emergency service. Physiological data may be sent to the cloud application for further processing e.g. to train a machine learning algorithm to examine a patient’s condition over time and to compare one patient against a larger population to help doctors to provide better treatment4.

Given this architecture, we consider three different availability scenarios (see Fig. 4) in which our e-health monitoring system is implemented:
  • Scenario 1: The e-health monitoring system availability depends on all components of the system i.e. a failure in any of them will result in a system failure. This scenario does not present redundancy and the two applications are complementary i.e. when one of them fails, the system becomes unavailable. Data is sent to fog devices to perform some pre-processing that does not require large computational capacity. Later, the data is sent from the fog device to a cloud server to complete the processing and stored. A similar scenario is presented in [37];
    Fig. 4
    Fig. 4

    E-health monitoring system scenarios

  • Scenario 2: The e-health monitoring system relies only on the cloud application and infrastructure to send patient vital signs data. As such, the system availability estimation does not take in account the fog application and fog device; and

  • Scenario 3: This scenario is similar to scenario 2 but here the system relies only on the fog application and infrastructure to receive the patient data; the e-health monitoring system availability estimation does not consider the cloud application and cloud infrastructure.

Stochastic models

We use the Mercury tool5 to model the e-health monitoring system and evaluate its availability and performance.

Availability models

Figure 5 shows our SPN model representing the whole e-health monitoring system. We consider the following components: the sensor, the microcontroller (in this work, the sensor and the microcontroller are represented in an edge device), fog device, and cloud data center. To represent these components, we utilize building blocks composed of two places (one to represent when the component is working (ON) and another to represent the failure (DOWN)), and two transitions (that represent (i) the failure and (ii) the repair of a specific component).
Fig. 5
Fig. 5

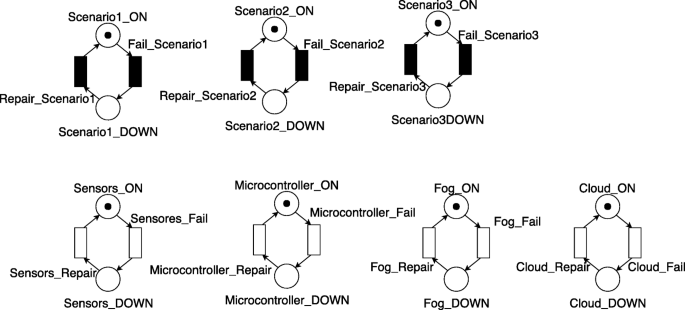

E-health monitoring system model

By way of illustration, in the cloud building block, the place Cloud_ON represents that the cloud provider is running, and the place Cloud_OFF that it has failed or unavailable. The transition Cloud_Fail represents the cloud failure event (mean time to failure (MTTF) value), while Cloud_Repair represents the time to repair the cloud infrastructure (mean time to repair (MTTR) value). In this work, we consider that all failure and repair times are exponentially distributed [38, 39]. The other three components (sensors, microcontroller, and fog) follow the same logic.

Moreover, there are another three building blocks with immediate transitions (in the top of the figure) that represent the system status in different scenarios. From left to right, those building blocks represent scenario 1, 2 and 3 respectively (described in Section 3). Each scenario has a building block composed of ON and DOWN places and two immediate transitions. These places have the same semantic meaning as the previous ones, as well as the transitions. The difference is that each transition is activated through a guard function instead of MTTF or MTTR values. These functions are presented in Table 1.
Table 1

Guard functions

Transition

Guard Function

Fail_System_1

(#Sensors_ON=0)OR(#Microcontroller_ON=0)OR (#Fog_ON=0)OR(#Cloud_ON=0)

Repair_System_1

(#Sensors_ON=1)AND(#Microcontroller_ON=1)AND (#Fog_ON=1)AND(#Cloud_ON=1)

Fail_System_2

(#Sensors_ON=0)OR(#Microcontroller_ON=0)OR (#Cloud_ON=0)

Repair_System_2

(#Sensors_ON=1)AND(#Microcontroller_ON=1)AND (#Cloud_ON=1)

Fail_System_3

(#Sensors_ON=0)OR(#Microcontroller_ON=0)OR (#Fog_ON=0)

Repair_System_3

(#Sensors_ON=1)AND(#Microcontroller_ON=1)AND (#Fog_ON=1)

To provide more details about the fog device and cloud server that host an application, we modeled them as an RBD. To represent the fog device (Fig. 6), we consider it is composed of hardware (HW), an operating system (OS), and the application (APP) that consumes the vital signs data from the patients. If any of these components fail, we consider that the fog device is unavailable and then the RBD is in series.
Fig. 6
Fig. 6

Fog device model

The cloud server (Fig. 7) is composed of hardware (HW), an operating system (OS), a virtual machine (VM), and an application (APP) that will process the patients data to improve their treatment. We also consider that the failure of any component entails the cloud unavailability (RBD in series too).
Fig. 7
Fig. 7

Cloud server model

The availability of each of the three scenarios is the probability of having a token in the place that represents the state ON of the respective building block (see Fig. 5). To model the availability metric in our SPN, we utilize the following expression:
$$ P{\{{scenario}_{x}\_ON\}>0} $$
(1)

where x is the number of the scenario (from 1 to 3), as described previously.

Performance model

In this work, we consider a selection of performance metrics based on [40]. To represent the clients requesting service, we consider a queuing system M/M/1/K, meaning that the arrival process is a Poisson process with rate λ (M), the service time is independent and exponentially distributed with parameter μ (M), there is only a single server to process the requests (1), and the capacity of the system is limited (K). This queue configuration allows the evaluation of relevant aspects of the system, such as the impact of different arrival times and different queue capacities [41]; it is commonly used to represent cloud requests ([4246]).

In order to illustrate how these performance metrics were modeled using an SPN approach, consider the simple queue model shown in Fig. 8. The transition T1 represents the arrival of clients while transition T2 represents the service time. We consider that both arrival time (AT) and service time (ST) are exponentially distributed [47, 48]. The place P1 represents requests that are in service. The place P2 represents when the system resource (e.g. a web server) is running, while P3 represents when a resource is in failure. Transitions T_failure and T_repair represent the failure and the repair of the resource, respectively. T2 only fires when there is a token in place P2 i.e. when the resource is running and this behavior is assured by guard function #P2>0. The place P4 represents the total capacity K that the system can withstand. In other words, it is the number of requests can be queued in system.
Fig. 8
Fig. 8

SPN model to represent a simple queue

In this work, we consider the following performance metrics6:
  • Throughput (TP): can be defined as the rate requests can be serviced by the system. Generally, the TP of a system increases as the load on the system increases. However, after a certain load level, the TP stops increasing, and, in most cases, even starts decreasing. In our system, the TP represents the number of requests the web applications (fog or cloud applications) can process. Taking into account the queue presented in Fig. 8, TP can be calculated as the probability of having tokens in place P1 (requests in queue) and in place P2 (system working) multiplied by the service rate:
    $$ TP=P\{(\#P1>0)AND(\#P2>0)\}\times(1/ST) $$
    (2)
  • Service Time (ST): is, in a simplified way, the interval between a user’s request and the system response. In our system, we can define the interval between the HTTP request from the microcontroller and the response time of the web application (hosted either in the fog or cloud). Service time can be calculated as the number of tokens expected in place P1 divided by throughput:
    $$ ST = E\{\#P1\}/(P\{\#P1>0\}\times(1/ST)) $$
    (3)
In this way and considering the proposed metrics to represent the e-health monitoring system performance, we propose the SPN model presented in Fig. 9.
Fig. 9
Fig. 9

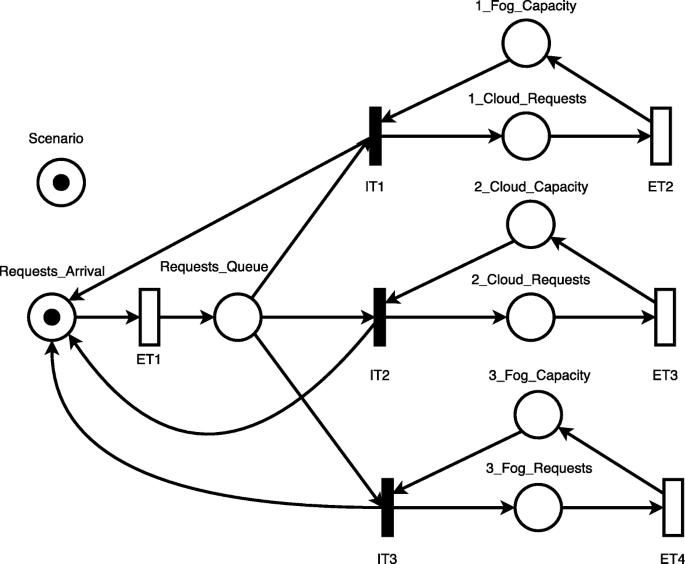

Performance model of e-health monitoring system

This model is composed of three queues with each one representing a different scenario. The place Requests_Arrival indicates that there is data from the sensor to be sent to the web application. The stochastic transition ET1 indicates the arrival time of requests; it only fires when the sensor is working. Place Requests_Queue stores tokens that represent requests that will be sent to a web application. The immediate transitions IT1, IT2, and IT3 will fire in accordance with the number of tokens present in place Scenarioindicating the evaluated scenario.

Scenario 3 is an example where queue behavior is described in the model. The immediate transition IT3 will fire only when the microcontroller is working and there are three tokens in place Scenario as in scenario 3. The place 3_Fog_Capacity represents the capacity of a fog device, that is, how many requests a fog device can process simultaneously, through number of tokens in this place. The place 3_Fog_Requests represents the number of requests are being processed by a fog device. When IT3 fires, one token is consumed from place 1_Fog_Capacity and one token is produced in place 1_Fog_Requests and in place Requests_Arrival, enabling new requests arrive in the fog device. The stochastic transition ET4 represents the mean time for a fog application to process a request. When ET4 fires, one token is consumed from place 3_Fog_Requests and one token is produced in place 3_Fog_Capacity again (retrieving the capacity that was being consumed). Scenario 2 is modeled in a similar way but it is represented by places 2_Cloud_Requests and 2_Cloud_Capacity, and transitions ET3 and IT2.

Scenario 1 behaves similarly to the others, with only one difference: the immediate transition IT1 will fire when there is one token in place Scenario and when the microcontroller and fog device are working, because these devices are responsible for sending data to the cloud instance. We assume that this scenario is limited only by the capacity of fog device once all requests to the cloud are sent by the fog device, and that the cloud has superior capacity than the fog devices. So, the number of tokens in place 1_Fog_Capacity represents the capacity of a fog device while place 1_Cloud_Requests represents the number of requests being processed in the cloud instance in scenario 1. The stochastic transition ET2 represents the time to process a request in scenario 1.

All of these behaviors are assured by guard functions presented in Table 2. Some of these guard functions connect the performance model with our availability model (Fig. 5)in order to evaluate failure impact on system performance metrics. The equations to compute the performance metrics (throughput and service time) are presented in Table 3 and follow the same logic presented previously.
Table 2

Guard functions of performance model

Transition

Guard function

ET1

#Sensor_up>0

ET2

#Cloud_up>0

ET3

#Cloud_up>0

ET4

#Fog_up>0

IT1

(#scenario=1)AND(#Microcontroller_ON>0)AND(#Fog_ON>0)

IT2

(#scenario=2)AND(#Microcontroller_ON>0)

IT3

(#scenario=3)AND(#Microcontroller_ON>0)

Table 3

Equations for performance metrics

Scenario

Metric

Equation (Mercury tool sintaxe)

1

Throughput

P{(#1_Cloud_Requests>0)AND(#Cloud_ON>0)}*(1/ST_Fog_Cloud)



Service time

E{#1_Cloud_Requests}/(P{#1_Cloud_Requests>0}*(1/ST_Fog_Cloud))

2

Throughput

P{(#2_Cloud_Requests>0)AND(#Cloud_ON>0)}*(1/ST_Cloud)



Service time

E{#2_Cloud_Requests}/(P{#2_Cloud_Requests>0}*(1/ST_Cloud))

3

Throughput

P{(#3_Fog_Requests >0))AND(#Fog_ON >0)}*(1/ST_Fog)



Service time

E{#3_Fog_Requests}/(P{#3_Fog_Requests >0}*(1/Fog_Cloud))

Prototyping a e-health monitoring system

Our main goal of building and performing experiments in a prototype is to acquire real data to feed our analytical models. This prototype represents a simplified version of the architecture illustrated in Fig. 3. With this prototype we measure the time to send data from the sensor to both the fog device and the cloud infrastructure.

Prototype infrastructure description

The prototype infrastructure is composed of two edge devices, two fog devices, and a cloud with four different geo-locations. Depending on the scenario, the amount of devices can vary. Figure 4 describes scenarios considered in this work. Table 4 describes the hardware specifications of the edge and fog devices, and the geo-locations of cloud instances.
Table 4

Prototype infrastructure components

Device

Type

Specification

Edge device

Heart rate sensor

Operate from 3 V to 5 V

Edge device

Arduino UNO

Clock speed 16 MHz, SRAM 2 KB, Flash Memory 32 KB

Fog device

Raspberry Pi 3

Quad Core 1.2GHz CPU, 1GB RAM and 802.11n wireless

Fog device

Netbook

Intel Atom processor 1.6GHz, 2GB RAM and 802.11b/g/n wireless

Cloud

Elastic Compute Cloud (EC2)

Four different geographic locations: (a) Sao Paulo/Brazil, (b) California/USA, (c) London/England, and (d) Tokyo/Japan.

Considering all the components described in Table 4, we can have different configurations for each scenario. For instance, Table 5 shows all possible combinations of component configurations related to scenario 1. Scenario 1 has 18 combinations while scenarios 2 and 3 both have four combinations.
Table 5

Component configurations of scenario 1

Scenario

Configuration

Edge device

Edge device

Fog device

Fog device network

Cloud location

1

1

Heart rate sensor

Arduino UNO

Raspberry Pi 3

Ethernet

Sao Paulo/Brazil



2

Heart rate sensor

Arduino UNO

Raspberry Pi 3

Ethernet

California/USA



3

Heart rate sensor

Arduino UNO

Raspberry Pi 3

Ethernet

London/England



4

Heart rate sensor

Arduino UNO

Raspberry Pi 3

Ethernet

Tokyo/Japan



5

Heart rate sensor

Arduino UNO

Raspberry Pi 3

IEEE 802.11

Sao Paulo/Brazil



6

Heart rate sensor

Arduino UNO

Raspberry Pi 3

IEEE 802.11

California/USA



7

Heart rate sensor

Arduino UNO

Raspberry Pi 3

IEEE 802.11

London/England



8

Heart rate sensor

Arduino UNO

Raspberry Pi 3

IEEE 802.11

Tokyo/Japan



9

Heart rate sensor

Arduino UNO

Netbook

Ethernet

Sao Paulo/Brazil



10

Heart rate sensor

Arduino UNO

Netbook

Ethernet

California/USA



11

Heart rate sensor

Arduino UNO

Netbook

Ethernet

London/England



12

Heart rate sensor

Arduino UNO

Netbook

Ethernet

Tokyo/Japan



13

Heart rate sensor

Arduino UNO

Netbook

IEEE 802.11

Sao Paulo/Brazil



14

Heart rate sensor

Arduino UNO

Netbook

IEEE 802.11

California/USA



15

Heart rate sensor

Arduino UNO

Netbook

IEEE 802.11

London/England



16

Heart rate sensor

Arduino UNO

Netbook

IEEE 802.11

Tokyo/Japan

In scenario 1, we use a heart rate sensor as the edge device 7. This sensor reads the heart beats using an amplified optical sensor to estimate the heart beat per minute (BPM), the signal, and the interval between beats (IBB) of the patient. This sensor is attached to the Arduino platform, UNO8, that actuates as a microcontroller.

To send the vital signs data generated from the sensor to equipment with better computational capacity, for example a fog or cloud device, we use an Ethernet shield 9 module to enable the Arduino to send data to superior layers. An Arduino sketch was developed that reads data from the heart rate sensor and periodically sends the data (through HTTP requisitions) to a web application hosted in the fog and cloud layers.

Currently, a number of specialized IoT communication protocols have been developed such as Message Queuing Telemetry Transport (MQTT) 10 and Constrained Application Protocol (CoAP) [49] in order to provide a lightweight communication protocol to support IoT device communication. However, it is still useful implement a HTTP-based application, since HTTP is the most common protocol used for Internet communication, and according to [50], IoT applications usually adopt HTTP as the messaging protocol in order to support REST interfaces. In this way, we implemented our prototype following a RESTful architecture using HTTP to send data from sensors to a fog device and to cloud infrastructure.

To represent the fog device in our prototype, we use two different devices: (a) Raspberry Pi 3 11, with Quad Core 1.2GHz CPU and 1GB RAM; and (b) Netbook CCE with Intel Atom processor 1.6GHz with 2GB RAM. Both devices were connected to the Arduino by using the same network (Ethernet and IEEE 802.11), also located in Recife, Brazil.

The public cloud environment used is the Elastic Compute Cloud (EC2) from Amazon Web Services (AWS)12. EC2 allows users to easily create, launch, stop, or terminate one or multiple instances as well as selecting the operating system and applications [51]. Also, it is possible to select the geographic region in which the instance will be hosted. As such, in order to measure the impact of location on each instance, we created instances in four different geographic regions: (a) São Paulo/Brazil, (b) California/USA, (c) London/England, and (d) Tokyo/Japan.

Prototype applications description

On the fog and cloud computing side, we configured a web application that receives and processes data from the edge device. This web application was implemented using Python and Flask13. In addition, we use Apache as a container for both applications. Figure 10 shows an example considering the scenario 1.
Fig. 10
Fig. 10

Example of prototype configuration in scenario 1

We use the same web application in scenarios 2 and 3, however the cloud and fog applications differ in scenario 1. In scenario 1, the fog application receives data from the Arduino and sends the data to the cloud application. After it receives a cloud response, the fog device returns a response to the Arduino. In scenarios 2 and 3, the cloud and fog applications receive and process requests directly from the Arduino and send back a confirmation response to the Arduino platform.

Prototype measurement methodology and results

To recap, we have now defined three different scenarios (Fig. 4), and have two different fog devices, two different network connections, and four different cloud geo-locations. Furthermore, for each scenario we have multiple configurations.

Figure 11 shows the methodology used to setup the devices according to each scenario used in our experiments, while Fig. 12 shows the methodology used to perform the experiments. Note: the interval between requests was set up to 2 s, totaling 102 requests for each experiment.
Fig. 11
Fig. 11

Methodology for configuring devices according to each scenario

Fig. 12
Fig. 12

Methodology for performing measurements with the prototype

Table 6 shows the average time (and the standard deviation) obtained from our measurements. In scenario 1, one can see that the geographic location of the cloud instances impacts performance. For example, the Netbook connected to the São Paulo instance using the Ethernet option had a mean delay of 197.84 ms, while the mean service time for the Tokyo instance was 586.02 ms. In this case, there is an increase of 196.20% due to geographical distance. As expected, the connection type also impacted delay. For example, with the Netbook connected to the cloud instance located in São Paulo, the delay increases 31.83% when we changed the Ethernet connection to IEEE 802.11 (from 197.84 ms to 260.81 ms respectively). However, when the Raspberry Pi was used as a fog device, the impact of the network connection was less. Delay from the Raspberry Pi using the Ethernet to a cloud instance located in São Paulo was 207.15 ms, while using IEEE 802.11 was 215.61 ms, an increase of only 3.92%. The largest impacts recorded related to the Netbook can be explained by the network card.
Table 6

Results from prototype experiments

Scenario configuration

Average time (in ms)

Standard deviation

scenario 1 : Netbook (Ethernet) → São Paulo

197.84

4.6487

scenario 1 : Netbook (Ethernet) → California

432.04

10.4320

scenario 1 : Netbook (Ethernet) → London

455.98

98.8941

scenario 1 : Netbook (Ethernet) → Tokyo

586.02

13.39002

scenario 1 : Netbook (IEEE 802.11) → São Paulo

260.81

194.4324

scenario 1 : Netbook (IEEE 802.11) → California

547.54

316.4965

scenario 1 : Netbook (IEEE 802.11) → London

574.57

269.2531

scenario 1 : Netbook (IEEE 802.11) → Tokyo

667.97

332.1957

scenario 1 : Raspberry Pi (Ethernet) → São Paulo

207.15

105.0747

scenario 1 : Raspberry Pi (Ethernet) → California

440.33

70.7183

scenario 1 : Raspberry Pi (Ethernet) → London

446.88

6.5417

scenario 1 : Raspberry Pi (Ethernet) → Tokyo

588.56

12.4967

scenario 1 : Raspberry Pi (IEEE 802.11) → São Paulo

215.61

24.5928

scenario 1 : Raspberry Pi (IEEE 802.11) → California

456.57

17.9215

scenario 1 : Raspberry Pi (IEEE 802.11) → London

471.14

17.5994

scenario 1 : Raspberry Pi (IEEE 802.11) → Tokyo

611.72

20.2465

scenario 2 : São Paulo

179.76

11.9883

scenario 2 : California

414.38

14.9591

scenario 2 : London

426.85

8.6601

scenario 2 : Tokyo

567.06

15.1969

scenario 3 : Netbook (Ethernet)

66.14

0.8167

scenario 3 : Netbook (IEEE 802.11)

76.37

15.7349

scenario 3 : Raspberry Pi (Ethernet)

67.77

1.4624

scenario 3 : Raspberry Pi (IEEE 802.11)

75.5

4.0961

In scenario 2, the same geographic impact is noted as per scenario 1. However, once there is a direct connection between the microcontroller (Arduino) and the cloud instances, the delay is lower than scenario 1 since there is an intermediary fog node. As expected, the greater the distance from the microcontroller to the cloud instance, the longer the delay. From an instance located in São Paulo to an instance located in Tokyo, the delay increased 215.45% from 179.76 ms to 567.06 ms.

Scenario 3 behaves similarly to scenario 1 regarding network connection impact. The mean delay from the microcontroller to the Netbook through an Ethernet connection was 66.14 ms, while through IEEE 802.11 was, on average, 76.37 ms, an increase of 15.46%. The Raspberry Pi mean delay was similar, from 67.77 ms to 75.50 ms (increase of 11.40%) using the Ethernet and IEEE 802.11 network connection respectively.

In general, it is possible to note that the Netbook has a superior performance than the Raspberry Pi. In both scenarios 1 and 3, considering both types of network connection, the service time for the Netbook was lower than the Raspberry Pi. This is due to the fact that the computational capacity of the Netbook is superior than the Raspberry Pi. In addition, IEEE 802.11 had a high standard deviation average service time when compared to the Ethernet connection. This can be explained by interference with physical objects, high loss package, and collision avoidance mechanism present in wireless connections [52].

Results from stochastic models and discussions

In this section, we present and discuss the results for both availability and performance obtained from our models.

Availability results

To perform analysis on our models, we collected each component’s MTTF and MTTR values in line with extant literature. The MTTF and MTTR values of fog device hardware (HW_Fog) were estimated through an average of HW values found in [39, 5356], because the values for the specific hardware used was not available. All values we used to set our models are described in Table 7.
Table 7

MTTF and MTTR of components in hours (values obtained from [5358])

Component

MTTF (h)

MTTR (h)

HW_Cloud

8760

1.667

HW_Fog

4765.793684

3.4702988846

OS

1440

1

VM

2880

0.17

Microcontroller

44957

5

Sensor

28011

5

The availability and downtime results for each scenario are presented in Fig. 13. Scenario 2 presents the best availability level (0.9987%) in comparison with the scenario 1 (0.9973%) and 3 (0.9983%). This means that scenario 2 presents 11.01 h/year of downtime, while scenario 3 has 15.20 h/year, and scenario 1, 23.65 h/year. Scenario 1 presents the lowest availability because all the components are in series; all components are essential to e-health monitoring system operation.
Fig. 13
Fig. 13

a Availability levels and b downtime regarding the e-health monitoring system considering the three scenarios proposed

Sensitivity analysis

For the sensitivity analysis, we used the MTTF and MTTR values from our system’s components as parameters, varying them in ten values within a range defined by maximum and minimum values (10% plus and minus the default value). Table 8 shows the top three components (and their respective sensitivity index) that most impact on system availability.
Table 8

Indexes of the three paramaters that affect more the metric of each scenario

Scenario 1



Scenario 2

Scenario 3

Parameter

Index

Parameter

Index

Parameter

Index

MTTF_Fog

2.64×10−4

MTTF_Cloud

1.95×10−4

MTTF_Fog

2.65×10−4

MTTR_Fog

2.57×10−4

MTTR_Cloud

1.93×10−4

MTTR_Fog

2.57×10−4

MTTF_Cloud

1.95×10−4

MTTR_Sensors

3.57×10−5

MTTR_Sensors

3.57×10−5

Figure 14 represents the availability variation of the top three parameters that most impact system availability in scenario 1. As expected, when we increase the MTTF value (see Fig. 14a and c), the availability also increases, but in this case, the fog device MTTF has more impact than the cloud MTTF. An increase of 20% in fog device MTTF results in a notional reduction of 2.1051 h in annual downtime, while the same increase in cloud MTTF results in a smaller decrease in downtime i.e. only 1.4088 h.
Fig. 14
Fig. 14

Availability results for scenario 1 varying a the fog device MTTF, b the fog device MTTR and c, the cloud MTTF

Scenarios 2 and 3 (Figs. 15 and 16, respectively) behave similarly due to their reliance on only one application instantiation; scenario 2 considers only the cloud while scenario 3 only considers the fog. In scenario 2, the three parameters that have the greatest impact on system availability are the MTTF and MTTR of Cloud and the MTTR of the sensors. A variation in MTTF of cloud results in a reduction in annual downtime of 1.4108 h, while the same variation in MTTR of sensors results in a minor reduction in annual downtime, 0.3123 h. As expected, in scenario 3 the MTTF and MTTR of fog are those that greater impact system availability. An increase of 20% in the MTTF of the fog devices results in a decrease of 2.1071 h, while the same increase in the sensor’s MTTR results in a decrease of 0.0312 h.
Fig. 15
Fig. 15

Availability results of scenario 2 varying a the cloud MTTF, b the cloud MTTR and c, the sensor MTTR

Fig. 16
Fig. 16

Availability results of scenario 3 varying a the fog MTTF, b the fog MTTR and c, the sensor MTTR

Performance results

We perform stationary analysis on our performance model. The service time used in the analysis was set up with delays measured through our prototype experiments (Table 6), while the time to arrival requests was set up 2 s.

Table 9 presents the performance results obtained from the analysis of our model. One can note that changing the geographic location of the cloud instance impacts the performance metrics evaluated. For example, let’s consider the Netbook sending data using the Ethernet. To send data to the cloud instance located in São Paulo, the throughput was 15,738,041.69 requests/year. To send to the instance located in Tokyo was 15,736,220.39 requests/year. In this same configuration, the service time increases from 1851.17 to 2664.78 ms.
Table 9

Performance results of scenario 1

Fog device → Network connection → Cloud geo-location

Throughput (requests/year)

Service Time (ms)

Netbook → Ethernet → São Paulo

15,738,041.69

1851.17

Netbook → Ethernet → California

15,736,826.80

2300.51

Netbook → Ethernet → London

15,736,728.23

2352.86

Netbook → Ethernet → Tokyo

15,736,220.39

2664.78

Netbook → IEEE 802.11 → São Paulo

15,737,640.90

1962.35

Netbook → IEEE 802.11 → California

15,736,364.61

2567.16

Netbook → IEEE 802.11 → London

15,736,259.12

2635.18

Netbook → IEEE 802.11 → Tokyo

15,735,924.73

2890.17

Raspberry Pi → Ethernet → São Paulo

15,737,979.44

1867.21

Raspberry Pi → Ethernet → California

15,736,792.77

2318.46

Raspberry Pi → Ethernet → London

15,736,760.02

2332.73

Raspberry Pi → Ethernet → Tokyo

15,736,212.84

2671.46

Raspberry Pi → IEEE 802.11 → São Paulo

15,737,907.39

1881.88

Raspberry Pi → IEEE 802.11 → California

15,736,725.89

2354.14

Raspberry Pi → IEEE 802.11 → London

15,736,664.17

2386.73

Raspberry Pi → IEEE 802.11 → Tokyo

15,736,124.07

2732.74

The change of connection type had a low impact on the metrics evaluated. For instance, for messages sent from the Netbook to the instance located in São Paulo, the throughput using the Ethernet and IEEE 802.11 were 15,738,041.69 requests/year and 15,737,640.90 requests/year respectively; the service times were 1851.17 and 1962.35 ms respectively. In general and as expected, the Netbook had a superior performance than the Raspberry Pi due to its superior hardware configuration.

Figure 17 and Table 10 present the results of scenario 2. As in scenario 1, the geographic locations of cloud instances also impacted on the performance metrics. The throughput for the instance located in São Paulo was 15,758,748.10 requests/year and decreased as the distance of the instance location increased, reaching 15,758,745.88 requests/year for the instance located in Tokyo. The service time is also impacted, from 2319.58 ms for the instance located in São Paulo and 3252.77 ms for instance located in Tokyo.
Fig. 17
Fig. 17

Scenario 2 performance results: a throughput, and b service time

Table 10

Performance results of scenario 2

Cloud geo-location

Throughput (requests/year)

Service Time (ms)

São Paulo

15,758,748.10

2319.58

California

15,758,746.89

2830.46

London

15,758,746.81

2861.87

Tokyo

15,758,745.88

3252.77

Finally, Fig. 18 and Table 11 present the performance results for scenario 3. In this scenario, a significant impact was identified relating to the type of network connection. For example, the throughput of the Netbook using the Ethernet was 15,748,129.90 requests/year, while through IEEE 802.11 was 15,748,129.83 requests/year. A similar impact was identified with the service time i.e. 2842.23 and 2856.60 ms. The Netbook and Raspberry Pi display similar behaviors as they both experienced a close delay in prototype experiments.
Fig. 18
Fig. 18

Scenario 3 performance results: a throughput, and b service time

Table 11

Performance results of scenario 3

Fog device → Network connection

Throughput (requests/year)

Service Time (ms)

Netbook → Ethernet (N-E)

15,748,129.90

2842.23

Netbook → IEEE 802.11 (N-I)

15,748,129.83

2856.60

Raspberry Pi → Ethernet (R-E)

15,748,129.89

2844.51

Raspberry Pi → IEEE 802.11 (R-I)

15,748,129.83

2855.37

The processing capacity of the fog device (place 3_Fog_Capacity) and cloud server (place 3_Cloud_Capacity) was limited in our models (600 and 1000, respectively) to avoid state explosion when solving the model analytically. Nonetheless, we noted that increasing the capacity to process simultaneous requests substantially neither affects the throughput nor the service time metrics. For values greater than 600 and 1000, the impact on analyzed metrics were almost insignificant. For instance in scenario 2, when we set fog and cloud capacity as 600 and 1000 respectively, the Markov chain was composed of 24,032 states and the result was 1799.3254 requests/hour and 1269.2155 ms for throughput and service time respectively. When we use 1200 and 2000, the Markov chain was composed of 48,032 states resulting in 1799.4367 requests/hour and 1412.8086 ms for throughput and service time respectively).

Discussions

From the stationary analysis, we evaluated availability in each scenario. We noted that the best availability level (0.9987%) was achieved in scenario 2 (where only the cloud application is considered) and the worst one (0.9973%) was scenario 1 (using both fog and cloud). It is an interesting result since in scenario 1 we have more computational layers and consequently more devices can fail (and thereby decreasing the availability of the whole system). Thus, despite the extension of fog node capability by the cloud, this integrated scenario is more complex and as a result has more points of failures despite the hypothesized benefits.

Regarding the sensitivity analysis results, there is greater variability in the components that impact the availability of e-health monitoring system in the scenarios examined. In scenario 1, the most critical component is the fog device whereas in scenarios 2 and 3, the fog device and cloud infrastructure impact the system respectively. An increase of 20% in MTTF value of fog device (scenario 1) results in a reduction of 2.1051 h in annual downtime. An increase of 20% in MTTF of cloud infrastructure results in reduction of 1.4108 h of annual downtime (scenario 2). And in scenario 3, an increase of 20% in MTTF of fog devices results in reduction of 2.1071 h of annual downtime. Depending on the configuration chosen for the e-health monitoring system, investments can be made to increase availability, or by adding more redundant equipment provide greater reliability.

Within the prototype experiments, we noted an increase of delay as the distance from microcontroller/fog devices to cloud instance increases both in scenario 1 and 2, as expected. The delay in scenario 1 was slightly higher than scenario 2 once the fog devices are added. However, the addition of fog devices (scenario 1) enables the pre-analysis of data collected by sensors before sending to the cloud. Thus, simple decisions, such as calling an ambulance, can be made quicker.

We also observed that the delay to send data from microcontroller to fog devices is significantly lower than sending to the cloud. Considering the closer proximity of the the cloud instance to the microcontroller (São Paulo), the mean delay was 179.76 ms, while the higher mean delay to send to the cloud was 76.37 ms (Netbook with IEEE 802.11). For delay-sensitive systems (e.g. e-health monitoring systems, augmented reality, real-time video analytics, and content delivery [22]), fog devices can greatly reduce the delay and increase the performance of these systems. However, one should not disregard the limited computing capacity of these devices.

These experiment results were used to feed the performance model. For scenarios 1 and 2, as the geographic distance of the cloud instance increases, the throughput decreases (see Tables 9 and 10). Once the time to process a request increases, fewer requests will be processed because they will remain in the queue for longer (see Fig. 8). In addition, service time is directly impacted by the geographic location of an instance i.e. the longer it takes to send the request, the longer it will take to process the request and to receive a response. For an e-health monitoring application, where some decisions need to be made quickly, hosting the cloud instance in a remote geographic region may have a significant impact on service time and associated QoS levels.

Scenario 1 had the lowest availability level and the worst performance results. This can be explained as follows. The e-health system is considered operational only when all components of the scenario are working and this reduces the availability of the system as a whole. Relatively poor performance results are due to the high delay in sending data from the microcontroller to the cloud passing through a fog device. Notwithstanding this, this scenario can take advantage of the computing capacity and virtually unlimited data storage that cloud computing offers.

Scenario 2 presented the best availability level and better performance results than others. The improvement in performance is due to the decrease in delay because the data is sent directly from the microcontroller to the cloud (without fog devices). Notwithstanding this, the delay in scenario 2 can compromise systems that are delay-sensitive.

Scenario 3 had lower availability results than scenario 2, because the availability of fog devices is lower than cloud infrastructure. Similar to scenario 1, the availability has an impact in throughput, decreasing the number of requests processed when compared to scenario 2. The service time is lower than other scenarios, since delay to send data to fog devices is lower. However, fog devices have lower computational capacity than cloud devices, so this scenario may not be the most appropriate for systems that handle large amounts of data.

Conclusions

Fog and cloud computing address a number of problems encountered in IoT however they also increase management complexity. Despite fog and cloud computing offering greater availability and resilience, they can also be viewed as vulnerabilities or potential points of failure. As such, in addition to edge device failure, attention must be paid to fog node and cloud infrastructure failures. While cloud and fog integration is relatively well known and shares common technologies, the integration/extension with IoT is a non-trivial task, mostly due to massive device heterogeneity and service requirements.

Some systems have high criticality and any downtime can lead in extreme cases to death as in the case of an e-health monitoring system, the focus of this article. The main goal of the is study was to identify the bottlenecks in an integrated e-health monitoring system and propose strategies to minimize the application downtime, prevent failures, and guide financial investment decision making.

In this paper, we proposed an architecture to provide an e-health monitoring system relying on IoT sensors, fog devices and cloud infrastructure. This service was evaluated regarding its availability and performance. We proposed stochastic models by using SPN and RBD approaches. To use realistic data as an input to our models, we also developed and implemented a prototype with different types of fog device, network connection, and cloud instances located in four different geographic locations.

From our results, it is clear that there is a trade-off between performance and service time. In this way, it is necessary to prioritize the application requirements before deciding on the best architecture. This is illustrated by the results from the various scenarios. For example, the scenario that relies only on cloud infrastructure (scenario 2) presents the best availability level since cloud providers can offer a better service as measured by reliability than fog devices. On the other hand, scenario 1, which relies on fog devices and cloud infrastructure, may be more appropriate to host e-health monitoring systems due to the technological limitations of end-devices. Other configurations may be more appropriate depending on the use scenario e.g. big data services.

As future works, we plan to analyze the impact of redundancy and understand how we can improve the availability of the system by adding more cloud servers or fog devices. We also plan to evolve the prototype system with different types of smart-end devices, fog devices, and analytical techniques (including machine learning) to treat the vital signs data from patients and analyze the impact of processing data on fog devices and cloud servers. Finally, we intend to evaluate different IoT communication protocols, such as MQTT, COAP, and AMQP with the goal of improving the prototype and measuring different metrics such as the QoS of application.

Abbreviations

AT:

Arrival time

AWS:

Amazon web services

BPM:

Beat per minute

EC2:

Elastic compute cloud

IBB:

Interval between beats

IoT:

Internet of things

ms:

Milliseconds

MTTF:

Mean time to failure

MTTR:

Mean time to repair

RBD:

Reliability diagram blocks

SPN:

Stochastic petri nets

ST:

Service time

Declarations

Acknowledgments

The authors would like to thank Universidade de Pernambuco, CNPq (Conselho Nacional de Desenvolvimento Científico e Tecnológico) and CAPES (Coordenação de Aperfeiçoamento de Pessoal de Nível Superior) for supporting this work.

This work is partially funded by the European Union’s Horizon 2020 Research and Innovation Programme through RECAP (http://www.recap-project.eu) under Grant Agreement Number 732667.

Funding

This work is partially funded by the European Union’s Horizon 2020 and FP7 Research and Innovation Programmes through RECAP (http://www.recap-project.eu) under Grant Agreement No. 732667.

Availability of data and materials

Not applicable

Authors’ contributions

Our contribution combines availability and performance models and associated analysis to evaluate an e-health monitoring system. We propose a set of stochastic models to understand the impact of failures of IoT, fog, and cloud infrastructures in an e-health monitoring system. We perform sensitivity analysis to understand the components that have a significant impact on system availability. To feed our performance models with real data, a prototype e-health monitoring system was developed and deployed. The resulting data from the prototype was integrated with the availability and performance models to enable analysis of the system as a whole.

Competing interests

The authors declare that they have no competing interests.

Publisher’s Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Open Access This article is distributed under the terms of the Creative Commons Attribution 4.0 International License (http://creativecommons.org/licenses/by/4.0/), which permits unrestricted use, distribution, and reproduction in any medium, provided you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made.

Authors’ Affiliations

(1)
Universidade Federal de Pernambuco (UFPE), Grupo de Pesquisa em Redes de Computadores e Telecomunicações (GPRT), Recife, Pernambuco, Brazil
(2)
Universidade de Pernambuco (UPE), Recife, Pernambuco, Brazil
(3)
Dublin City University (DCU), Irish Centre for Cloud Computing and Commerce (IC4), Dublin, Ireland

References

  1. Islam SR, Kwak D, Kabir MH, Hossain M, Kwak K-S (2015) The internet of things for health care: a comprehensive survey. IEEE Access 3:678–708.View ArticleGoogle Scholar
  2. Atzori L, Iera A, Morabito G (2010) The internet of things: A survey. Comput Netw 54(15):2787–2805.View ArticleGoogle Scholar
  3. Biswas AR, Giaffreda R (2014) Iot and cloud convergence: Opportunities and challenges In: Internet of Things (WF-IoT), 2014 IEEE World Forum On, 375–376.. IEEE. https://www.computer.org/csdl/proceedings/wf-iot/2014/3459/00/06803194-abs.html.
  4. Botta A, De Donato W, Persico V, Pescapé A (2014) On the integration of cloud computing and internet of things In: Future Internet of Things and Cloud (FiCloud), 2014 International Conference On, 23–30.. IEEE. https://ieeexplore.ieee.org/abstract/document/6984170/.
  5. Lee I, Lee K (2015) The internet of things (iot): Applications, investments, and challenges for enterprises. Bus Horiz 58(4):431–440.View ArticleGoogle Scholar
  6. Vaquero LM, Rodero-Merino L (2014) Finding your way in the fog: Towards a comprehensive definition of fog computing. ACM SIGCOMM Comput Commun Rev 44(5):27–32.View ArticleGoogle Scholar
  7. Bonomi F, Milito R, Zhu J, Addepalli S (2012) Fog computing and its role in the internet of things In: Proceedings of the First Edition of the MCC Workshop on Mobile Cloud Computing, 13–16.. ACM. https://dl.acm.org/citation.cfm?id=2342513.
  8. Mell P, Grance TThe NIST definition of cloud computing. NIST Special Publication 800-145. 2011. http://faculty.winthrop.edu/domanm/csci411/Handouts/NIST.pdf.
  9. Mshali H, Lemlouma T, Magoni D (2018) Adaptive monitoring system for e-health smart homes. Pervasive Mob Comput 43:1–19.View ArticleGoogle Scholar
  10. Trivedi K, Andrade E, Machida F (2012) Combining performance and availability analysis in practice In: Advances in Computers vol 84, 1–38.. Elsevier. https://www.sciencedirect.com/science/article/pii/B9780123965257000010.
  11. Zeng W, Koutny M, Watson P (2015) Opacity in internet of things with cloud computing (short paper) In: Service-Oriented Computing and Applications (SOCA), 2015 IEEE 8th International Conference On, 201–207.. IEEE. https://ieeexplore.ieee.org/abstract/document/7399111/.
  12. Colom JF, Mora H, Gil D, Signes-Pont MT (2017) Collaborative building of behavioural models based on internet of things. Comput Electr Eng 58:385–396.View ArticleGoogle Scholar
  13. Lomotey RK, Pry J, Sriramoju S (2017) Wearable iot data stream traceability in a distributed health information system. Pervasive Mob Comput 40:692–707.View ArticleGoogle Scholar
  14. Araujo J, Silva B, Oliveira D, Maciel P (2014) Dependability evaluation of a mhealth system using a mobile cloud infrastructure In: Systems, Man and Cybernetics (SMC), 2014 IEEE International Conference On, 1348–1353.. IEEE. https://ieeexplore.ieee.org/abstract/document/6974102/.
  15. Li Y, Orgerie A-C, Rodero I, Parashar M, Menaud J-M (2017) Leveraging renewable energy in edge clouds for data stream analysis in iot In: Proceedings of the 17th IEEE/ACM International Symposium on Cluster, Cloud and Grid Computing, 186–195.. IEEE Press. https://ieeexplore.ieee.org/abstract/document/7973702/.
  16. Souza VB, Masip-Bruin X, Marin-Tordera E, Ramírez W, Sanchez S (2016) Towards distributed service allocation in fog-to-cloud (f2c) scenarios In: Global Communications Conference (GLOBECOM), 2016 IEEE, 1–6.. IEEE. https://ieeexplore.ieee.org/abstract/document/7842341/.
  17. Bradley J, Reberger C, Dixit A, Gupta V (2013) Internet of everything: A $4.6 trillion public-sector opportunity. Whitepaper. https://www.cisco.com/c/dam/en_us/about/businessinsights/docs/ioe-public-sector-vas-white-paper.pdf.
  18. Bradley J, Barbier J, Handle D (2013) Embracing the Internet of Everything To Capture Your Share of $14.4 Trillion. Whitepaper. https://www.cisco.com/c/dam/en_us/about/ac79/docs/innov/IoE_Economy.pdf.
  19. Shi W, Cao J, Zhang Q, Li Y, Xu L (2016) Edge computing: Vision and challenges. IEEE Internet Things J 3(5):637–646.View ArticleGoogle Scholar
  20. Chiang M, Zhang T (2016) Fog and iot: An overview of research opportunities. IEEE Internet Things J 3(6):854–864.View ArticleGoogle Scholar
  21. Iorga M, Feldman L, Barton R, Martin MJ, Goren N, Mahmoudi CThe NIST Definition of Fog Computing. NIST Special Publication 800-191 (Draft). 2017. https://csrc.nist.gov/csrc/media/publications/sp/800-191/draft/documents/sp800-191-draft.pdf.
  22. Yi S, Li C, Li Q (2015) A survey of fog computing: concepts, applications and issues In: Proceedings of the 2015 Workshop on Mobile Big Data, 37–42.. ACM. https://dl.acm.org/citation.cfm?id=2757397.
  23. Luan TH, Gao L, Li Z, Xiang Y, Wei G, Sun L (2015) Fog computing: Focusing on mobile users at the edge. arXiv preprint arXiv:1502.01815. https://arxiv.org/abs/1502.01815.
  24. Gissler B, Shrivastava P (2015) A system for design decisions based on reliability block diagrams In: Reliability and Maintainability Symposium (RAMS), 2015 Annual, 1–6.. IEEE. https://ieeexplore.ieee.org/abstract/document/7105105/.
  25. Hasan O, Ahmed W, Tahar S, Hamdi MS (2015) Reliability block diagrams based analysis: A survey In: AIP Conference Proceedings, vol 1648, 850129.. AIP Publishing. https://aip.scitation.org/doi/abs/10.1063/1.4913184.
  26. Signoret J-P, Dutuit Y, Cacheux P-J, Folleau C, Collas S, Thomas P (2013) Make your petri nets understandable: Reliability block diagrams driven petri nets. Reliab Eng Syst Saf 113:61–75.View ArticleGoogle Scholar
  27. Bourouni K (2013) Availability assessment of a reverse osmosis plant: comparison between reliability block diagram and fault tree analysis methods. Desalination 313:66–76.View ArticleGoogle Scholar
  28. Dantas J, Matos R, Araujo J, Maciel P (2015) Eucalyptus-based private clouds: availability modeling and comparison to the cost of a public cloud. Computing 97(11):1121–1140.MathSciNetView ArticleGoogle Scholar
  29. Labadi K, Benarbia T, Barbot J-P, Hamaci S, Omari A (2015) Stochastic petri net modeling, simulation and analysis of public bicycle sharing systems. IEEE Trans Autom Sci Eng 12(4):1380–1395.View ArticleGoogle Scholar
  30. Li P, Yang C, Xu H, LAU TF, Wang R (2017) User behaviour authentication model based on stochastic petri net in cloud environment In: International Symposium on Parallel Architecture, Algorithm and Programming, 59–69.. Springer. https://link.springer.com/chapter/10.1007/978-981-10-6442-5_6.Google Scholar
  31. Almutairi LM, Shetty S (2017) Generalized stochastic petri net model based security risk assessment of software defined networks In: Military Communications Conference (MILCOM), MILCOM 2017-2017 IEEE, 545–550.. IEEE. https://ieeexplore.ieee.org/abstract/document/8170813/.
  32. Heidary Z, Ghaisari J, Moein S, Naderi M, Gheisari Y (2016) Stochastic petri net modeling of hypoxia pathway predicts a novel incoherent feed-forward loop controlling sdf-1 expression in acute kidney injury. IEEE Trans Nanobioscience 15(1):19–26.View ArticleGoogle Scholar
  33. Pianosi F, Beven K, Freer J, Hall JW, Rougier J, Stephenson DB, Wagener T (2016) Sensitivity analysis of environmental models: A systematic review with practical workflow. Environ Model Softw 79:214–232.View ArticleGoogle Scholar
  34. Razavi S, Gupta HV (2015) What do we mean by sensitivity analysis? the need for comprehensive characterization of “global” sensitivity in earth and environmental systems models. Water Resour Res 51(5):3070–3092.View ArticleGoogle Scholar
  35. Hamby D (1994) A review of techniques for parameter sensitivity analysis of environmental models. Environ Monit Assess 32(2):135–154.View ArticleGoogle Scholar
  36. Chiuchisan I, Costin H-N, Geman O (2014) Adopting the internet of things technologies in health care systems In: Electrical and Power Engineering (EPE), 2014 International Conference and Exposition On, 532–535.. IEEE. https://ieeexplore.ieee.org/abstract/document/6969965/.
  37. Li H, Ota K, Dong M (2018) Learning iot in edge: Deep learning for the internet of things with edge computing. IEEE Netw 32(1):96–101.View ArticleGoogle Scholar
  38. Matos R, Araujo J, Oliveira D, Maciel P, Trivedi K (2015) Sensitivity analysis of a hierarchical model of mobile cloud computing. Simul Model Pract Theory 50:151–164.View ArticleGoogle Scholar
  39. Matos R, Dantas J, Araujo J, Trivedi KS, Maciel P (2017) Redundant eucalyptus private clouds: Availability modeling and sensitivity analysis. J Grid Comput 15(1):1–22.View ArticleGoogle Scholar
  40. Jain R (1990) The Art of Computer Systems Performance Analysis: Techniques for Experimental Design, Measurement, Simulation, and Modeling. John Wiley & Sons. https://www.wiley.com/en-us/The+Art+of+Computer+Systems+Performance+Analysis\%3A+Techniques+for+Experimental+Design%2C+Measurement%2C+Simulation%2C+and+Modeling-p-9780471503361.
  41. Rahmati SHA, Ahmadi A, Sharifi M, Chambari A (2014) A multi-objective model for facility location–allocation problem with immobile servers within queuing framework. Comput Ind Eng 74:1–10.View ArticleGoogle Scholar
  42. Vilaplana J, Solsona F, Teixidó I, Mateo J, Abella F, Rius J (2014) A queuing theory model for cloud computing. J Supercomput 69(1):492–507.View ArticleGoogle Scholar
  43. Pham TN, Tsai M-F, Nguyen DB, Dow C-R, Deng D-J (2015) A cloud-based smart-parking system based on internet-of-things technologies. IEEE Access 3:1581–1591.View ArticleGoogle Scholar
  44. Al-Haidari F, Sqalli M, Salah K (2015) Evaluation of the impact of edos attacks against cloud computing services. Arab J Sci Eng 40(3):773–785.View ArticleGoogle Scholar
  45. Adhikary T, Das AK, Razzaque MA, Alrubaian M, Hassan MM, Alamri A (2017) Quality of service aware cloud resource provisioning for social multimedia services and applications. Multimedia Tools Appl 76(12):14485–14509.View ArticleGoogle Scholar
  46. Goldsztajn D, Ferragut A, Paganini F, Jonckheere M (2018) Controlling the number of active instances in a cloud environment. ACM SIGMETRICS Perform Eval Rev 45(2):15–20.View ArticleGoogle Scholar
  47. Yang B, Tan F, Dai Y-S, Guo S (2009) Performance evaluation of cloud service considering fault recovery In: IEEE International Conference on Cloud Computing, 571–576.. Springer. https://link.springer.com/chapter/10.1007/978-3-642-10665-1_54.
  48. Khazaei H, Misic J, Misic VB (2012) Performance analysis of cloud computing centers using m/g/m/m+ r queuing systems. IEEE Trans Parallel Distrib Syst 23(5):936–943.View ArticleGoogle Scholar
  49. Shelby Z, Hartke K, Bormann C (2014) The constrained application protocol (CoAP). No. RFC 7252. 2014. http://www.rfc-editor.org/info/rfc7252. https://doi.org/10.17487/RFC7252.
  50. Shang W, Yu Y, Droms R, Zhang L (2016) Challenges in iot networking via tcp/ip architecture. Technical Report NDN-0038. NDN Project.Google Scholar
  51. Chen X, Huang X, Jiao C, Flanner MG, Raeker T, Palen B (2017) Running climate model on a commercial cloud computing environment: A case study using community earth system model (cesm) on amazon aws. Comput Geosci 98:21–25.View ArticleGoogle Scholar
  52. Sagari S, Seskar I, Raychaudhuri D (2015) Modeling the coexistence of lte and wifi heterogeneous networks in dense deployment scenarios In: Communication Workshop (ICCW), 2015 IEEE International Conference On, 2301–2306.. IEEE. https://ieeexplore.ieee.org/abstract/document/7247524/.
  53. Araujo J, Maciel P, Torquato M, Callou G, Andrade E (2014) Availability evaluation of digital library cloud services In: Dependable Systems and Networks (DSN), 2014 44th Annual IEEE/IFIP International Conference On, 666–671.. IEEE. https://ieeexplore.ieee.org/abstract/document/6903622/.
  54. Silva B, Maciel P, Tavares E, Zimmermann A (2013) Dependability models for designing disaster tolerant cloud computing systems In: Dependable Systems and Networks (DSN), 2013 43rd Annual IEEE/IFIP International Conference On, 1–6.. IEEE. https://ieeexplore.ieee.org/abstract/document/6575323/.
  55. Tang D, Kumar D, Duvur S, Torbjornsen O (2004) Availability measurement and modeling for an application server In: Dependable Systems and Networks, 2004 International Conference On, 669–678.. IEEE. https://ieeexplore.ieee.org/abstract/document/1311937/.
  56. Kim DS, Machida F, Trivedi KS (2009) Availability modeling and analysis of a virtualized system In: Dependable Computing, 2009. PRDC’09. 15th IEEE Pacific Rim International Symposium On, 365–371.. IEEE. https://ieeexplore.ieee.org/abstract/document/5368189/.
  57. Novacek GTips for Predicting Product Reliability. http://circuitcellar.com/cc-blog/tips-for-predicting-product-reliability/. Accessed 05 Jan 2018.
  58. Balc C, Cretu A, Munteanu R, Iudean D, Balan H, Karaisas P (2017) Reliability modeling for an automatic level control system In: Optimization of Electrical and Electronic Equipment (OPTIM) & 2017 Intl Aegean Conference on Electrical Machines and Power Electronics (ACEMP), 2017 International Conference On, 995–1000.. IEEE. https://ieeexplore.ieee.org/abstract/document/7975100/.

Copyright

© The Author(s) 2018

Advertisement
